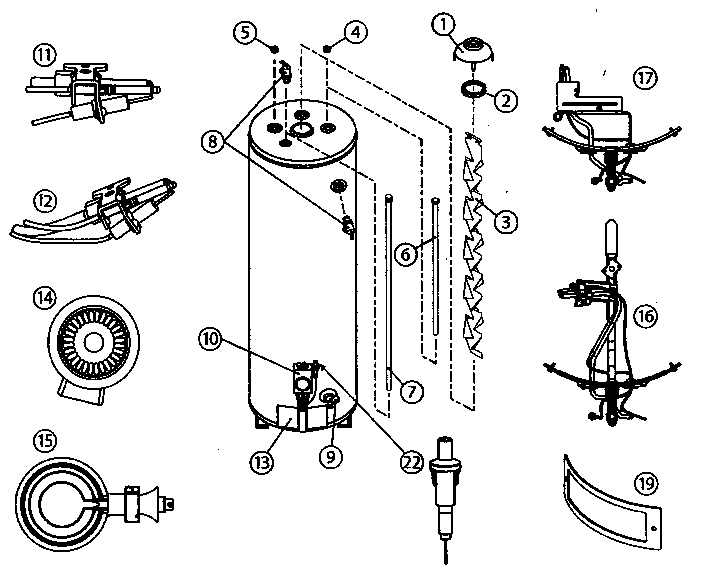

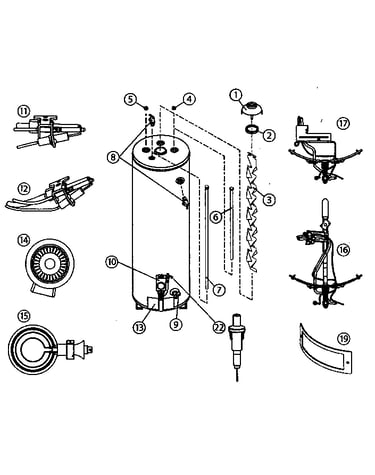

American Water Heaters FG1J5040T3NOV water heater Parts

The most common problem we see with gas water heaters like American model FG1J5040T3NOV is ignition trouble, especially a pilot that will not light or will not stay lit. When that happens, the heater cannot fire the main burner, so you get little or no hot water.

What usually causes it

Pilot and burner issues are common because they are directly tied to safe gas operation and proper combustion.

• Dirty or restricted pilot/burner area (dust, lint, or debris)
• Weak or failed igniter or pilot assembly
• Gas supply issues (valve off, low supply pressure, empty LP tank)
• Venting or draft problems that disrupt the flame
• Safety shutdown after exposure to flammable vapors (the safety system can disable the heater)

For model-specific lighting and safety steps, follow the owner's manual.

Quick checks we recommend (safe, homeowner-level)

Before you do anything, use basic gas safety: if you smell gas, do not try to light the heater.

• Confirm the gas shutoff valve is fully open
• If you have LP (propane), verify the tank is not empty and re-light appliances per instructions after refill
• Look through the viewport to see whether the pilot is lit
• Make sure the outer door is installed correctly; an open or misaligned door can affect combustion air
• If the pilot will not light using the built-in igniter, the pilot/igniter assembly is a common suspect

If you need a replacement, match parts to FG1J5040T3NOV; for example, the water heater pilot igniter 100110936 is one pilot/igniter option listed for this model.

Common symptoms and what they point to

Symptom	Most likely area to check	What it affects
Pilot will not light	Igniter/pilot assembly, gas supply	No burner ignition
Pilot lights but goes out	Pilot assembly, combustion air, venting	Intermittent hot water
Water too hot	Thermostat setting, stacking	Scald risk
Water smells like rotten eggs	Anode rod reaction	Odor, tank protection

Why it matters

A stable pilot flame is the starting point for safe heating. When ignition is unreliable, you can end up with no hot water, nuisance shutdowns, or unsafe operating conditions. The manual also highlights scald risk and recommends a 120°F starting point for temperature setting.

If you are ordering parts beyond what is listed for this model, we recommend searching by model number on Sears PartsDirect.

Last updated: February 2026

Most tank-style gas water heaters last 8 to 12 years. For your American FG1J5040T3NOV, lifespan depends heavily on water quality and maintenance; inspecting and replacing the anode rod on schedule is one of the best ways to help the tank reach the upper end of that range.

Typical lifespan and what changes it

A gas water heater’s tank life is mainly limited by internal corrosion and sediment buildup.

• 8 to 12 years is the normal expectation for a standard tank gas water heater
• Hard water and heavy hot-water use can shorten life
• Regular flushing helps reduce sediment-related stress
• Anode rod condition strongly affects tank corrosion protection
• Poor venting or combustion air issues can cause performance problems that feel like “end of life”

Maintenance that most improves tank life

Your manual calls out anode-rod inspection as a key maintenance item; we recommend following the schedule in the owner's manual.

• Inspect the anode rod about every 3 years
• Replace the anode rod when it is more than 50% depleted
• Drain a few gallons before anode service to reduce mess and pressure
• Keep the burner area and access door properly installed after service
• Address “rotten egg” odor by checking the anode and water conditions (do not remove the anode permanently)

Helpful parts for maintenance

If you are planning preventive maintenance, these model-matched parts are commonly involved:

Maintenance need	What it affects	Example part for FG1J5040T3NOV
Corrosion protection	Tank life	Water heater anode rod 100109594
Routine draining/flushing	Sediment control	Drain valve 100109106
Pressure safety device	Overpressure protection	T&p valve 100108279

Signs replacement is getting close

These symptoms often show up as a tank nears the end of its service life:

• Rusty or discolored hot water
• Rumbling, popping, or banging from sediment
• Water around the base of the heater (tank leak)
• Inconsistent hot water even after basic maintenance
• Unit age approaching or beyond the typical 8 to 12 year range

Why it matters

A gas water heater usually fails in predictable ways: corrosion (tank leaks) or performance loss from sediment and combustion issues. Staying ahead with anode-rod checks and periodic draining helps you avoid sudden leaks and extends usable life.

For model-specific procedures and safety steps, use the owner's manual. For ordering parts listed for FG1J5040T3NOV, shop the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A typical 50-gallon gas water heater usually runs about $600 to $1,200+ for the tank, and about $900 to $3,100+ installed once you add labor, venting, gas piping changes, and code-required safety items. For your American FG1J5040T3NOV, use the owner's manual to confirm venting and space requirements that can affect installation cost.

What drives the price up or down

Installed cost varies most based on the job, not just the tank. Common cost drivers include:

• Venting type and condition (draft hood vs. power vent, chimney/vent connector condition)
• Gas line sizing or rerouting (pipe diameter and total run length)
• Combustion air needs (tight homes, closets, or confined spaces may need added air openings)
• Water piping updates (shutoff valves, dielectric unions, expansion tank)
• Disposal and access (stairs, tight utility rooms, haul-away)

Typical cost ranges (what most homeowners see)

These ranges help you budget before you pick a specific heater and installer.

Cost item	Typical range	Notes
50-gallon gas tank (unit only)	$600 to $1,200+	Higher for premium efficiency and specialty venting
Professional installation labor	$300 to $1,500+	Higher when venting or gas piping must be modified
Common add-ons (parts/materials)	$100 to $600+	Expansion tank, valves, connectors, vent parts
Total installed (common range)	$900 to $3,100+	Wide range based on complexity

Why it matters for the FG1J5040T3NOV

Gas water heater installs are priced around safety and setup details. Your manual calls out key items that can change the scope, such as:

• Combustion air and ventilation rules (confined vs. unconfined space)
• Gas supply sizing based on BTU input and pipe length
• Thermal expansion control in closed water systems (often an expansion tank)

Review those requirements in the owner's manual before you compare quotes so you are pricing the same installation scope.

Parts and service planning (optional, but smart)

If you are budgeting for ownership, it helps to know common service parts that may come up over time:

• T&p valve 100108279 (safety relief valve)
• Drain valve 100109106 (tank draining and maintenance)
• Water heater anode rod 100109594 (corrosion protection)

You can order model-specific replacement parts from the parts list for FG1J5040T3NOV, or search by model on Sears PartsDirect.

Last updated: February 2026

For an American FG1J5040T3NOV gas water heater, it’s cheaper to repair when the problem is limited to a serviceable part (like a pilot/igniter, drain valve, or T&P valve) and the tank is sound. Replace the water heater when the tank is leaking, badly corroded, or has been submerged in flood water (replacement is required in that situation per the owner's manual).

Quick decision guide

• Repair when the issue is isolated to a replaceable component and there’s no tank leak.
• Replace when you see tank leakage, heavy rusting at the tank seams, or repeated failures.
• Replace immediately if any gas controls, burner, or pilot area has been under water.
• Repair when the fix is a known wear item (pilot/igniter, gasket, drain valve) and the heater otherwise runs normally.
• Replace when repair cost is approaching the value of the unit, especially if multiple parts are failing.

Common repairs that are usually cost-effective

These are typical “repair first” items on this model:

• Water heater pilot igniter 100110936 (no ignition, weak pilot)
• Drain valve 100109106 (dripping or won’t close fully)
• T&p valve 100108279 (leaking from the valve body or won’t reseat)
• Water heater manifold door gasket 100112699 (air leaks around the burner access)
• Water heater anode rod 100109594 (odor control and tank protection; inspect about every 3 years and replace if more than 50% depleted)

Repair vs. replace comparison

Situation	Usually cheaper choice	Why
Pilot will not stay lit, no tank leak	Repair	Targeted part replacement restores operation.
Drain valve seep or won’t shut	Repair	Low complexity, localized leak point.
T&P valve leaking (not from discharge pipe due to overheating)	Repair	Valve replacement is straightforward.
Tank is leaking from the body/seams	Replace	Tank leaks are not a part-level repair.
Heater has been under water (flooding)	Replace	Safety-critical components require full replacement.

Why it matters

A gas water heater combines fuel, flame, and pressurized hot water. Repairing the right component can restore safe operation at a lower cost, but a leaking tank or flood exposure turns it into a replacement decision to protect your home and keep the system operating safely.

Ordering the right parts

We recommend matching parts by the full model number FG1J5040T3NOV. You can order the exact replacement parts listed for this model, or search by model number on Sears PartsDirect if you need additional items.

Last updated: February 2026

Yes. On the American FG1J5040T3NOV gas water heater, many service parts are replaceable (pilot/igniter, T&P relief valve, drain valve, anode rod), and replacing worn parts can restore safe operation and extend service life. Follow the FG1J5040T3NOV owner's manual for model-specific steps and safety.

Common replaceable parts on FG1J5040T3NOV

• Pilot/igniter parts for lighting problems
• Temperature and pressure relief valve for leaking or weeping
• Drain valve for leaks or a valve that will not close
• Anode rod to slow tank corrosion
• Draft hood, door, and gasket parts for venting and access sealing

Examples of parts available for this model

Symptom	Part to check	Example part on this page
Pilot will not light or stay lit	Pilot/ignition	Water heater pilot igniter 100110927
Water discharges from relief line	Safety relief	T&p valve 100108279
Drain valve leaks or will not shut	Draining/flushing	Drain valve 100109106
Corrosion, odor, reduced tank life	Corrosion protection	Water heater anode rod 100109594

Safety steps we use before repairs

• Turn the gas control to OFF; shut off the gas supply.
• Shut off cold water; open a hot faucet to depressurize.
• Let water cool to reduce scald risk.
• Never cap or block the T&P discharge line; never install a valve between the tank and the T&P valve.
• If the heater has been under water or controls were submerged, replace the entire water heater.

Why it matters

Replacing the correct part fixes common no-hot-water and leak complaints while keeping critical safety devices (like the T&P valve) working properly.

You can order FG1J5040T3NOV replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
