Model # DAV-FR8 Official Sony dvd home theater system

Here are the diagrams and repair parts for Official Sony DAV-FR8 dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

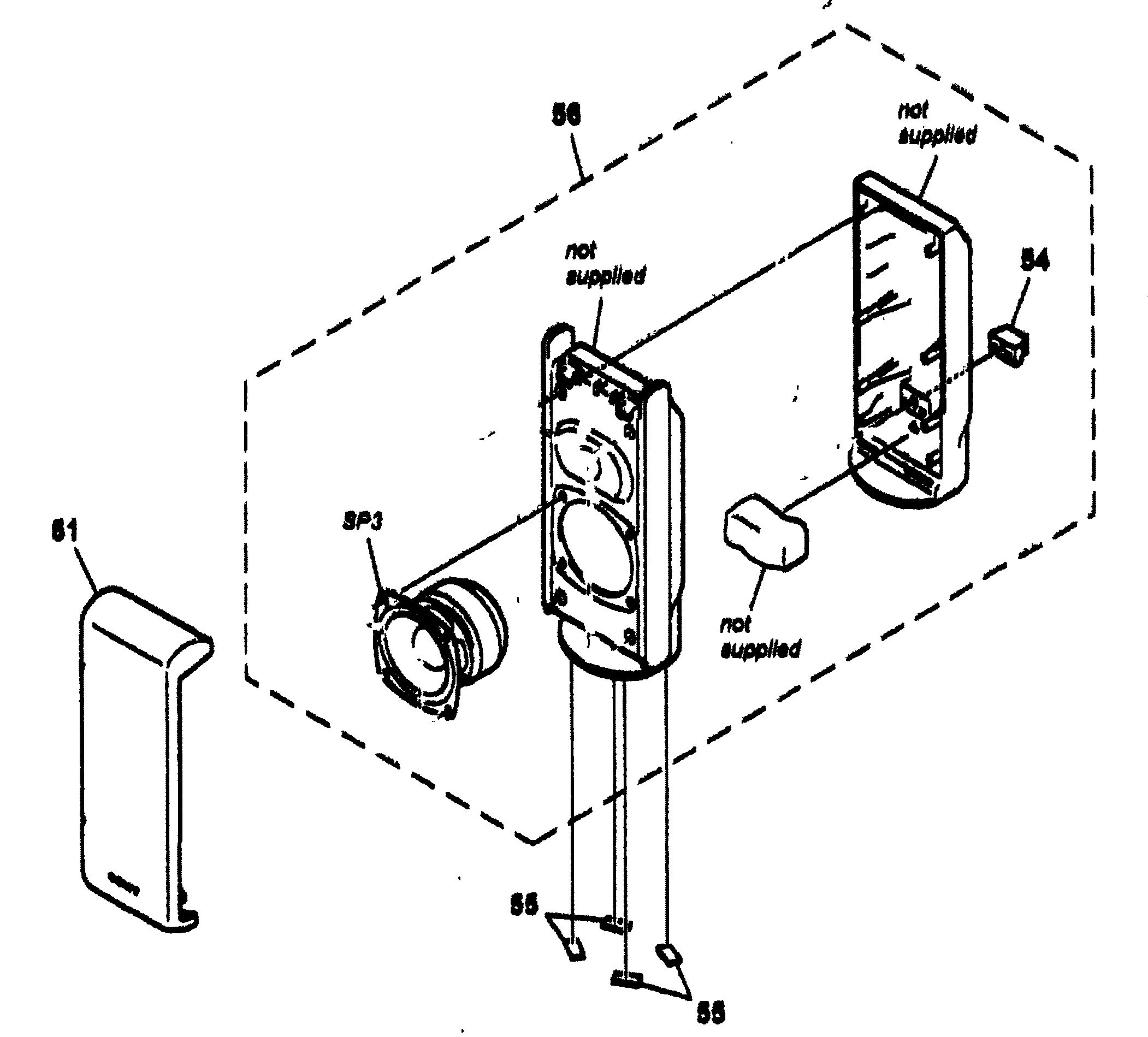

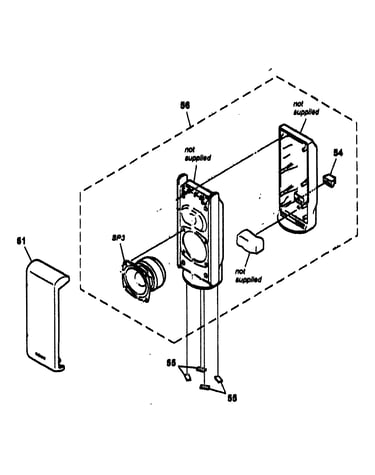

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 66 parts |

#NI

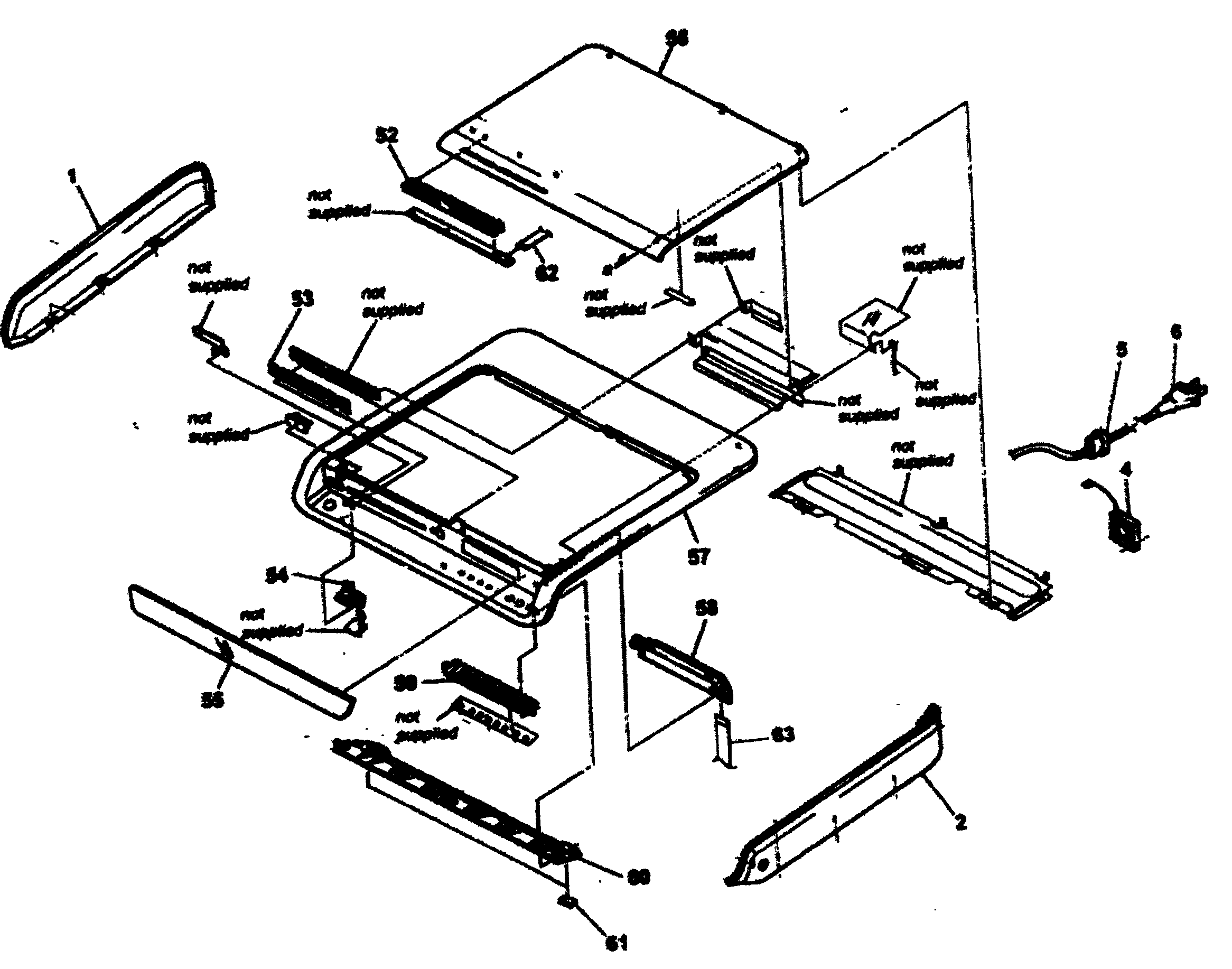

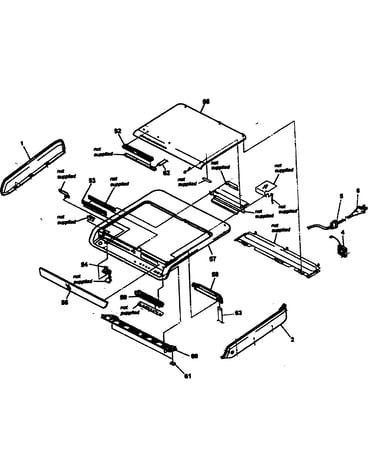

Receiver diagram

Belt

Part #423970601

The manufacturer no longer makes this part, and there's no substitute part

#NI

Receiver diagram

Cam

Part #423969201

The manufacturer no longer makes this part, and there's no substitute part

#152

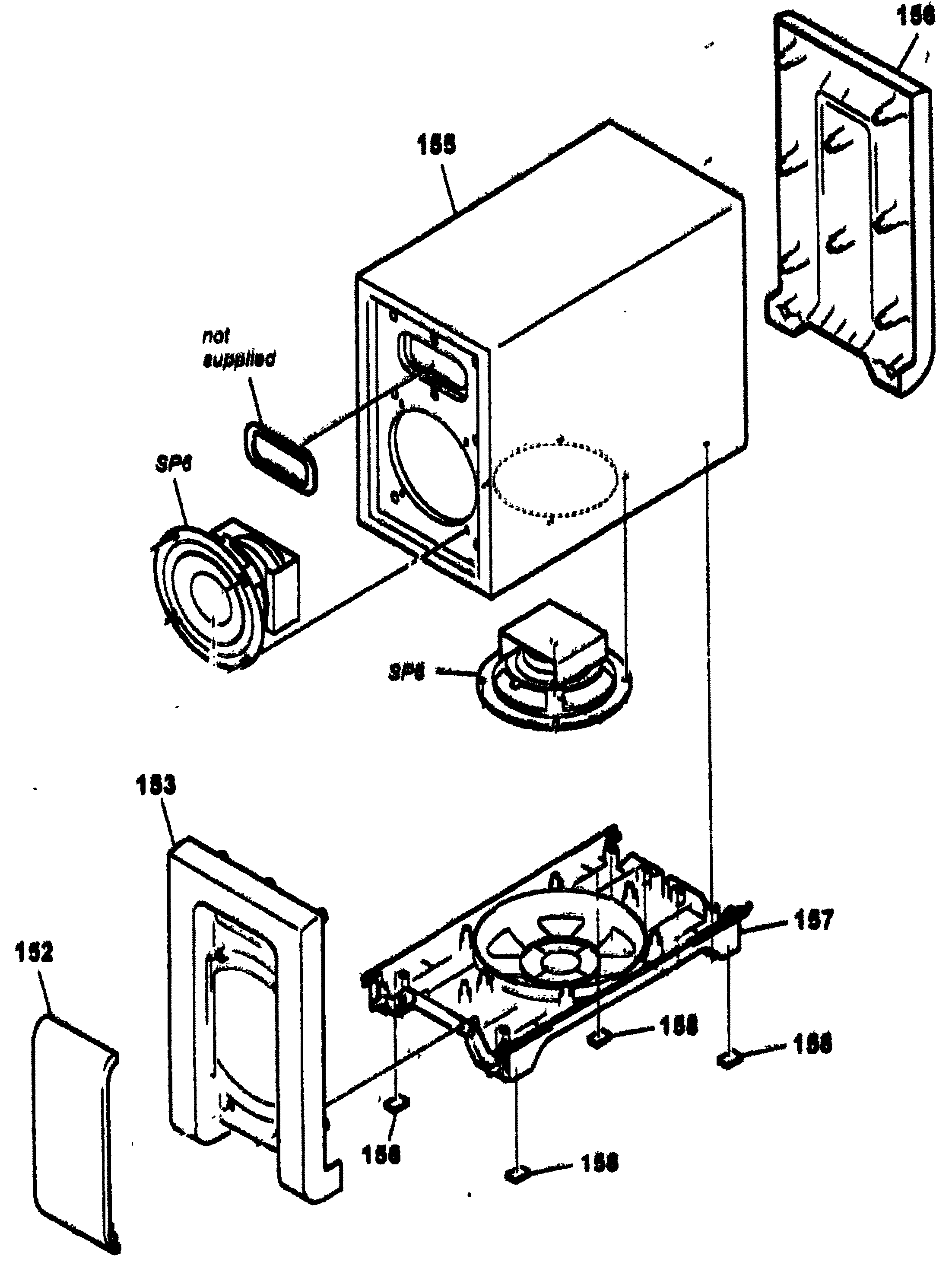

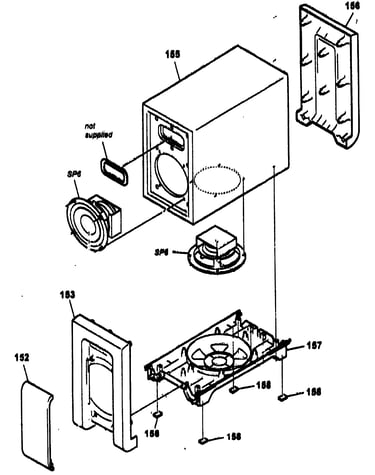

Woofer diagram

Frame

Part #425518901

Replaced by #425518901

$26.13

In Stock

Qty

#111

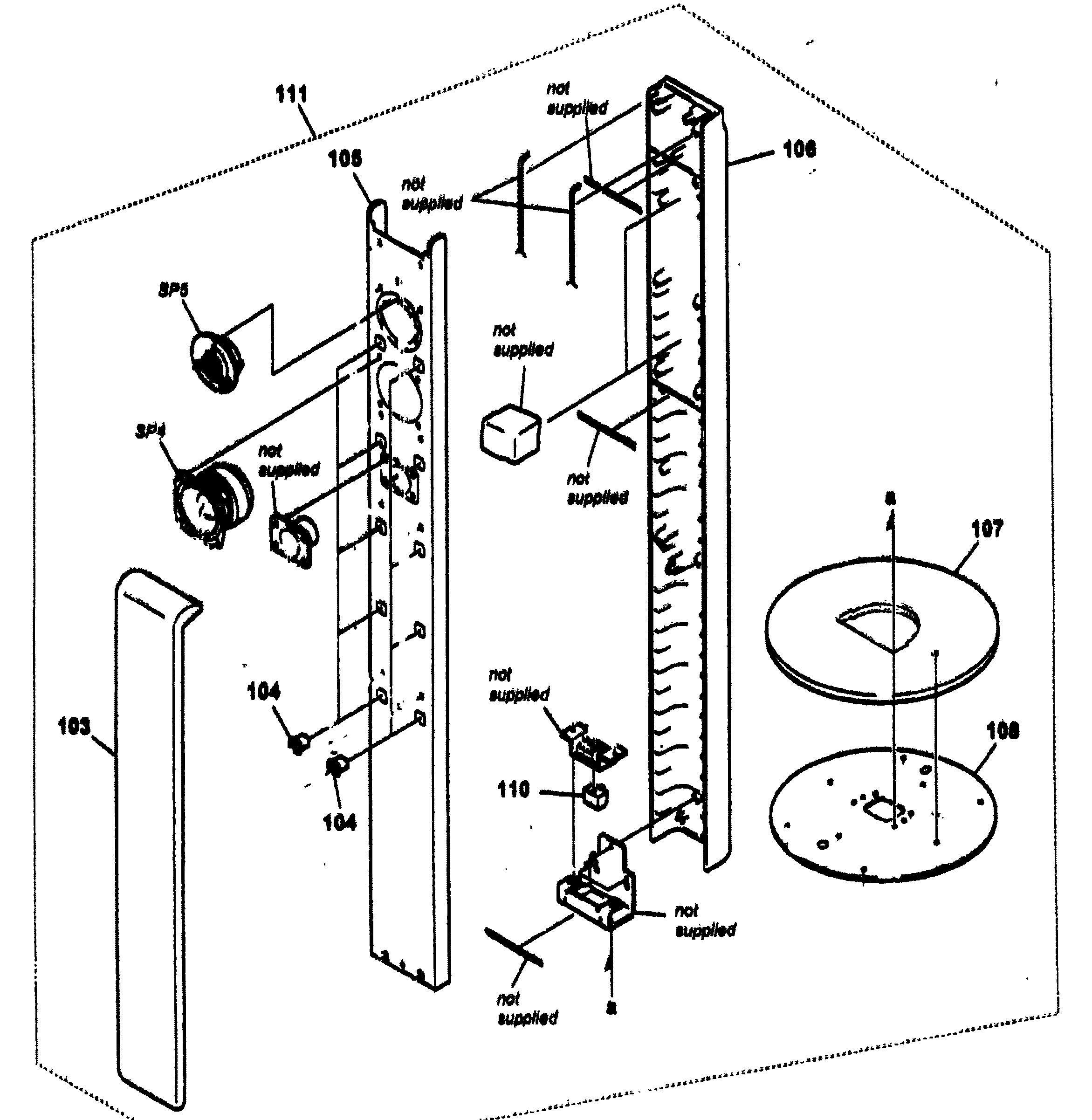

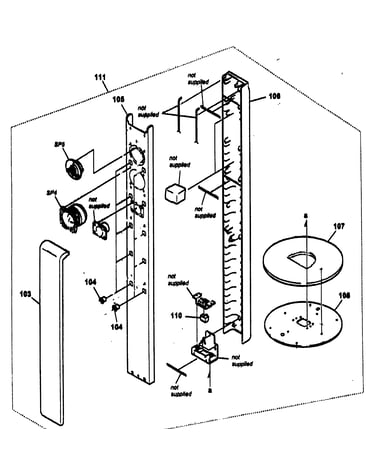

Speaker 1 diagram

Overall

Part #A4715722A

Replaced by #A4715722A

$268.36

In Stock

Qty

#NI

Receiver diagram

Belt

Part #423968101

The manufacturer no longer makes this part, and there's no substitute part

#NI

Receiver diagram

Pick-up ut

Part #147726311

The manufacturer no longer makes this part, and there's no substitute part

#157

Woofer diagram

Panel

Part #425519201

Replaced by #425519201

$52.87

In Stock

Qty

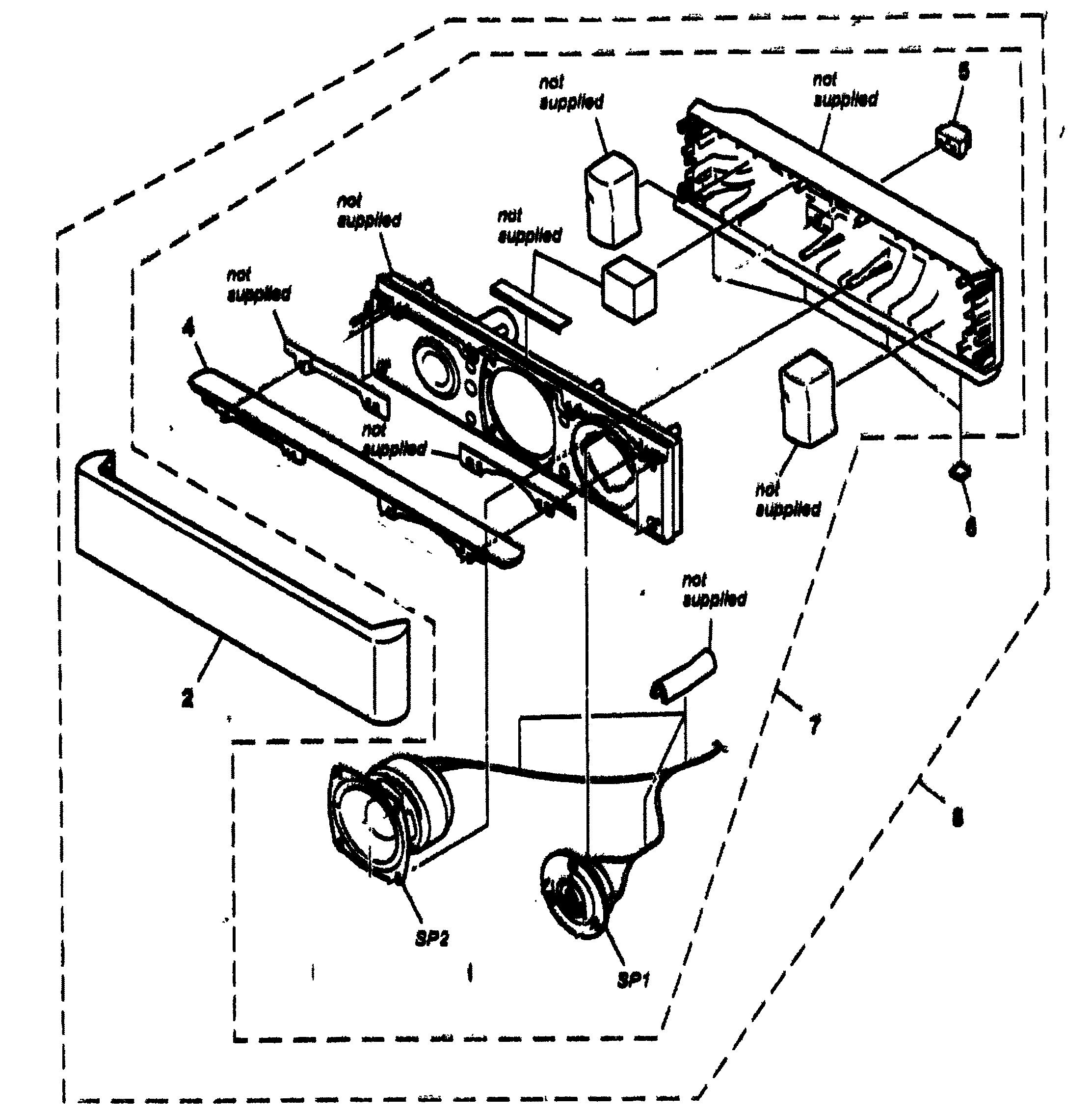

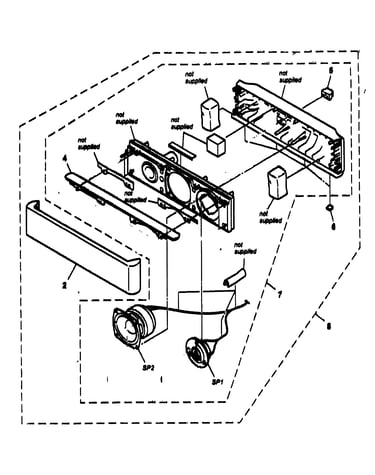

Speaker 2 diagram

Overall assembly

Part #A4715725A

Replaced by #A1198775A

$223.14

In Stock

Qty

Receiver diagram

Ac cord

Part #178353172

The manufacturer no longer makes this part, and there's no substitute part

Frame

Part #425520201

Replaced by #425520201

$70.14

In Stock

Qty
