GE TFG20JABEWW refrigerator - b series Parts
Here are the diagrams and repair parts for GE TFG20JABEWW refrigerator - b series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for TFG20JABEWW Refrigerators
Unit parts diagram
Refrigerator Dust Cap
Part #WR02X10360Replaced by #WR02X10322
Manufacturer substitutionThis part replaces WR02X10360. Substitute parts can look different from the original.This item is not returnableIn Stock$26.8718% OFF Phone Price : $32.87
Qty

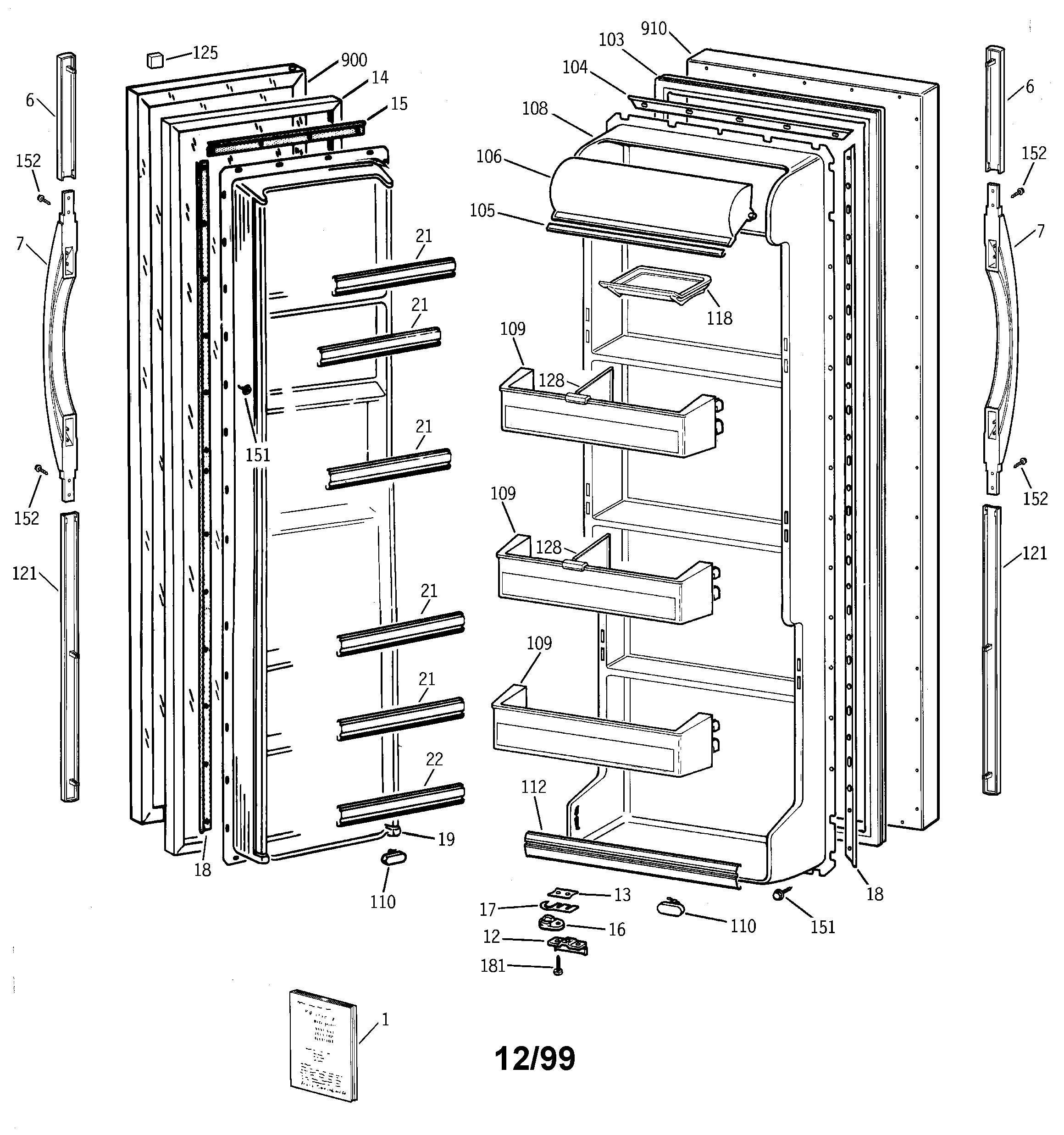

Doors diagram
Ground Screw
Part #WR01X1466Replaced by #WZ5X158D
Manufacturer substitutionThis part replaces WR01X1466. Substitute parts can look different from the original.In Stock$19.5748% OFF Was : $37.28QtyUnit parts diagram
Refrigerator Screw
Part #WR01X1786Replaced by #WR1X1786
Manufacturer substitutionThis part replaces WR01X1786. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01QtyFreezer section diagram
Refrigerator Evaporator Cover Gasket
Part #WR14X0455
The manufacturer no longer makes this part, and there's no substitute part

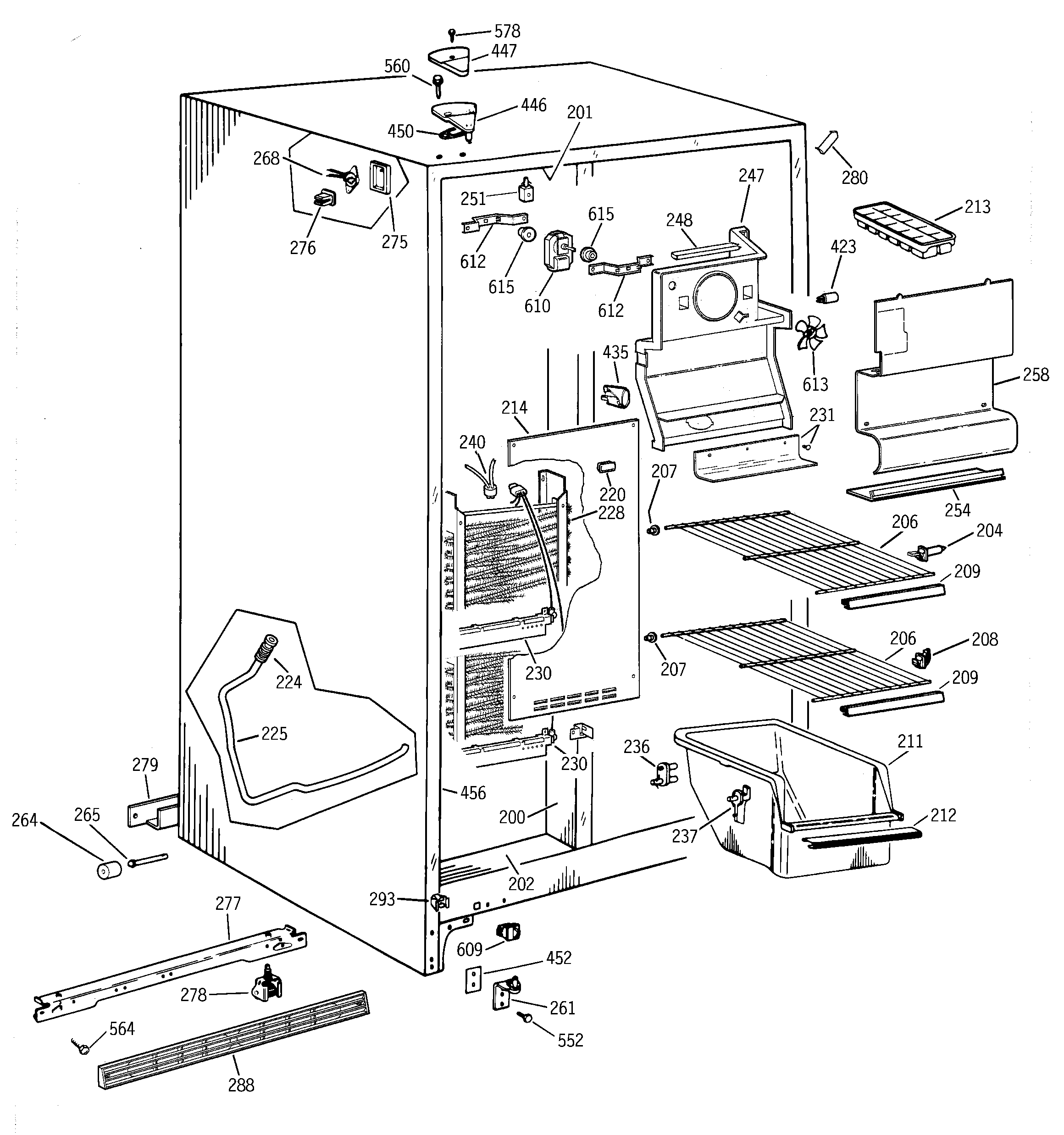

Freezer section diagram
Refrigerator Screw
Part #WR01X1194
The manufacturer no longer makes this part, and there's no substitute part
Doors diagram
Shim Cam
Part #WR02X7490
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Gasket
Part #WR14X0272
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Clamp
Part #WR01X5042
The manufacturer no longer makes this part, and there's no substitute part

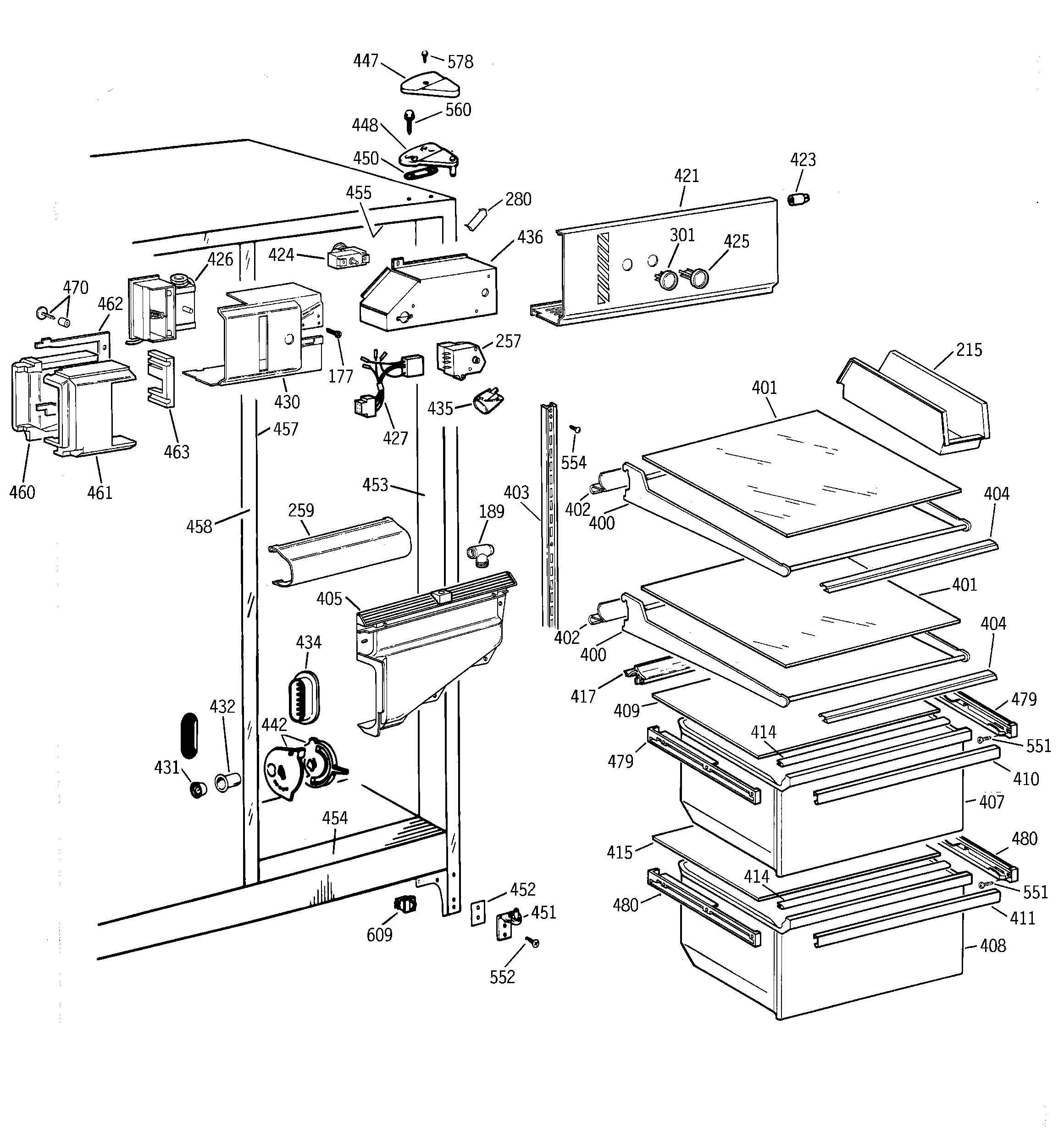

Fresh food section diagram
Duct Air Rr
Part #WR02X8911
The manufacturer no longer makes this part, and there's no substitute part

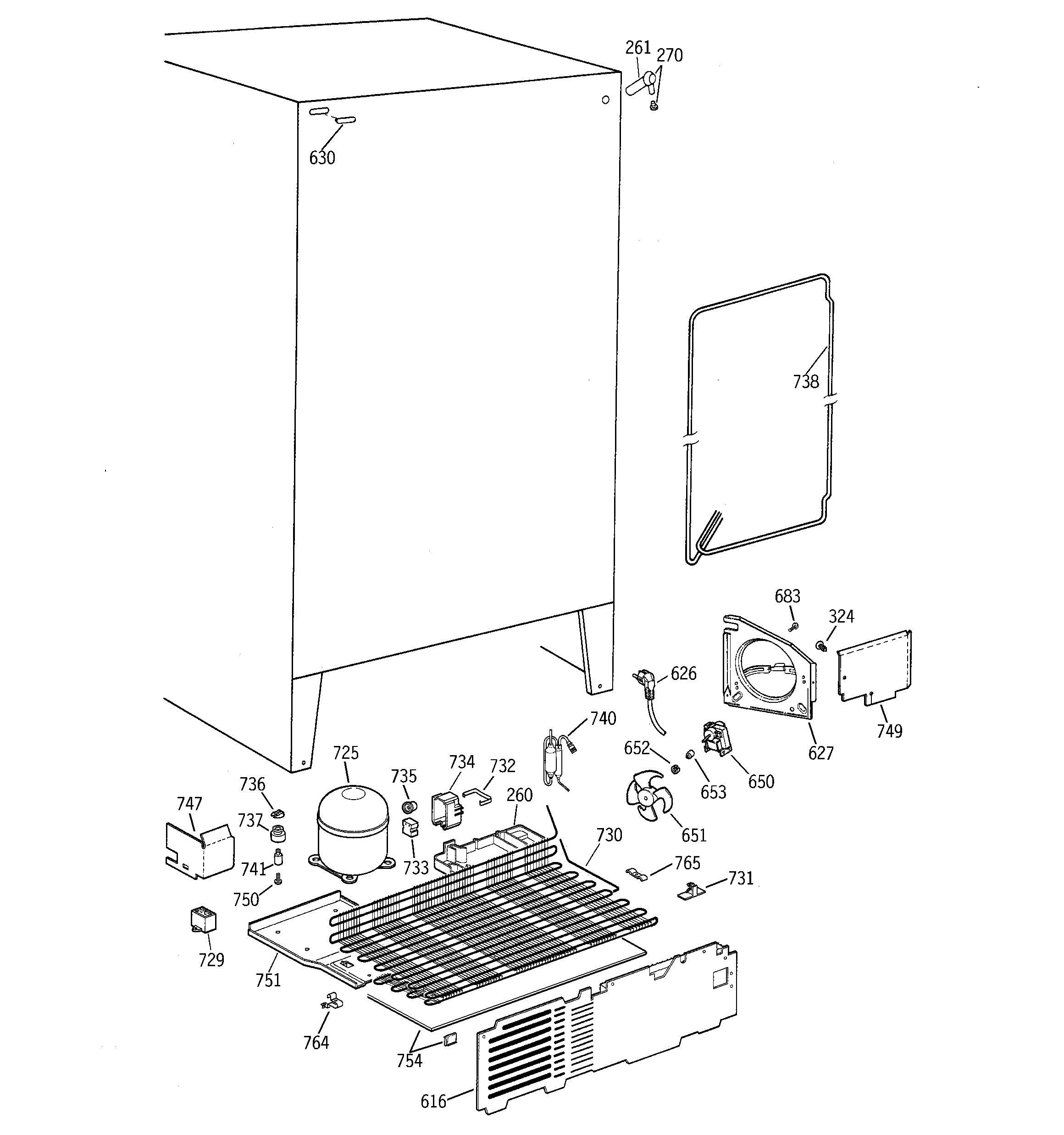

Unit parts diagram
Housing Condenser
Part #WR17X10509
The manufacturer no longer makes this part, and there's no substitute part
