Kenmore 6289468215 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289468215 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

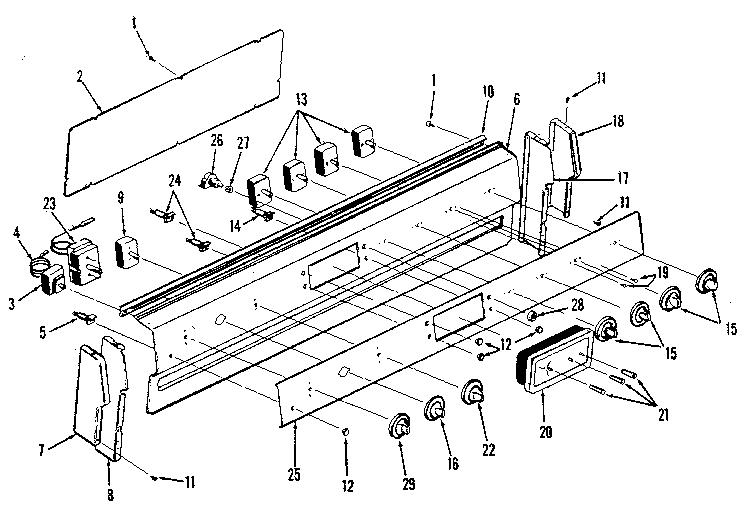

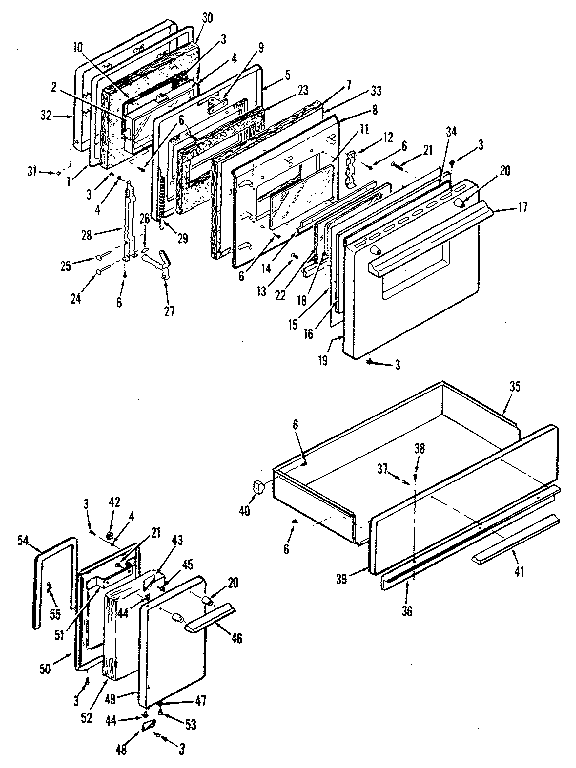

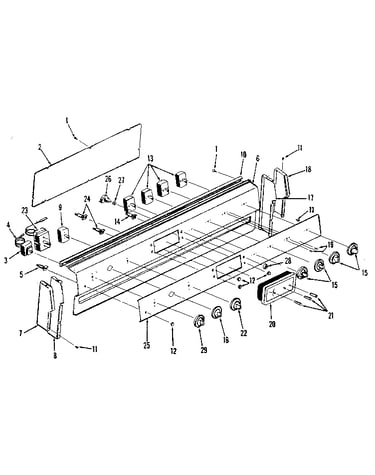

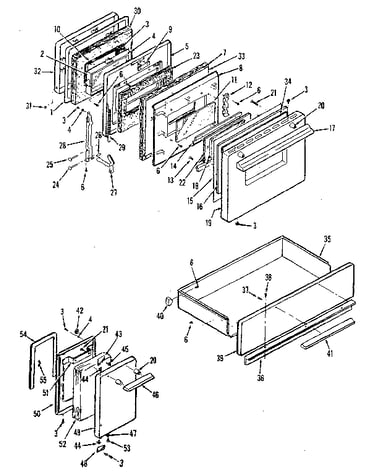

Browse Parts for 6289468215 Ranges

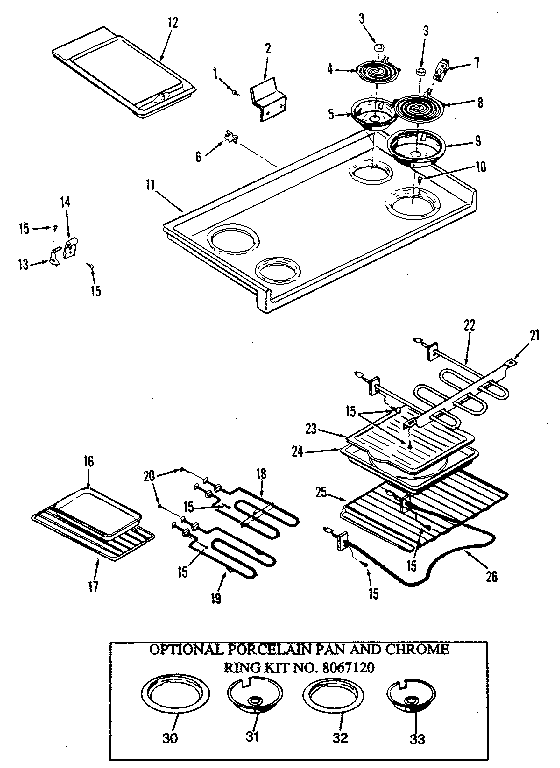

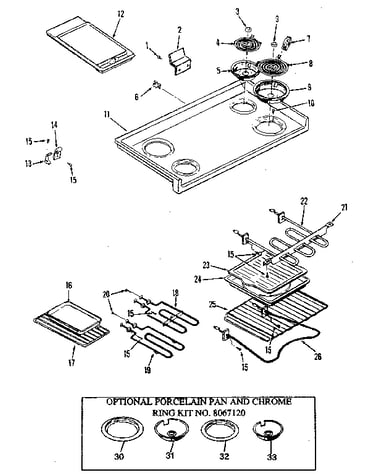

Cooktop assembly and elements diagram
Pan
Part #1307595Replaced by #316048414
Manufacturer substitutionThis part replaces 1307595. Substitute parts can look different from the original.In Stock$10.7416% OFF Phone Price : $12.74
Qty

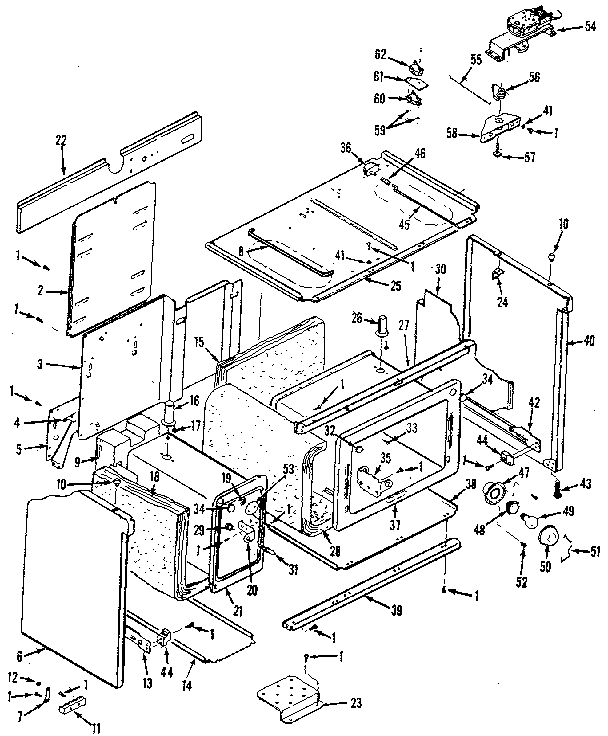

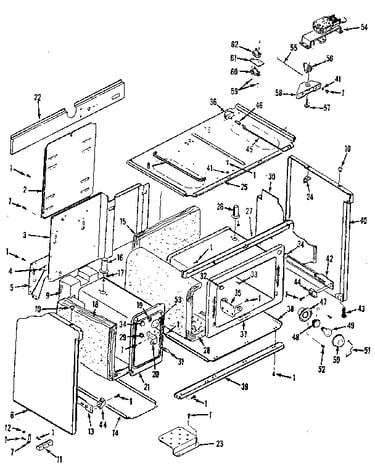

Basic body diagram
Terminal Block
Part #1189558Replaced by #5304409888
Manufacturer substitutionThis part replaces 1189558. Substitute parts can look different from the original.In Stock$25.3019% OFF Phone Price : $31.30QtyCooktop assembly and elements diagram
Burner
Part #3051450Replaced by #316442300
Manufacturer substitutionThis part replaces 3051450. Substitute parts can look different from the original.In Stock$66.668% OFF Phone Price : $72.66QtyCooktop assembly and elements diagram
Oven Rack
Part #3131973Replaced by #316067902
Manufacturer substitutionThis part replaces 3131973. Substitute parts can look different from the original.In Stock$72.118% OFF Phone Price : $78.11QtyCooktop assembly and elements diagram
Sm Top Elem
Part #3051449Replaced by #318372210
Manufacturer substitutionThis part replaces 3051449. Substitute parts can look different from the original.In Stock$51.6910% OFF Phone Price : $57.69QtyCooktop assembly and elements diagram
Broiler Grid
Part #1317972Replaced by #5304442087
Manufacturer substitutionThis part replaces 1317972. Substitute parts can look different from the original.In Stock$45.3612% OFF Phone Price : $51.36QtyScrew
Part #5126601Replaced by #5308014215
Manufacturer substitutionThis part replaces 5126601. Substitute parts can look different from the original.This item is not returnableIn Stock$2.6627% OFF Phone Price : $3.66QtyBasic body diagram
Tube
In Stock$49.35QtyCooktop assembly and elements diagram
Main Top (almond)
Part #1319059Replaced by #08011984
Manufacturer substitutionThis part replaces 1319059. Substitute parts can look different from the original.In Stock$329.73QtyBasic body diagram
Push Rod
Part #1323421Replaced by #3051645
Manufacturer substitutionThis part replaces 1323421. Substitute parts can look different from the original.In Stock$36.76Qty
