Model # U8371-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U8371-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |

Partition 91001144
#6

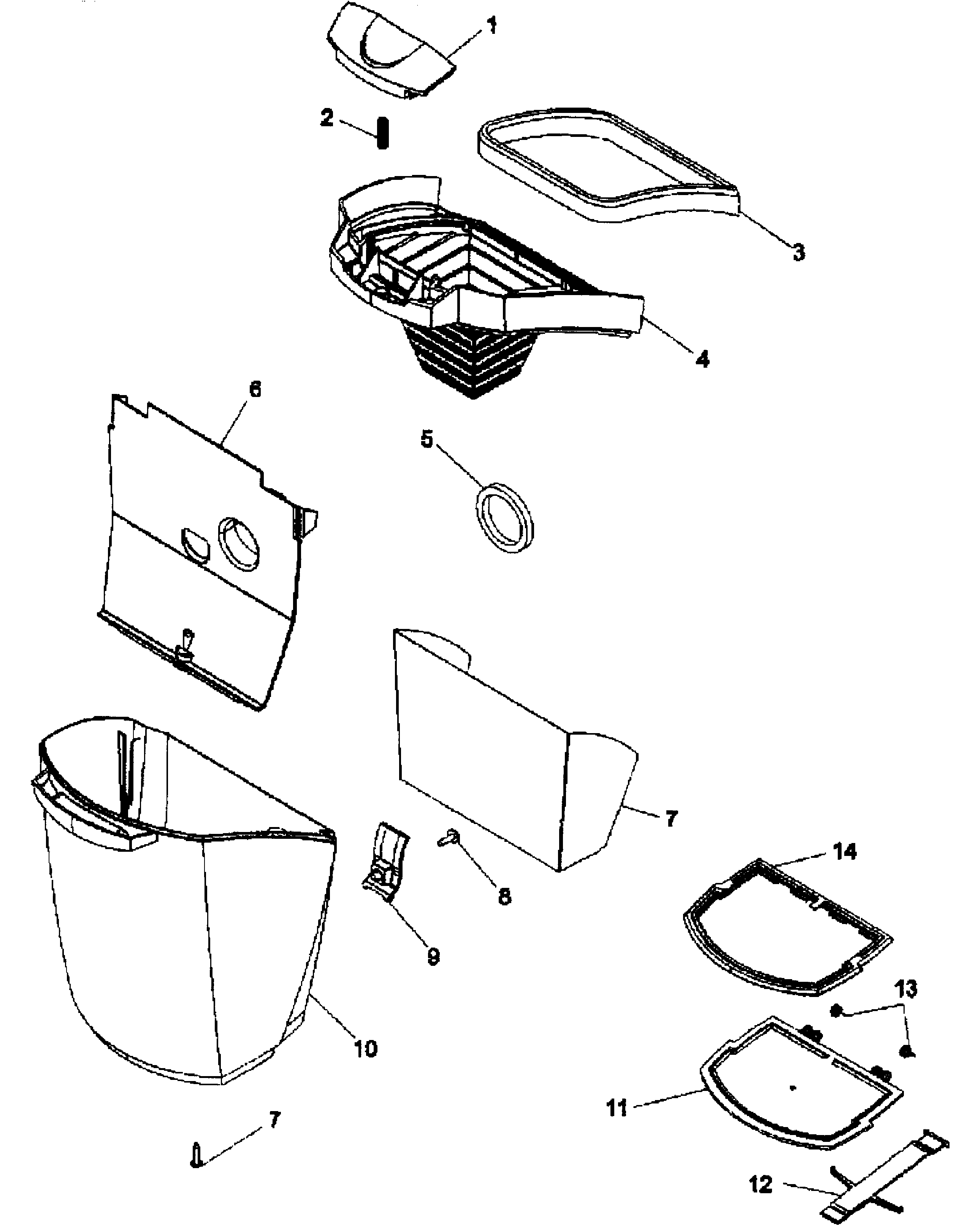

Dirt cup diagram

Partition

Part #91001144

The manufacturer no longer makes this part, and there's no substitute part

Transmission 91001188
#10

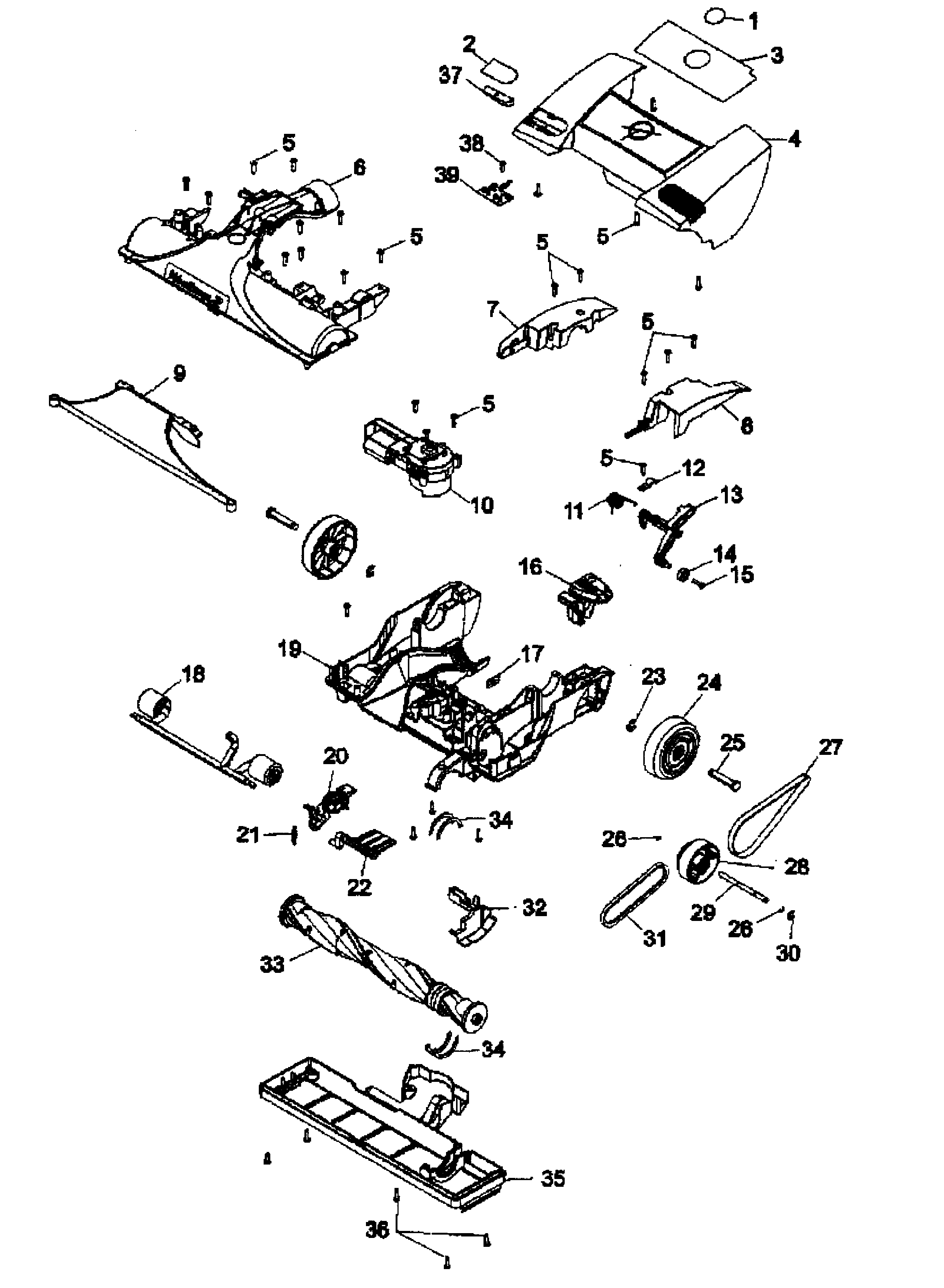

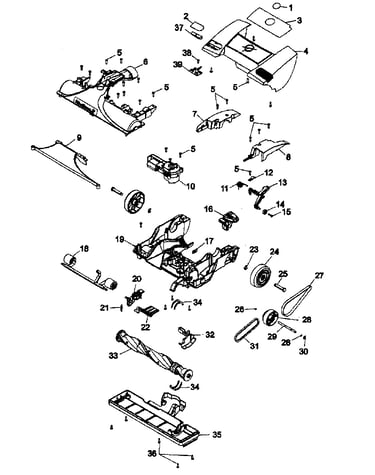

Base assy diagram

Transmission

Part #91001188

The manufacturer no longer makes this part, and there's no substitute part

Edf Label 51464005
#2

Base assy diagram

Edf label

Part #51464005

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing Assembly 42246150
#20

Base assy diagram

Vacuum beater bar housing assembly

Part #42246150

The manufacturer no longer makes this part, and there's no substitute part

Dust Housing 92001291
#16

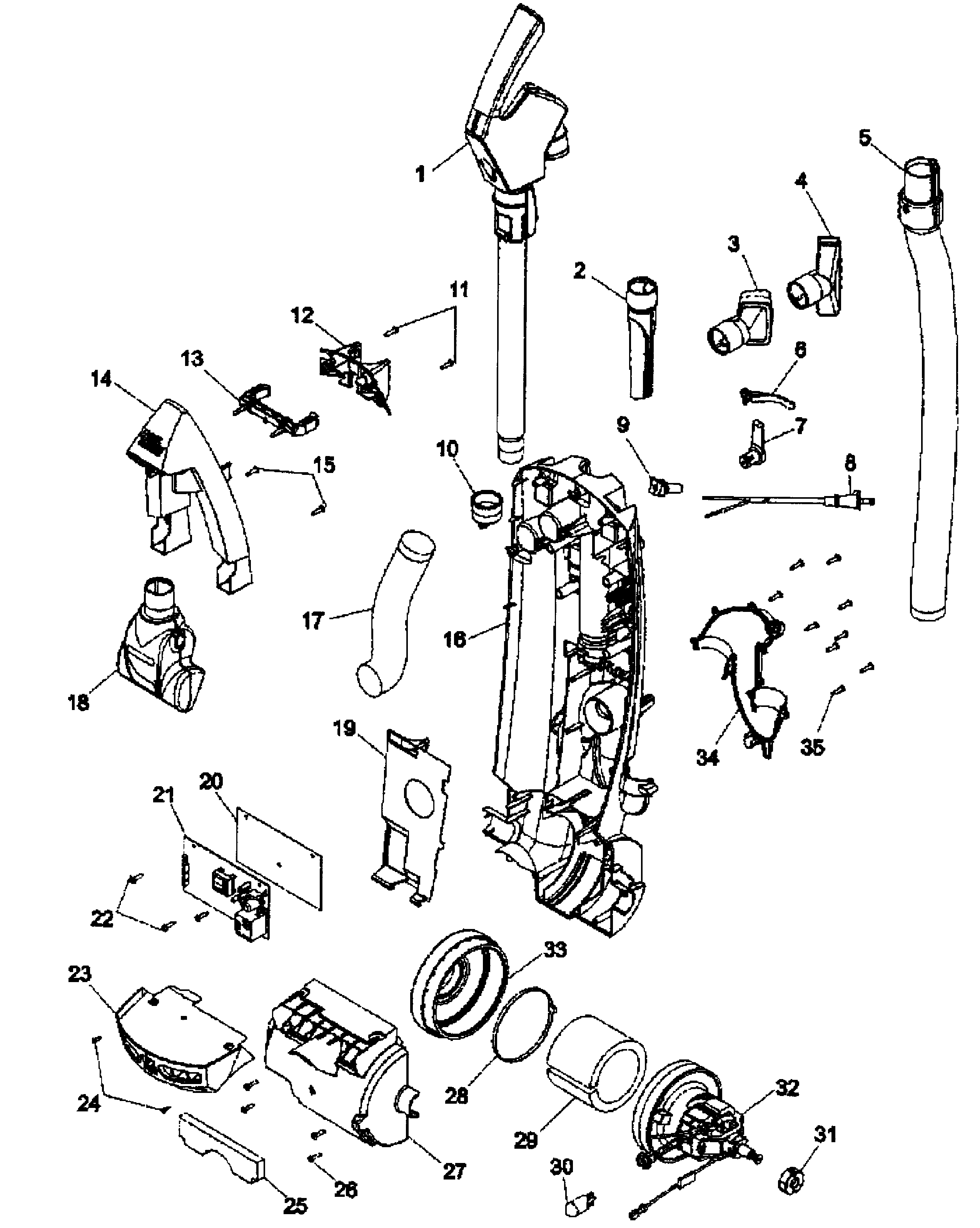

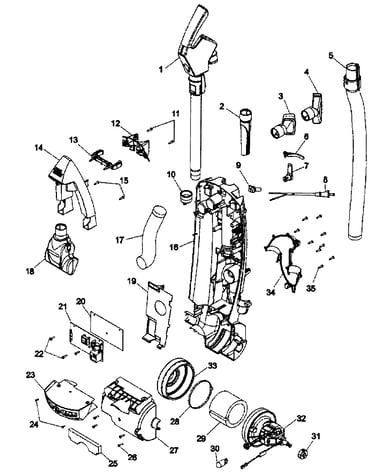

Main body diagram

Dust housing

Part #92001291

The manufacturer no longer makes this part, and there's no substitute part

Static Wir 47811008
#NI

Base assy diagram

Static wir

Part #47811008

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#31

Main body diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part

Medallion 51661020
#1

Base assy diagram

Medallion

Part #51661020

The manufacturer no longer makes this part, and there's no substitute part

Spring 91001175
#18

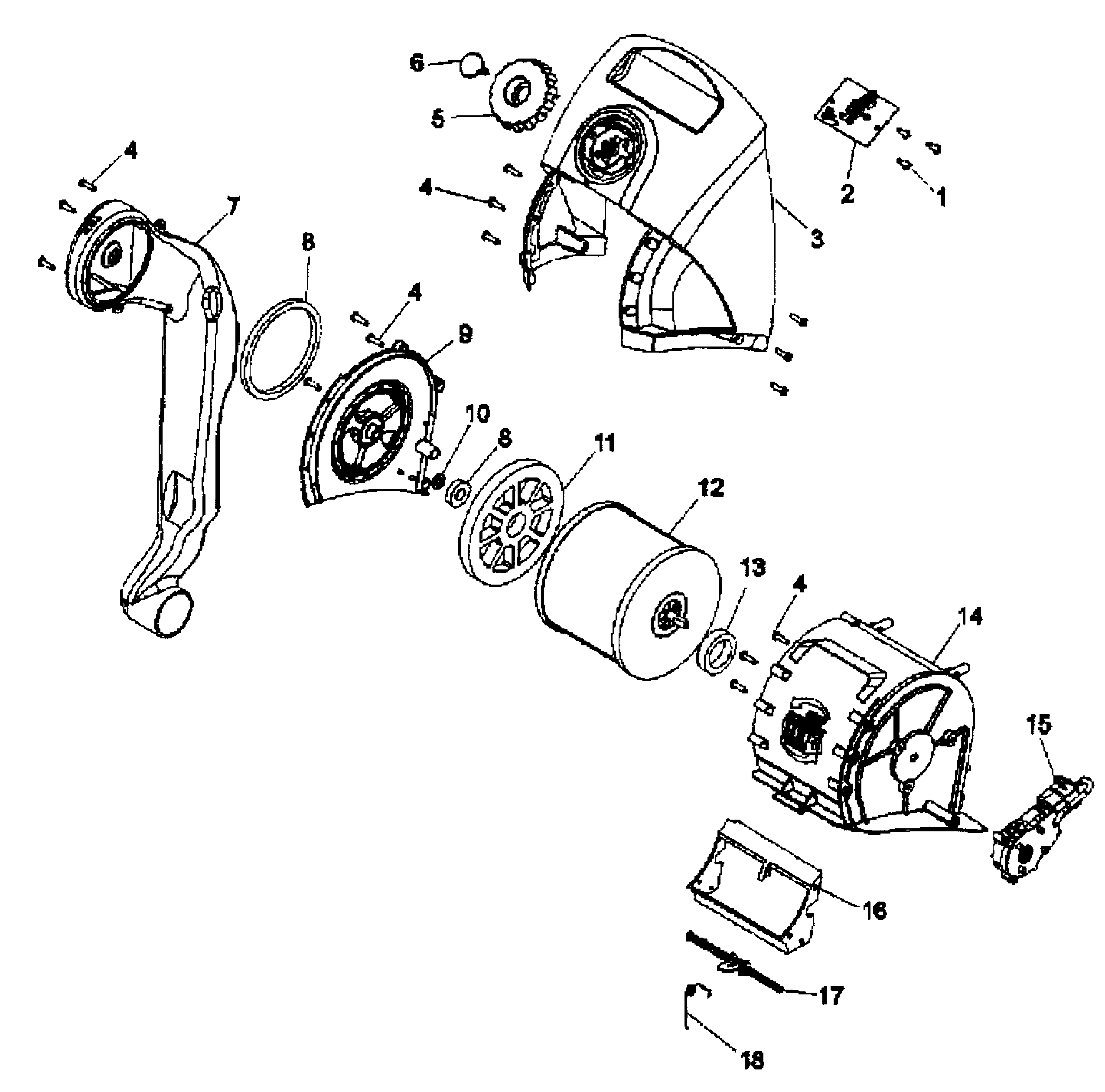

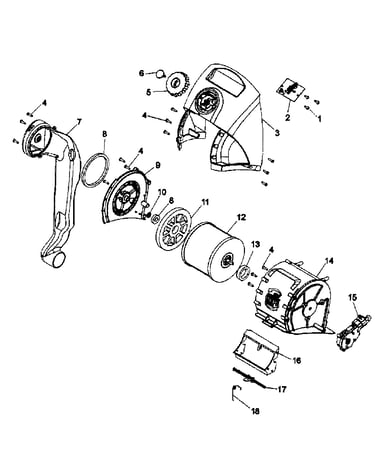

Motor assy diagram

Spring

Part #91001175

The manufacturer no longer makes this part, and there's no substitute part

Hose 43434275
#5A

Main body diagram

Hose

Part #43434275

The manufacturer no longer makes this part, and there's no substitute part
