Murray
Gas Walk-Behind Mower

Model #3396804 Murray lawn mower

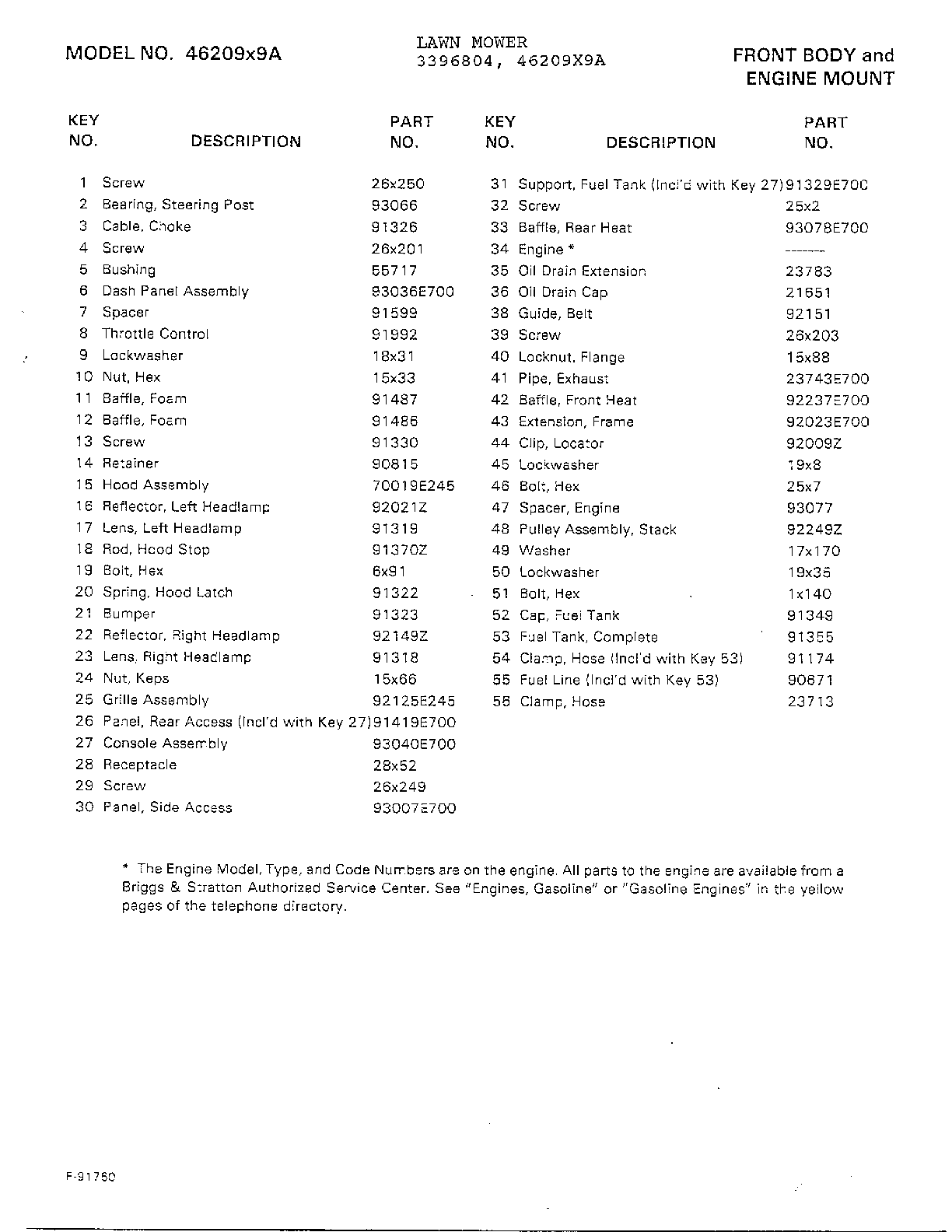

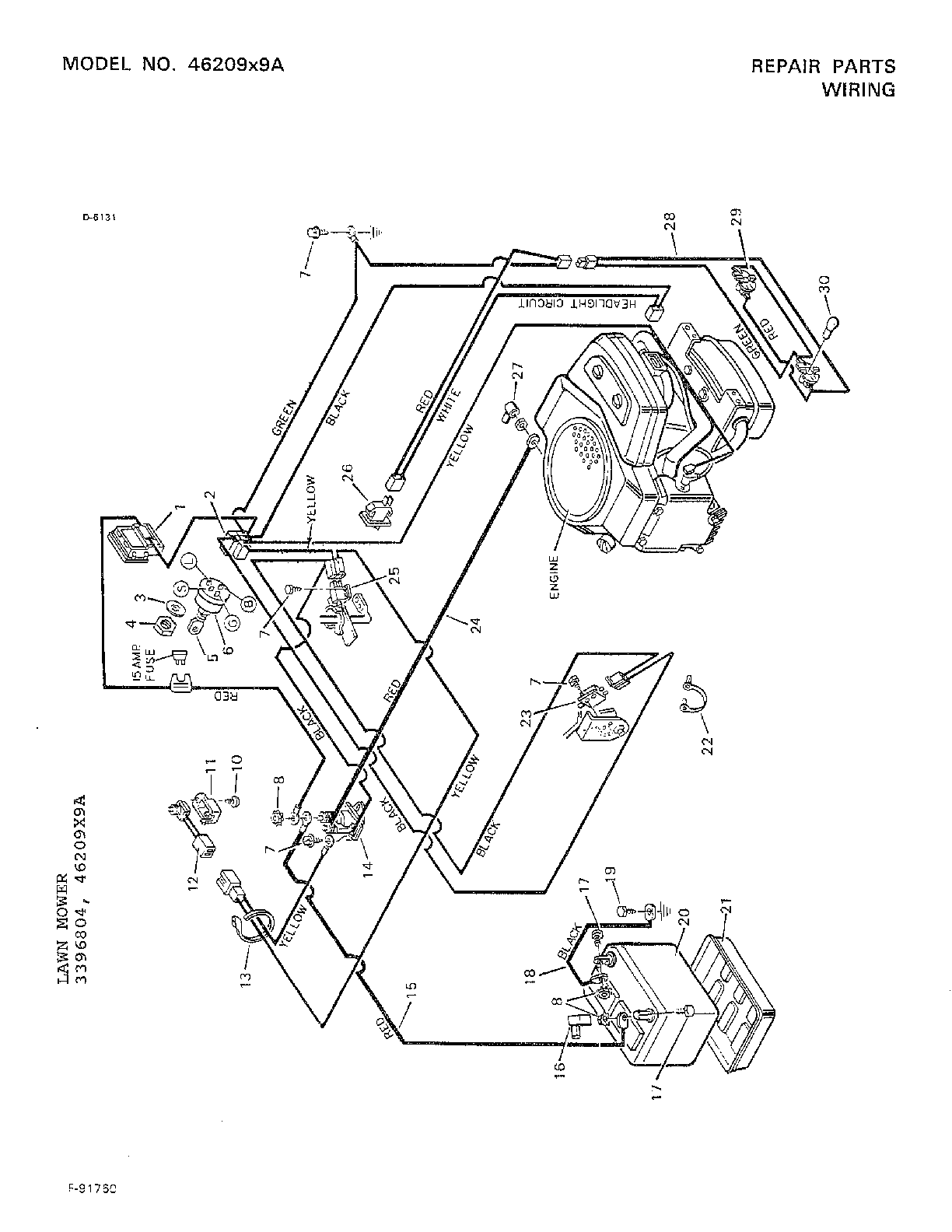

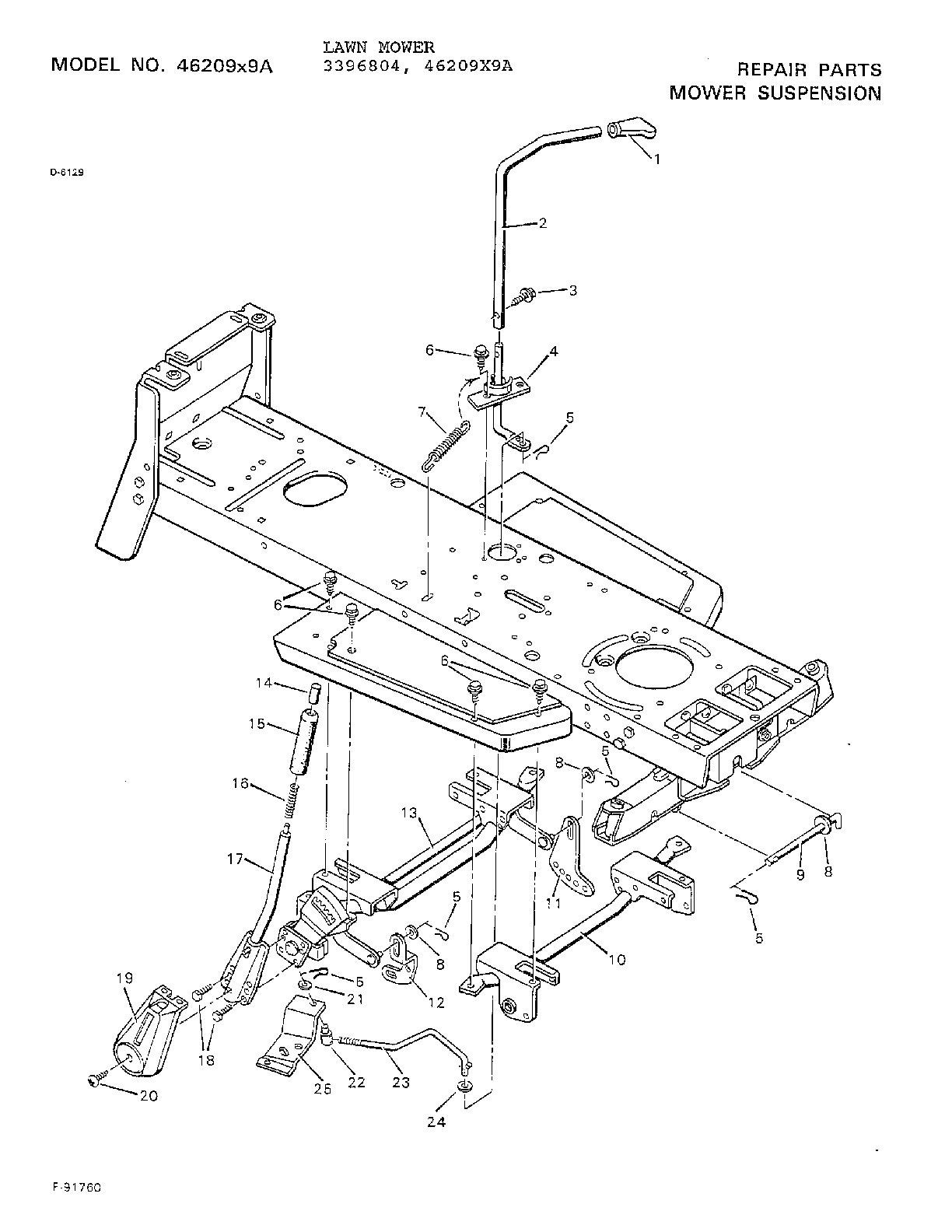

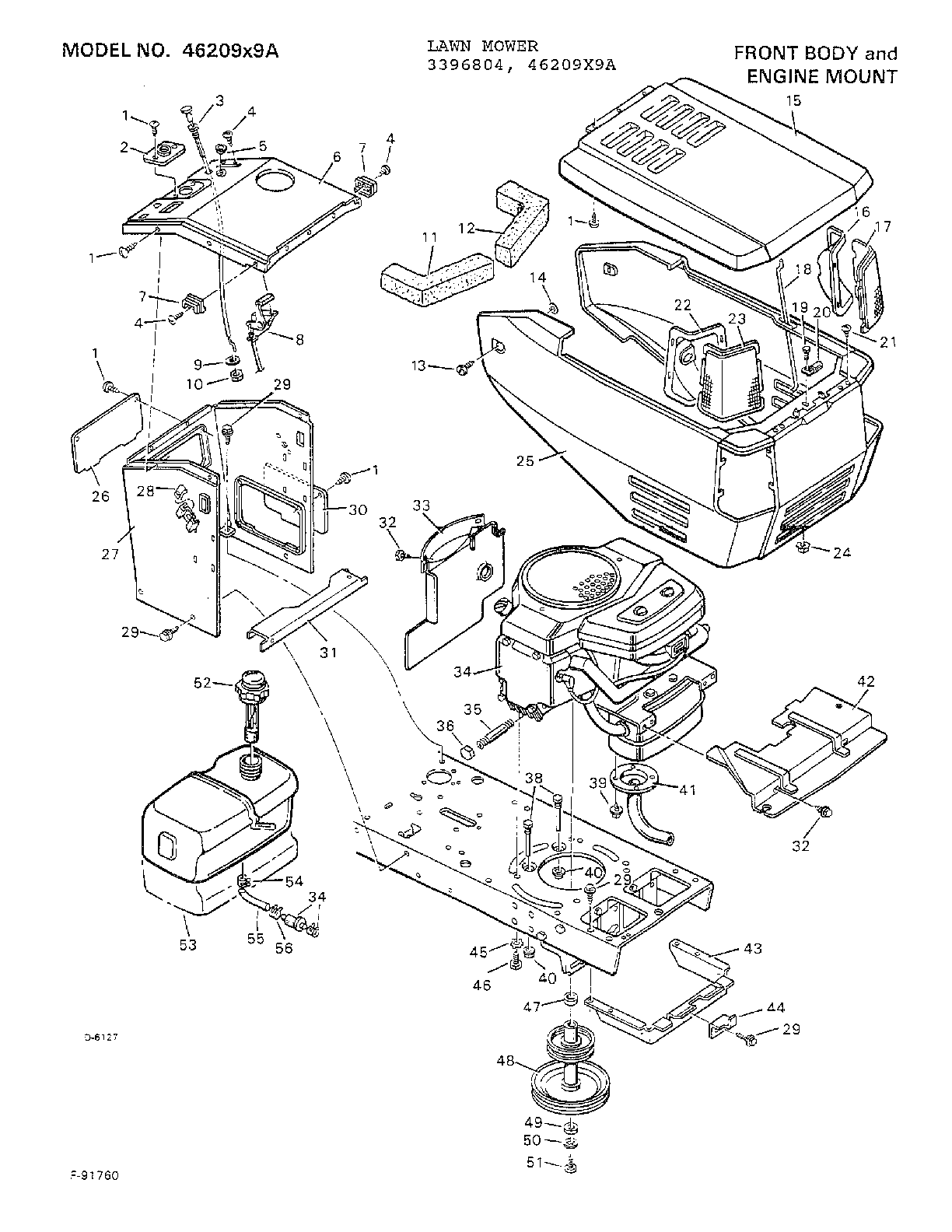

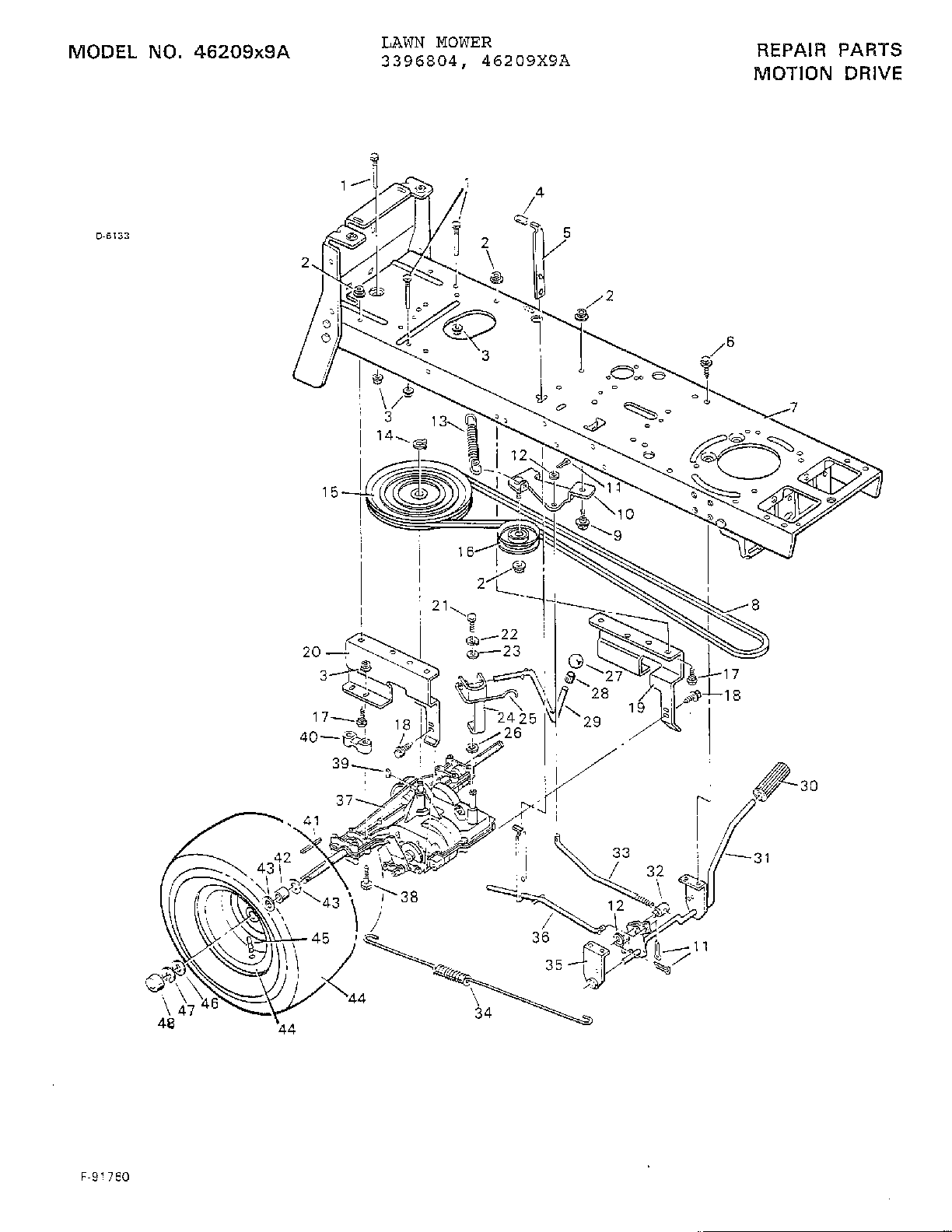

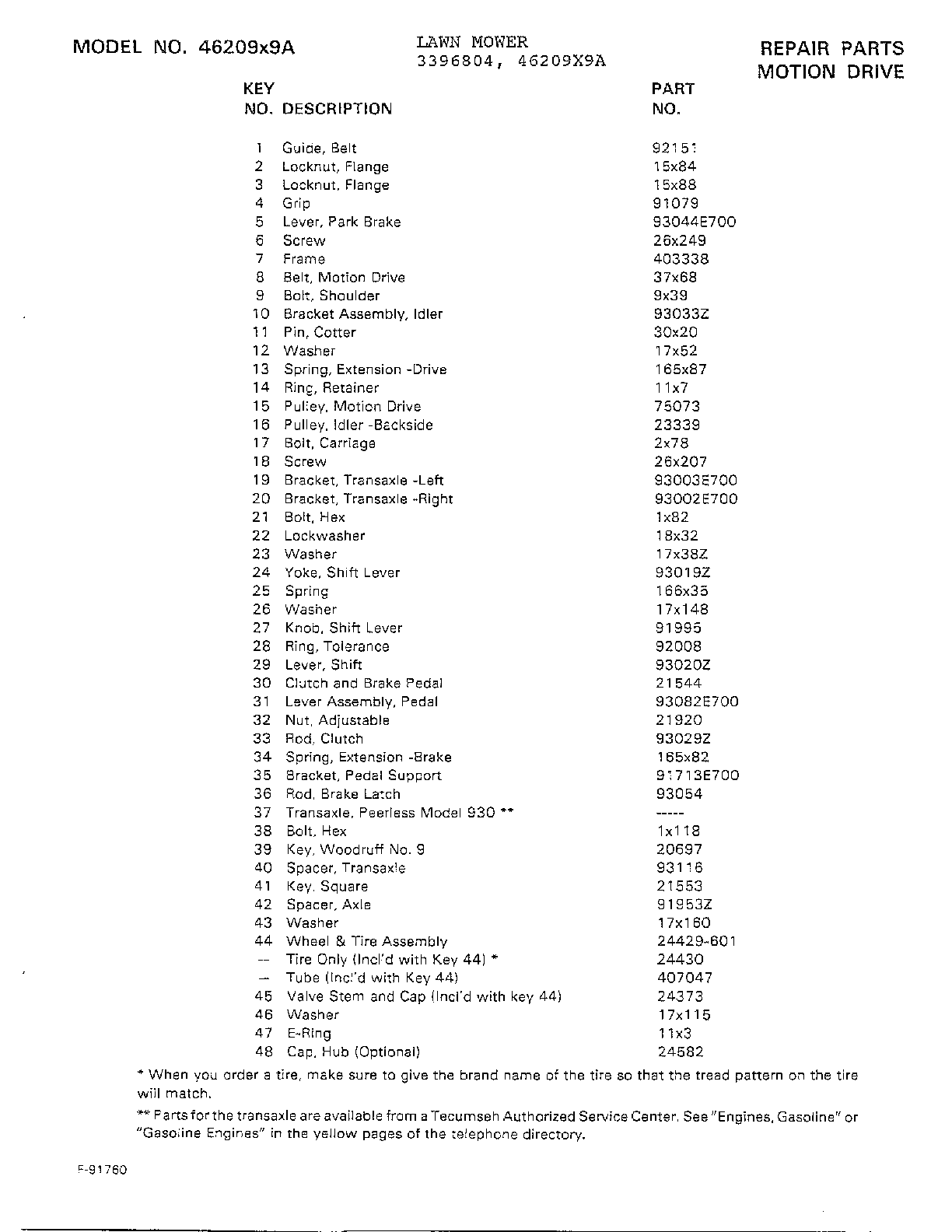

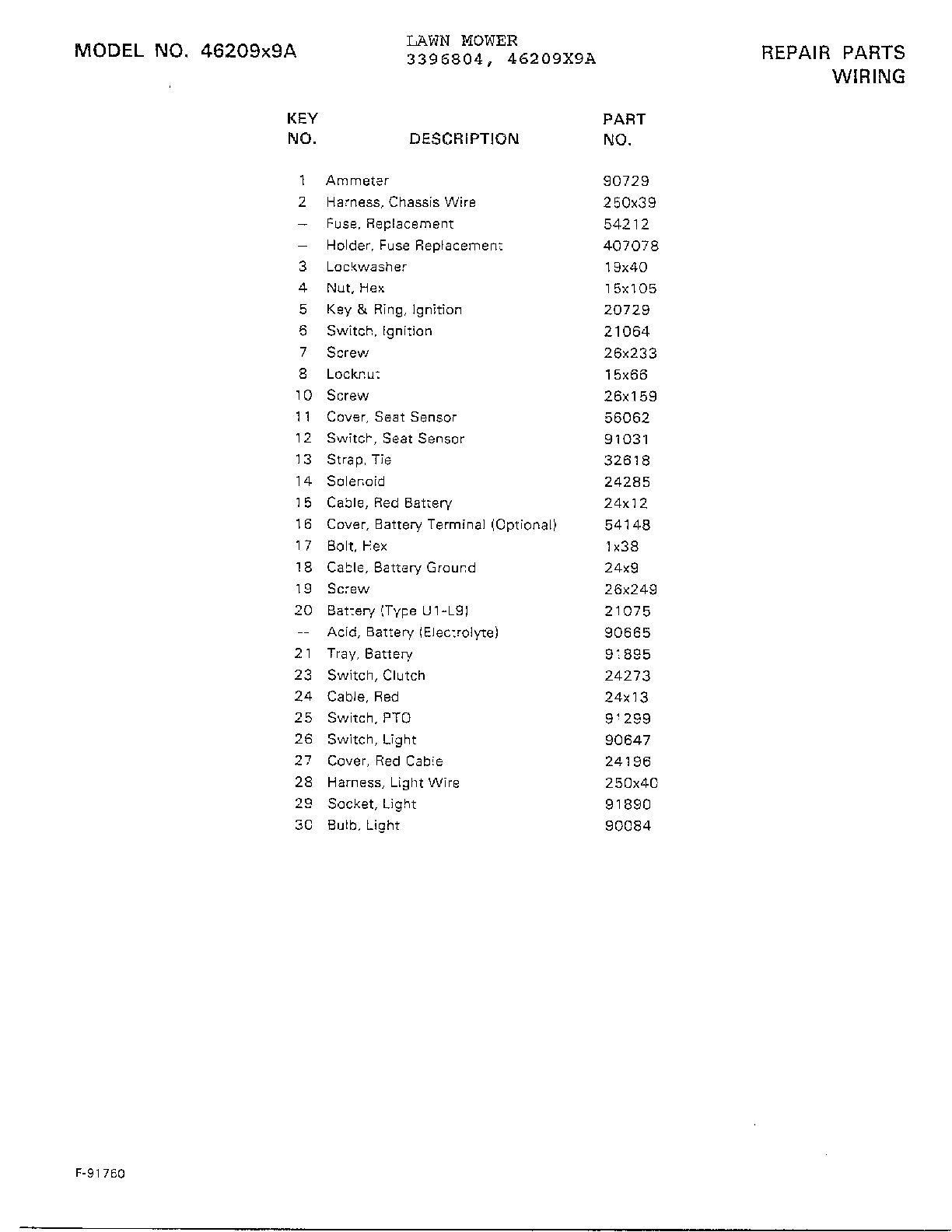

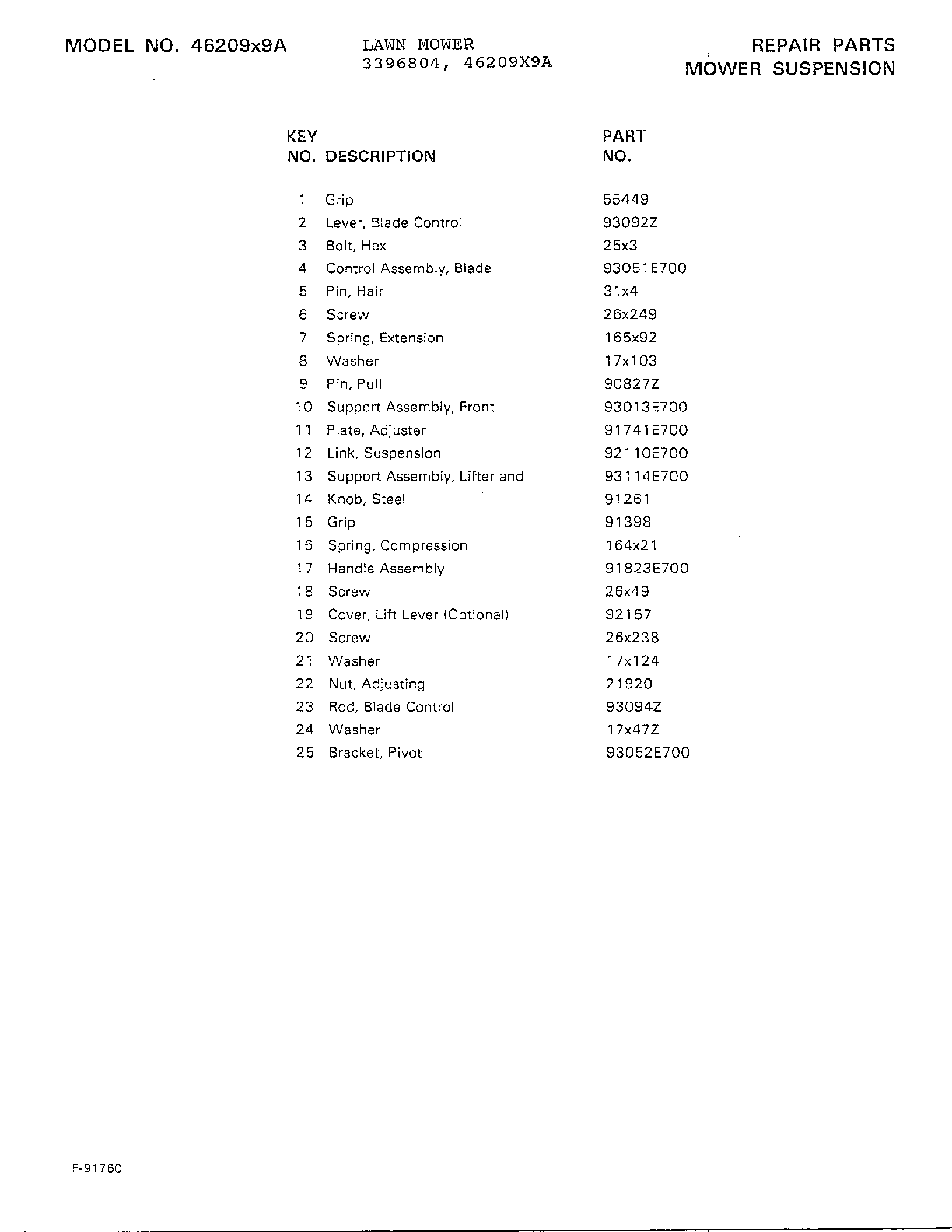

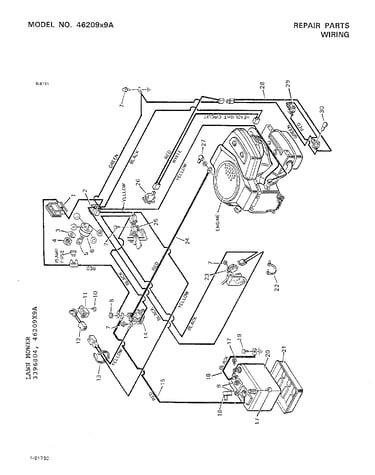

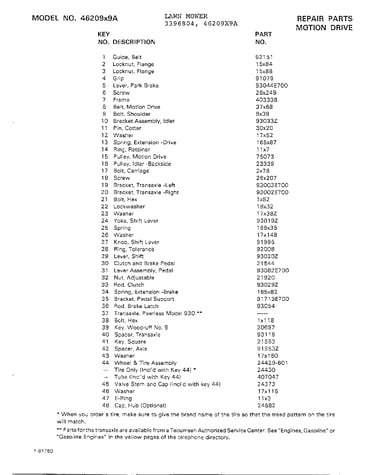

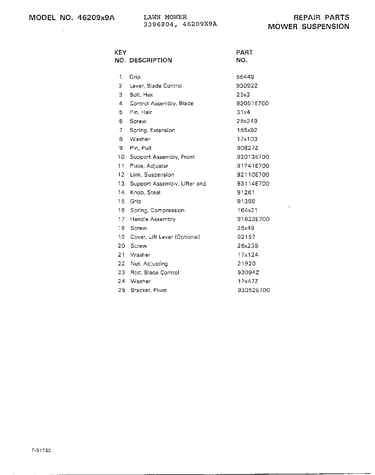

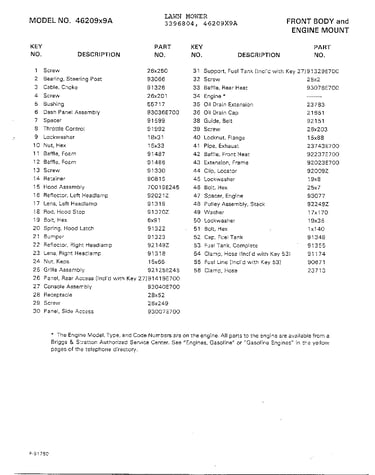

Here are the diagrams and repair parts for Murray 3396804 lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 283 parts

    Lawn Tractor Deck Roller Spacer Bearing

    #26

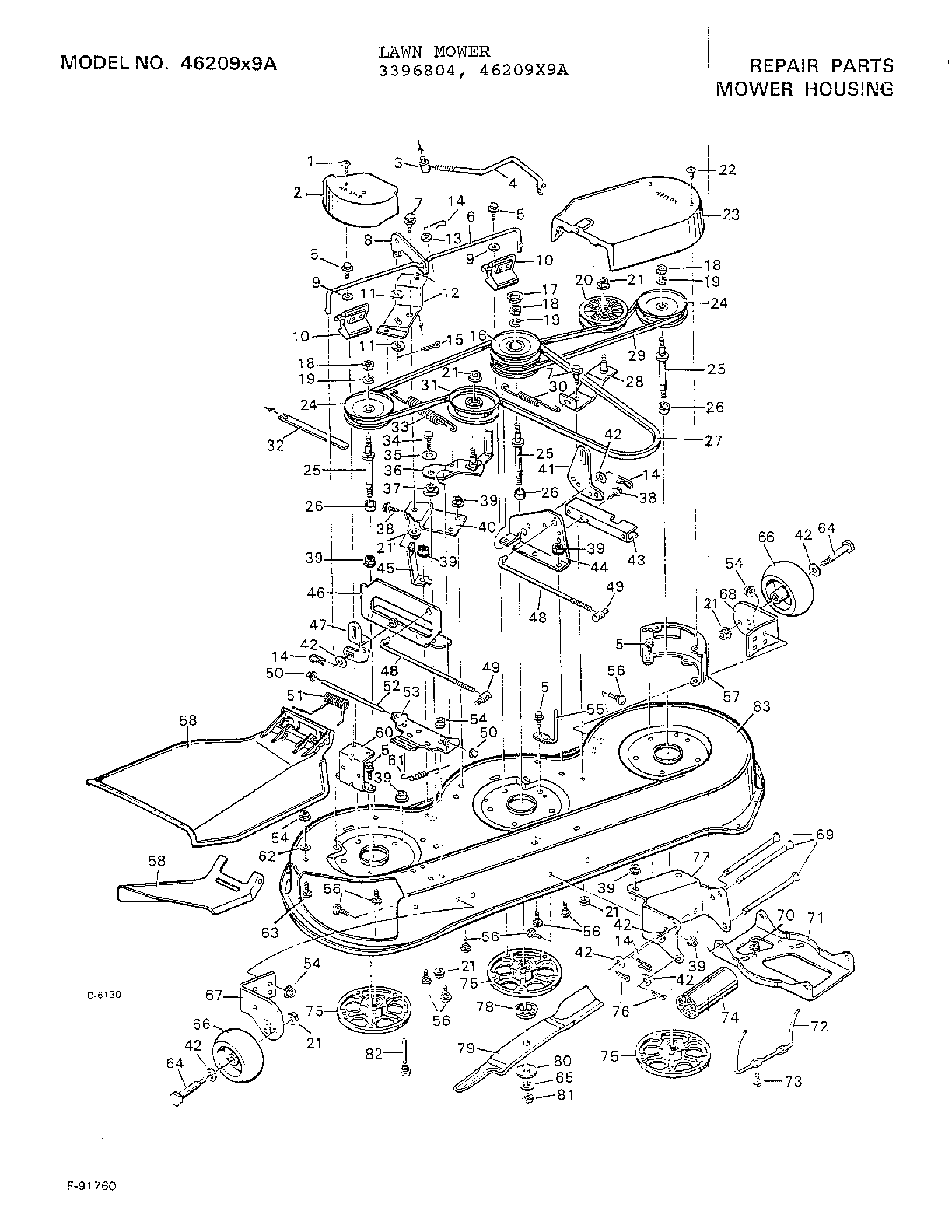

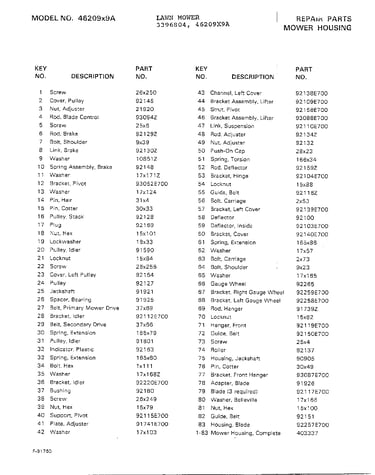

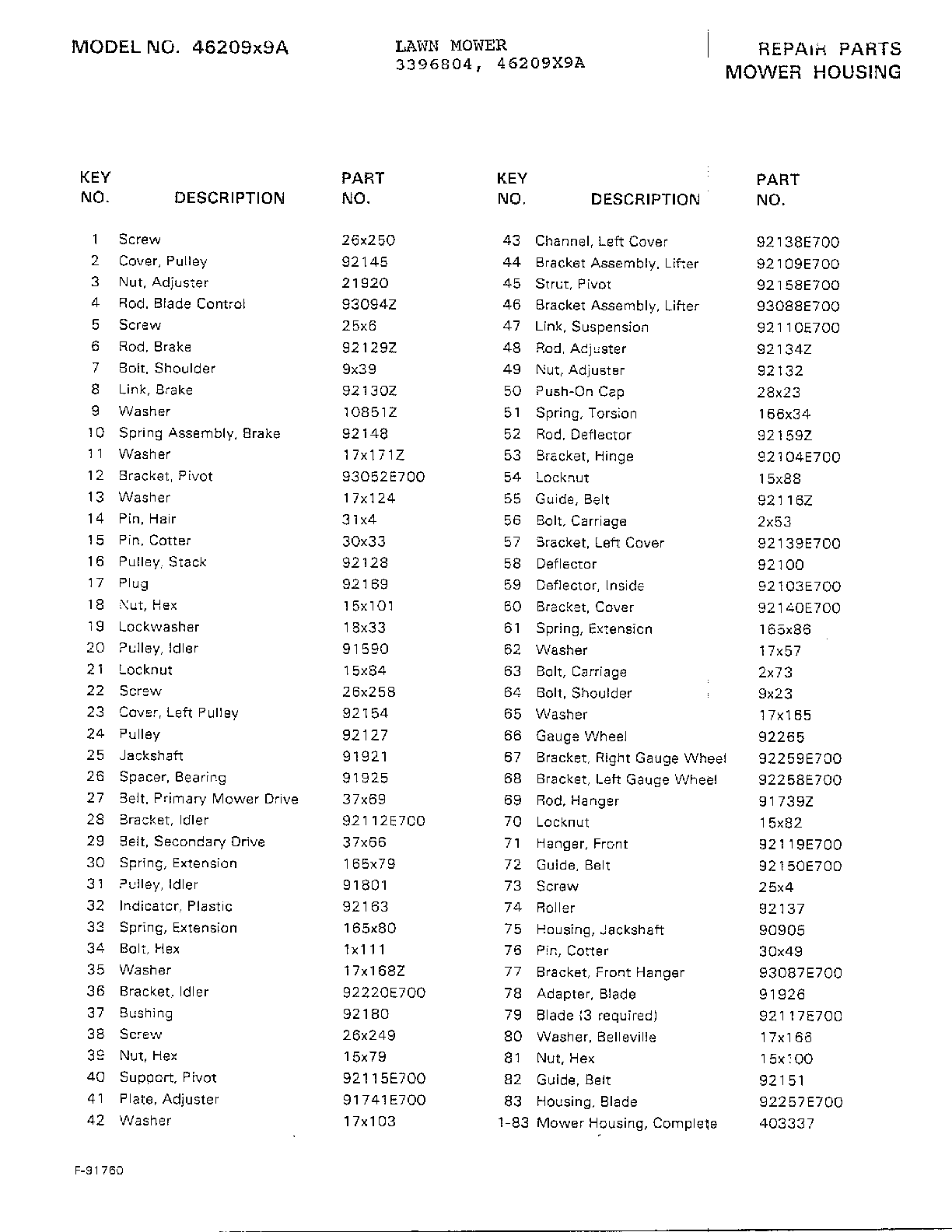

    Mower housing Diagram

    Lawn tractor deck roller spacer bearing

    Part #091925MA
    ?
    Manufacturer substitution
    This part replaces 91925. Substitute parts can look different from the original.
    This part replaces 91925
    $9.92

    In Stock

    Lawn Tractor Deck Hanger Bracket, Front

    #71

    Mower housing Diagram

    Lawn tractor deck hanger bracket, front

    Part #092119SEMA
    ?
    Manufacturer substitution
    This part replaces 92119E700. Substitute parts can look different from the original.
    This part replaces 92119E700
    $122.75

    In Stock

    Brake Rod

    #6

    Mower housing Diagram

    Brake rod

    Part #092129ZMA
    ?
    Manufacturer substitution
    This part replaces 92129Z. Substitute parts can look different from the original.
    This part replaces 92129Z
    $59.78

    In Stock

    Bracket Lh C

    #57

    Mower housing Diagram

    Bracket lh c

    Part #092139E701MA
    ?
    Manufacturer substitution
    This part replaces 92139E700. Substitute parts can look different from the original.
    This part replaces 92139E700
    $23.66

    In Stock

    Steering Support

    #14

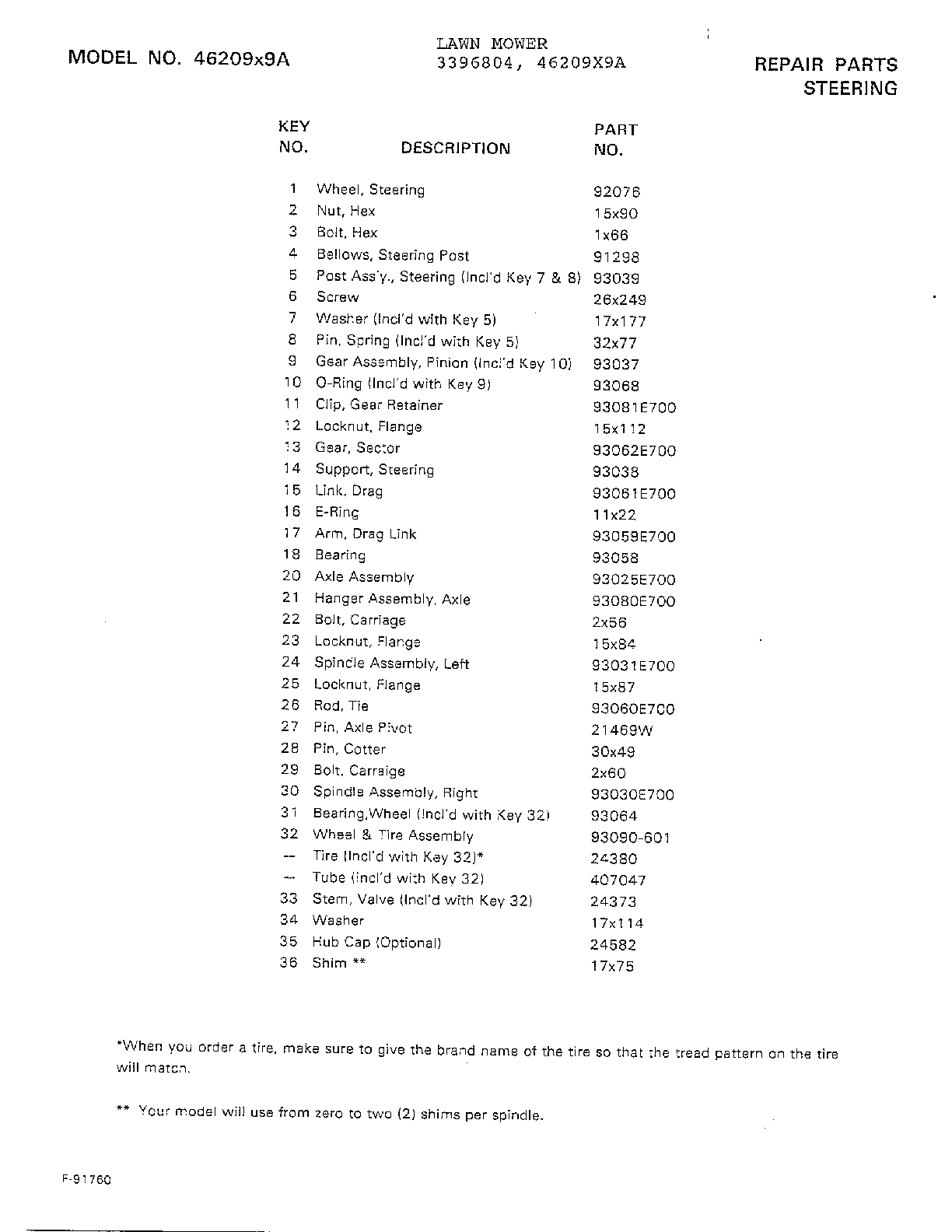

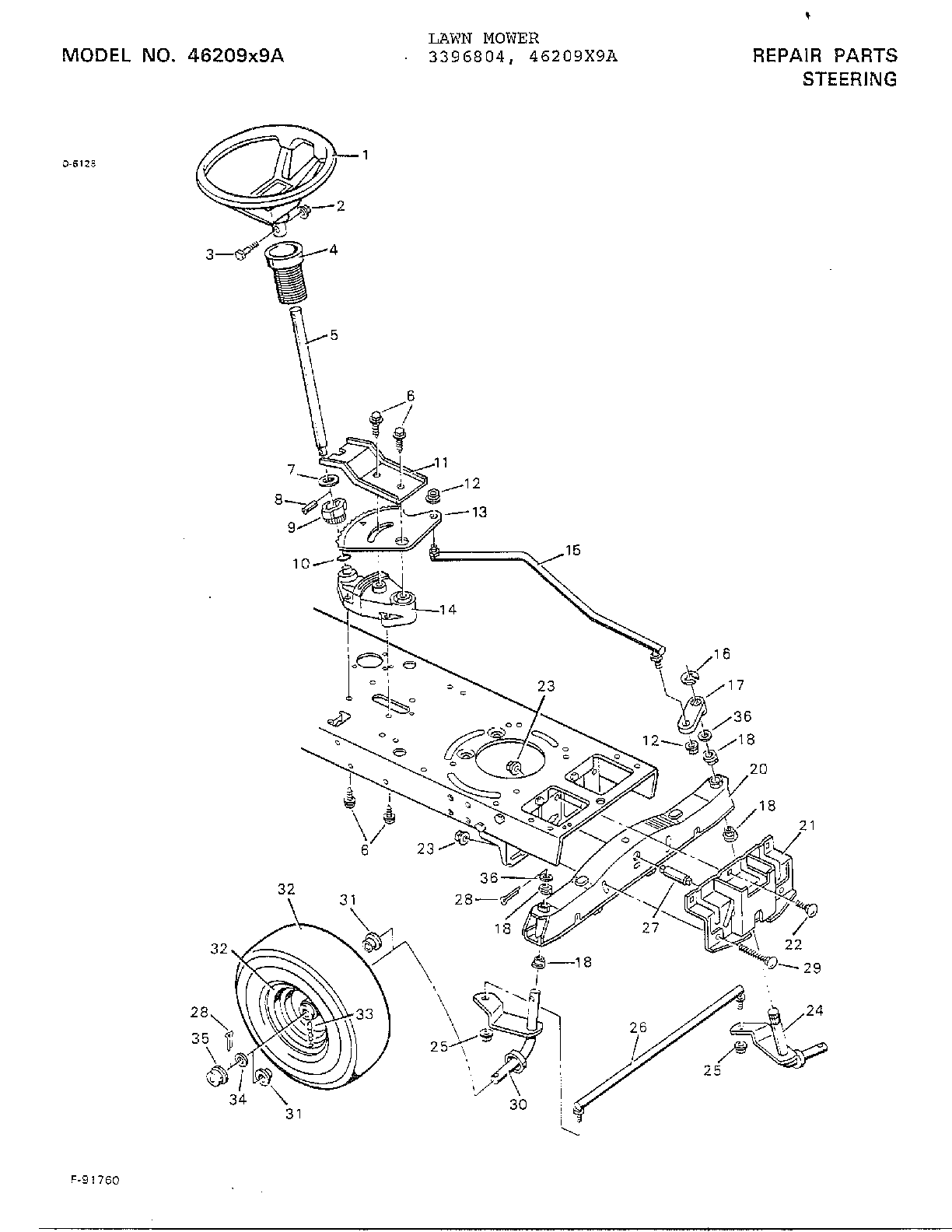

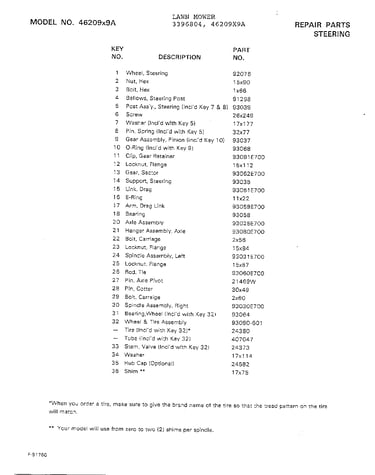

    Steering page 2 Diagram

    Steering support

    Part #093038MA
    ?
    Manufacturer substitution
    This part replaces 93038. Substitute parts can look different from the original.
    This part replaces 93038
    $40.04

    In Stock

    Bearing

    #18

    Steering Diagram

    Bearing

    Part #093058MA
    ?
    Manufacturer substitution
    This part replaces 93058. Substitute parts can look different from the original.
    This part replaces 93058
    This item is not returnable
    $5.88

    In Stock

    Sector Gear

    #13

    Steering Diagram

    Sector gear

    Part #093062MA
    ?
    Manufacturer substitution
    This part replaces 93062E700. Substitute parts can look different from the original.
    This part replaces 93062E700
    $79.09

    In Stock

    Lawn & Garden Equipment O-Ring

    #10

    Steering Diagram

    Lawn & garden equipment o-ring

    Part #093068MA
    ?
    Manufacturer substitution
    This part replaces 93068. Substitute parts can look different from the original.
    This part replaces 93068
    This item is not returnable
    $2.82 |
    19% OFF MSRP:$3.50

    In Stock

    Deck Bracket

    #77

    Mower housing Diagram

    Deck bracket

    Part #776035MA
    ?
    Manufacturer substitution
    This part replaces 93087E700. Substitute parts can look different from the original.
    This part replaces 93087E700
    $61.15

    In Stock

    Seat Support

    #1

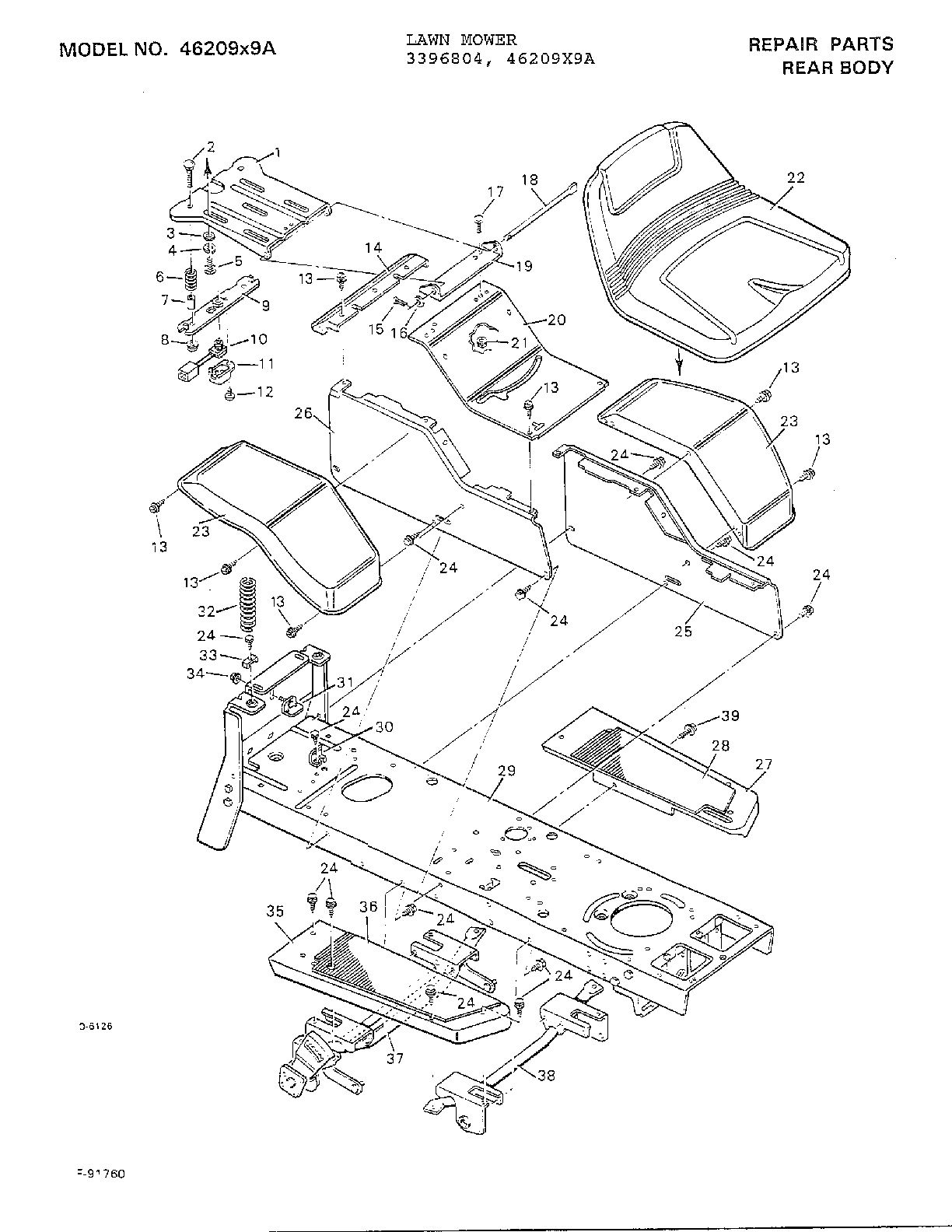

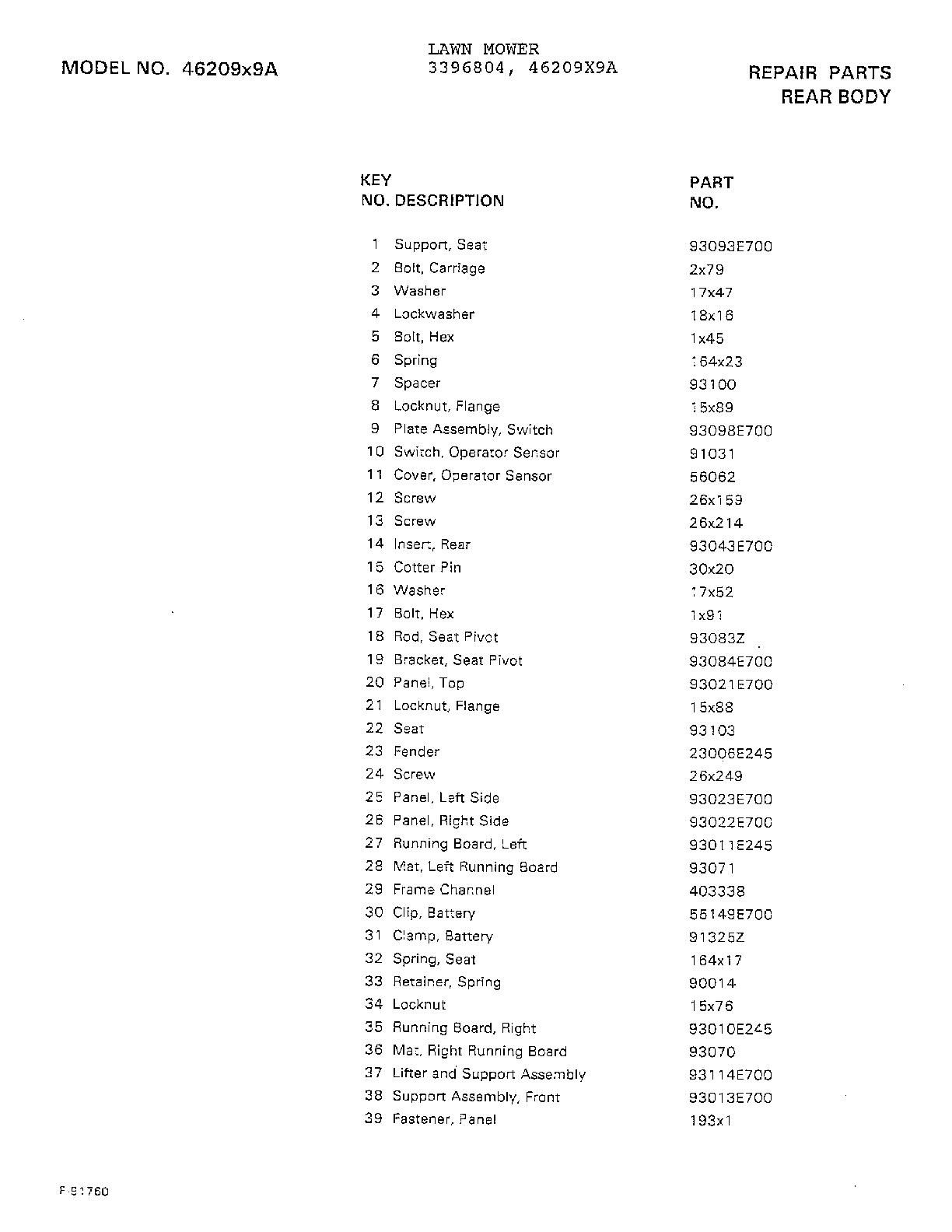

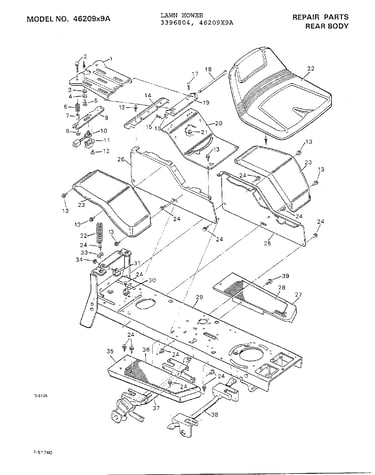

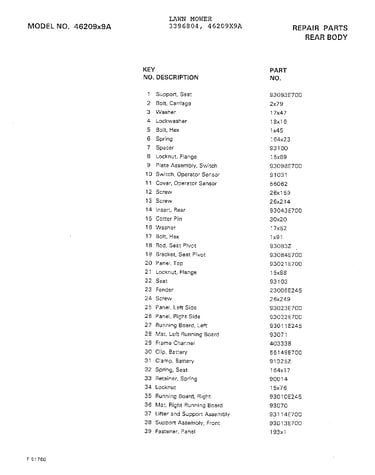

    Rear body Diagram

    Seat support

    Part #093093E700MA
    ?
    Manufacturer substitution
    This part replaces 93093E700. Substitute parts can look different from the original.
    This part replaces 93093E700
    $35.68

    In Stock

    Symptoms for gas walk-behind mowers

    Choose a symptom to see related walk-behind mower repairs.

    Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel
    Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade
    Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent
    Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up
    Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key
    Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, bad ignition coil
