Craftsman 5360-85 22" 5-hp snow thrower Parts
Here are the diagrams and repair parts for Craftsman 5360-85 22" 5-hp snow thrower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for5360-85 22" 5-HP Snow Thrower

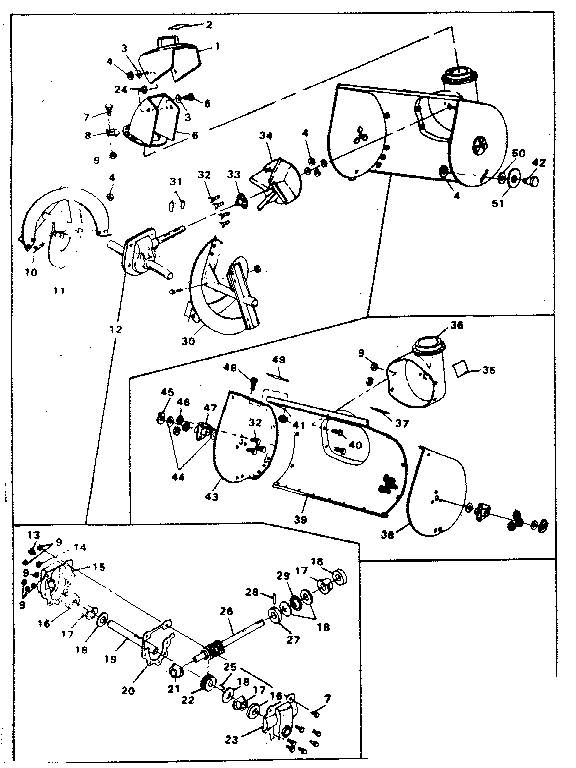

Auger assembly diagram
Gear Case Rh
Part #51278
The manufacturer no longer makes this part, and there's no substitute part

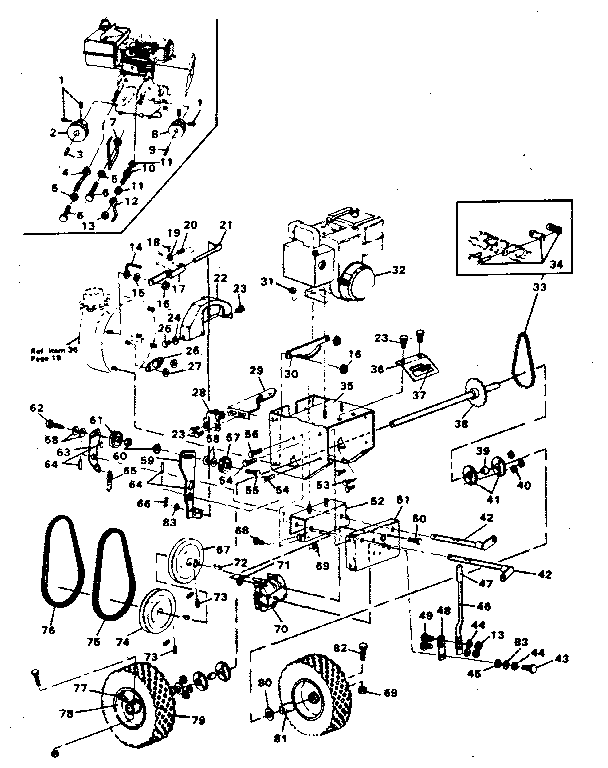

Drive assembly diagram
Shift Plate
Part #55240
The manufacturer no longer makes this part, and there's no substitute part
Drive assembly diagram
Brake Rod
Part #51699
The manufacturer no longer makes this part, and there's no substitute part
Drive assembly diagram
Mntg Plt A T
Part #50279
The manufacturer no longer makes this part, and there's no substitute part
Drive assembly diagram
Washer
Part #50618
The manufacturer no longer makes this part, and there's no substitute part
Auger assembly diagram
Spring Washer
Part #25840
The manufacturer no longer makes this part, and there's no substitute part

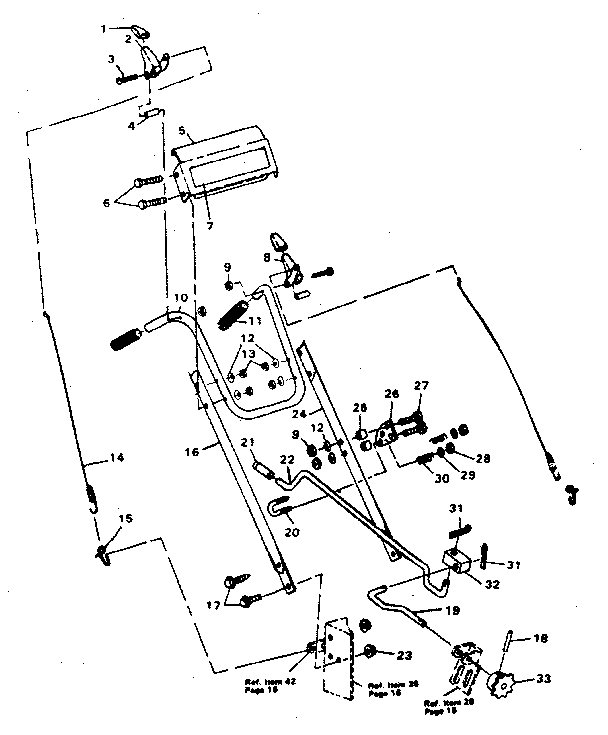

Handle assembly diagram
Spring
Part #23939
The manufacturer no longer makes this part, and there's no substitute part
Drive assembly diagram
Split Lockwr
Part #120380
The manufacturer no longer makes this part, and there's no substitute part
Auger assembly diagram
Chute A Bot
Part #50236
The manufacturer no longer makes this part, and there's no substitute part
Drive assembly diagram
Trans Supp A
Part #50247
The manufacturer no longer makes this part, and there's no substitute part
