Model #5360-85 Craftsman 22" 5-hp snow thrower

Here are the repair parts and diagrams for your Craftsman 5360-85 22" 5-hp snow thrower.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 161 parts

Chain

#33

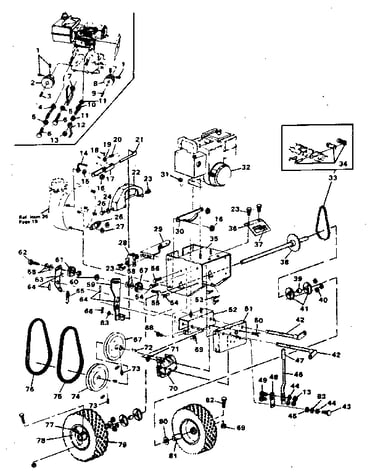

Drive assembly Diagram

Chain

Part #20270

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw

#23

Drive assembly Diagram

Lawn & garden equipment screw

Part #710264MA
?
Manufacturer substitution
This part replaces 995346. Substitute parts can look different from the original.
This part replaces 995346
This item is not returnable
$2.59
30% OFFMSRP:$3.70

In Stock

Snowblower Gearbox Oil Seal

#16

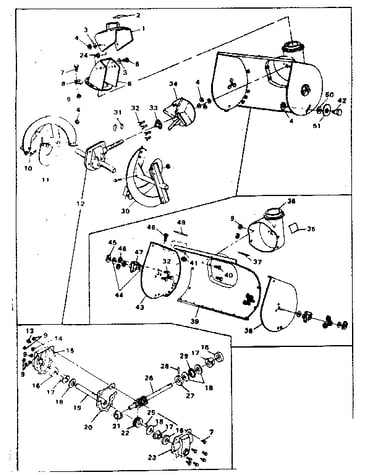

Auger assembly Diagram

Snowblower gearbox oil seal

Part #9566MA
?
Manufacturer substitution
This part replaces 24274. Substitute parts can look different from the original.
This part replaces 24274
$15.67

In Stock

Lawn & Garden Equipment Screw

#54

Drive assembly Diagram

Lawn & garden equipment screw

Part #703985
?
Manufacturer substitution
This part replaces 35497. Substitute parts can look different from the original.
This part replaces 35497
This item is not returnable
$3.13
13% OFFMSRP:$3.60

In Stock

Lock Nut

#28

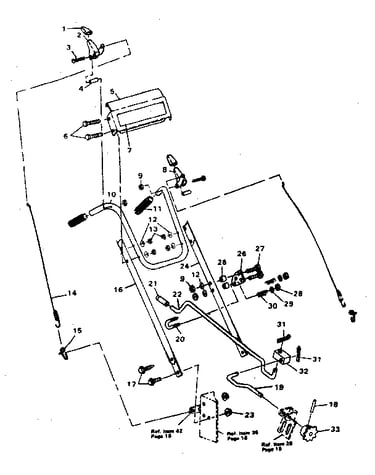

Handle assembly Diagram

Lock nut

Part #997319

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Hex Nut

#46

Auger assembly Diagram

Lawn & garden equipment hex nut

Part #704067
?
Manufacturer substitution
This part replaces 44108. Substitute parts can look different from the original.
This part replaces 44108
This item is not returnable
$3.32

In Stock

Bolt

#6

Handle assembly Diagram

Bolt

Part #180085

The manufacturer no longer makes this part, and there's no substitute part

Bolt

#68

Drive assembly Diagram

Bolt

Part #180075

The manufacturer no longer makes this part, and there's no substitute part

Belleville Washer

#3

Auger assembly Diagram

Belleville washer

Part #25840MA
?
Manufacturer substitution
This part replaces 25840. Substitute parts can look different from the original.
This part replaces 25840
This item is not returnable
$2.98
31% OFFMSRP:$4.30

In Stock

Lawn & Garden Equipment Woodruff Key

#25

Auger assembly Diagram

Lawn & garden equipment woodruff key

Part #703891
?
Manufacturer substitution
This part replaces 431787. Substitute parts can look different from the original.
This part replaces 431787
This item is not returnable
$3.16
27% OFFMSRP:$4.30

In Stock
