KitchenAid
Outdoor Grill

Model # KBZU122TSS00 Official KitchenAid grill side burner

Here are the diagrams and repair parts for Official KitchenAid KBZU122TSS00 grill side burner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Main Valve W10128764
#15

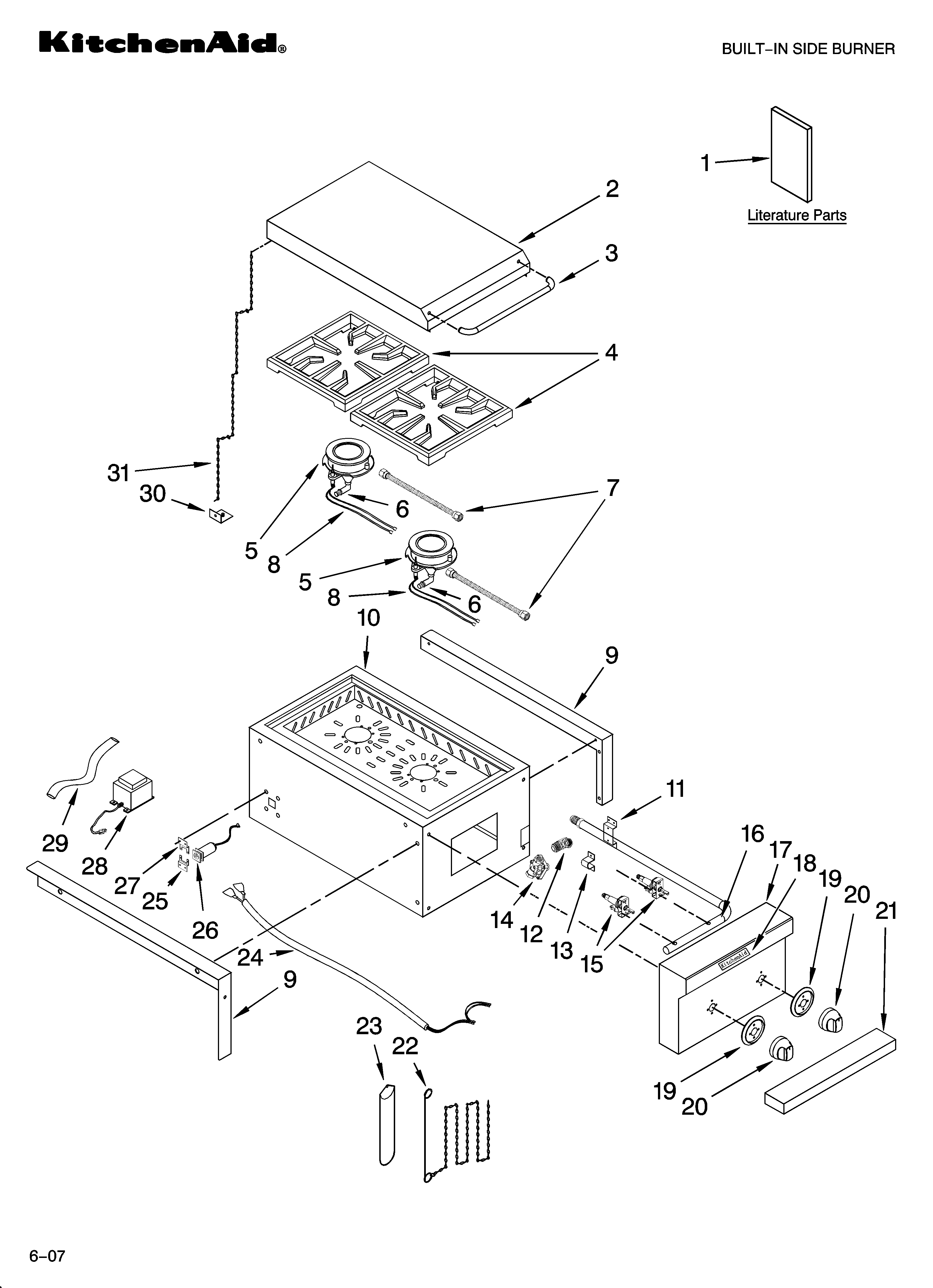

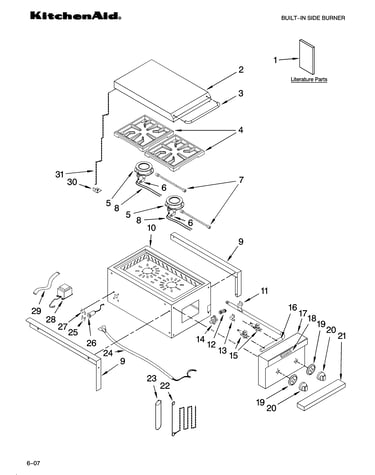

Side burner parts diagram

Main valve

Part #W10128764

Replaced by #WPW10128764

?
Manufacturer substitution
This part replaces W10128764. Substitute parts can look different from the original.
$254.82
In Stock
Transformer W10141184
#28

Side burner parts diagram

Transformer

Part #W10141184

Replaced by #W10247117

?
Manufacturer substitution
This part replaces W10141184. Substitute parts can look different from the original.
$191.29
In Stock
Orifice W10137922
#6

Side burner parts diagram

Orifice

Part #W10137922

$36.27
In Stock
Surface Igniter W10141186
#8A

Side burner parts diagram

Surface igniter

Part #W10141186

Replaced by #W10247025

?
Manufacturer substitution
This part replaces W10141186. Substitute parts can look different from the original.
$113.91
In Stock
Bezel Knob W10140753
#19

Side burner parts diagram

Bezel knob

Part #W10140753

The manufacturer no longer makes this part, and there's no substitute part

Flange W10140253
#9

Side burner parts diagram

Flange

Part #W10140253

The manufacturer no longer makes this part, and there's no substitute part

Chain W10137089
#31

Side burner parts diagram

Chain

Part #W10137089

The manufacturer no longer makes this part, and there's no substitute part

Control Panel W10140750
#17

Side burner parts diagram

Control panel

Part #W10140750

The manufacturer no longer makes this part, and there's no substitute part

Burner W10137743
#5

Side burner parts diagram

Burner

Part #W10137743

The manufacturer no longer makes this part, and there's no substitute part

Burner Box W10140238
#10

Side burner parts diagram

Burner box

Part #W10140238

The manufacturer no longer makes this part, and there's no substitute part
