Sharp
Countertop Microwave

Model # R-408LS Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-408LS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Switch QSW-MA085WRE0
#1-4

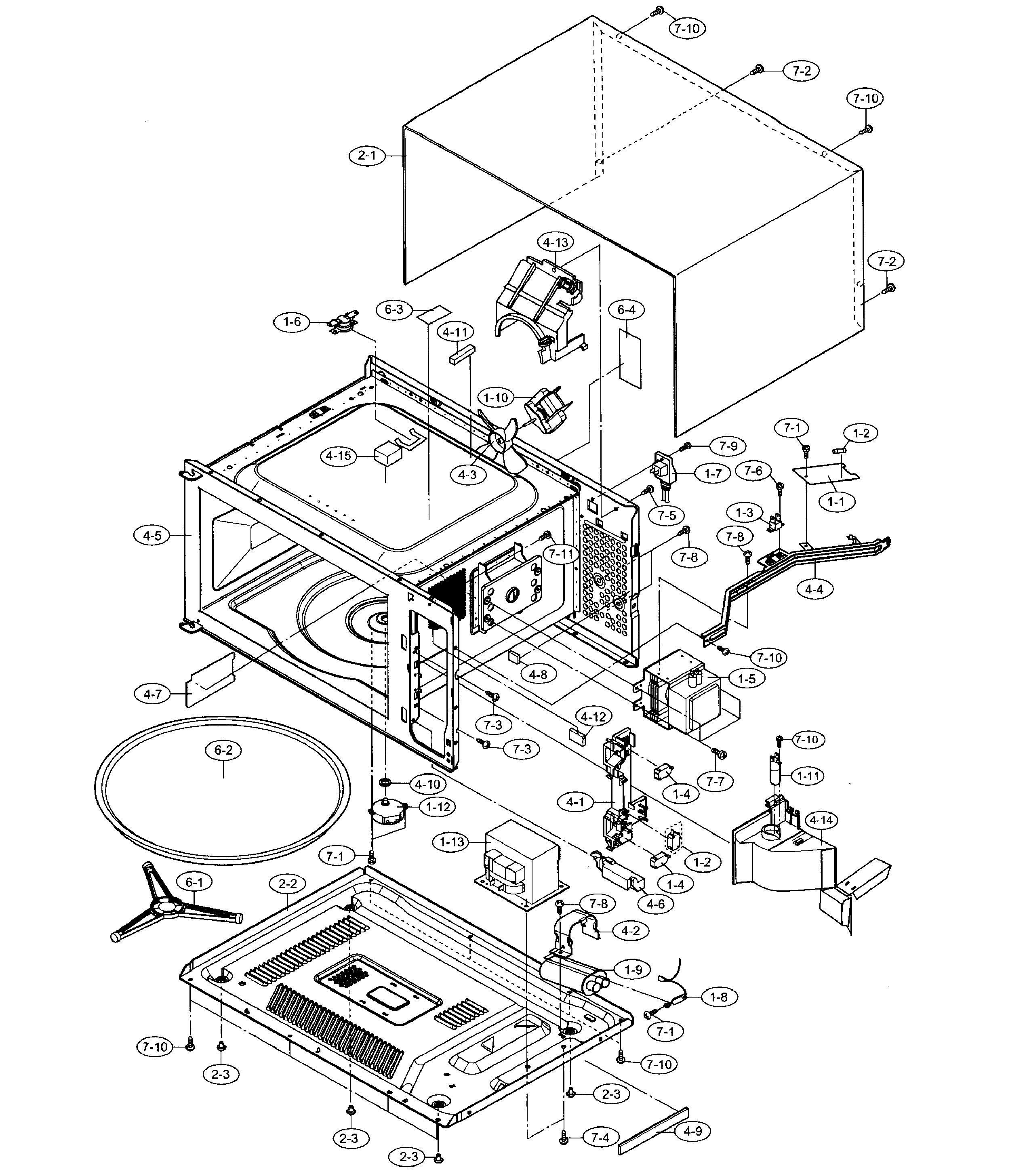

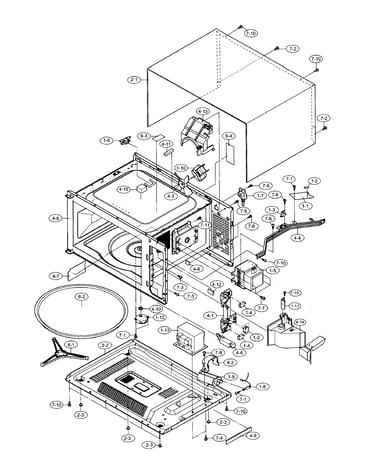

Cabinet parts diagram

Switch

Part #QSW-MA085WRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA147WRZZ
#1-4A

Cabinet parts diagram

Switch

Part #QSW-MA147WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Cautin Lab TCAUAA296WRRZ
#6-4

Cabinet parts diagram

Cautin lab

Part #TCAUAA296WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Door Screen HPNL-A890WRRZ
#5-4

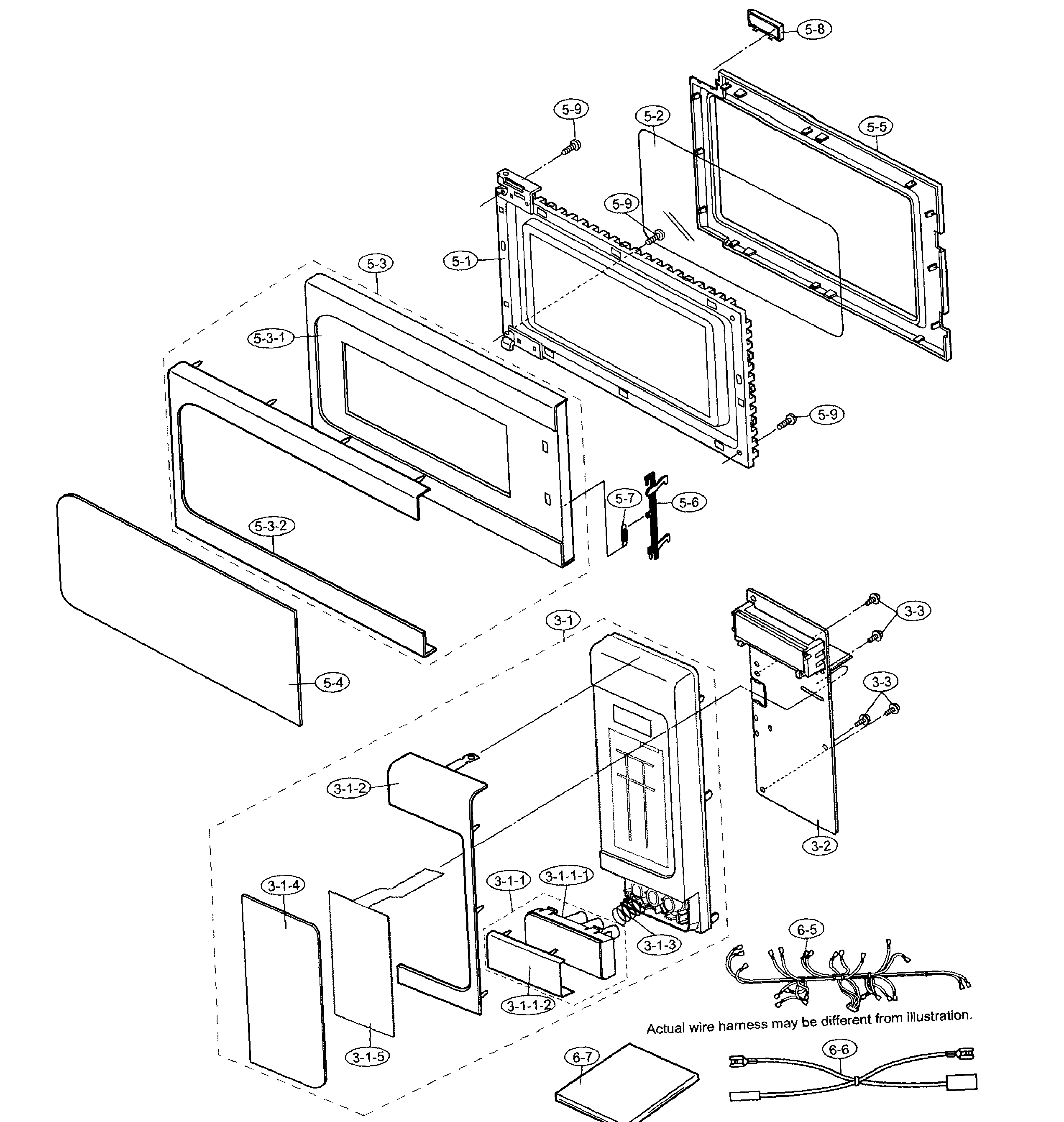

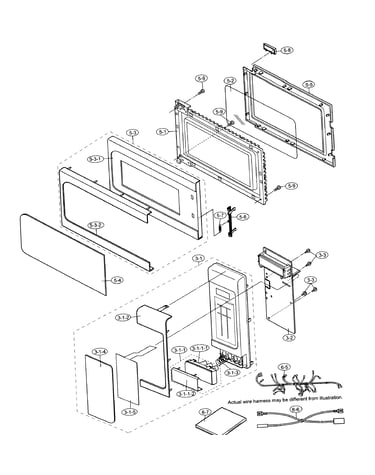

Door/panel assy diagram

Door screen

Part #HPNL-A890WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Screw XEPS730P08XS0
#3-3

Door/panel assy diagram

Screw

Part #XEPS730P08XS0

The manufacturer no longer makes this part, and there's no substitute part

Power Tran RTRN-A746WRZZ
#1-13

Cabinet parts diagram

Power tran

Part #RTRN-A746WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Decorative Button HDECQA328WRPZ
#3112

Door/panel assy diagram

Decorative button

Part #HDECQA328WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Open Button JBTN-B391WRFZ
#3111

Door/panel assy diagram

Open button

Part #JBTN-B391WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Noise Filter FPWBFA417WRKZ
#1-1

Cabinet parts diagram

Microwave noise filter

Part #FPWBFA417WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Leg GLEGPA104WREZ
#2-3

Cabinet parts diagram

Leg

Part #GLEGPA104WREZ

The manufacturer no longer makes this part, and there's no substitute part
