Craftsman 53690515 24" snow thrower Parts
Here are the diagrams and repair parts for Craftsman 53690515 24" snow thrower, as well as links to manuals and error code tables, if available.
Owner’s manual

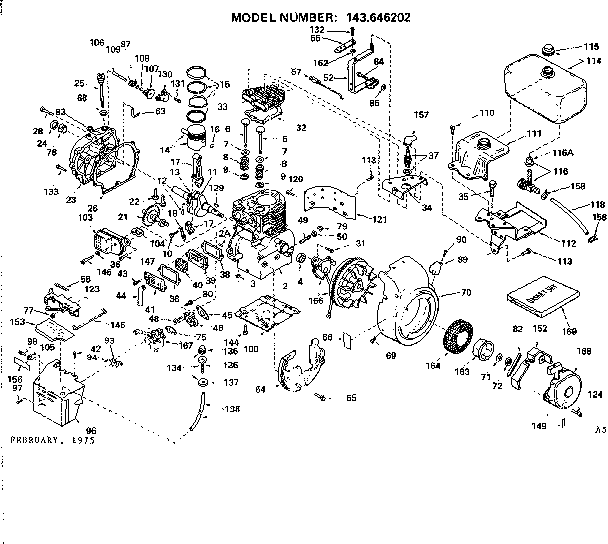

View engine
By Schematic
By Part

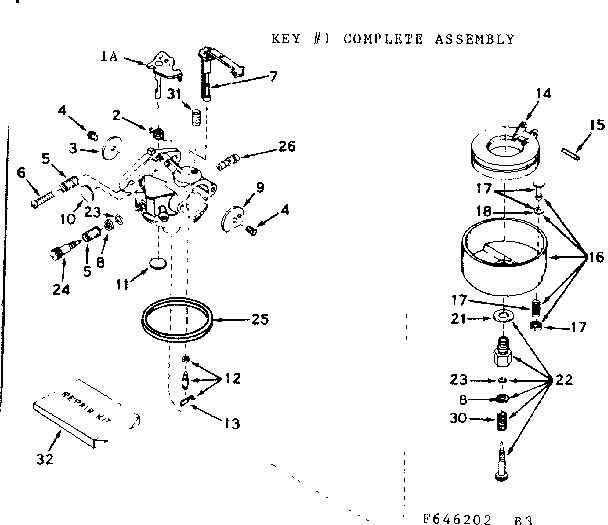

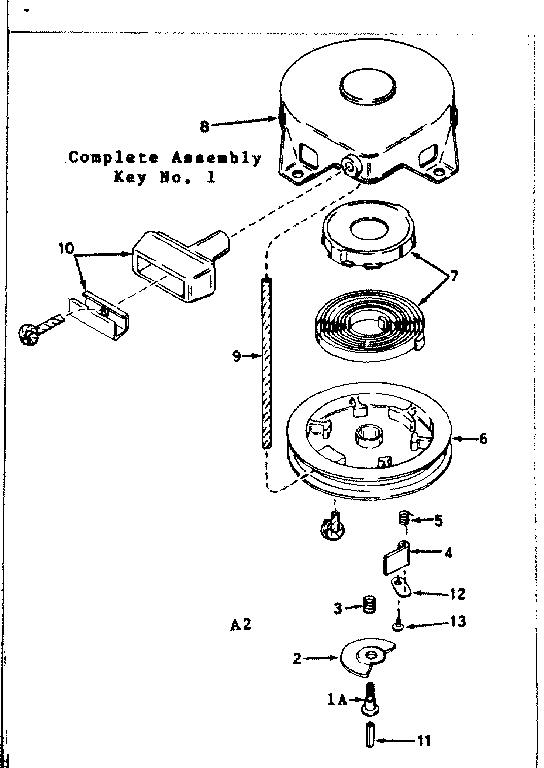

SELECT DIAGRAM
Browse Parts for53690515 Snowblowers

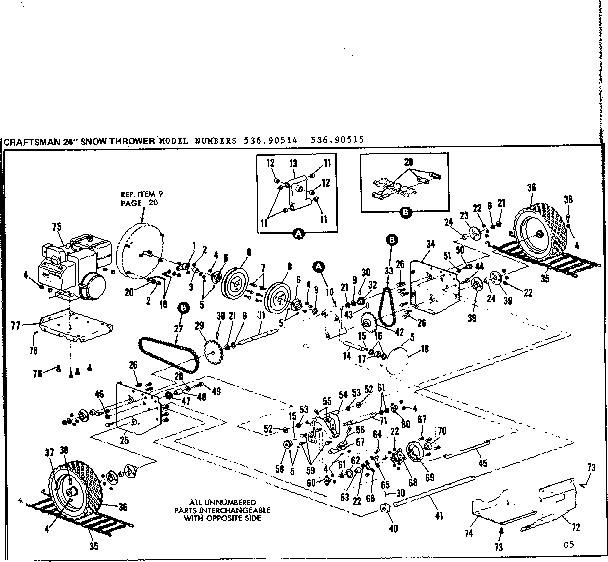

Wheel assembly diagram

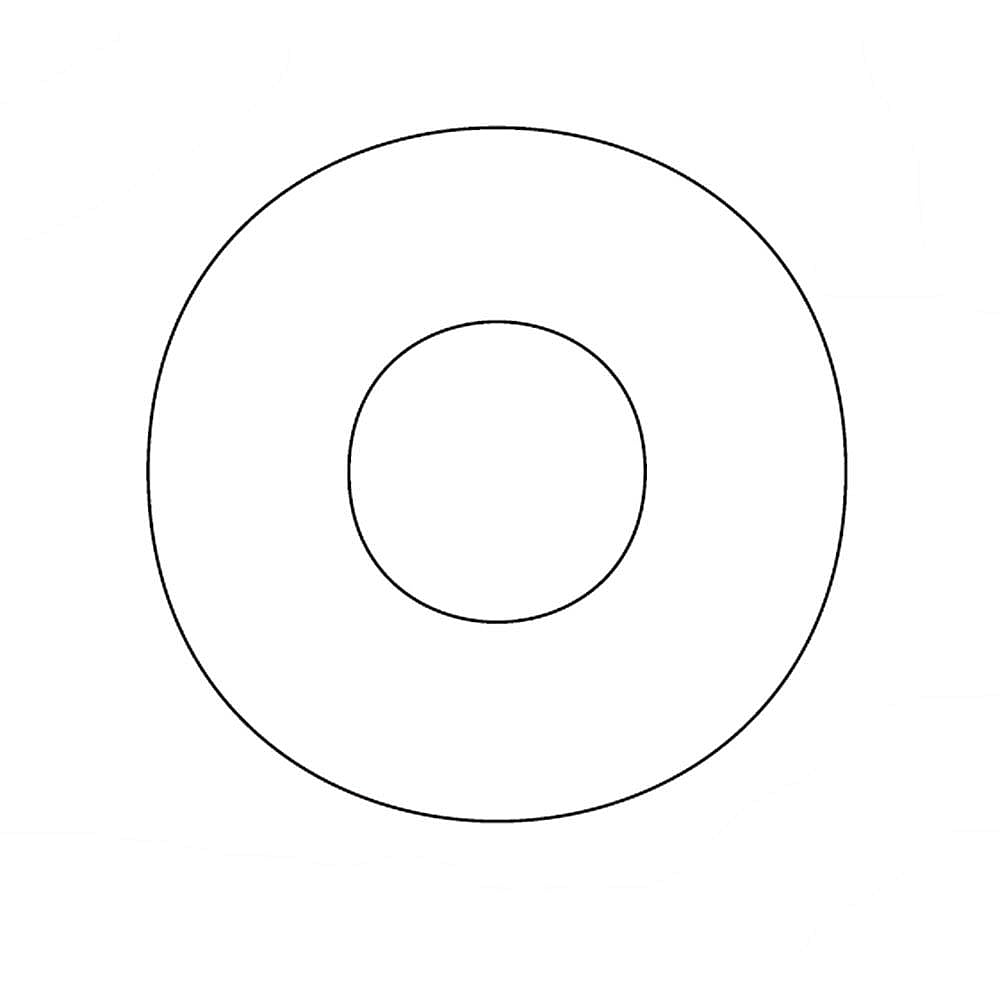

Wave Washer
Part #41891
The manufacturer no longer makes this part, and there's no substitute part

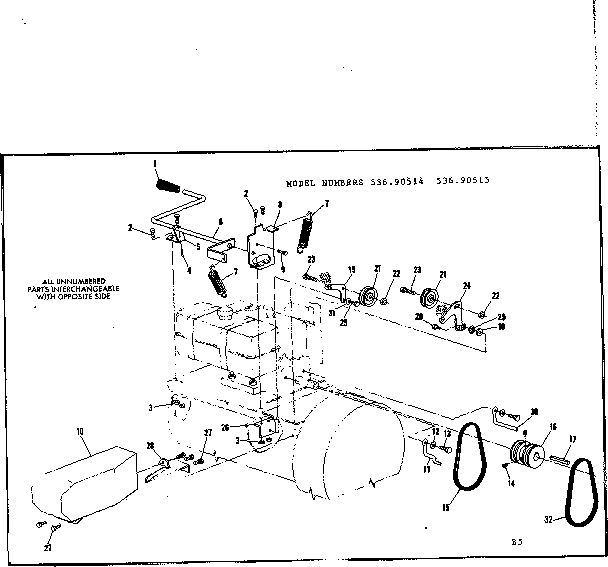

Trowout handel diagram
Idler Mounting Plate
Part #41685
The manufacturer no longer makes this part, and there's no substitute part

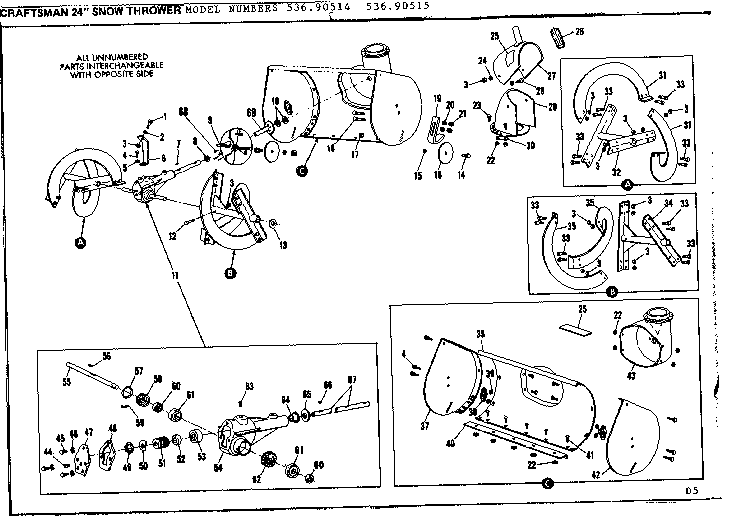

Auger housing assembly diagram
Flange Bearing
Part #39142
The manufacturer no longer makes this part, and there's no substitute part
Wheel assembly diagram
Screw
Part #120229
The manufacturer no longer makes this part, and there's no substitute part
Auger housing assembly diagram
Retaining Ring
Part #21681
The manufacturer no longer makes this part, and there's no substitute part

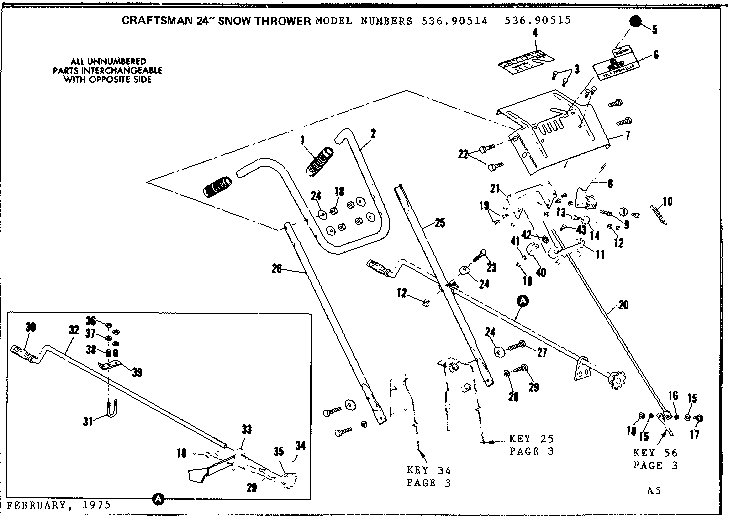

Handle assembly diagram
Saddle
Part #43478
The manufacturer no longer makes this part, and there's no substitute part
Wheel assembly diagram
Sheave
Part #28588
The manufacturer no longer makes this part, and there's no substitute part
Auger housing assembly diagram
Carriage Bolt
Part #998010
The manufacturer no longer makes this part, and there's no substitute part
Trowout handel diagram
Throwout Hdl
Part #41689
The manufacturer no longer makes this part, and there's no substitute part
Auger housing assembly diagram
Cotter Pin
Part #119117
The manufacturer no longer makes this part, and there's no substitute part
