Model # 143236162 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143236162 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

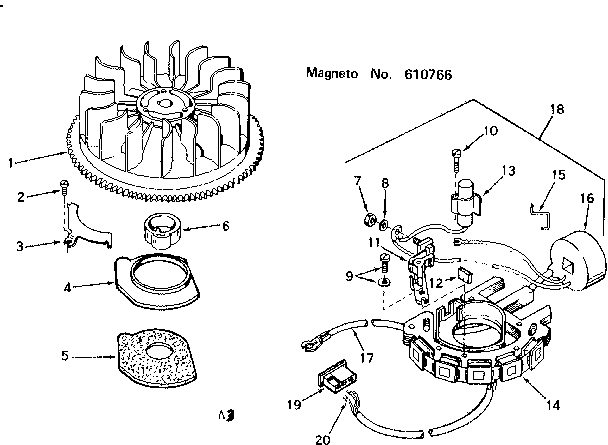

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |

Lawn Mower O-ring 631028
#25

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#12

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.12
17% OFF Phone Price : $12.12
In Stock
Fuel Line 29774
#134

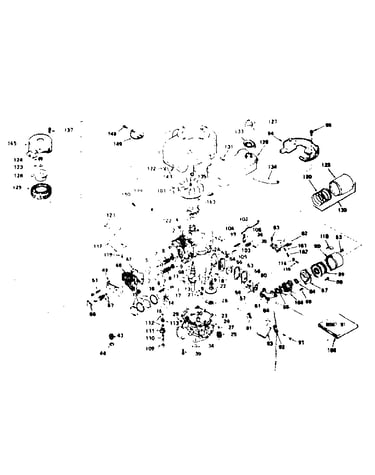

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Plug Cover 27276
#66

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Carburetor Float 631024
#15

Carburetor diagram

Carburetor float

Part #631024

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A
#17

Carburetor diagram

Lawn & garden equipment engine carburetor bowl drain valve

Part #27136A

This item is not returnable
$8.09
11% OFF Phone Price : $9.09
In Stock
Screw 28820
#88

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Carburetor O-ring 630740
#23

Carburetor diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.30
30% OFF MSRP : $4.70
In Stock
