Model # MV1604ST Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV1604ST microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

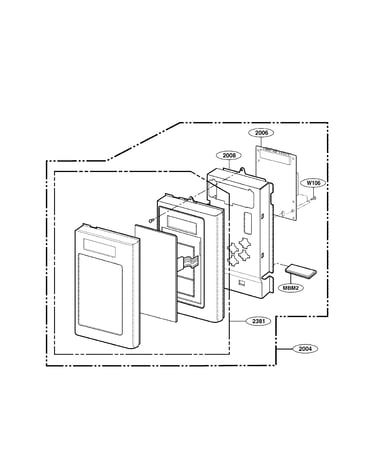

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B
#3028

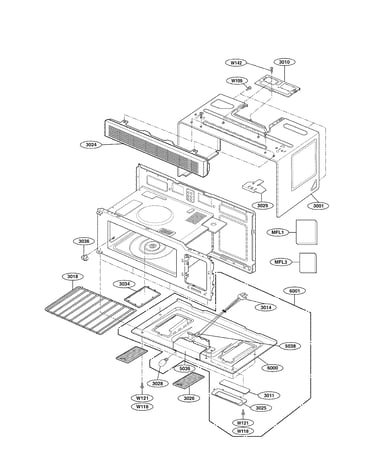

Oven cavity parts diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

BEST SELLER
$9.42
10% OFF Phone Price : $10.42
In Stock
Microwave Glass Turntable Tray (replaces 1b71961f) 1B71961H
#3002

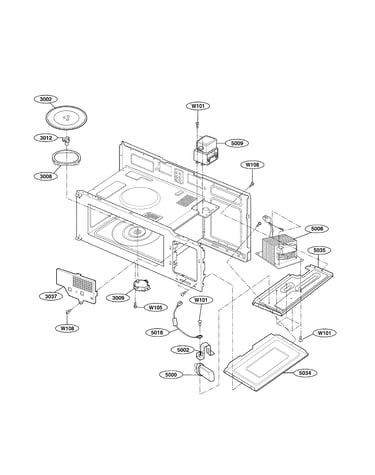

Interior parts(i) diagram

Microwave glass turntable tray (replaces 1b71961f)

Part #1B71961H

BEST SELLER
$32.53
13% OFF Phone Price : $37.53
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

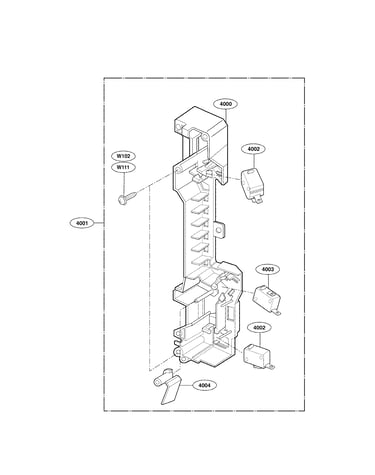

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76
9% OFF Phone Price : $10.76
In Stock
Microwave Charcoal Filter (replaces 5230w1a002a, 5230w1a011a) 5230W1A011B
#5037

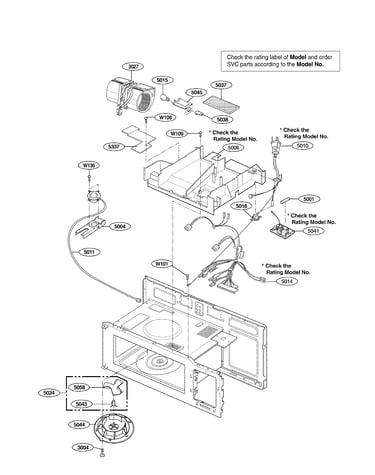

Interior parts(ii-ii) diagram

Microwave charcoal filter (replaces 5230w1a002a, 5230w1a011a)

Part #5230W1A011B

BEST SELLER
$13.07
13% OFF Phone Price : $15.07
In Stock
Microwave Door Latch 4026W2A019A
#1006

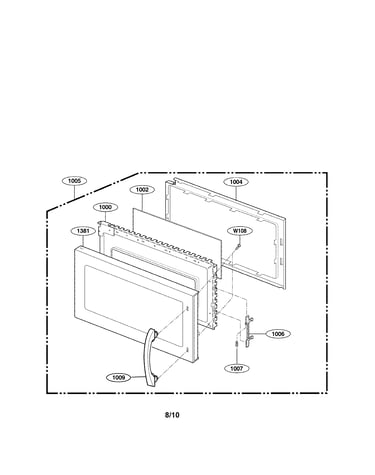

Door parts diagram

Microwave door latch

Part #4026W2A019A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48
15% OFF Phone Price : $6.48
In Stock
Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

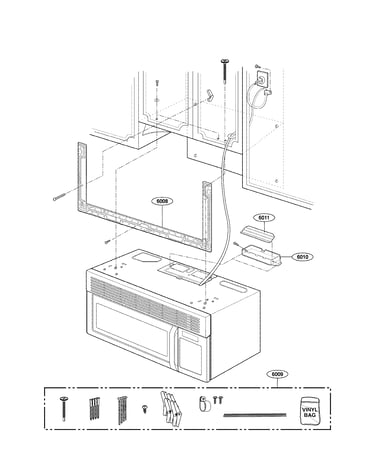

Installastion parts diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43
14% OFF Phone Price : $14.43
In Stock
Microwave Vent Damper Door (replaces 3b71432a) 4900W1A001B
#6011

Installastion parts diagram

Microwave vent damper door (replaces 3b71432a)

Part #4900W1A001B

BEST SELLER
This item is not returnable
$8.52
11% OFF Phone Price : $9.52
In Stock
Microwave High-voltage Diode (replaces 6021w3b001n, 6021w3b001q, 6021w3b001r, 6851w1a002b) 6021W3B001V
#5018

Interior parts(i) diagram

Microwave high-voltage diode (replaces 6021w3b001n, 6021w3b001q, 6021w3b001r, 6851w1a002b)

Part #6021W3B001V

BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Microwave Turntable Motor Coupler (replaces 3b72373a, 3b72373d) 4370W1A006B
#3012

Interior parts(i) diagram

Microwave turntable motor coupler (replaces 3b72373a, 3b72373d)

Part #4370W1A006B

BEST SELLER
This item is not returnable
$9.57
9% OFF Phone Price : $10.57
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, Eae61082101) 0CZZW1H004B
#5000

Interior parts(i) diagram

Microwave high-voltage capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, eae61082101)

Part #0CZZW1H004B

BEST SELLER
$28.54
15% OFF Phone Price : $33.54
In Stock
