Snapper 130381460 lawn mower Parts
Here are the diagrams and repair parts for Snapper 130381460 lawn mower, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
By Part
SELECT DIAGRAM

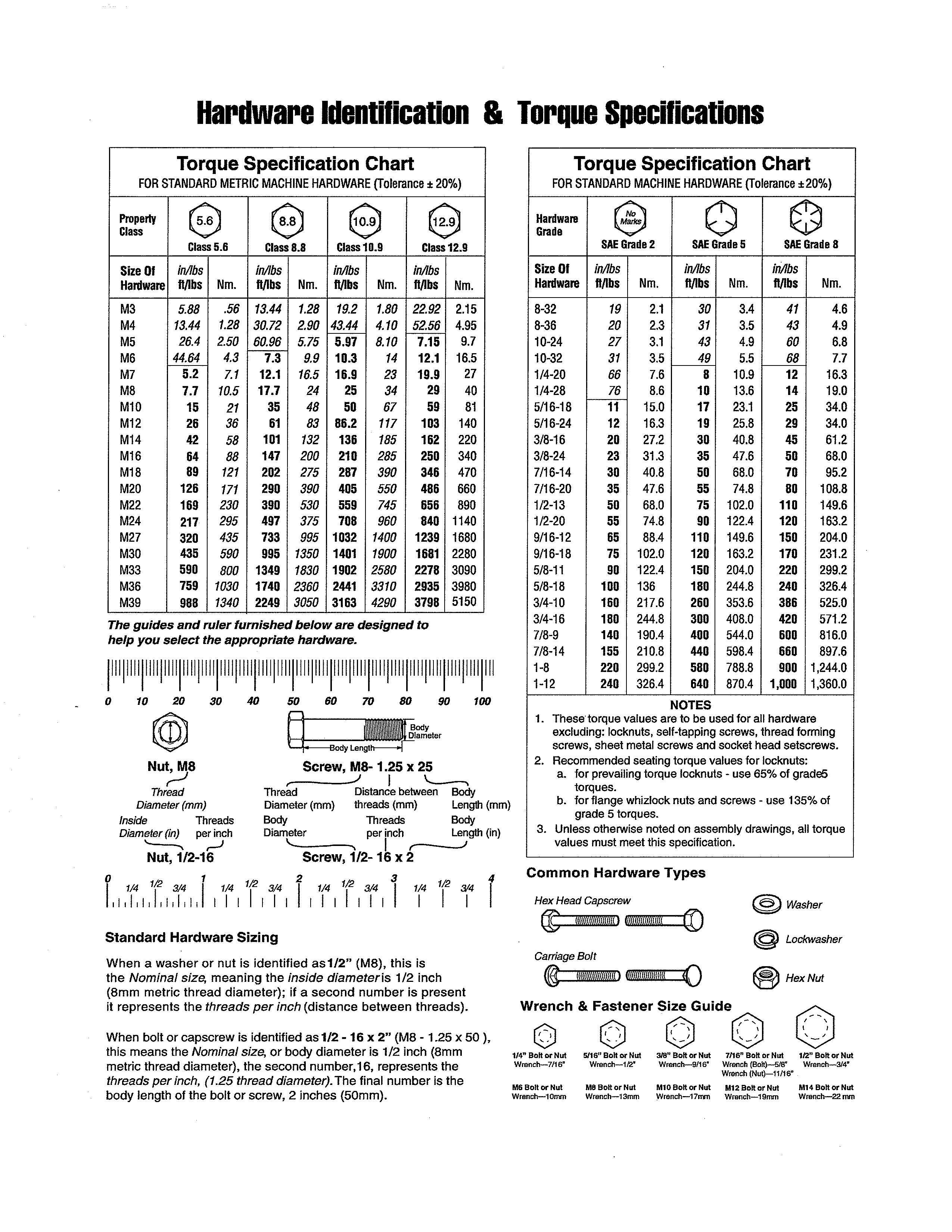

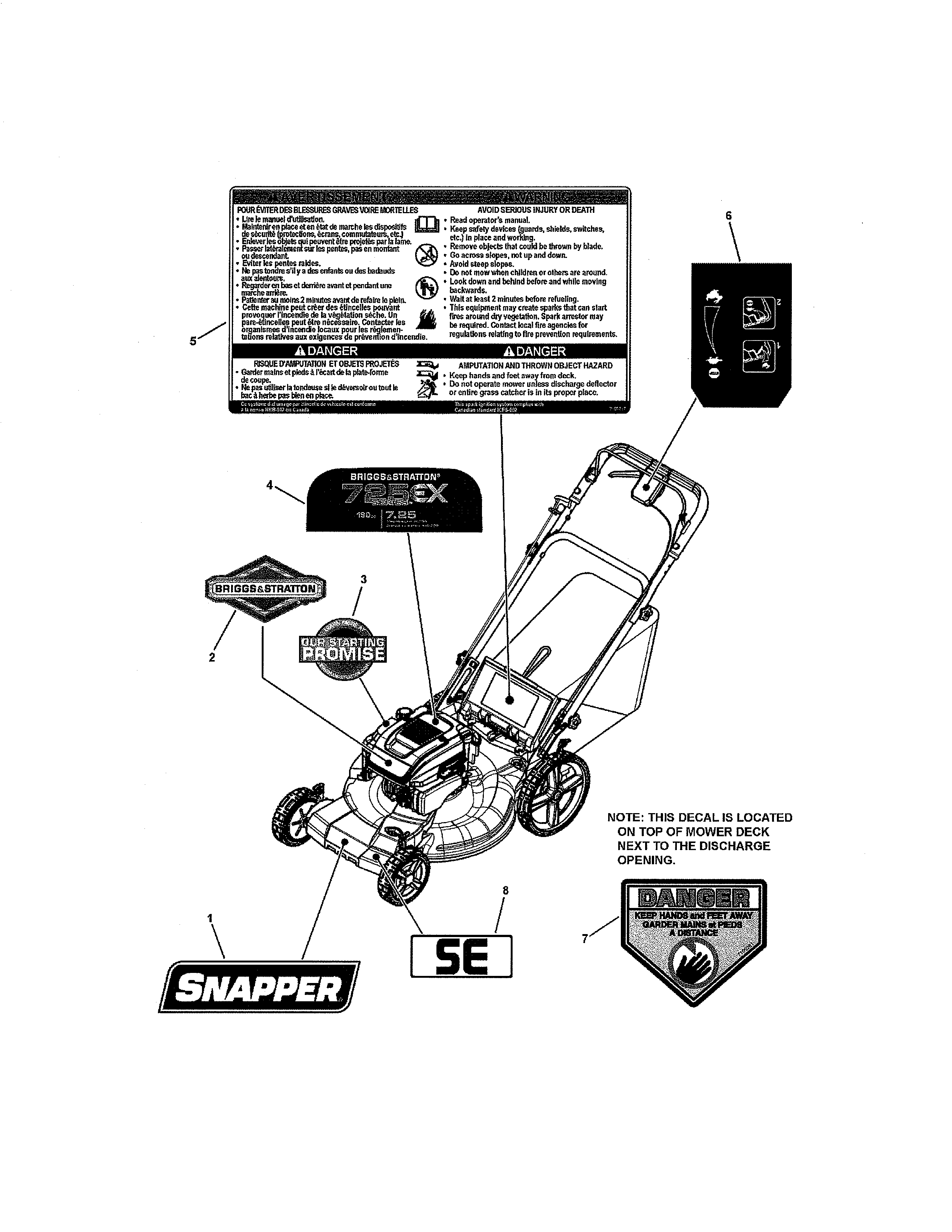

Browse Parts for 130381460 Walk-Behind Mowers

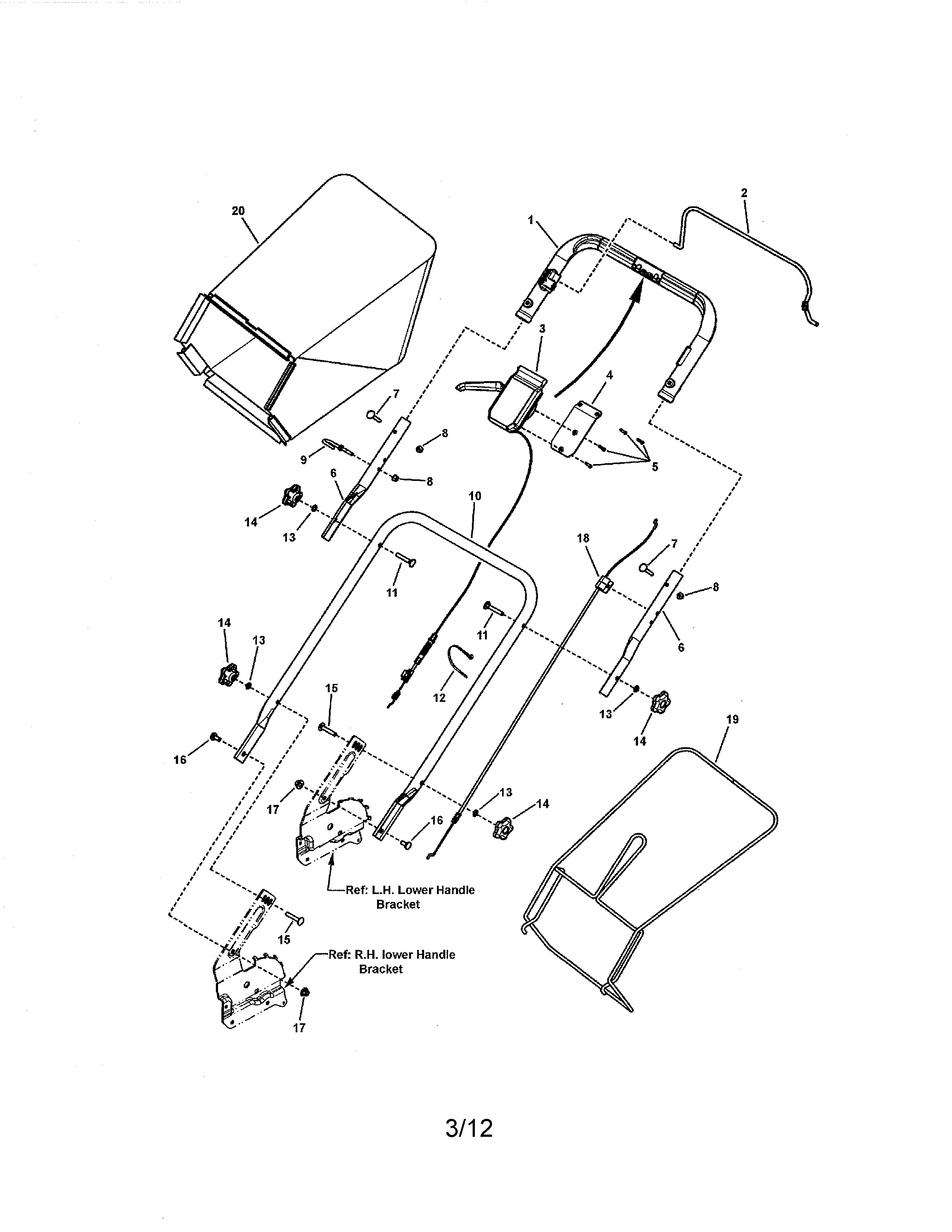

Handle & controls diagram
Snapper Lawn Mower Handle
Part #7101321BHReplaced by #7101321YP
Manufacturer substitutionThis part replaces 7101321BH. Substitute parts can look different from the original.In Stock$96.27
Qty

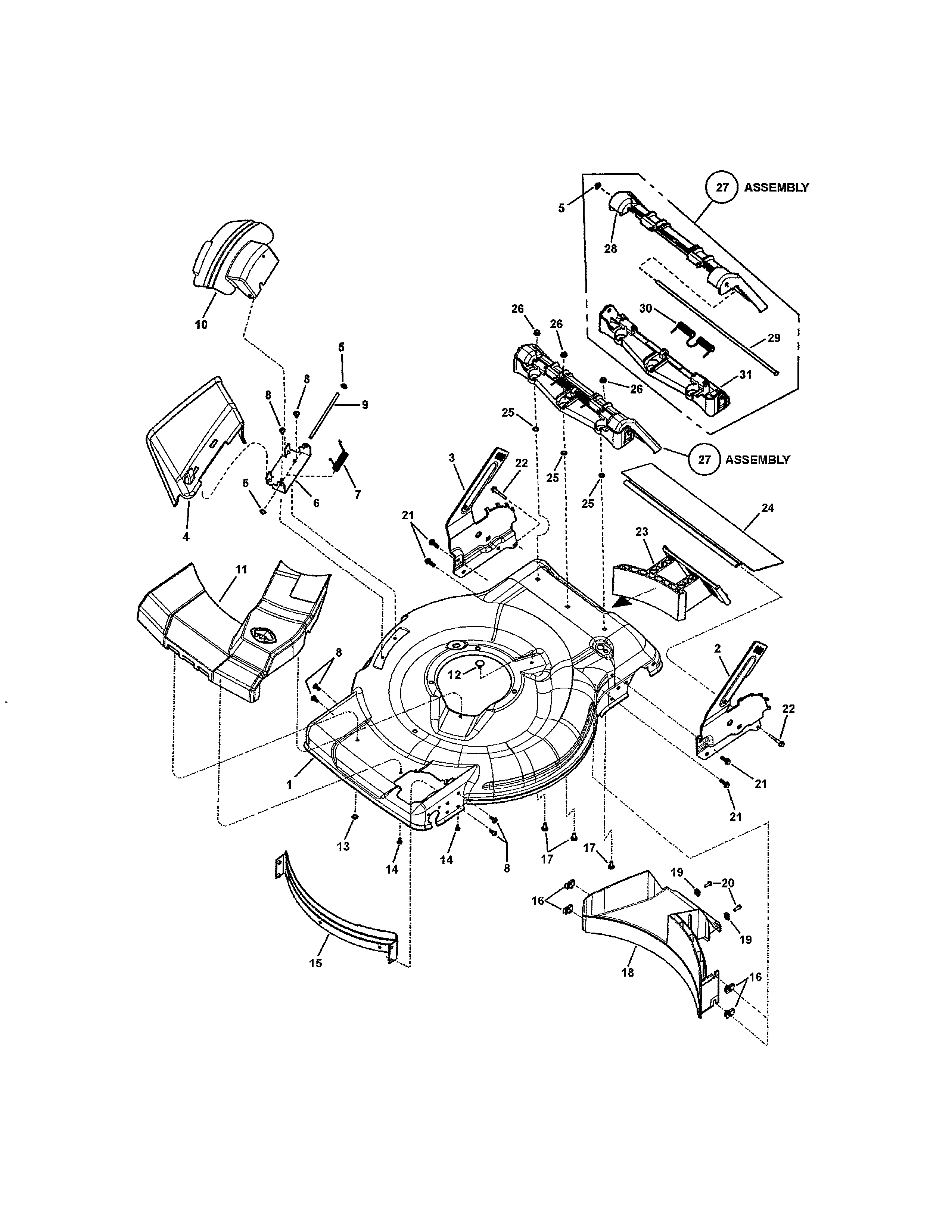

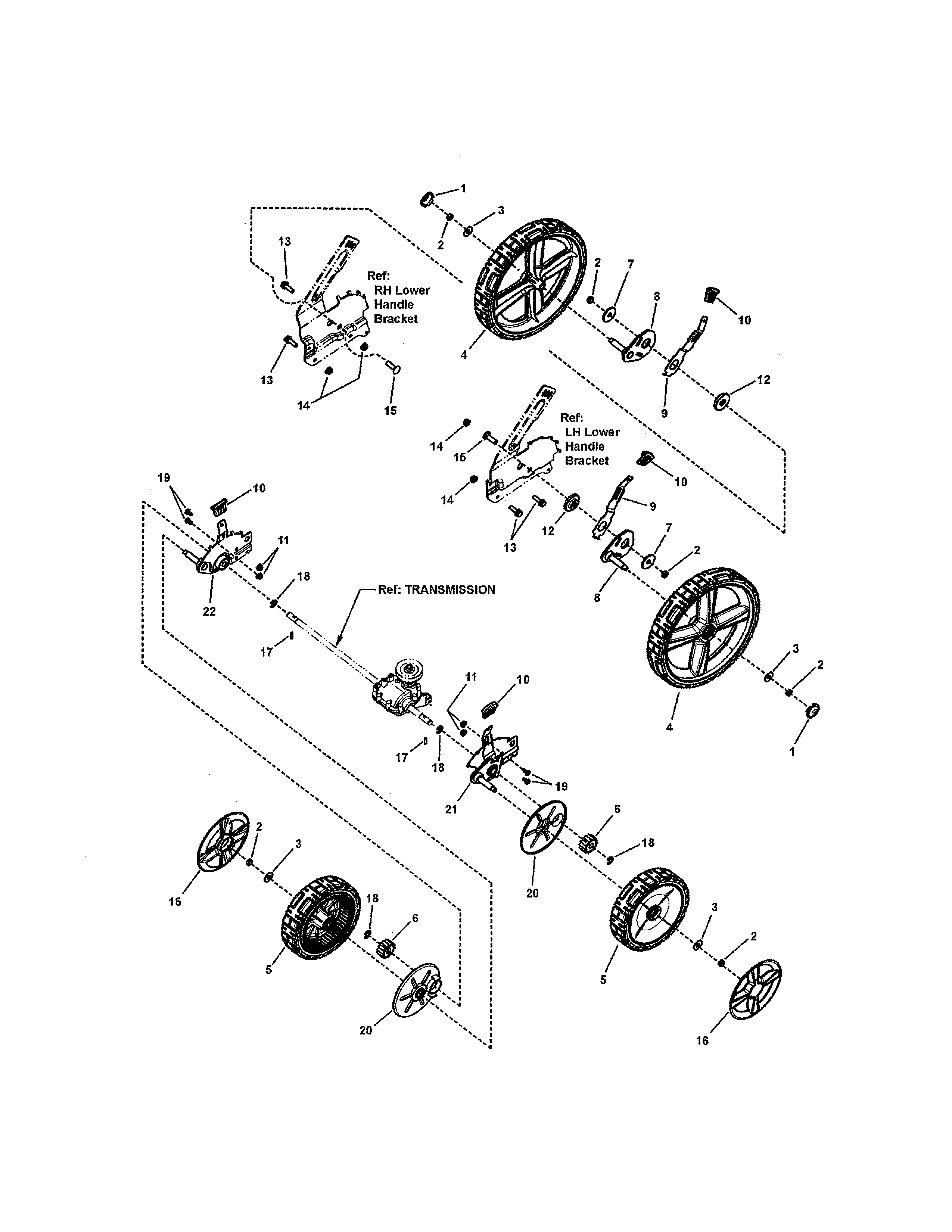

Deck-front wheel drive/hi-wheel diagram
Snapper Deck, 22 Front Wheel Drive, Washout
Part #7600156D
The manufacturer no longer makes this part, and there's no substitute part
Deck-front wheel drive/hi-wheel diagram
Snapper Brkt,lwr Hnd
Part #7301090BH
The manufacturer no longer makes this part, and there's no substitute part
Deck-front wheel drive/hi-wheel diagram
Snapper Bolt, 1/4-20 X 1-1/2 Shoulder (2)
Part #7900073
The manufacturer no longer makes this part, and there's no substitute part
Handle & controls diagram
Snapper Rhsnb 1/4cx1
Part #7090015
The manufacturer no longer makes this part, and there's no substitute part
Deck-front wheel drive/hi-wheel diagram
Snapper Door, Rear Discharge
Part #7103291
The manufacturer no longer makes this part, and there's no substitute part

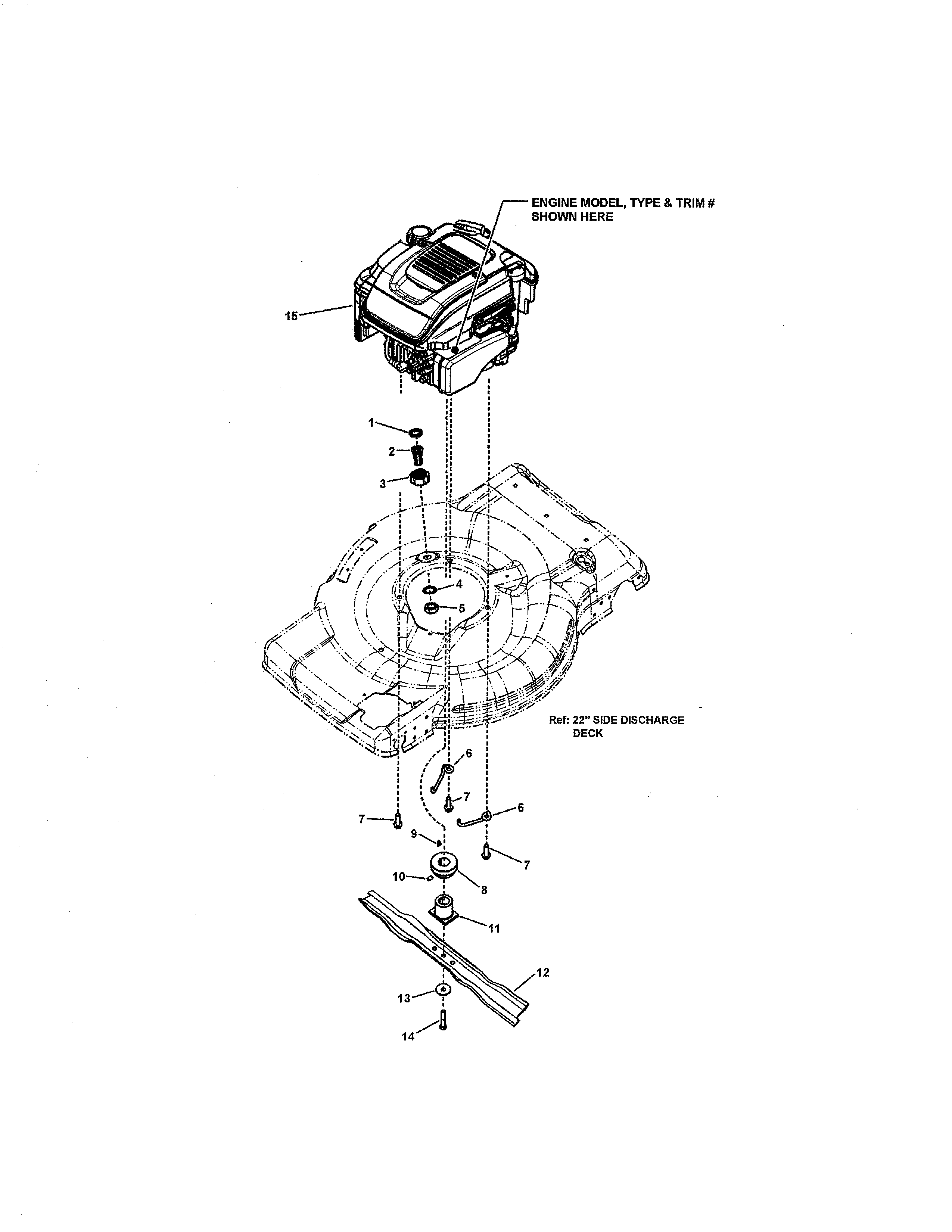

Engine diagram
Snapper Hrss 5/16
Part #7092086
The manufacturer no longer makes this part, and there's no substitute part
Handle & controls diagram
Snapper Bag Frame
Part #7103305A
The manufacturer no longer makes this part, and there's no substitute part
Deck-front wheel drive/hi-wheel diagram
Snapper Front Baffle
Part #7301020
The manufacturer no longer makes this part, and there's no substitute part

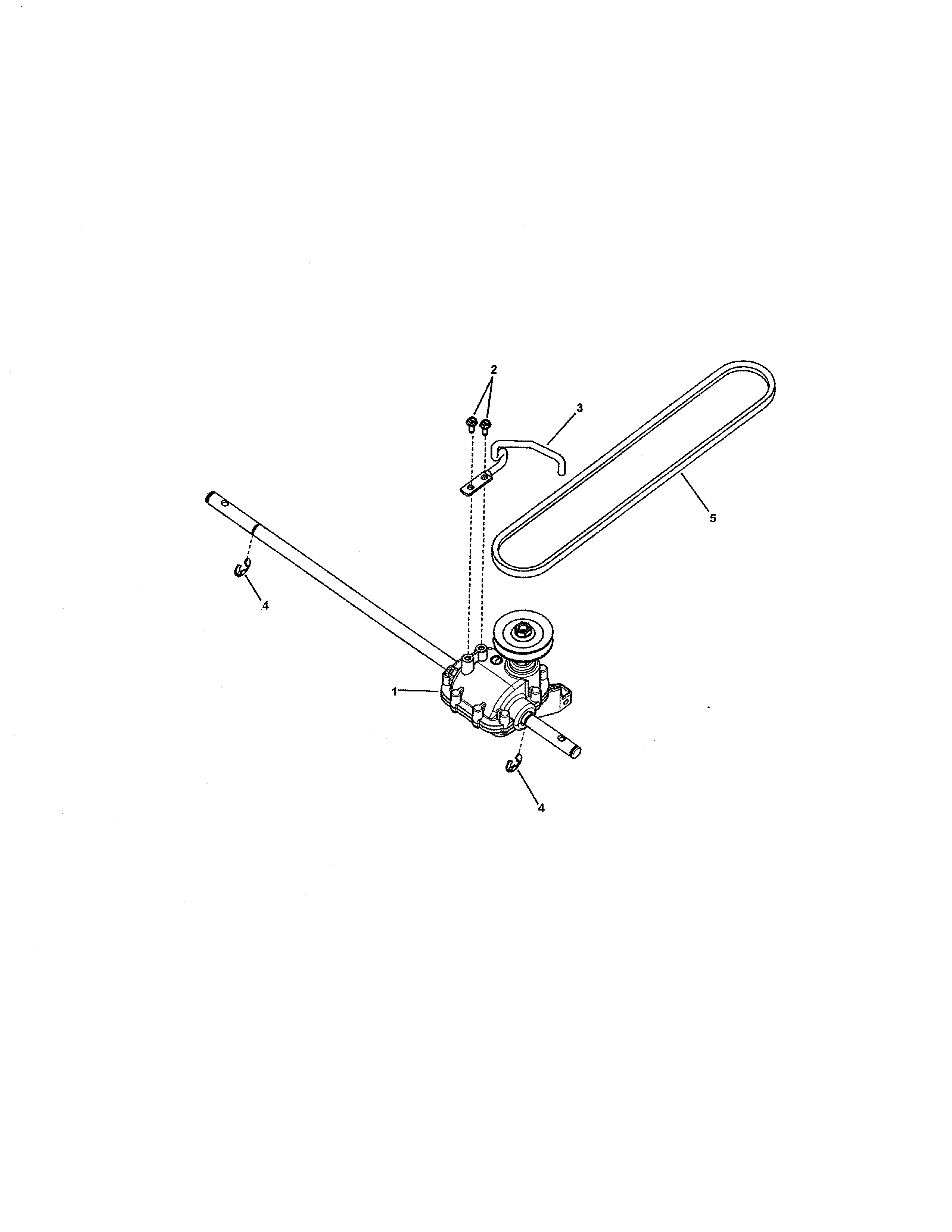

Transmission diagram
Snapper Guide, Belt, Fwd
Part #7103304
The manufacturer no longer makes this part, and there's no substitute part
