Model # HDR-CX110 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX110 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

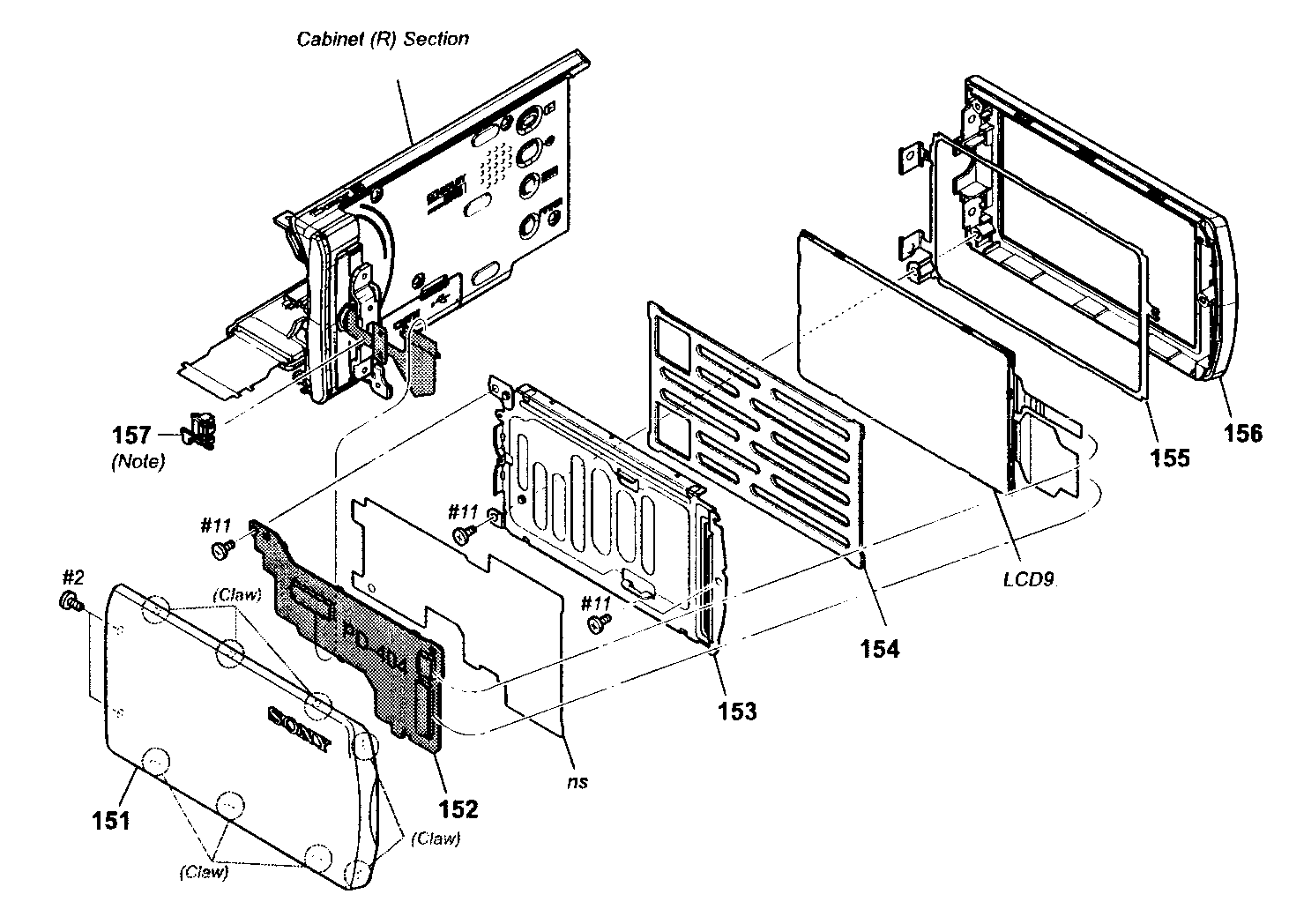

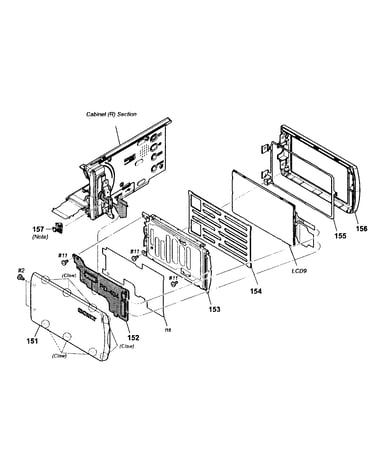

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Microphone 154282111
#MIC9

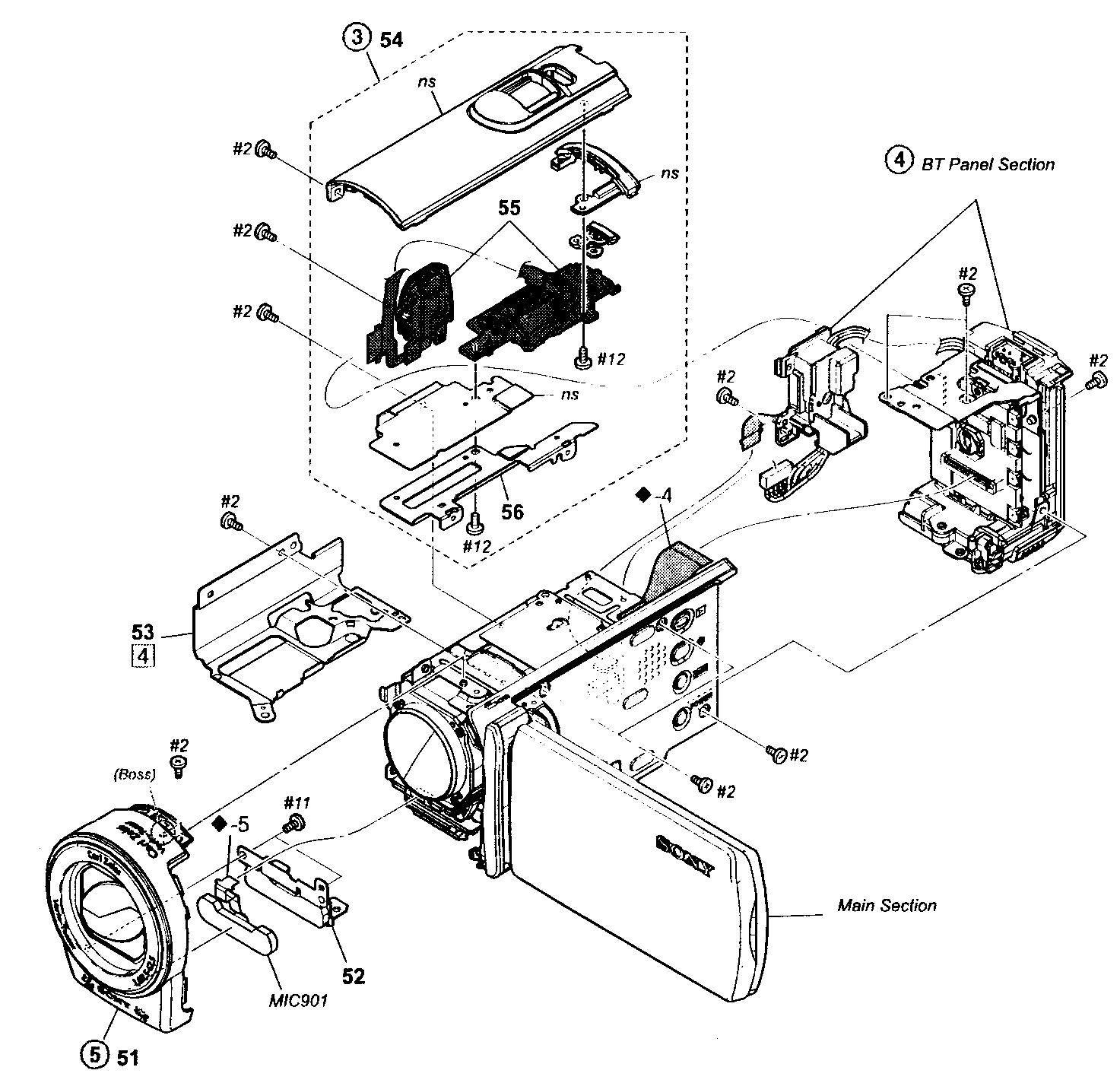

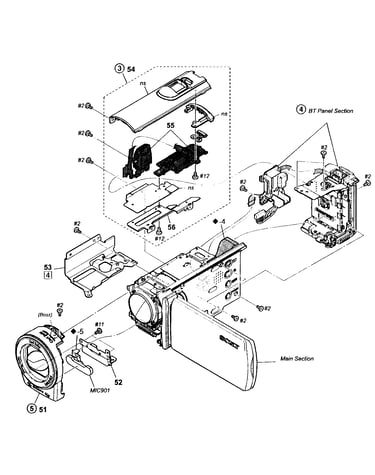

Top/fr assy diagram

Microphone

Part #154282111

The manufacturer no longer makes this part, and there's no substitute part

Cm-114 Pcb A1756539A
#112

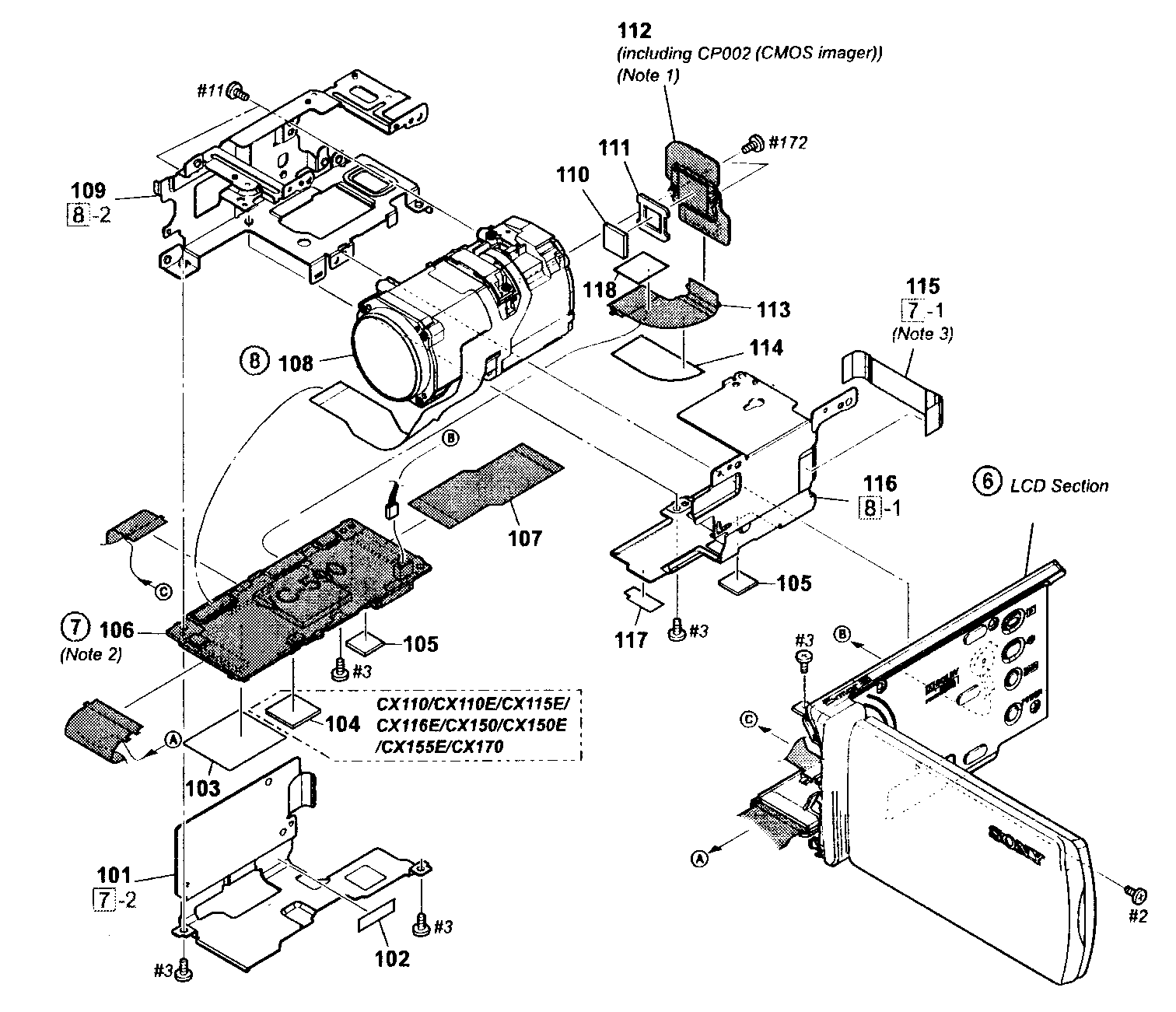

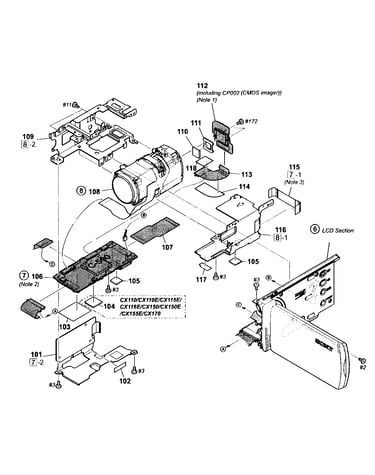

Main assy diagram

Cm-114 pcb

Part #A1756539A

The manufacturer no longer makes this part, and there's no substitute part

Grip Belt 416660601
#2

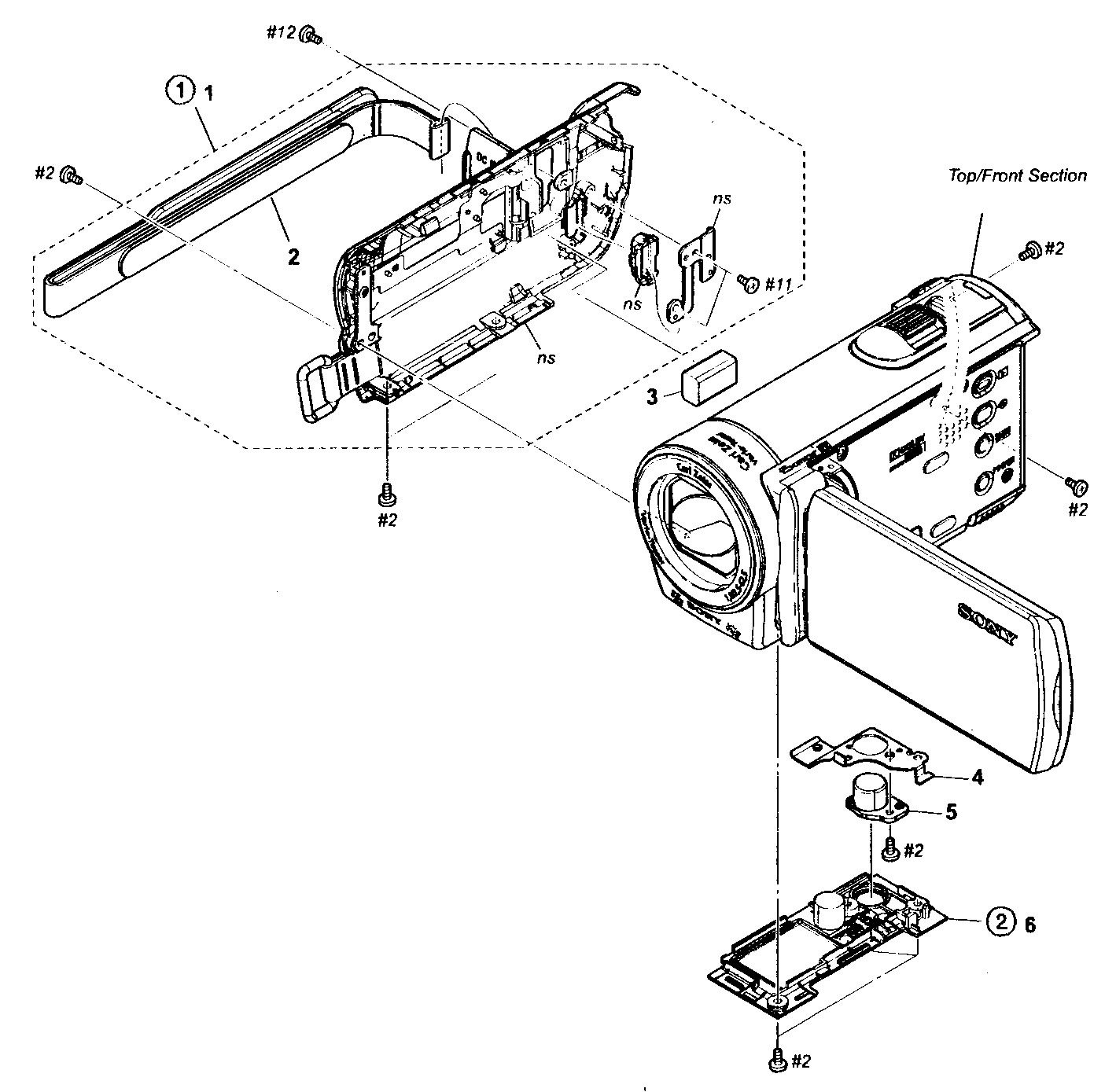

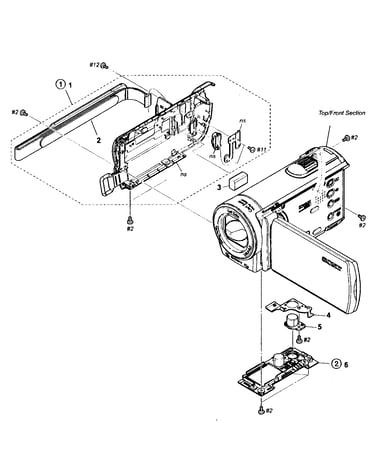

Cabinet assy diagram

Grip belt

Part #416660601

Replaced by #416660601

?
Manufacturer substitution
This part replaces 416660601. Substitute parts can look different from the original.
$18.13
In Stock
Camcorder Speaker 185831051
#SP90

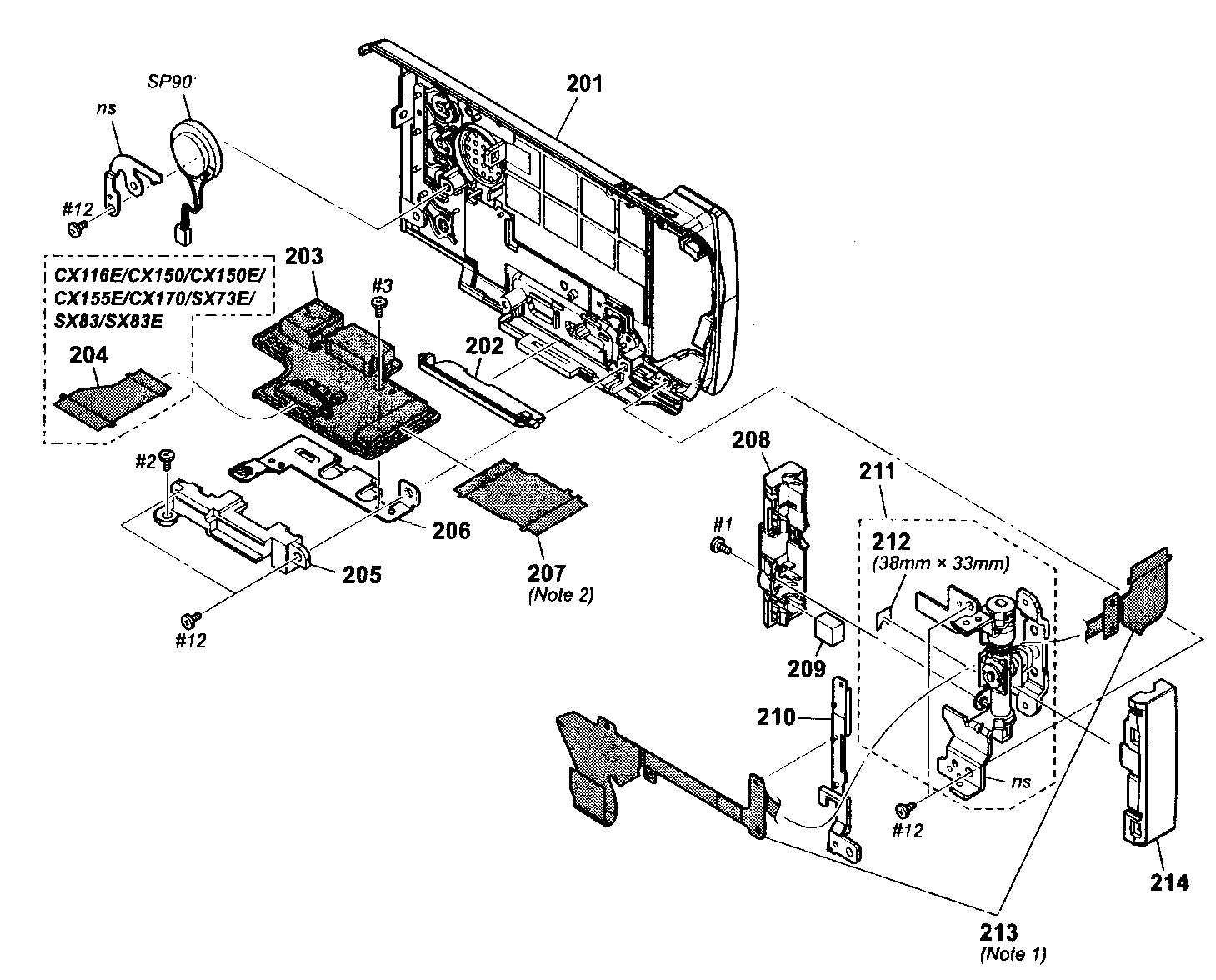

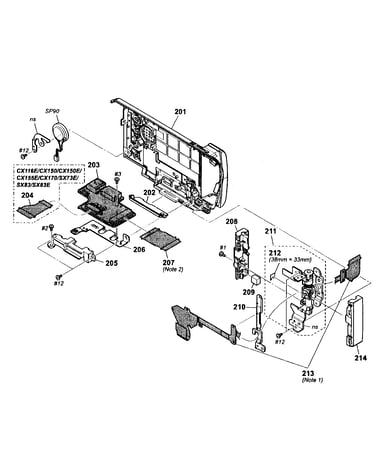

R cabinet diagram

Camcorder speaker

Part #185831051

The manufacturer no longer makes this part, and there's no substitute part

Frame 417173401
#56

Top/fr assy diagram

Frame

Part #417173401

Replaced by #417173401

?
Manufacturer substitution
This part replaces 417173401. Substitute parts can look different from the original.
$10.79
In Stock
Jk Frame 417175901
#206

R cabinet diagram

Jk frame

Part #417175901

Replaced by #417175901

?
Manufacturer substitution
This part replaces 417175901. Substitute parts can look different from the original.
This item is not returnable
$4.80
In Stock
Jack Cable 182247031
#262

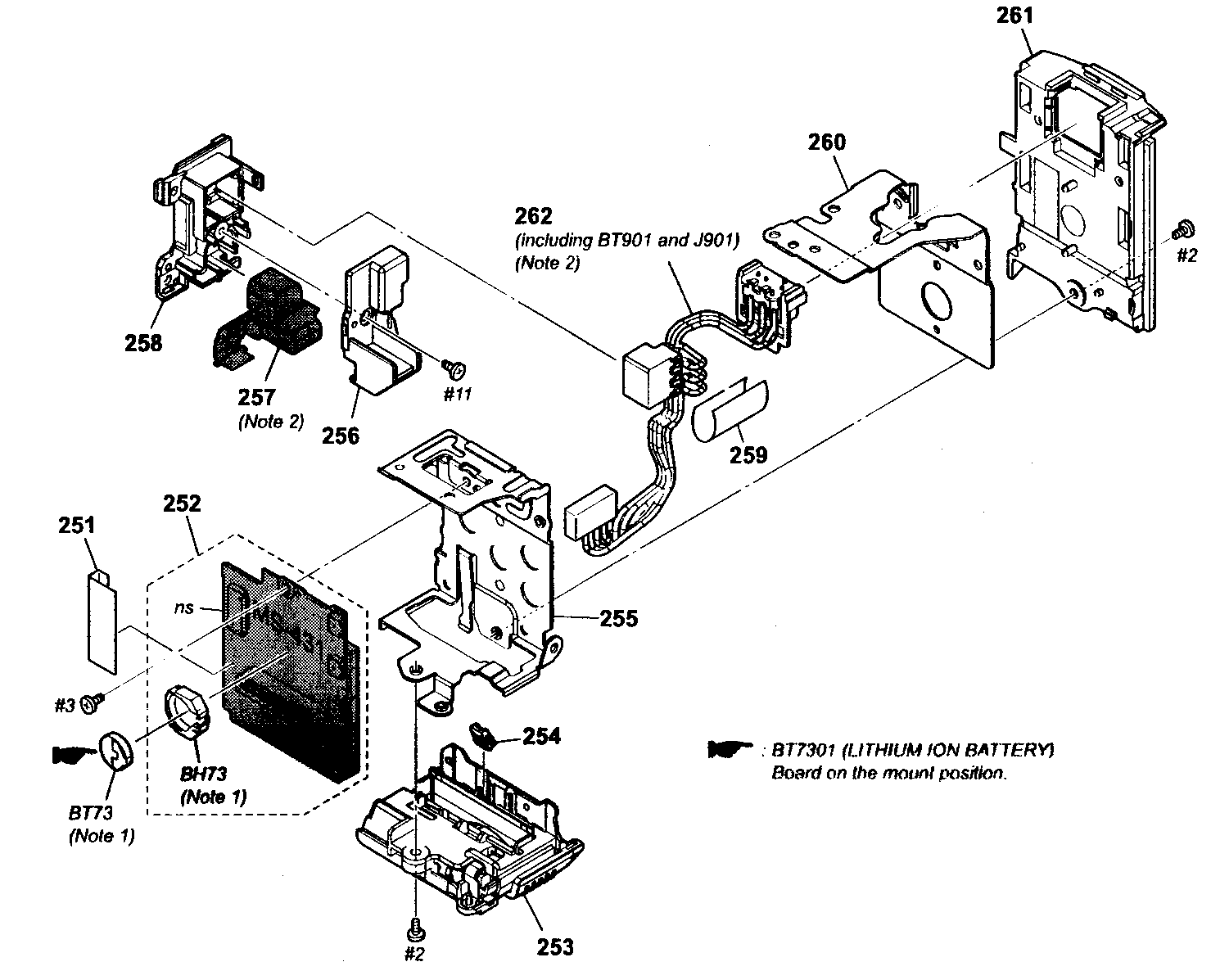

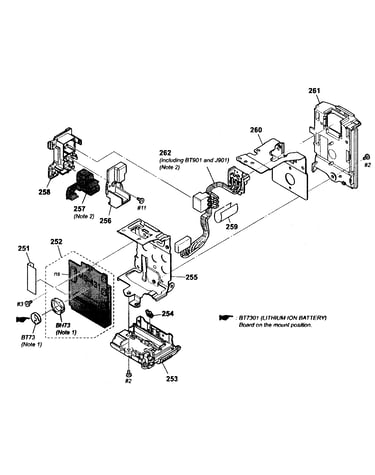

Rear cabinet diagram

Jack cable

Part #182247031

The manufacturer no longer makes this part, and there's no substitute part

Retaining Claw 417181801
#254

Rear cabinet diagram

Retaining claw

Part #417181801

Replaced by #417181801

?
Manufacturer substitution
This part replaces 417181801. Substitute parts can look different from the original.
This item is not returnable
$7.22
In Stock
Flexible Pcb 188034311
#213

R cabinet diagram

Flexible pcb

Part #188034311

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 417202501
#116

Main assy diagram

Heat sink

Part #417202501

Replaced by #417202501

?
Manufacturer substitution
This part replaces 417202501. Substitute parts can look different from the original.
$11.75
In Stock
