Model # 316799170 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 316799170 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Reel Line 71-85825

#NI

All parts diagram

Reel line

Part #71-85825

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly 682061
#11

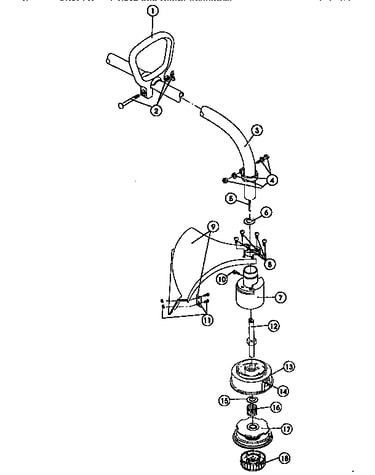

Boom and trimmer diagram

Blade assembly

Part #682061

The manufacturer no longer makes this part, and there's no substitute part

Screw 145569
#10

Boom and trimmer diagram

Screw

Part #145569

The manufacturer no longer makes this part, and there's no substitute part

D-handle 145819
#1

Boom and trimmer diagram

D-handle

Part #145819

The manufacturer no longer makes this part, and there's no substitute part

Housing 153312
#7

Boom and trimmer diagram

Housing

Part #153312

The manufacturer no longer makes this part, and there's no substitute part

Inner Reel 610318
#17

Boom and trimmer diagram

Inner reel

Part #610318

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 180150
#4

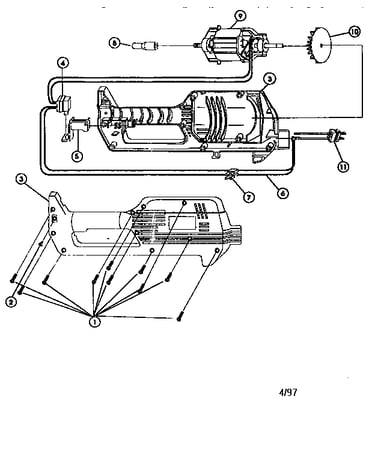

Motor and housing diagram

Switch assembly

Part #180150

The manufacturer no longer makes this part, and there's no substitute part

Anti-rotation Screw 1455569
#2

Motor and housing diagram

Anti-rotation screw

Part #1455569

The manufacturer no longer makes this part, and there's no substitute part

Harness 181645
#11

Motor and housing diagram

Harness

Part #181645

The manufacturer no longer makes this part, and there's no substitute part

Hardware 181587
#2

Boom and trimmer diagram

Hardware

Part #181587

The manufacturer no longer makes this part, and there's no substitute part
