Craftsman
Electric Leaf Blower

Model # 257796340 Official Craftsman electric blower

Here are the diagrams and repair parts for Official Craftsman 257796340 electric blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Plate 3460-30-5
#4

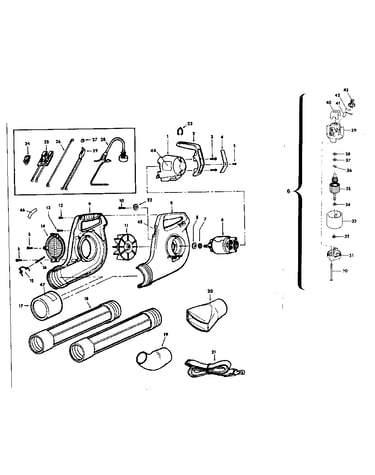

Replacement parts diagram

Plate

Part #3460-30-5

Replaced by #534346005

?
Manufacturer substitution
This part replaces 3460-30-5. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer, Shim 2282-2
#37

Replacement parts diagram

Washer, shim

Part #2282-2

The manufacturer no longer makes this part, and there's no substitute part

Screw 2224
#13

Replacement parts diagram

Screw

Part #2224

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 2278-1
#41

Replacement parts diagram

Brush assembly

Part #2278-1

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 747-2
#34

Replacement parts diagram

Retaining ring

Part #747-2

The manufacturer no longer makes this part, and there's no substitute part

Housing Q4917-0-28
#9

Replacement parts diagram

Housing

Part #Q4917-0-28

The manufacturer no longer makes this part, and there's no substitute part

Impeller Assembly 3983-0-15
#11

Replacement parts diagram

Impeller assembly

Part #3983-0-15

The manufacturer no longer makes this part, and there's no substitute part

Handle 3197-05
#2

Replacement parts diagram

Handle

Part #3197-05

The manufacturer no longer makes this part, and there's no substitute part

Knob 3318-05
#27

Replacement parts diagram

Knob

Part #3318-05

The manufacturer no longer makes this part, and there's no substitute part

Armature 2251-10
#35

Replacement parts diagram

Armature

Part #2251-10

The manufacturer no longer makes this part, and there's no substitute part
