Model #LA450JXD4 Official White-Westinghouse top-loading washer - lw31287020

Here are the diagrams and repair parts for White-Westinghouse LA450JXD4 top-loading washer - lw31287020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 210 parts

    Washer Water Inlet Valve#16

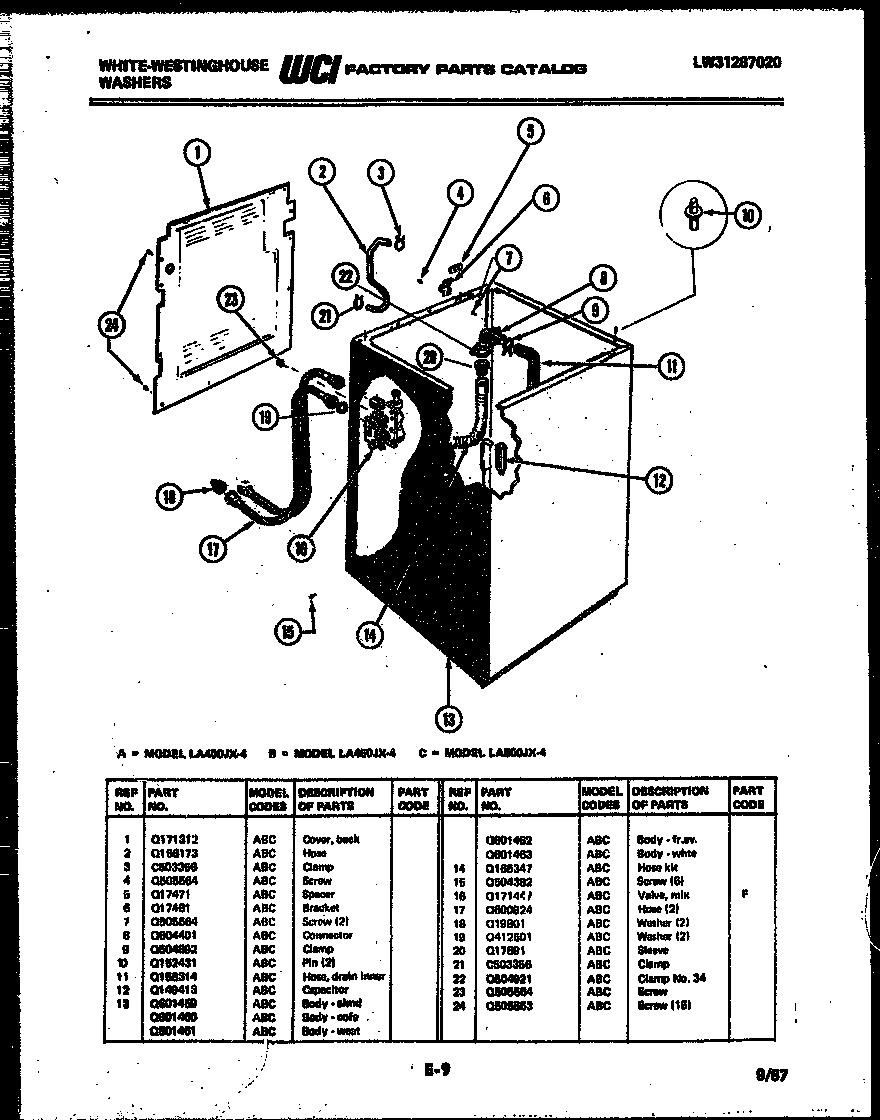

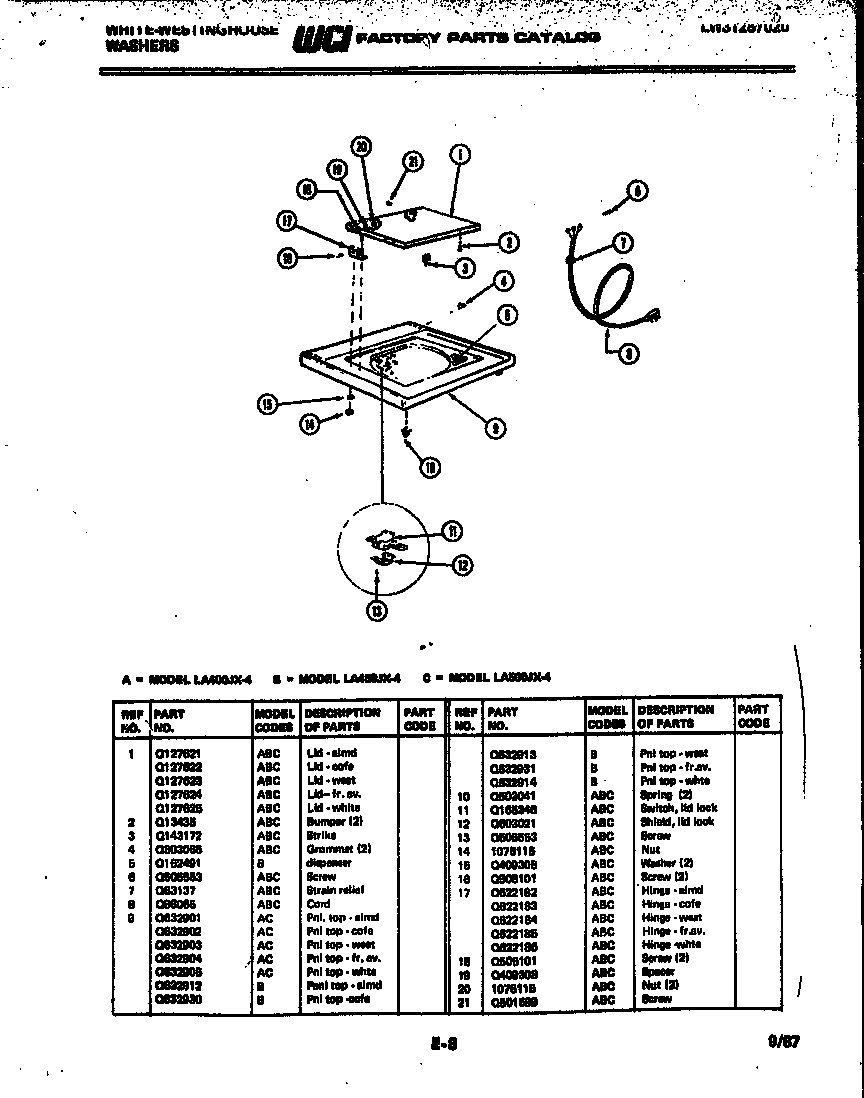

    Cabinet parts Diagram

    Valve

    Part #Q171447
    Replaced by #134190200
    ?
    Manufacturer substitution
    This part replaces Q171447. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.79 |
    10% OFF
    Phone Price: $39.75
    Appliance High-Temperature Adhesive#17

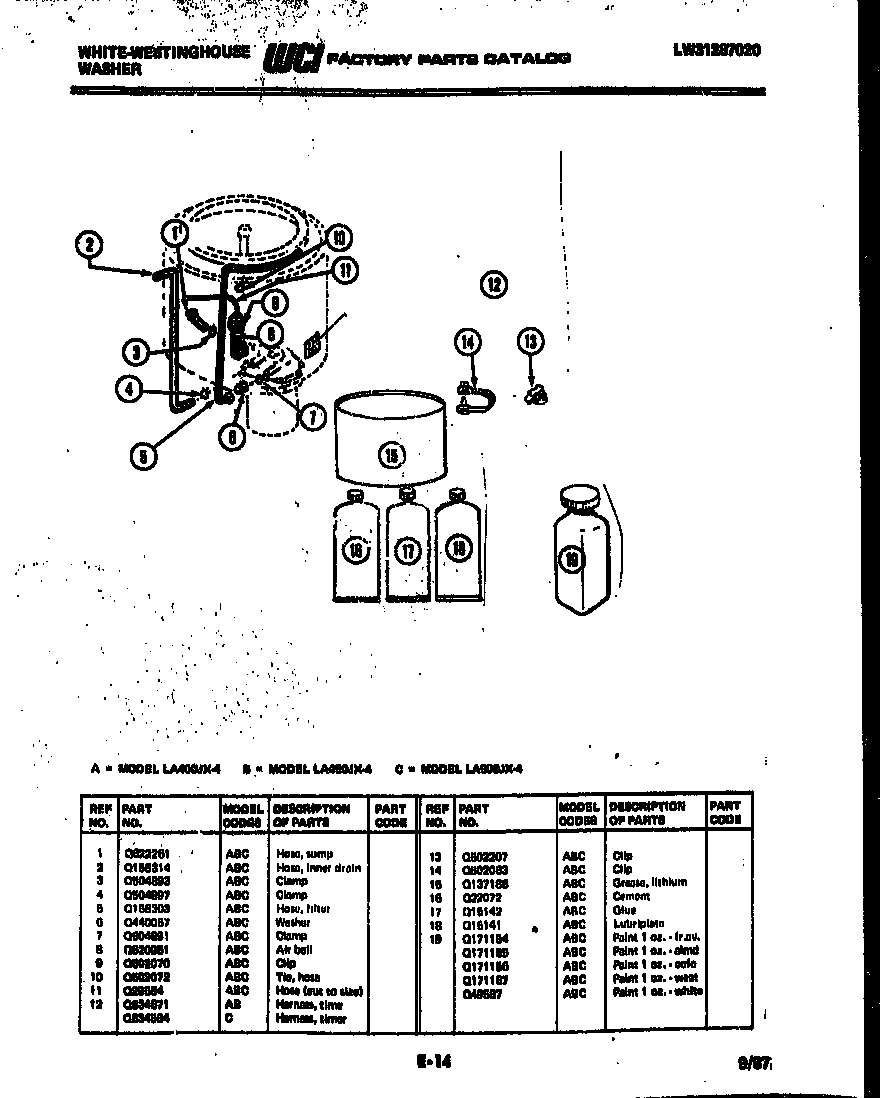

    Washer and miscellaneous parts Diagram

    Cement

    Part #15142
    Replaced by #5308027429
    ?
    Manufacturer substitution
    This part replaces 15142. Substitute parts can look different from the original.
    In Stock
    $48.99 |
    9% OFF
    Phone Price: $53.99
    Washer#20

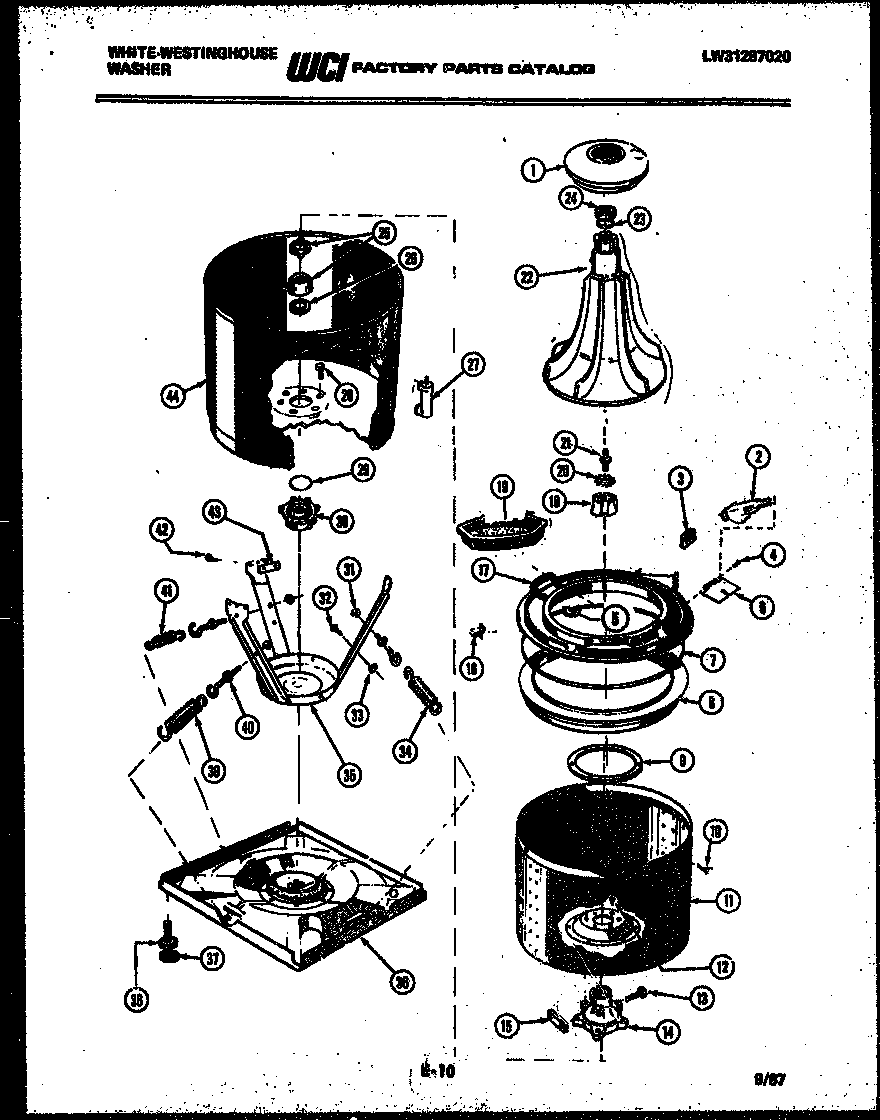

    Tub detail Diagram

    Washer

    Part #Q500377
    This item is not returnable
    In Stock
    $2.16
    Wire Tie#10

    Washer and miscellaneous parts Diagram

    Clip

    Part #502072
    Replaced by #5303281103
    ?
    Manufacturer substitution
    This part replaces 502072. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.16
    Spring#18

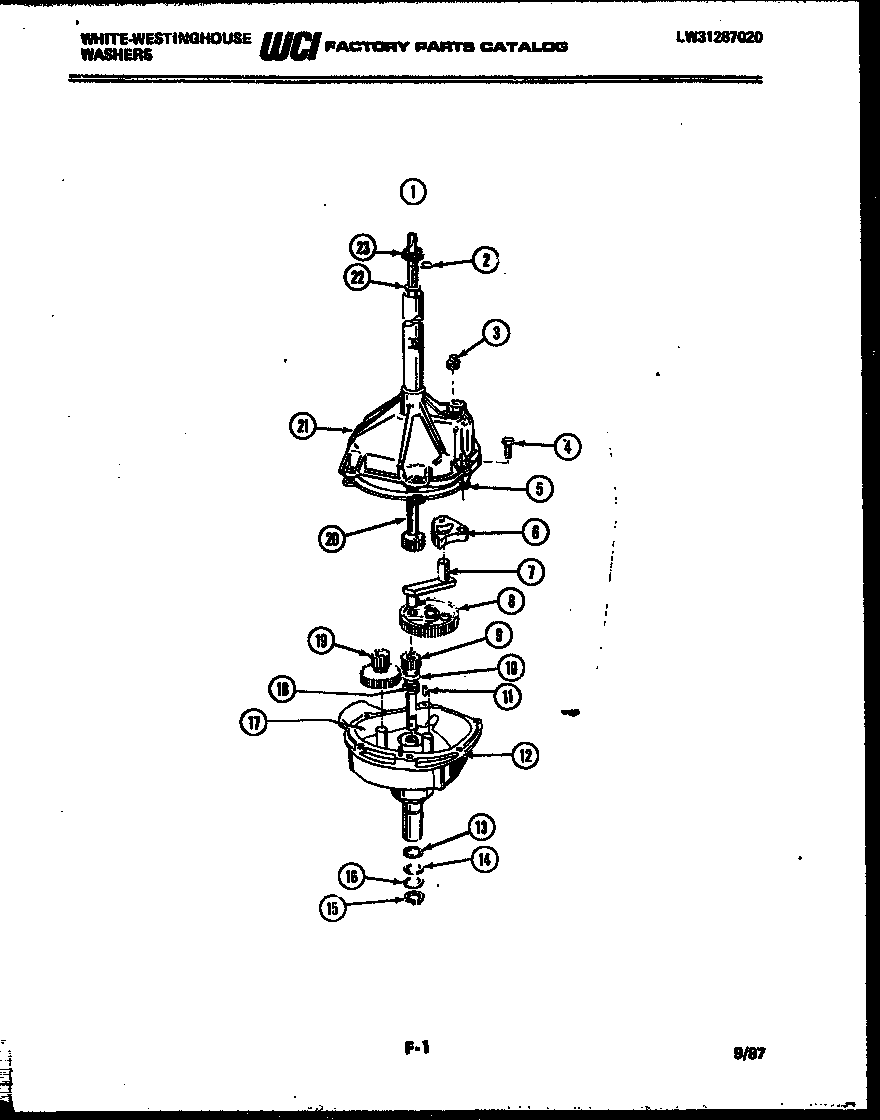

    Transmission parts Diagram

    Spring

    Part #F077052000
    Replaced by #5303161174
    ?
    Manufacturer substitution
    This part replaces F077052000. Substitute parts can look different from the original.
    In Stock
    $15.88
    Laundry Center Washer Gear Case Oil Seal#13

    Transmission parts Diagram

    Seal

    Part #F077062000
    Replaced by #5303161173
    ?
    Manufacturer substitution
    This part replaces F077062000. Substitute parts can look different from the original.
    In Stock
    $40.06
    Washing Machine Washer#16

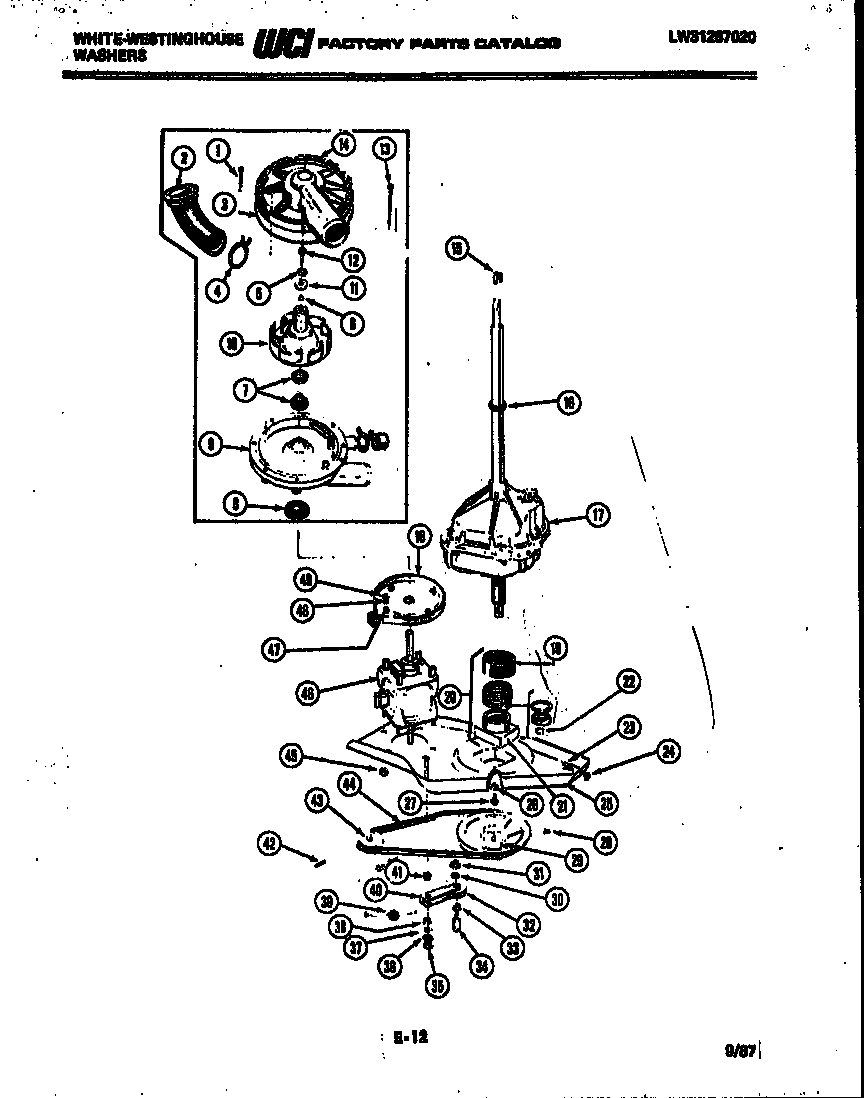

    Motor, transmission and drive parts Diagram

    Washer

    Part #Q440115
    Replaced by #5308002401
    ?
    Manufacturer substitution
    This part replaces Q440115. Substitute parts can look different from the original.
    In Stock
    $20.89 |
    19% OFF
    Phone Price: $25.89
    Laundry Center Washer

    See All Related Diagrams

    Washer

    Part #1147601
    Replaced by #5303161306
    ?
    Manufacturer substitution
    This part replaces 1147601. Substitute parts can look different from the original.
    In Stock
    $17.03
    Washer Basket Drive Tube Seal#23

    Transmission parts Diagram

    Seal-upper l

    Part #F130866000
    Replaced by #5303161307
    ?
    Manufacturer substitution
    This part replaces F130866000. Substitute parts can look different from the original.
    In Stock
    $46.33 |
    10% OFF
    Phone Price: $51.33
    END CAP R.H.#5

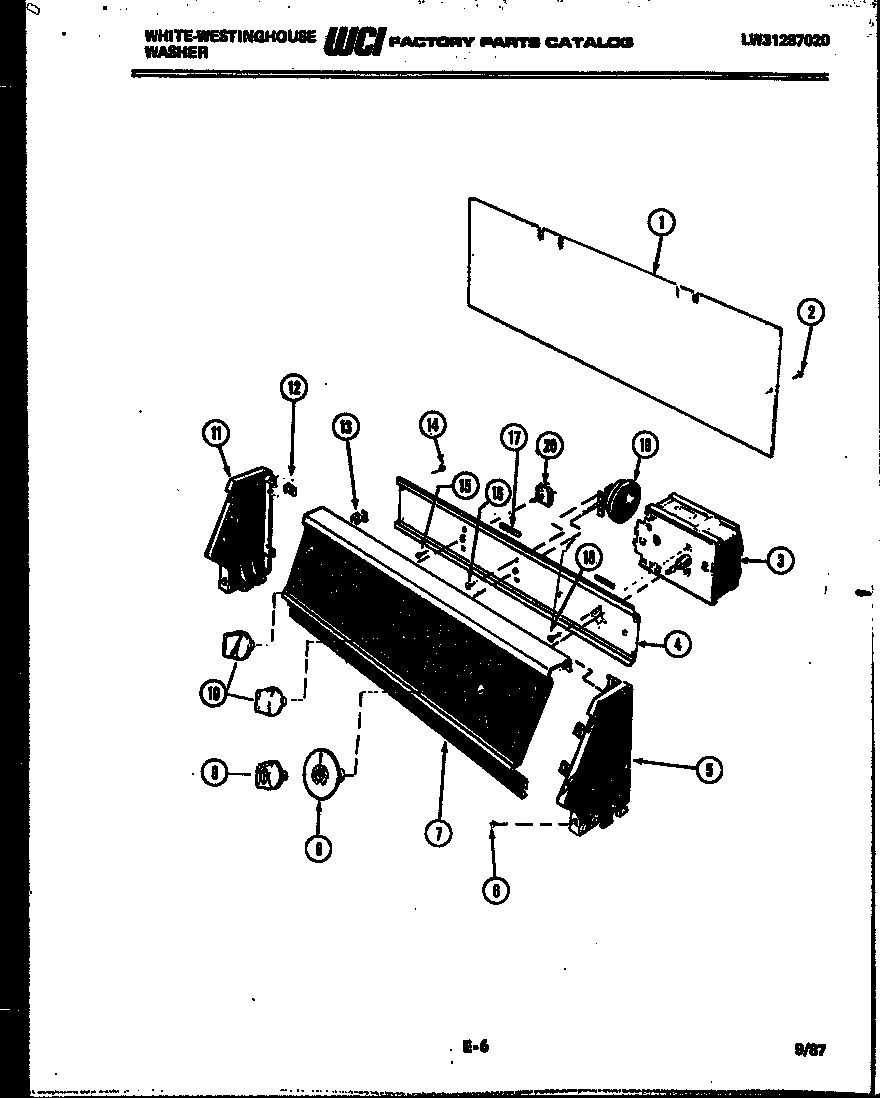

    Console and control parts Diagram

    End cap r.h.

    Part #616732

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
