Model # 131907434 Official Craftsman 20" rotary lawn mower with solid state ignition

Here are the diagrams and repair parts for Official Craftsman 131907434 20" rotary lawn mower with solid state ignition, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

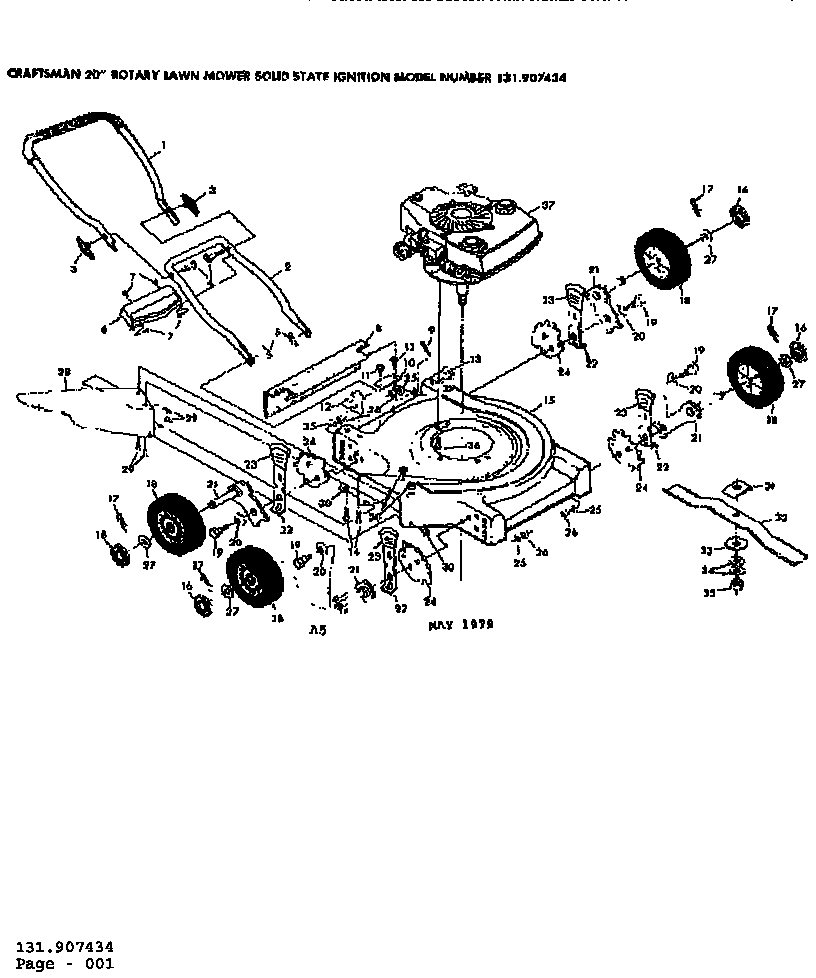

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Blade 69229
#32

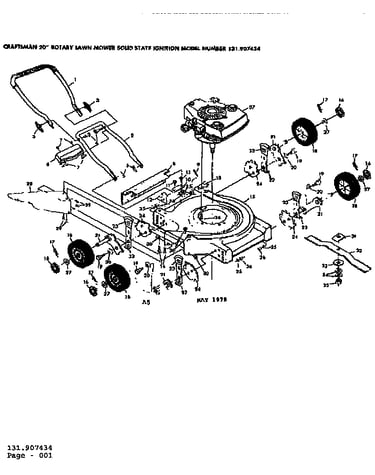

Replacement parts diagram

Blade

Part #69229

Replaced by #145106

?
Manufacturer substitution
This part replaces 69229. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$13.39 |
13% OFF Phone Price : $15.39
In Stock
Screw STD511005
#29

Replacement parts diagram

Screw

Part #STD511005

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut, #10-24 STD541410
#30

Replacement parts diagram

Lock nut, #10-24

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Selector Knob 77865
#23

Replacement parts diagram

Selector knob

Part #77865

Replaced by #532132800

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Washer 52160
#27

Replacement parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Wheel And Tire Assembly STD380234
#18

Replacement parts diagram

Wheel and tire assembly

Part #STD380234

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support 62887
#13

Replacement parts diagram

Bracket support

Part #62887

The manufacturer no longer makes this part, and there's no substitute part

Walk-behind Lawn Mower Engine 77764
#37

Replacement parts diagram

Walk-behind lawn mower engine

Part #77764

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 58715
#3

Replacement parts diagram

Handle knob

Part #58715

The manufacturer no longer makes this part, and there's no substitute part

Pin STD560607
#9

Replacement parts diagram

Pin

Part #STD560607

The manufacturer no longer makes this part, and there's no substitute part
