Model #PFEF374ES5 Official Frigidaire electric range

Here are the diagrams and repair parts for Frigidaire PFEF374ES5 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

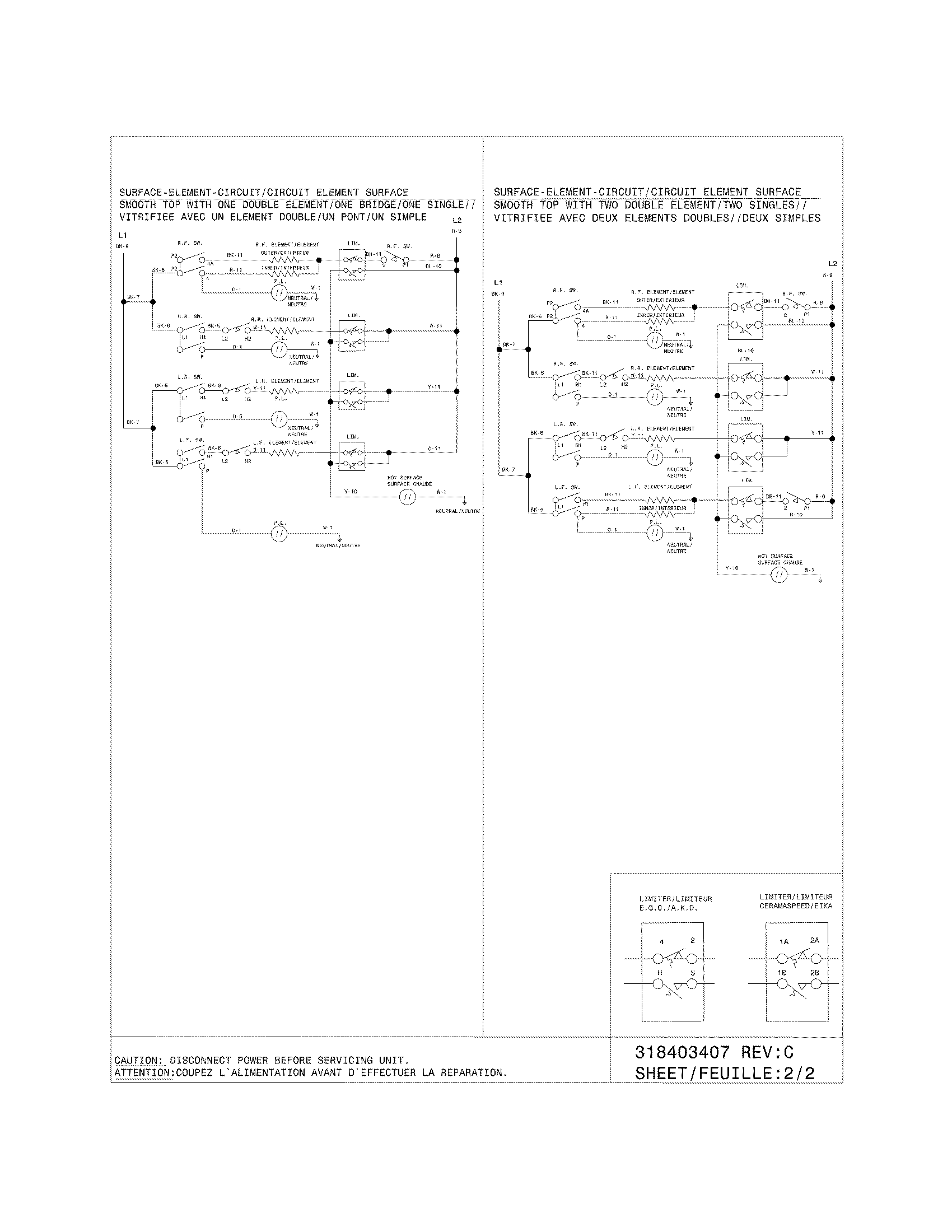

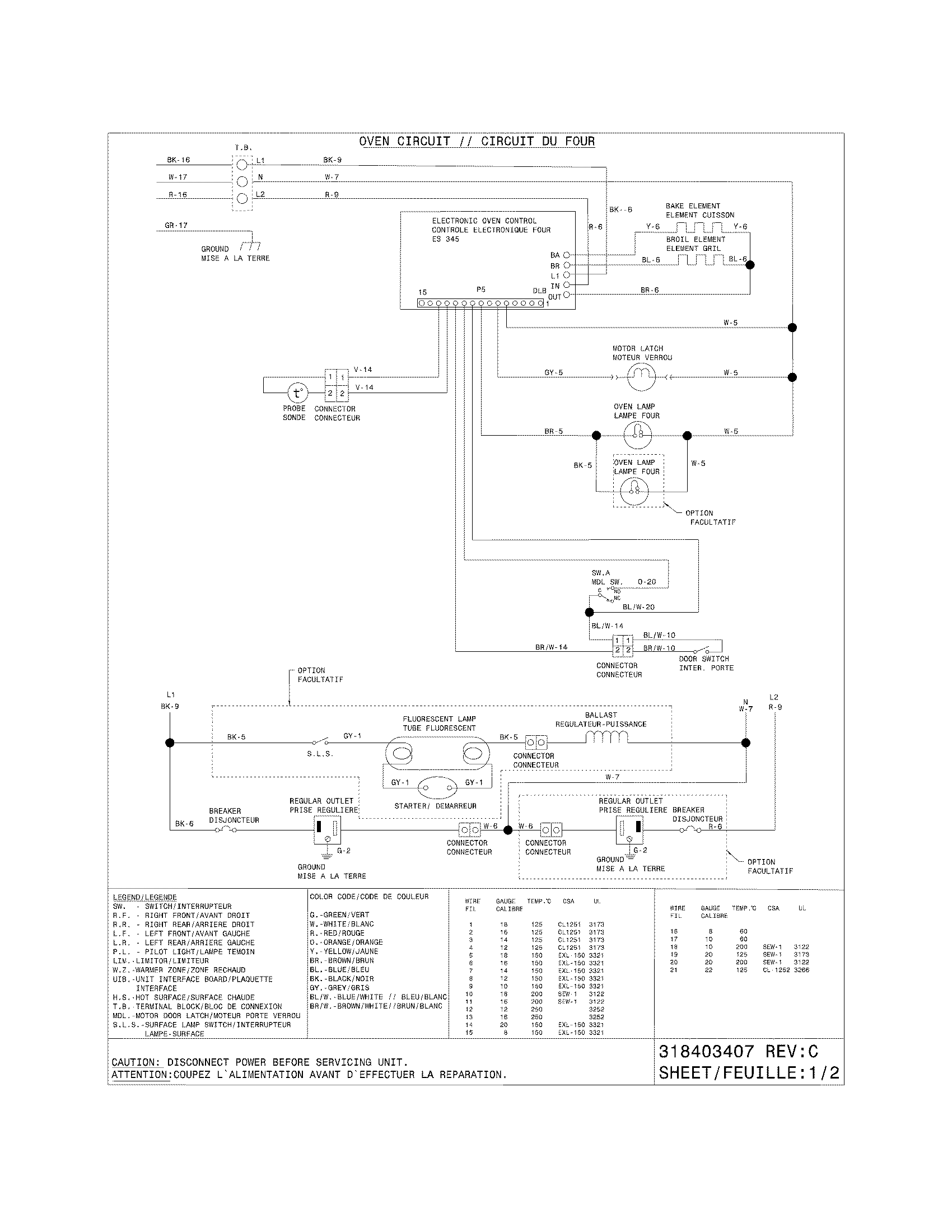

Owner’s manualError Codes

Showing 10 of 132 parts

Range Oven Light Bulb#15

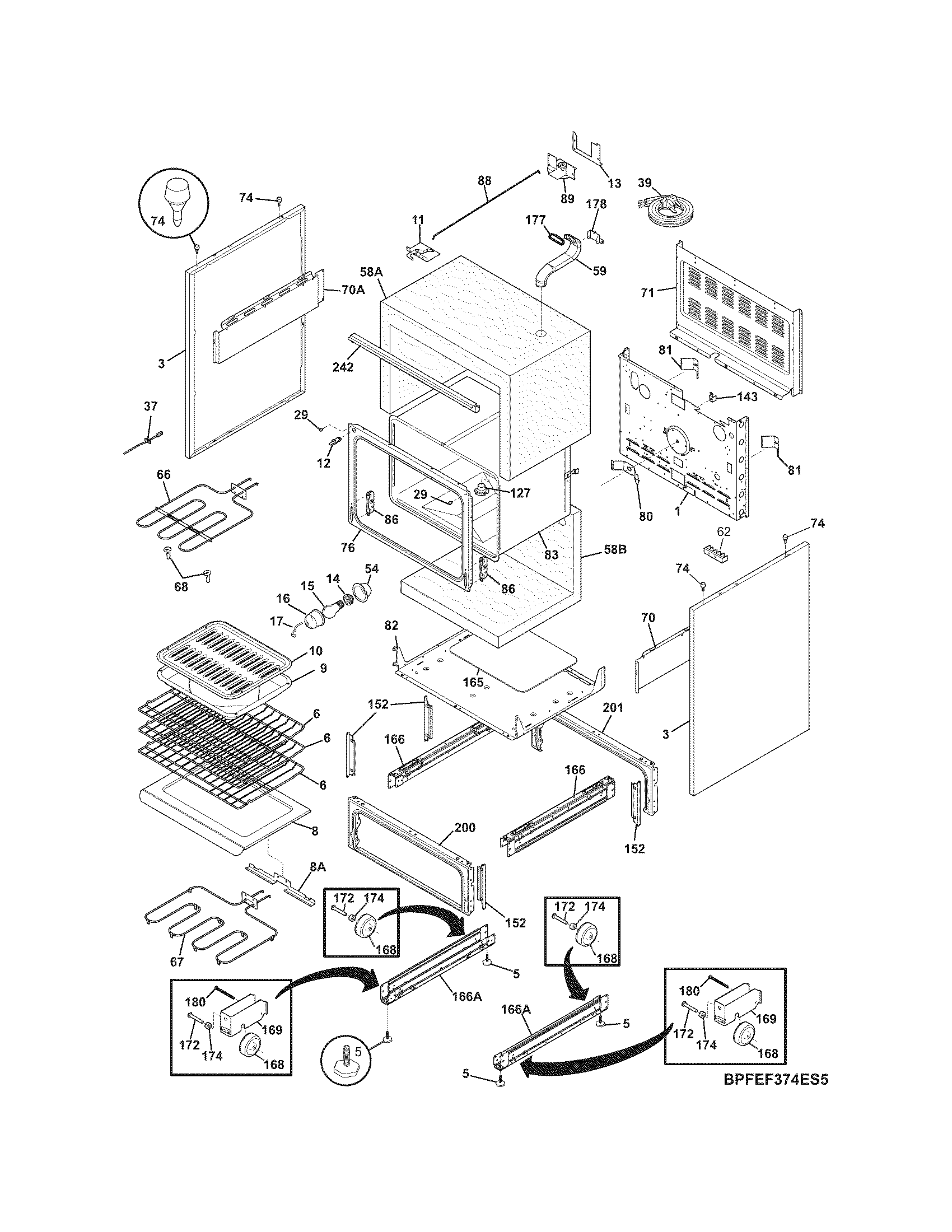

Body Diagram

Range oven light bulb

Part #5303013071
Replaced by #316538904
?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
In Stock
$17.38 |
10% OFF
Phone Price: $19.38
Range Oven Temperature Sensor#37

Body Diagram

Range oven temperature sensor

Part #316217002
BEST SELLER
In Stock
$36.31 |
12% OFF
Phone Price: $41.31
Range Bake Element#67

Body Diagram

Range bake element

Part #318254906
BEST SELLER
Back Order
$169.64 |
6% OFF
Phone Price: $179.64
Range Radiant Surface Element, 6-in#15

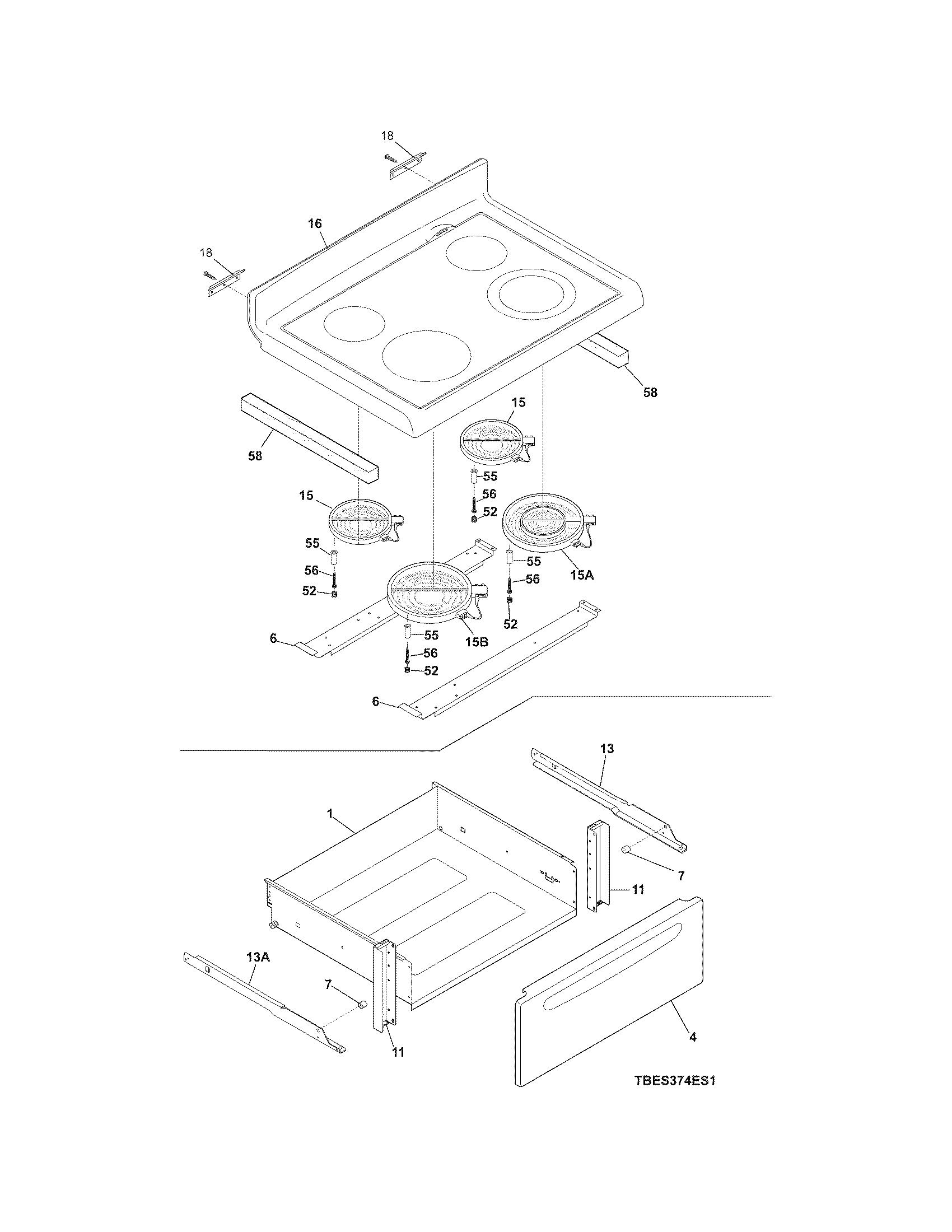

Top/drawer Diagram

Range radiant surface element, 6-in

Part #318198846
Replaced by #318178110
?
Manufacturer substitution
This part replaces 318198846. Substitute parts can look different from the original.
BEST SELLER
In Stock
$128.74 |
7% OFF
Phone Price: $138.74
Range Radiant Surface Element, 9-in#15B

Top/drawer Diagram

Element

Part #318198835
Replaced by #316135401
?
Manufacturer substitution
This part replaces 318198835. Substitute parts can look different from the original.
BEST SELLER
In Stock
$146.98 |
6% OFF
Phone Price: $156.98
Range Oven Door Inner Glass#8

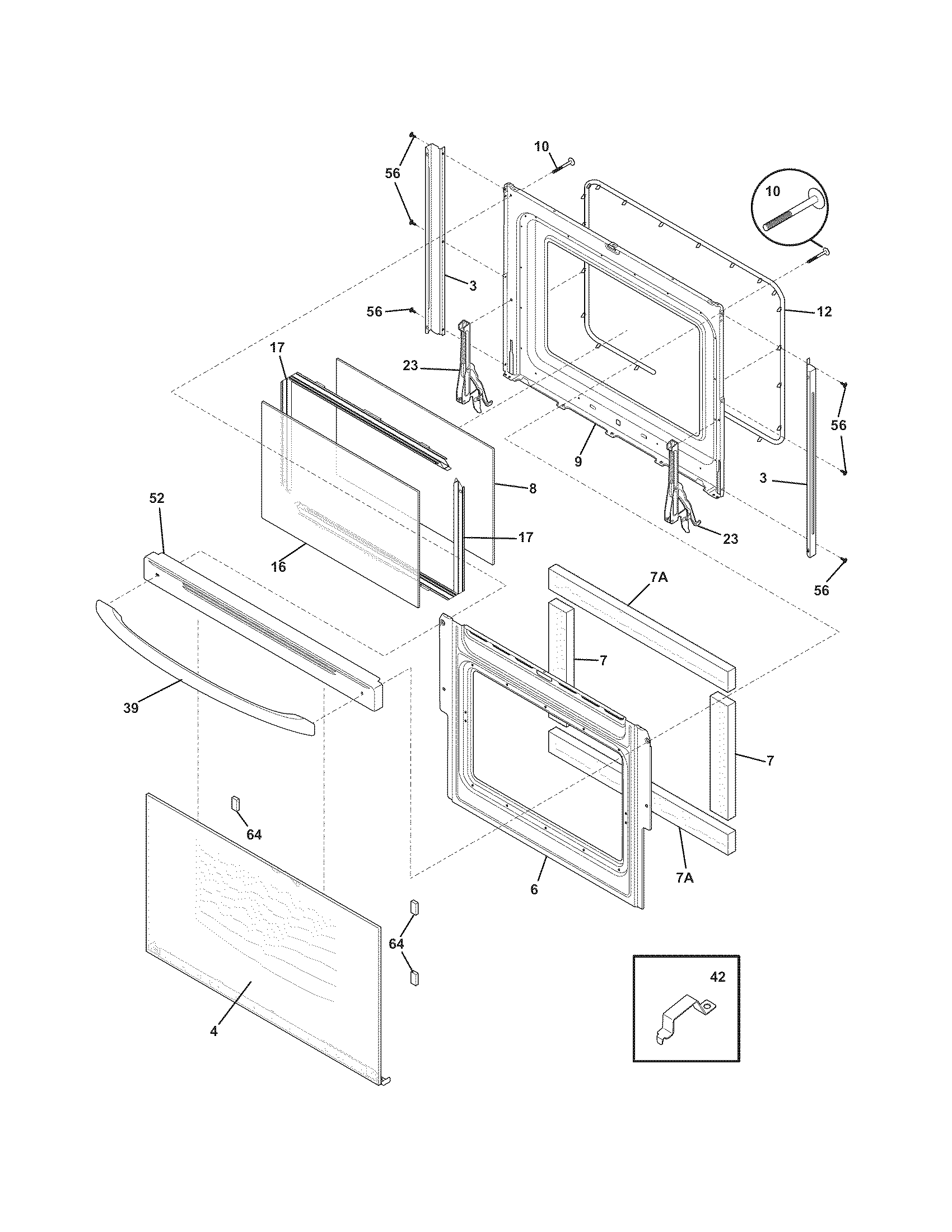

Door Diagram

Range oven door inner glass

Part #316117500
Replaced by #316117502
?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
In Stock
$231.44 |
$10.00 OFF
Phone Price: $241.44
Range Terminal Block#62

Body Diagram

Terminal block

Part #5303935061
Replaced by #5304409888
?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
In Stock
$9.09 |
10% OFF
Phone Price: $10.09
Range Dual Radiant Element#15A

Top/drawer Diagram

Cooktop element

Part #318198934
Replaced by #316282100
?
Manufacturer substitution
This part replaces 318198934. Substitute parts can look different from the original.
BEST SELLER
In Stock
$153.45 |
6% OFF
Phone Price: $163.45
Range Oven Light Lens#16

Body Diagram

Cover

Part #08011086
Replaced by #5304524341
?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
In Stock
$13.90 |
13% OFF
Phone Price: $15.90
Range Indicator Light Lens#46

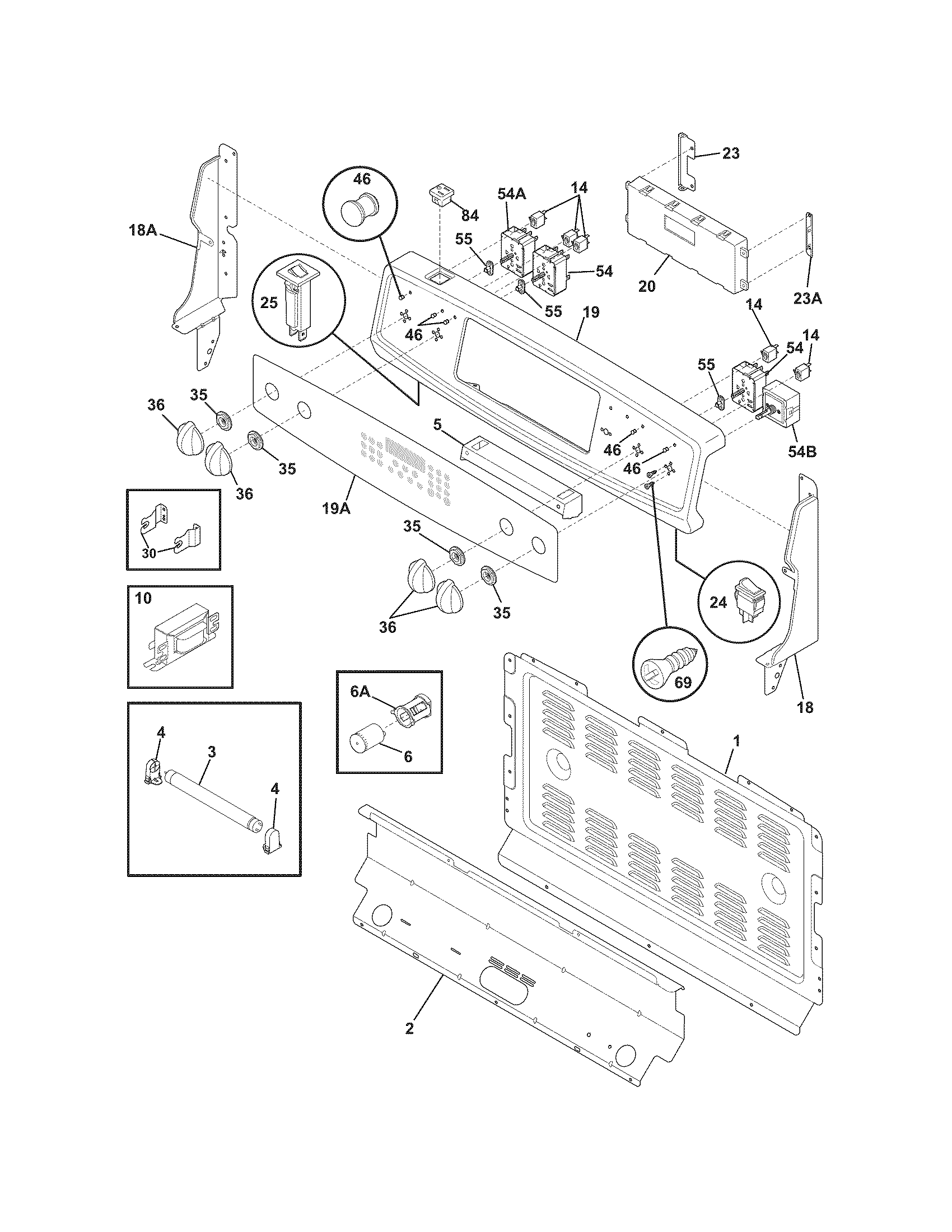

Backguard Diagram

Range indicator light lens

Part #318228310
BEST SELLER
This item is not returnable
In Stock
$6.59 |
13% OFF
Phone Price: $7.59
