Kenmore
Canister Vacuum

Model #11622912202 Kenmore vacuum cleaner

Here are the diagrams and repair parts for Kenmore 11622912202 vacuum cleaner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 75 parts

Vacuum Bag Mount Assembly

#33

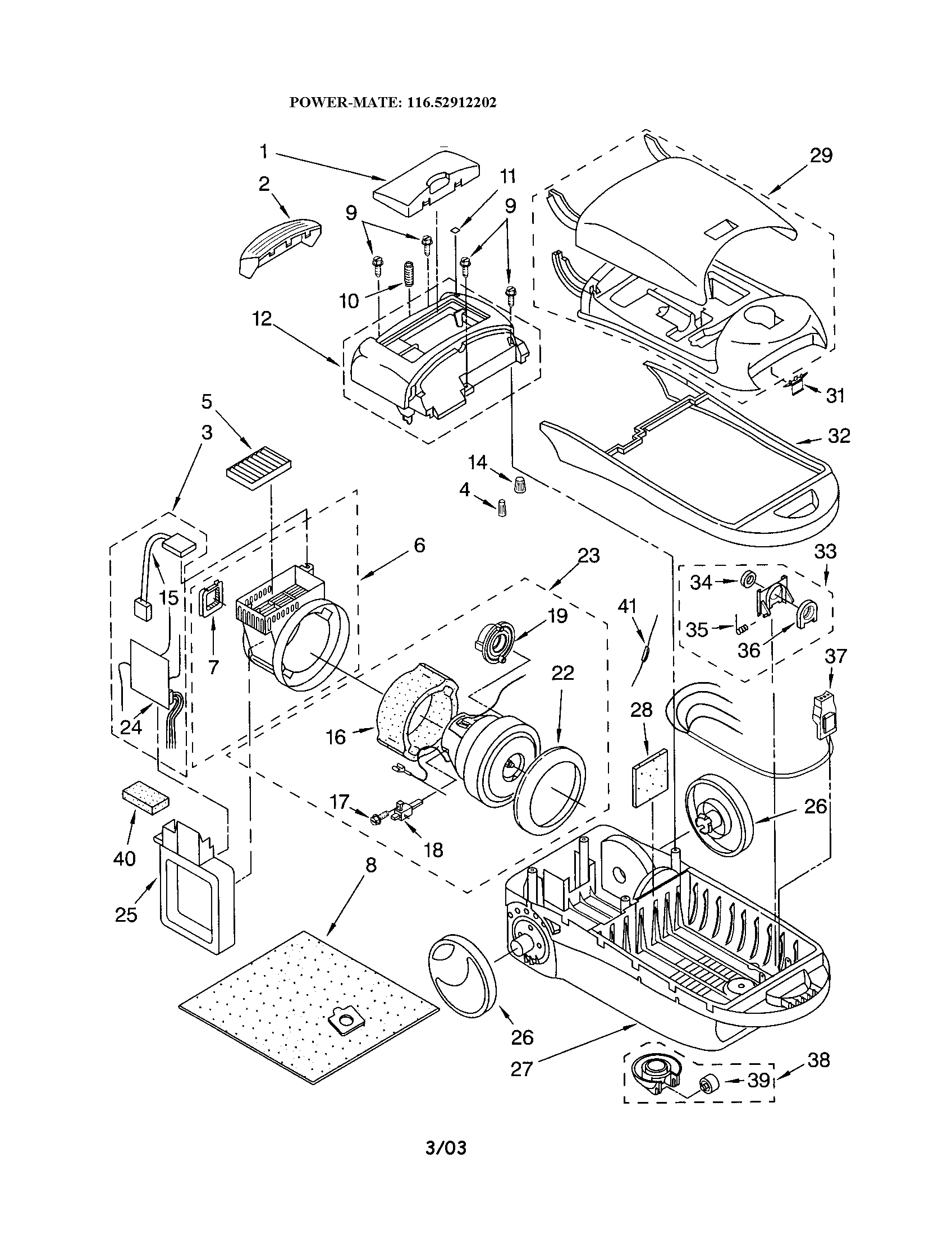

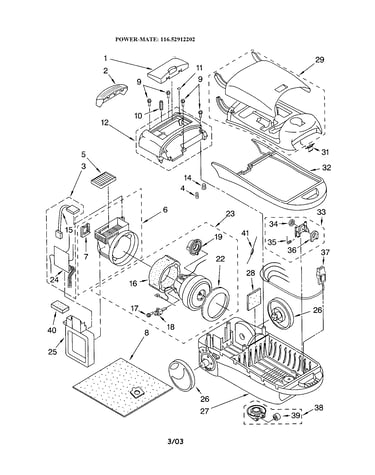

Base and hood Diagram

Vacuum bag mount assembly

Part #4370617
?
Manufacturer substitution
This part replaces 4370617. Substitute parts can look different from the original.
This part replaces 4370617
$15.45

In Stock

Vacuum Foam Filter

#28

Base and hood Diagram

Vacuum foam filter

Part #86883
?
Manufacturer substitution
This part replaces 4370609. Substitute parts can look different from the original.
This part replaces 4370609

Get free shipping with Automatic Reorder

$22.72

In Stock

Vacuum Cord Reel Contact Disk and Power Cord

#5

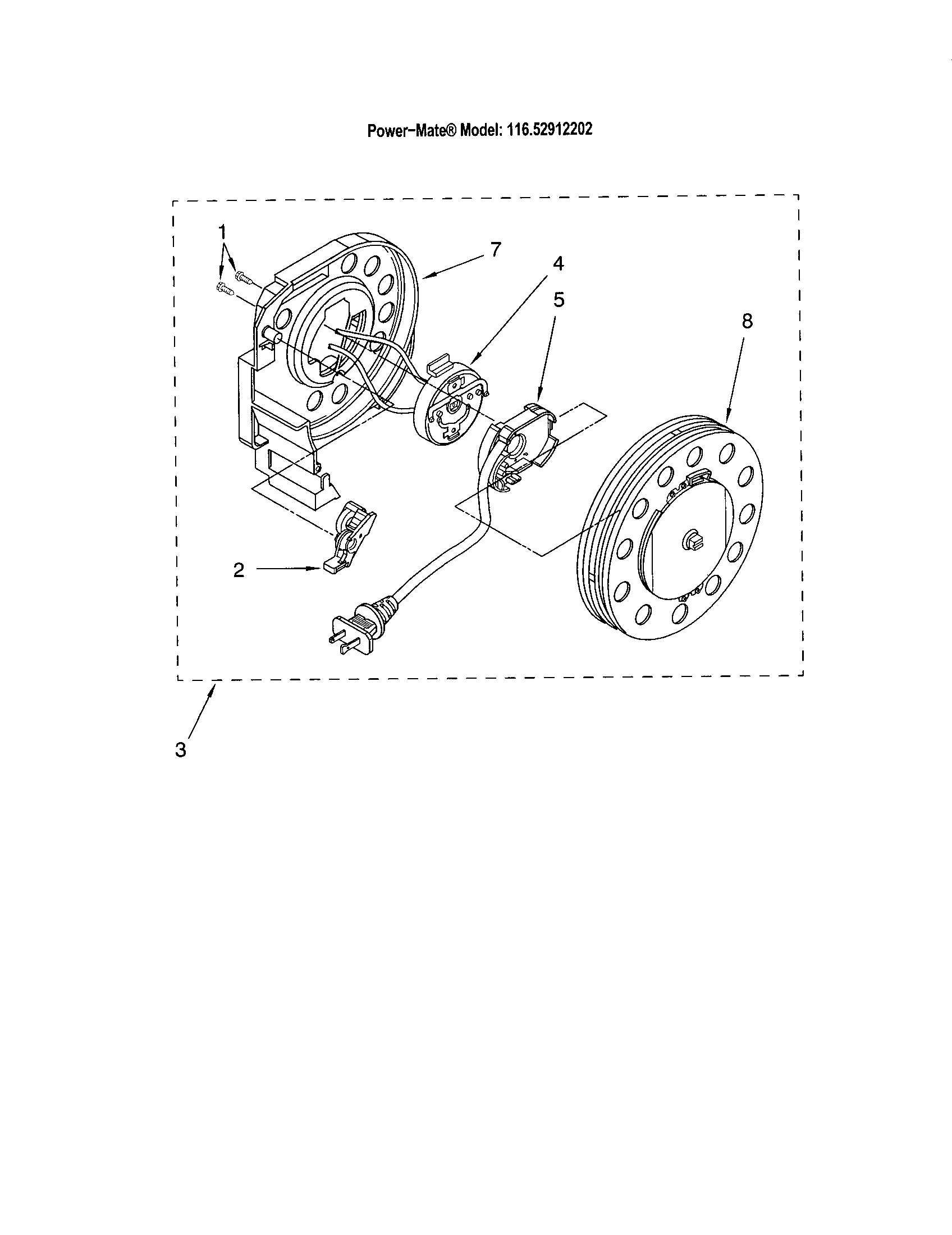

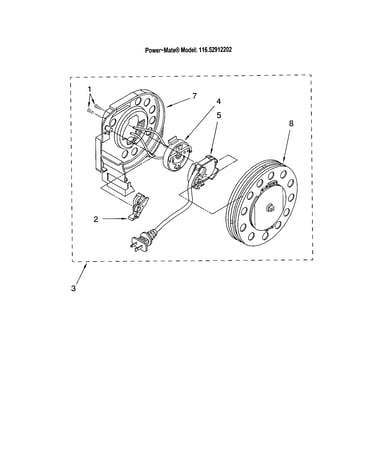

Power cord reel Diagram

Vacuum cord reel contact disk and power cord

Part #4370695
?
Manufacturer substitution
This part replaces 4370695. Substitute parts can look different from the original.
This part replaces 4370695
$34.78

In Stock

Vacuum Hose Handle Assembly

#12

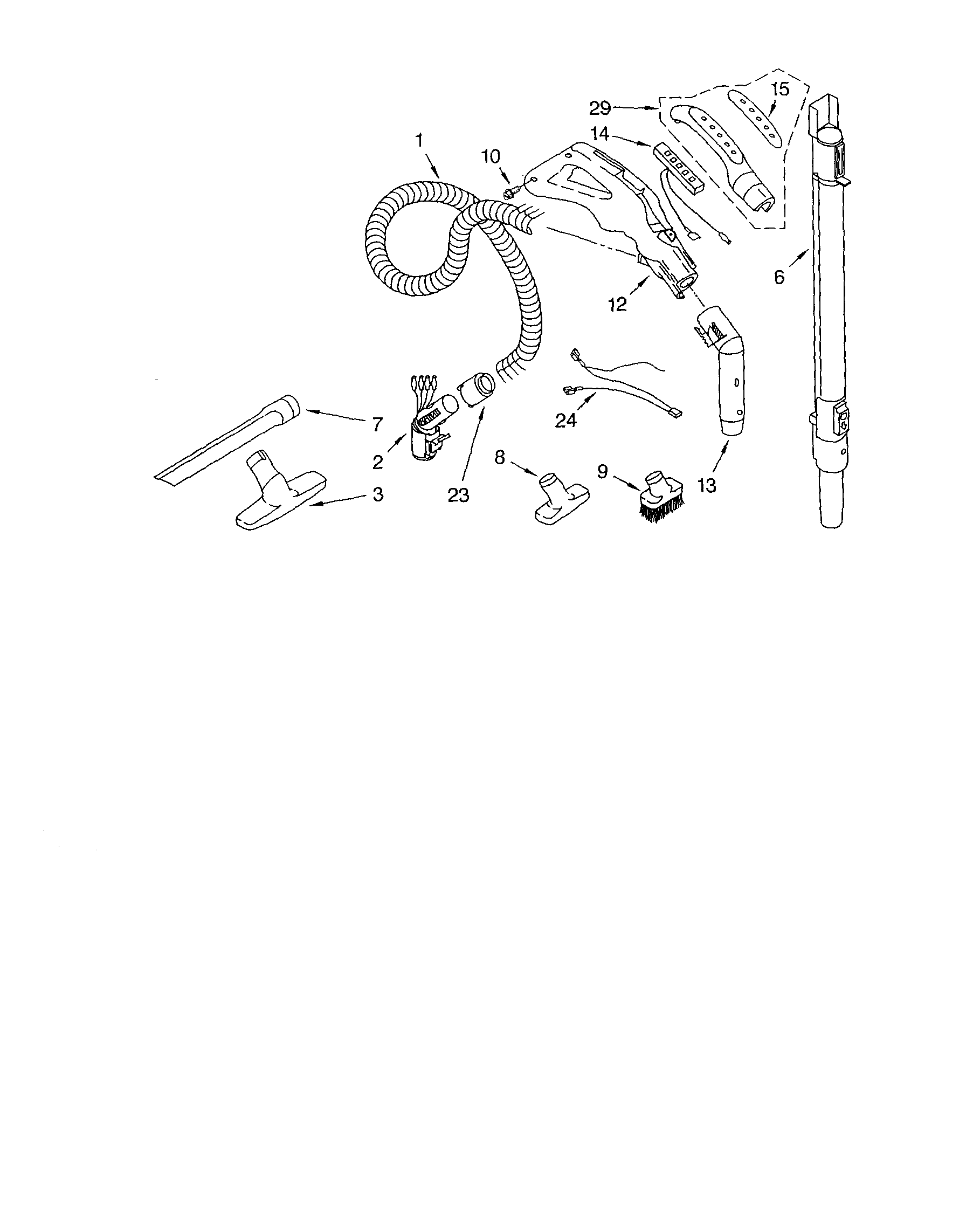

Hose and attachments Diagram

Vacuum hose handle assembly

Part #4370913
?
Manufacturer substitution
This part replaces 8174837. Substitute parts can look different from the original.
This part replaces 8174837
$20.92

In Stock

Vacuum Hose Adapter

#23

Hose and attachments Diagram

Vacuum hose adapter

Part #4370325
?
Manufacturer substitution
This part replaces 4370325. Substitute parts can look different from the original.
This part replaces 4370325
This item is not returnable
$4.16

In Stock

Vacuum Exhaust Filter

#5

Base and hood Diagram

Vacuum exhaust filter

Part #86880
?
Manufacturer substitution
This part replaces 8175116. Substitute parts can look different from the original.
This part replaces 8175116

Get free shipping with Automatic Reorder

$14.66

In Stock

Vacuum PowerMate Jr. Beater Bar Belt

#7

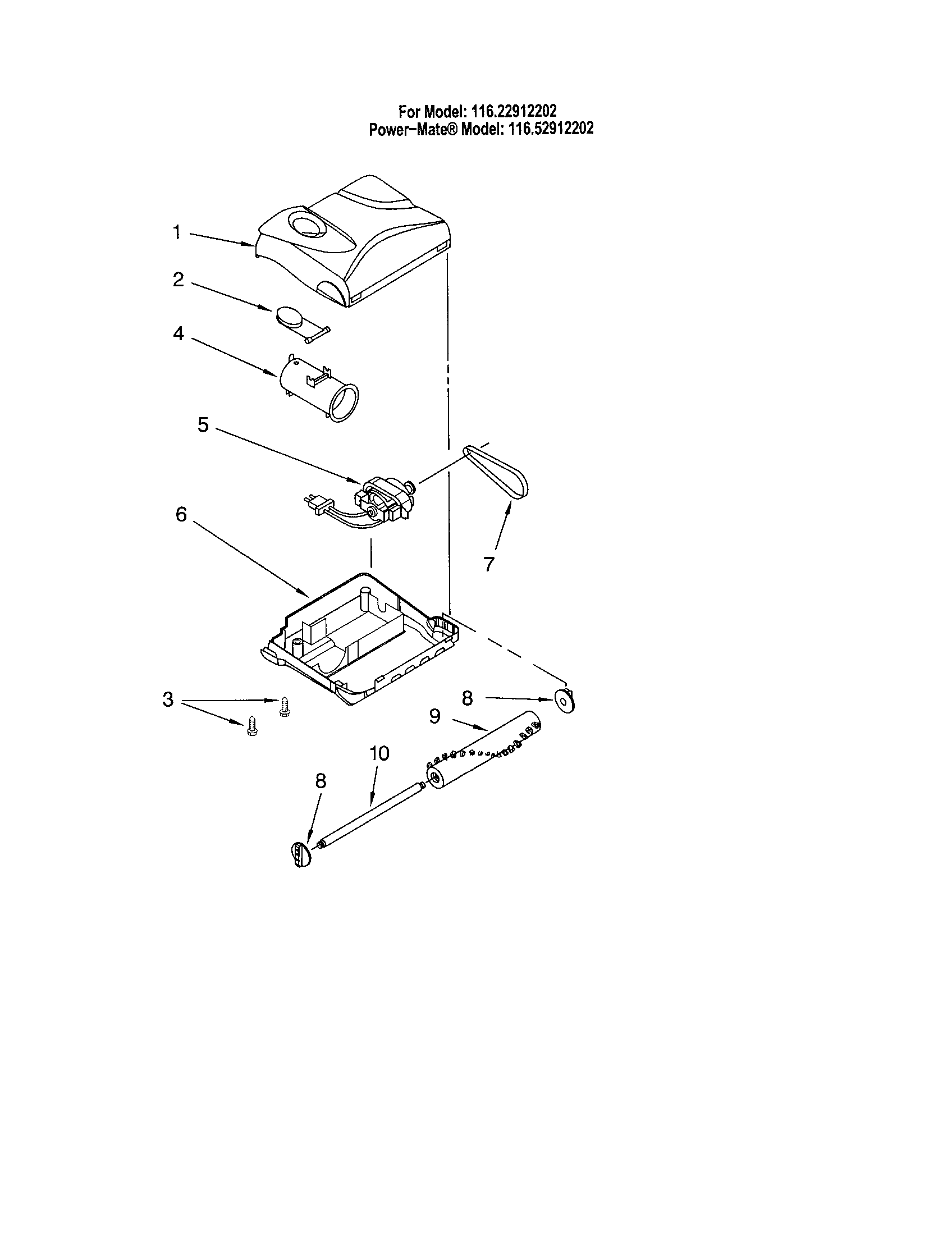

Power mate jr. Diagram

Vacuum powermate jr. beater bar belt

Part #8192011
?
Manufacturer substitution
This part replaces 8192011. Substitute parts can look different from the original.
This part replaces 8192011
$19.94

In Stock

Vacuum Bag Mount Inlet Packing

#34

Base and hood Diagram

Vacuum bag mount inlet packing

Part #4370688
?
Manufacturer substitution
This part replaces 4370688. Substitute parts can look different from the original.
This part replaces 4370688
$12.44

In Stock

Vacuum Screw

#1

Power cord reel Diagram

Vacuum screw

Part #4368563
?
Manufacturer substitution
This part replaces 4368563. Substitute parts can look different from the original.
This part replaces 4368563
This item is not returnable
$3.26

In Stock

Kenmore Vacuum HEPA Cloth Bag, Type C and Q, 2-pack

#8

Base and hood Diagram

Kenmore vacuum hepa cloth bag, type c and q, 2-pack

Part #50557
?
Manufacturer substitution
This part replaces 4370680. Substitute parts can look different from the original.
This part replaces 4370680
$20.00

In Stock

Symptoms common to all vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
Main causes: lack of power, bad power cord, drive motor failure, wiring failure
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
