Model # JE1235T01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JE1235T01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Use And Care Guide 49-8234

#1

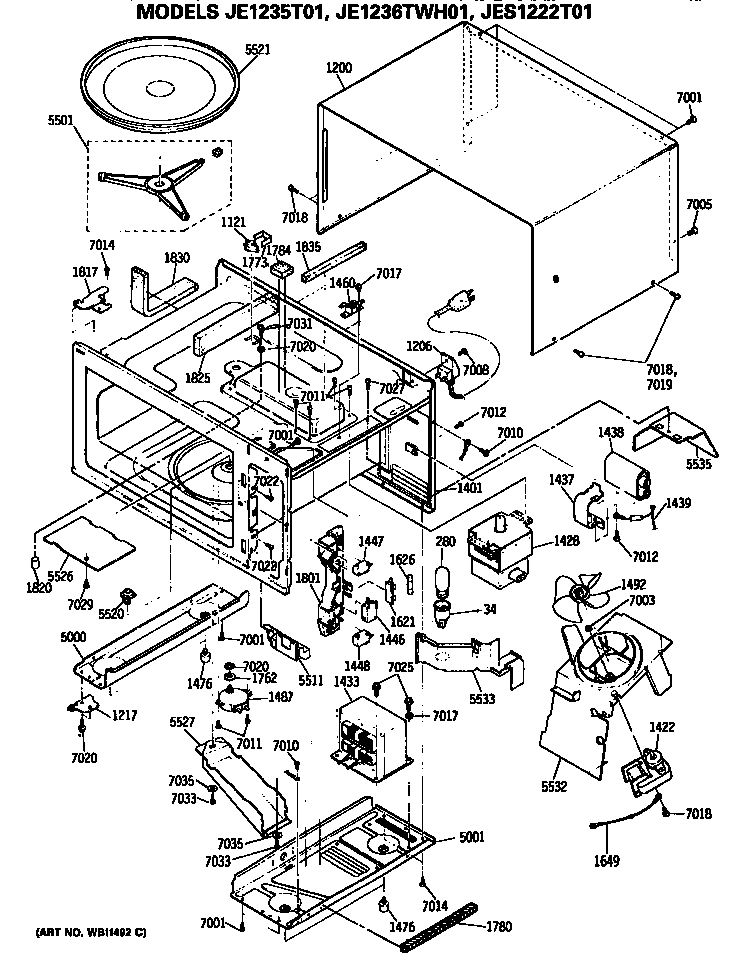

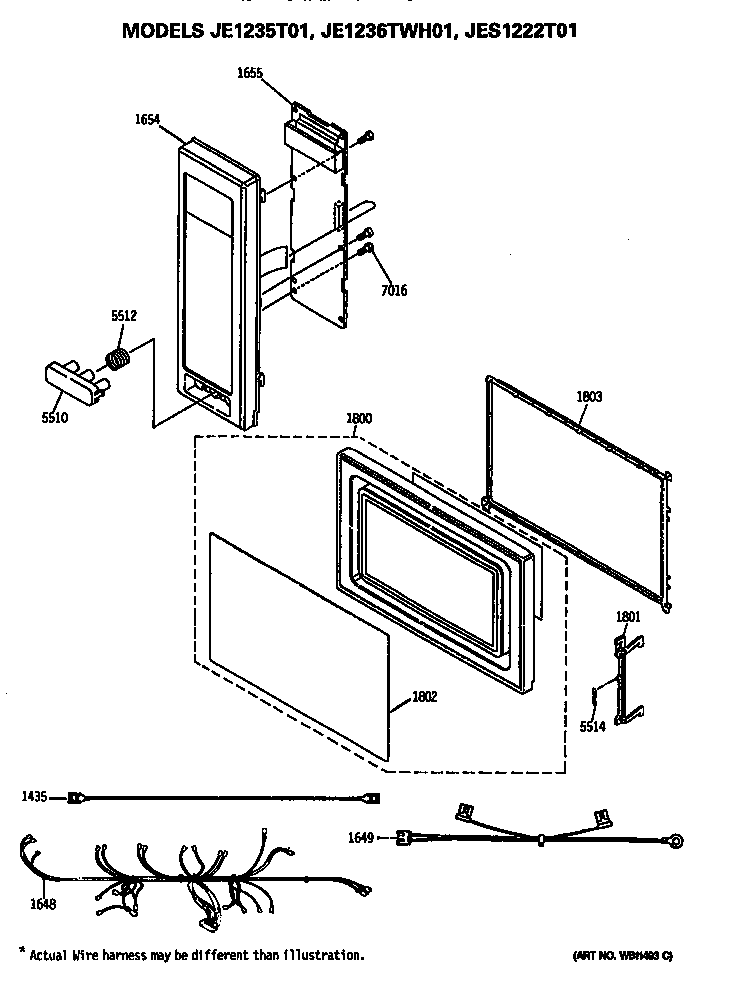

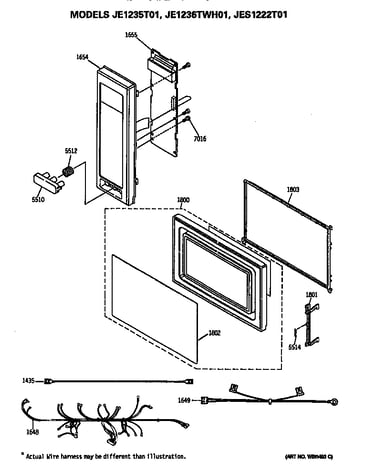

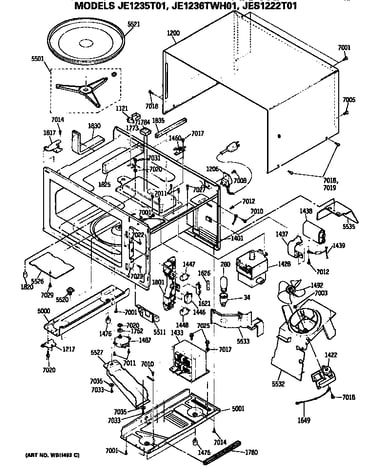

All parts diagram

Use and care guide

Part #49-8234

$8.49
In Stock
Mini-man P 31-1024

#1

All parts diagram

Mini-man p

Part #31-1024

$22.89 |
18% OFF Phone Price : $27.89
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Cushion WB6X278

#1780

All parts diagram

Cushion

Part #WB6X278

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X1212

#7013

All parts diagram

Screw

Part #WB1X1212

The manufacturer no longer makes this part, and there's no substitute part

Lower Hinge WB14X172

#1217

All parts diagram

Lower hinge

Part #WB14X172

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X1244

#6244

All parts diagram

Screw

Part #WB1X1244

The manufacturer no longer makes this part, and there's no substitute part

Diode WB18X444

#1439

All parts diagram

Diode

Part #WB18X444

The manufacturer no longer makes this part, and there's no substitute part

Cushion WB6X279

#1784

All parts diagram

Cushion

Part #WB6X279

The manufacturer no longer makes this part, and there's no substitute part

W Harn Lv WB18X428

#1649

All parts diagram

W harn lv

Part #WB18X428

The manufacturer no longer makes this part, and there's no substitute part
