Model # LC-60EQ10U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-60EQ10U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Cover GCOVAE552WJ3A
#18

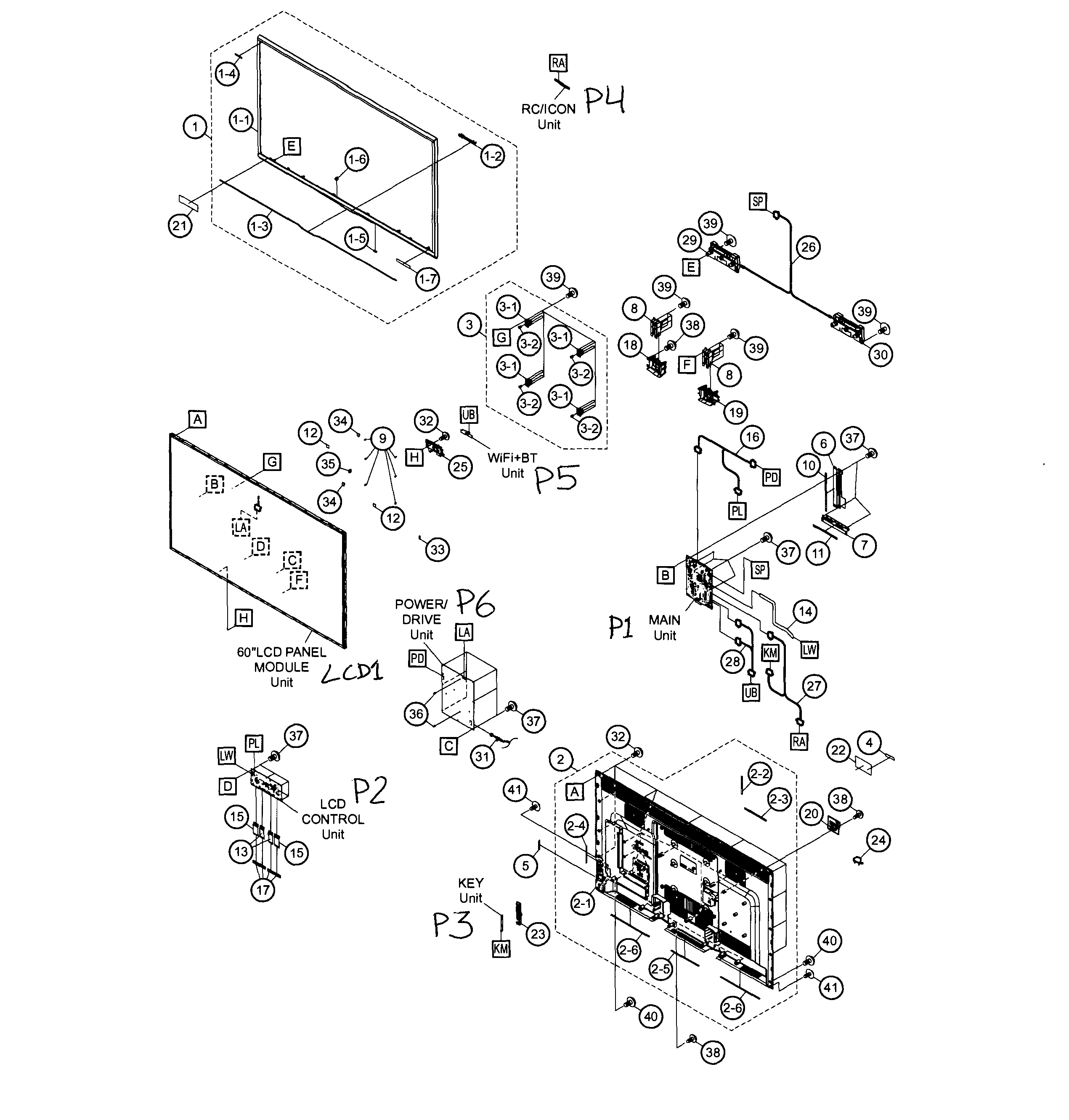

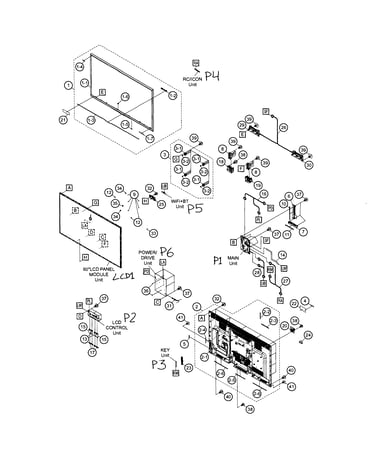

Cabinet parts diagram

Cover

Part #GCOVAE552WJ3A

The manufacturer no longer makes this part, and there's no substitute part

Cord-pd/pl QCNW-N702WJZZ
#16

Cabinet parts diagram

Cord-pd/pl

Part #QCNW-N702WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Speaker R RSP-ZA616WJZZ
#31

Cabinet parts diagram

Speaker r

Part #RSP-ZA616WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Guide Set- TINS-G058WJZZ
#NI

Cabinet parts diagram

Guide set-

Part #TINS-G058WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Pcb Rc/ico DUNTKG369FM02
#P4

Cabinet parts diagram

Pcb rc/ico

Part #DUNTKG369FM02

The manufacturer no longer makes this part, and there's no substitute part

Television Screw And Washer XBPS830P06WS0
#32

Cabinet parts diagram

Television screw and washer

Part #XBPS830P06WS0

The manufacturer no longer makes this part, and there's no substitute part

Screw XEPS830P12WS0
#41

Cabinet parts diagram

Screw

Part #XEPS830P12WS0

The manufacturer no longer makes this part, and there's no substitute part

Terminal Angle LANGKD146WJFW
#7

Cabinet parts diagram

Terminal angle

Part #LANGKD146WJFW

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-BZA207WJF7
#37

Cabinet parts diagram

Screw

Part #LX-BZA207WJF7

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front CCABAD080WJ34
#1

Cabinet parts diagram

Cabinet front

Part #CCABAD080WJ34

The manufacturer no longer makes this part, and there's no substitute part
