Samsung RF30BB6200QL/AA-00 refrigerator Parts

For the Samsung RF30BB6200QL, the most common service issues we see across Samsung refrigerators are cooling complaints (fridge or freezer not cold enough), ice maker problems (no ice, clumping, or jams), and water-related issues (slow dispensing or leaks). Use the RF30BB6200QL user manual to confirm settings like Cooling Off mode and temperature targets.

What “most common” usually means in real-world troubleshooting

These symptoms tend to show up most often because they’re affected by everyday use (door openings, airflow, water supply, and filter maintenance):

• Warm fridge or freezer: blocked vents, doors not sealing, or settings not optimized
• Ice maker not making/dispensing ice: ice maker turned off, freezer temp too warm, bucket not seated, or water supply issue
• Water dispensing issues or leaks: low water pressure, filter overdue, or a loose water line connection
• Frost/ice buildup: door left ajar, gasket not sealing, or airflow blocked
• Noises: fan/compressor sounds that can be normal during cooling and defrost cycles

Quick checks we recommend first (RF30BB6200QL)

Start with these fast, no-tools steps before replacing parts:

• Verify the refrigerator is not in Cooling Off (Shop) mode
• Set temps to 37°F for the fridge and 0°F for the freezer (recommended baseline)
• Make sure food packages are not blocking interior air vents
• Confirm doors close fully and the gaskets are clean
• If ice maker issues: confirm the ice maker is ON and the bucket is fully inserted

Symptom-to-cause cheat sheet

Symptom	Most likely cause	Best first action
Fridge warm, freezer warm	settings, clearance, airflow	check temps, vents, and cabinet clearance
Freezer OK, fridge warm	airflow/evaporator fan issue	check vent blockage and listen for fan
Ice maker buzzing	water line not connected but ice maker ON	turn ice maker OFF until water is connected
Slow water flow	low pressure or filter restriction	confirm 30-125 psi; replace/reset filter

Why it matters

Cooling and ice maker problems can lead to food spoilage, freezer burn, and water leaks that damage flooring. Catching airflow, temperature, and water-supply issues early usually prevents bigger repairs.

If you’re working on water quality or filter maintenance, we also recommend Samsung refrigerator filter light reset explained.

Last updated: January 2026

For the Samsung RF30BB6200QL bottom-mount refrigerator, we usually fix a bottom-freezer ice maker issue by confirming the ice maker is turned on at the control panel, clearing any ice clumps/jams in the bucket, and running the built-in ice maker Test button check described in the RF30BB6200QL user manual.

Quick checks that solve most “no ice” complaints

• Make sure Ice Maker is set to On on the control panel (the “Ice Maker On” indicator should be lit).
• Confirm the freezer is cold enough; we recommend 0 °F (-18 °C) for normal ice production.
• If the unit was just installed or recently reconnected to power, allow 12 hours for ice production.
• Remove the ice bucket and break up any clumped ice; clumps can block the mechanism.
• Reinsert the ice bucket fully; a bucket that is not seated correctly can stop dispensing.
• Verify the household water supply valve is open and the water line is not kinked.

Run the ice maker self-test (bottom freezer)

The RF30BB6200QL ice maker includes a Test button on the bottom of the ice maker.

1. Remove the ice bucket (if needed for access).
2. Press the Test button.
3. Listen for the chime sequence; a second chime typically indicates the ice maker is operating.

If the test does not run or you hear repeated ice-making chimes, service may be needed.

Water supply and filter items to verify

Ice makers are very sensitive to water flow. For this model, the manual specifies:

Item to check	What “good” looks like	What to do if not
Water pressure	30 to 125 psi	Correct supply issue or add a booster pump if pressure is low
Water line connection	No leaks, no kinks	Re-seat fittings, straighten line
Water filter status	Not overdue	Replace filter and reset the filter indicator

For filter-related steps, we also recommend how to change the water filter in a Samsung refrigerator.

Why it matters

Low freezer temperature, a jammed bucket, or weak water supply can stop ice production and can also cause the ice maker to cycle incorrectly. Fixing the root cause helps prevent repeat clogs and inconsistent ice output.

Last updated: January 2026

Ice forming in the bottom of your Samsung RF30BB6200QL is usually caused by moisture getting into the freezer and then refreezing, or by defrost water not draining away fast enough. The most common triggers are a door that is not sealing tightly, frequent door openings, or airflow restrictions.

What to check first (quick fixes)

• Make sure the freezer drawer closes fully and nothing is preventing it from shutting.
• Inspect the door gaskets for gaps, tears, or sticky residue; clean with mild detergent and dry.
• Avoid leaving the door open; humid air entering the freezer can create frost that later turns into ice.
• Confirm food packages are not blocking interior vents; blocked vents can cause cold spots and frost.
• Set temperatures to typical targets: 37°F for the fridge and 0°F for the freezer (recommended in the RF30BB6200QL user manual).

Likely causes and what they look like

What you see	Most likely cause	What to do
Sheet of ice on freezer floor	Defrost drain partially blocked or refreezing	Defrost the freezer, then check for recurring water/ice buildup
Frost around vents or back wall	Airflow blocked by food or bins	Reposition items to keep vents clear
Frost/ice after lots of openings	Humid air intrusion	Reduce openings, verify gasket seal
Ice plus door not closing smoothly	Drawer alignment or overloading	Remove excess items, re-seat baskets

Why it matters

When ice builds up at the bottom, it can keep the freezer drawer from sealing, which lets in even more humid air. That cycle can lead to heavier frost, warmer temps, and poor ice maker performance.

When to stop and get service

If ice returns quickly after a full manual defrost (24 hours with the unit off and doors open), we recommend having a technician check the defrost drain path and related components described in the troubleshooting section of the RF30BB6200QL user manual.

Last updated: January 2026

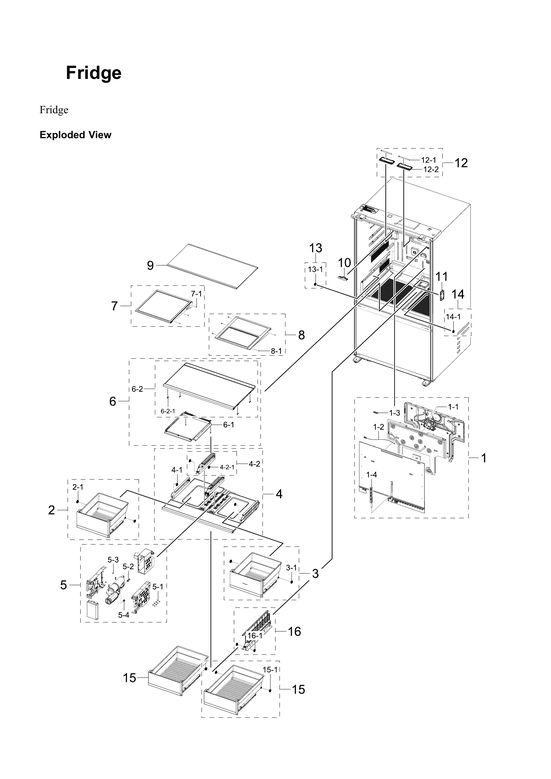

On the Samsung RF30BB6200QL, the “bottom shelf” is often the vegetable shelf above the crisper drawers (not the Quick Space shelf). To remove it, pull it out, press the front to lift the rear, then tilt it vertical and carefully slide it out; see the RF30BB6200QL user manual.

Identify which “bottom shelf” you mean

Samsung uses different shelf styles; removal steps vary.

• Vegetable shelf: the lowest glass shelf above the Crisper+ drawers.
• Quick Space shelf: a mid-level shelf that lifts and pulls out.
• Top shelf: typically lifts at the rear and pulls out.

Quick comparison

Shelf type	Where it sits	Key removal move
Vegetable shelf	Lowest shelf above drawers	Press front to lift rear, then tilt vertical
Quick Space shelf	Middle area	Lift front slightly, then pull out
Top shelf	Upper area	Lift rear, then pull out

Step-by-step: remove the vegetable (bottom) shelf

1. Remove food and any containers sitting on the shelf.
2. Fully open both refrigerator doors.
3. Pull the shelf straight out toward you.
4. Press down on the front of the shelf to lift the rear edge up.
5. Hold the rear edge and tilt the shelf to a vertical position.
6. Carefully pull the shelf out through the door opening.

Tips to prevent damage

• Tempered glass is heavy; use two hands and keep the shelf supported.
• Do not force the shelf past the door gasket; change the angle instead.
• If it won’t clear, remove door bins temporarily to create more room.
• Set the shelf on a towel or cardboard after removal.

Why it matters

Using the correct method for the vegetable shelf helps prevent cracked glass, damaged shelf trim, and torn door gaskets, and it makes reinstalling the shelf much easier.

Last updated: January 2026
