Kenmore 11160512911 top-mount refrigerator Parts

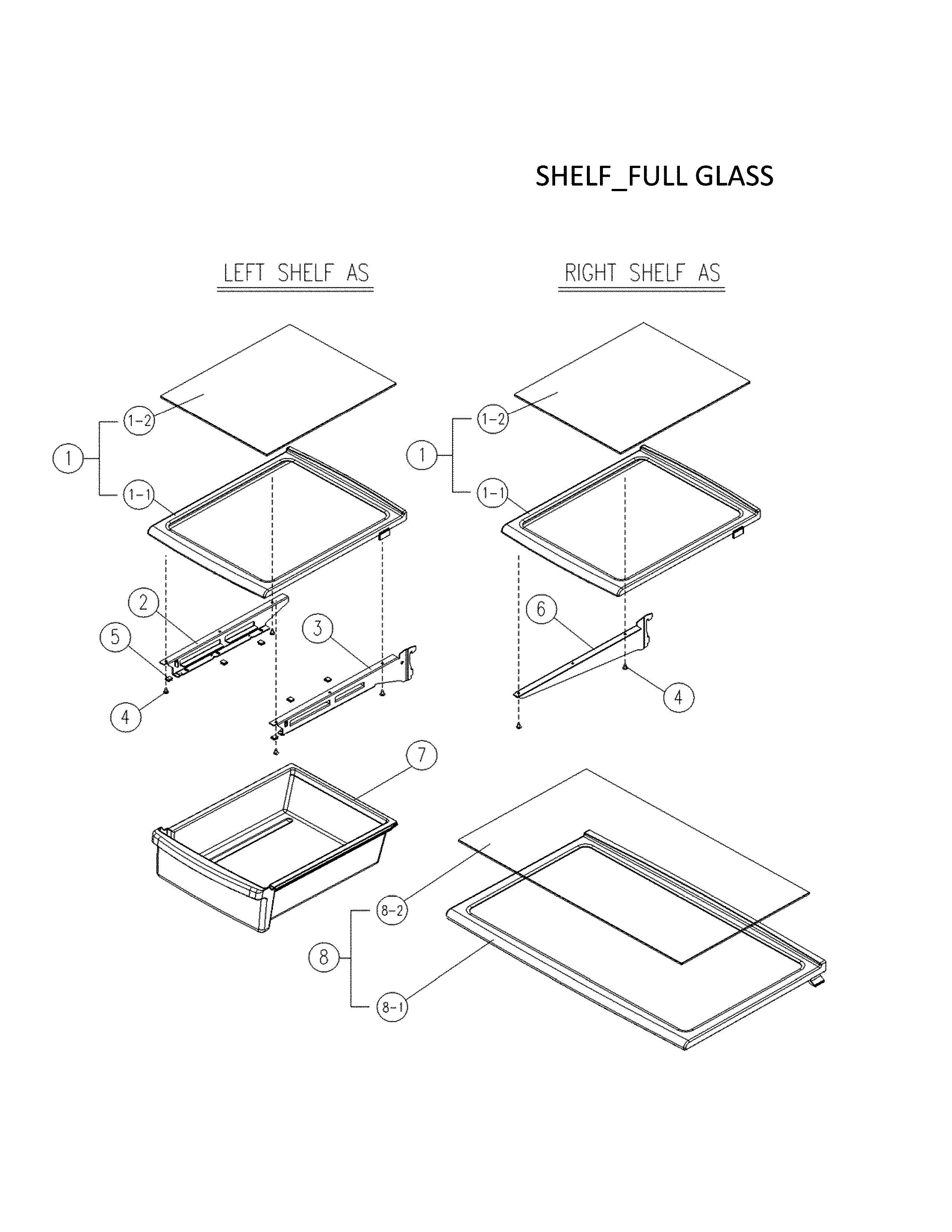

Yes. For Kenmore model 11160512911, you can buy extra shelves or replace a cracked shelf as long as the replacement matches your refrigerator’s shelf style and mounting points. Use the parts list for your model first, or search by model number on Sears PartsDirect.

How to make sure you get the right shelf

Shelves are not universal; even small differences in width, front trim, or rear supports can prevent a proper fit.

• Confirm whether you need a refrigerator (fresh food) shelf or a freezer shelf
• Check if the shelf is glass with a frame, wire, or plastic
• Measure the usable shelf area (width and depth) and note any front lip or trim
• Look at how it mounts: rear hooks, side rails, or molded supports
• Match any special features (spill guard edge, slide-out design, humidity cover clearance)

Quick fit checklist (what to compare)

What to compare	What to look for	Why it matters
Width and depth	Overall shelf size and usable surface	Prevents binding or gaps
Mounting style	Tabs, hooks, rails, or molded ledges	Ensures it locks in place
Shelf type	Glass, wire, plastic	Affects strength and fit
Location	Fresh food vs freezer	Different sizes and supports

Installation tips

Most shelves install without tools.

• Remove food and lift the shelf slightly to unhook it
• Angle the shelf to clear side supports, then slide it out
• Install the new shelf by engaging the rear supports first
• Confirm it sits level and does not interfere with the door closing

Why it matters

A correctly fitted shelf helps the door seal properly, supports weight safely, and keeps airflow moving so temperatures stay stable.

For diagrams and shelf location names used for this model, check the owner's manual.

Last updated: February 2026

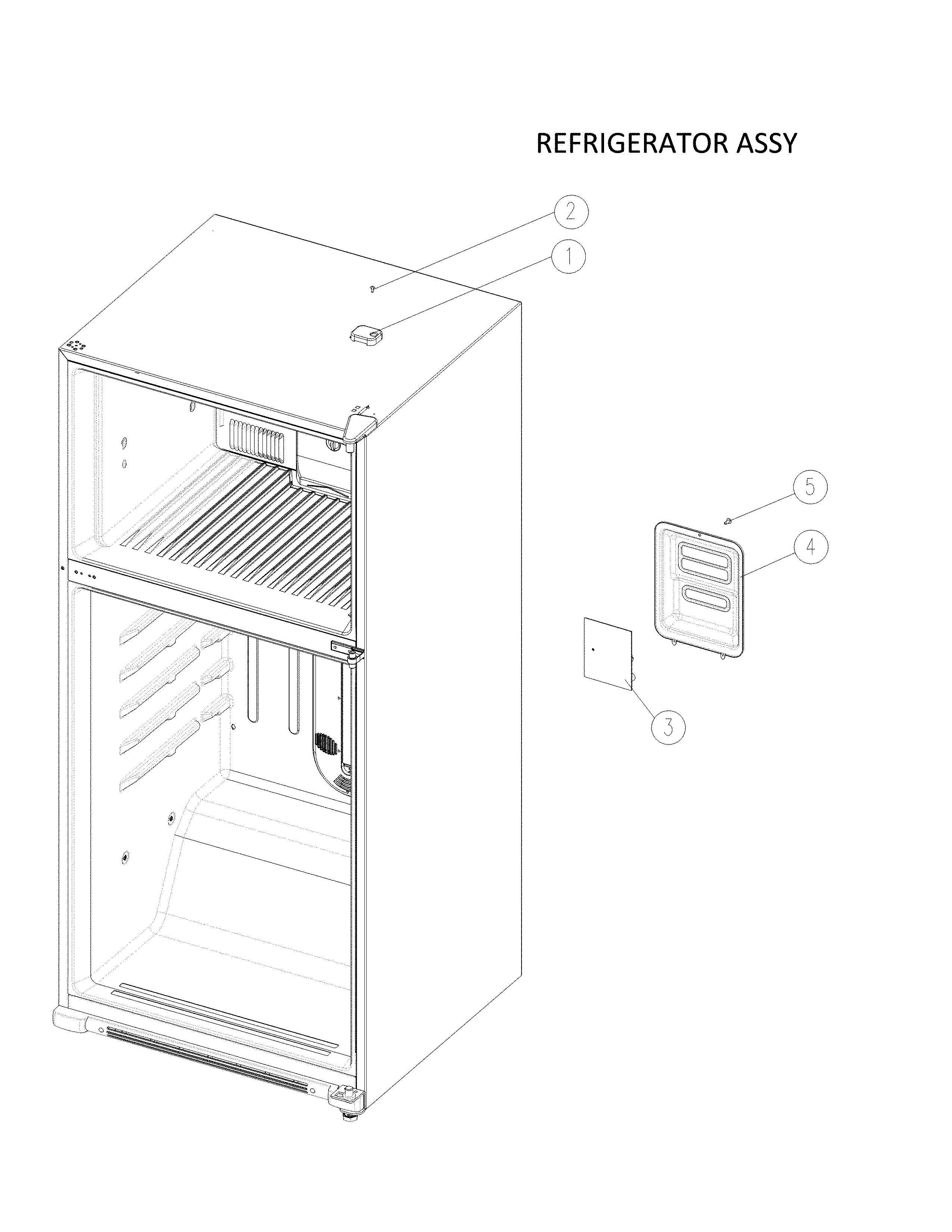

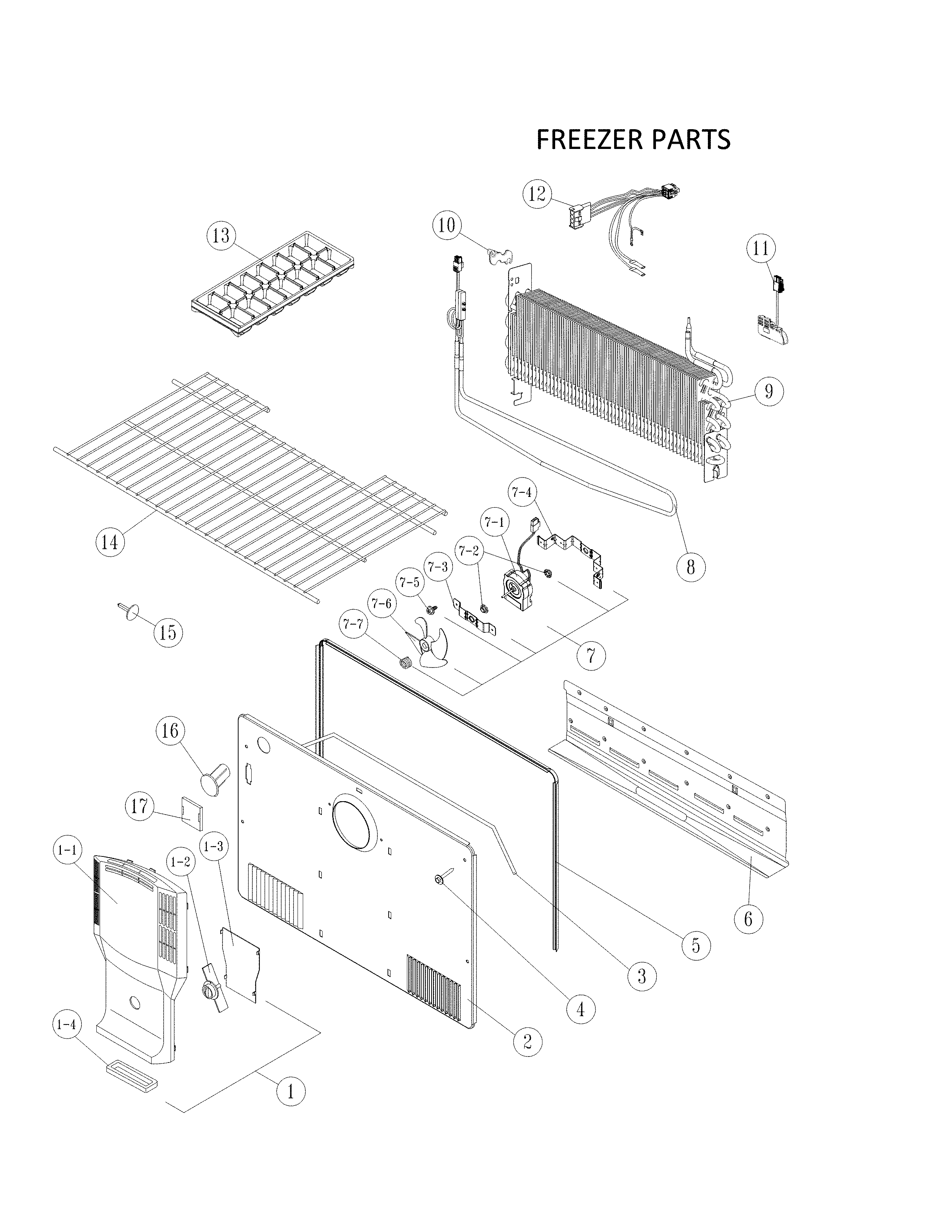

In a Kenmore 11160512911 top-mount refrigerator, the top section is the freezer compartment. It is the colder compartment designed to keep foods frozen; on some setups it can also support an optional ice maker.

What you will typically find in the top (freezer) section

• Freezer shelves or a wire rack for frozen food storage
• Freezer door bins for smaller items

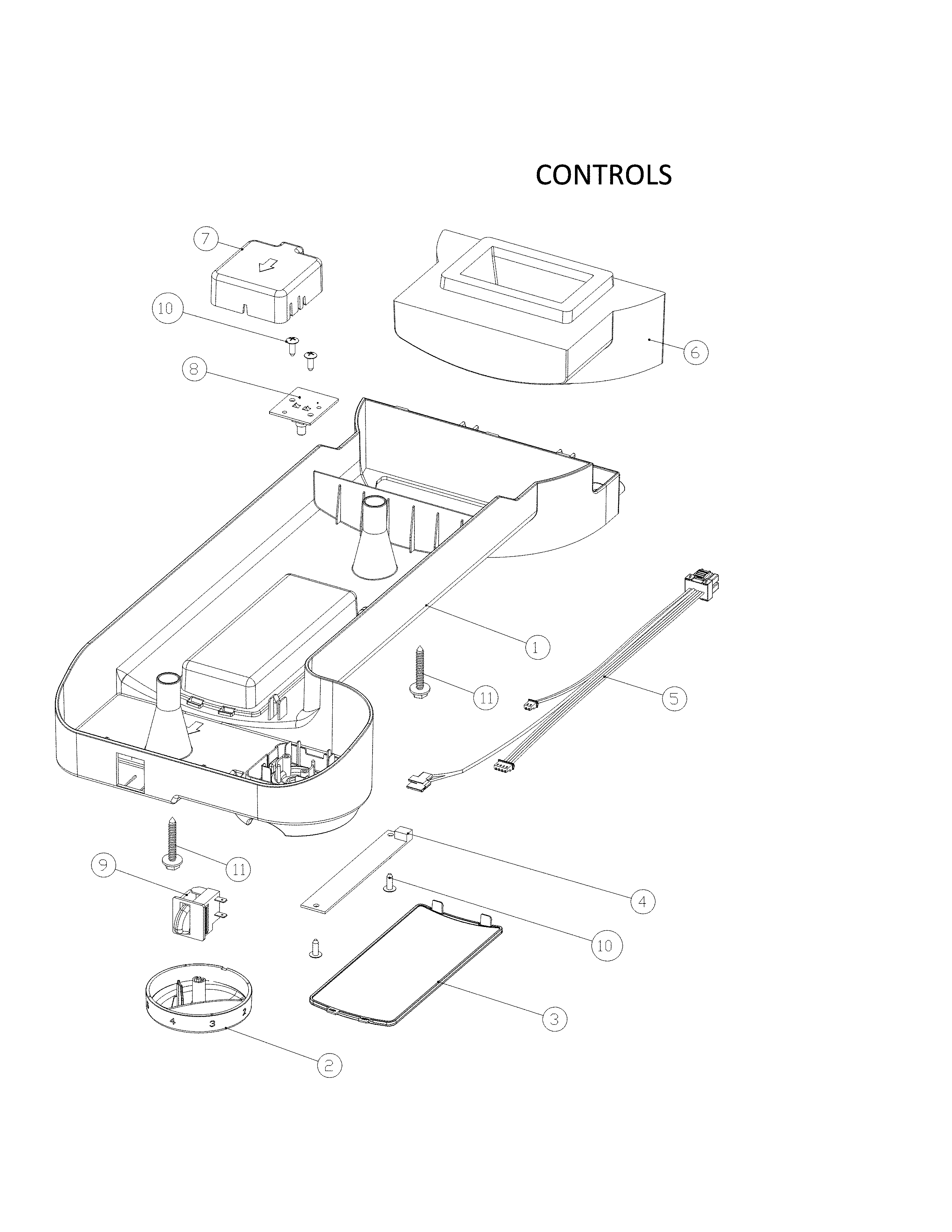

• A temperature control or airflow control (varies by configuration)

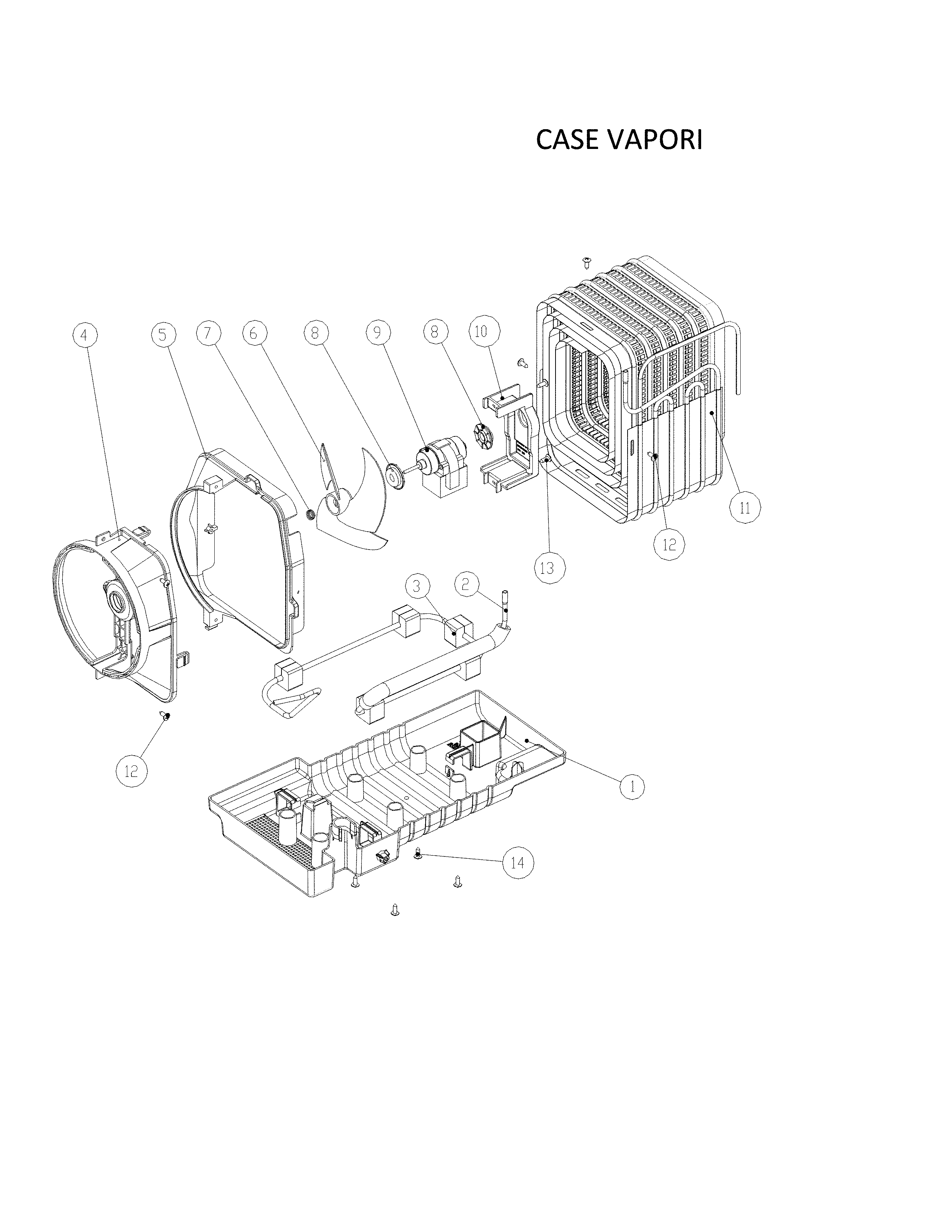

• An evaporator area behind an interior panel (moves cold air through the unit)
• Space and wiring provisions for an optional ice maker on some versions

Quick terminology guide

What people say	What it usually means	Where it is
“Top part of the fridge”	Freezer compartment	Upper door/upper cavity
“Fridge section”	Fresh food compartment	Lower cavity

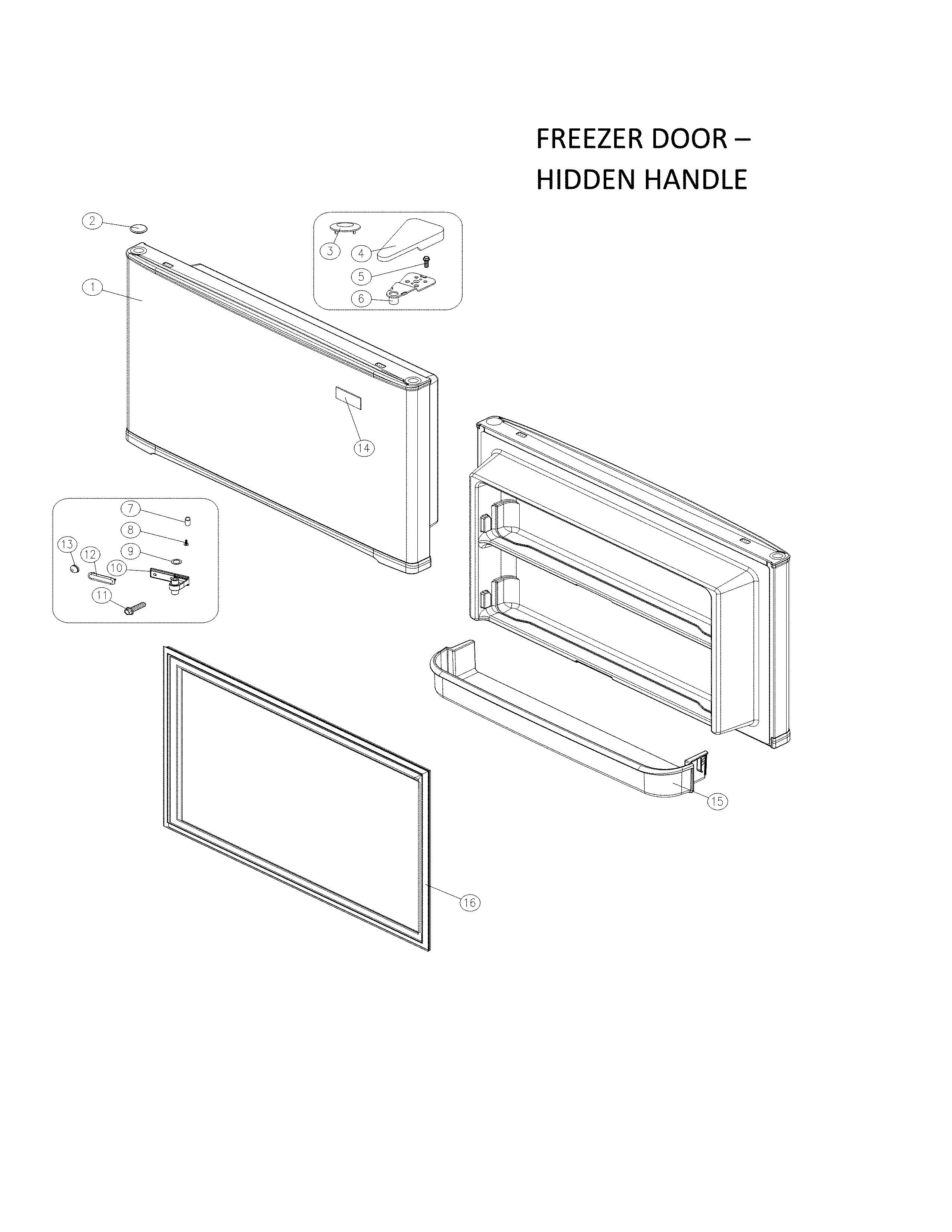

“Freezer door”	Freezer compartment door	Top door
“Ice maker area”	Optional ice maker location	Freezer (if equipped)

Why it matters

Knowing the correct name helps when you are troubleshooting cooling problems (freezer cold but refrigerator warm, frost buildup, fan noise) and when you are matching the right Kenmore refrigerator parts for the correct compartment.

Helpful next steps for this model

• Use the owner's manual to confirm control locations and compartment features for your exact configuration.
• If you see an error code on the display, match it using Kenmore 111 model top freezer refrigerator error codes.
• If you are shopping for replacement parts by model number, start with the parts list for Kenmore 11160512911 or search by model on Sears PartsDirect.

Last updated: February 2026

Yes. We still support Kenmore refrigerator parts, including for Kenmore model 11160512911. Use your model number to match the correct replacement parts (like door gaskets, shelves, or an optional ice maker components) and confirm fitment details in the owner's manual.

Best way to find the right part

To avoid ordering the wrong item, we recommend matching by model number first, then verifying the part location and description.

• Confirm your full model number: 11160512911
• Use the model parts list to identify the exact part name and diagram location
• Compare your original part to photos and descriptions (shape, connectors, mounting points)
• Check whether your refrigerator has options installed (for example, an ice maker)
• Use Sears PartsDirect to search by model number if you are shopping across multiple Kenmore models

What parts are commonly replaced on Kenmore refrigerators

Even when symptoms look the same, the correct part can differ by model and configuration.

Symptom	Common part to check	What to look for
Warm fridge or freezer	Evaporator fan motor, defrost components	Fan not running, heavy frost on back wall
Water leaking	Drain tube, drain pan, water line fittings	Ice clog in drain, puddles under unit

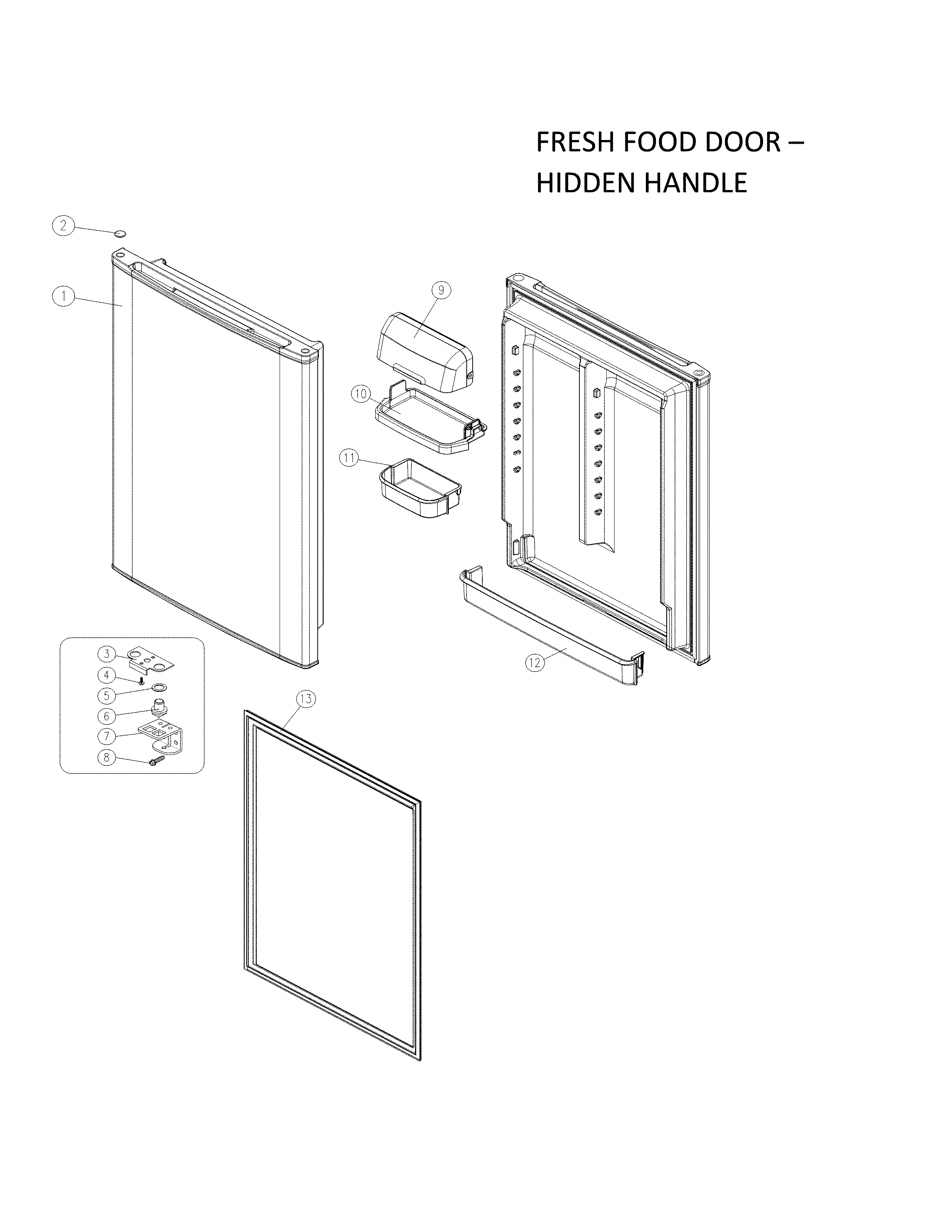

Door not sealing	Door gasket, hinges	Gaps, torn gasket, door sag

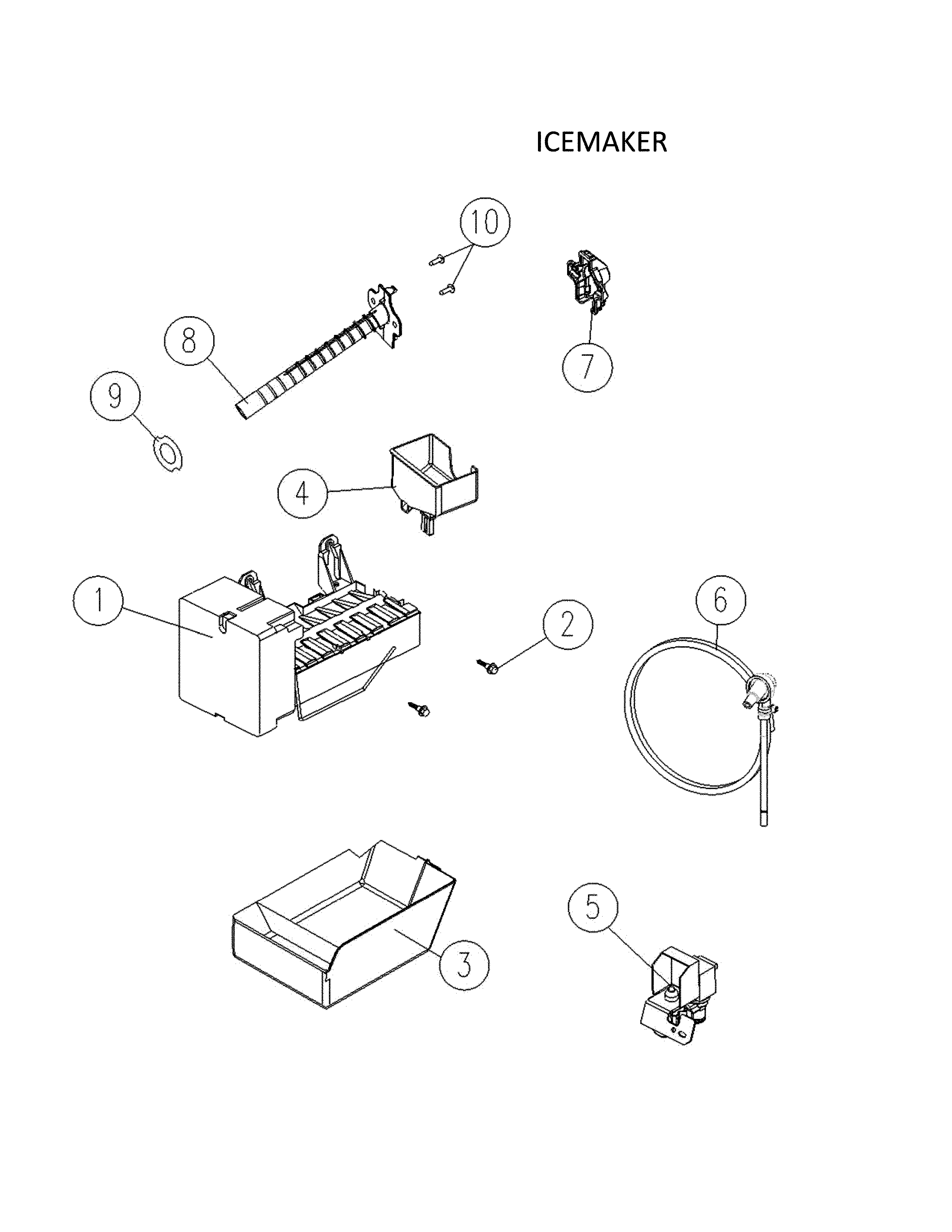

No ice (if equipped)	Ice maker module, water inlet valve	No fill, no harvest, low water flow

Safety and service notes (important)

This model uses flammable refrigerant (R600a). For sealed-system issues (refrigerant tubing, compressor, evaporator), we recommend service by trained personnel.

• Do not puncture or cut refrigerant tubing
• Do not use mechanical devices to speed up defrosting
• Unplug the refrigerator before inspecting wiring or fans
• Keep shelves in place and remove doors if disposing of an old unit (child safety)

Why it matters

Kenmore parts availability is strongest when you match by exact model number. That ensures the replacement part fits your cabinet size, wiring harness, and any optional features (like an ice maker).

Last updated: February 2026

Most Kenmore refrigerators last 12 to 15 years on average with normal use and basic maintenance. For your Kenmore 11160512911 top-mount refrigerator, keeping airflow clear, seals tight, and temperatures correct helps you reach (and often exceed) that typical service life; see the owner's manual for model-specific care and safety notes.

Typical lifespan and what affects it

A refrigerator’s lifespan is mostly driven by compressor run time, heat removal, and door-seal performance.

• 12 to 15 years: typical expected lifespan for most household refrigerators
• 10 years or less: more likely with dirty condenser area, poor ventilation, or frequent power issues
• 15+ years: common when coils are kept clean and doors seal well
• Heavy use (busy household, garage use, frequent door openings) can shorten life
• Promptly fixing cooling, fan, or defrost issues prevents compressor strain

Maintenance that adds years (high impact)

Use these as your routine checklist for a Kenmore top-mount refrigerator like model 11160512911:

• Keep the condenser area clean and free of dust (improves heat rejection)
• Confirm door gaskets seal all the way around (no warm air leaks)
• Maintain good airflow inside; do not block vents with food packages
• Set stable temps: 37°F to 40°F fresh food; 0°F freezer
• Level the cabinet so doors close on their own and seal consistently

Quick “replace vs. repair” guide

What you’re seeing	What it usually means	Practical next step
Warm fridge, freezer OK	Airflow/evaporator fan or damper issue	Check vents, listen for fan, inspect frost buildup
Frost buildup, warming	Defrost system problem	Defrost and troubleshoot before compressor overworks
Runs constantly	Dirty condenser area, poor ventilation, gasket leak	Clean, improve clearance, check seals
Water leaks/puddles	Drain or ice maker water supply issue	Clear drain path; inspect water line connections

Why it matters

A refrigerator that runs hotter or longer than it should wears the compressor faster. Simple upkeep (cleaning, sealing, airflow, correct temps) reduces run time and helps your Kenmore 11160512911 reach its full lifespan.

If you need replacement parts for this refrigerator, start with the model-specific parts list, or search by model number on Sears PartsDirect.

Last updated: February 2026

To tell what model Kenmore refrigerator you have, look for the model and serial tag on the cabinet walls or door area. On Kenmore model 11160512911, the exact tag location and format are shown in the 11160512911 owner's manual.

Where to look for the model number tag

Check these common spots first (use a flashlight and look for a sticker or metal plate):

• Inside the fresh food section on a side wall (often upper left or right)

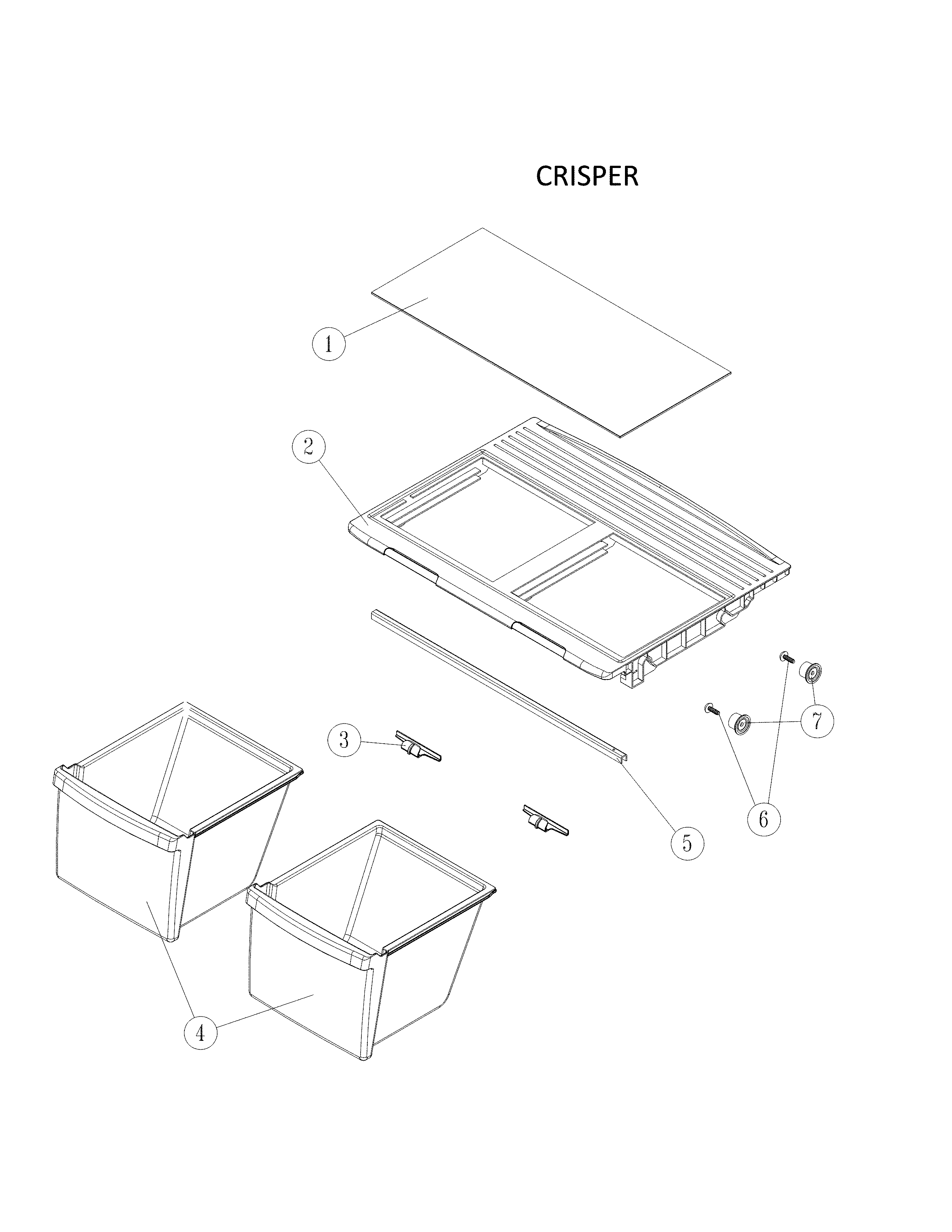

• Inside the fresh food section near or behind the crisper drawers
• Inside the freezer section on a side wall
• On the door frame (hinge side) when the door is open
• Behind the lower front kick plate or toe grille

What to write down (and why it matters)

We recommend recording both the model number and serial number exactly as shown. The model number identifies the correct parts list and diagrams; the serial number helps match production changes.

• Model number: used to match parts and troubleshooting info
• Serial number: used to match the manufacturing run
• Revision or suffix (if shown): helps avoid ordering the wrong variation

Quick ID checklist

Use this table to avoid mix-ups when you search parts or manuals.

Item on the tag	Example format	Use it for
Model number	11160512911	Parts lookup, diagrams, manual match
Serial number	Letters plus numbers	Production run identification
Electrical ratings	Volts/amps/watts	Confirming power requirements

Safety note before removing panels

If you need to remove the kick plate or any interior cover to see the tag, unplug the refrigerator first. This Kenmore 111-series platform uses flammable refrigerant (R600a); avoid puncturing any tubing and do not use sharp tools around sealed-system lines.

Related help for Kenmore 111 refrigerators

If you found an error code while checking the display, use our model-family guide: Kenmore 111 model top freezer refrigerator error codes.

For parts lookup by model number and broader Kenmore searches, use Sears PartsDirect.

Last updated: February 2026
