Model # RH400 Official Jenn-Air range hood

Here are the diagrams and repair parts for Official Jenn-Air RH400 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Range Hood Blower 712337
#7

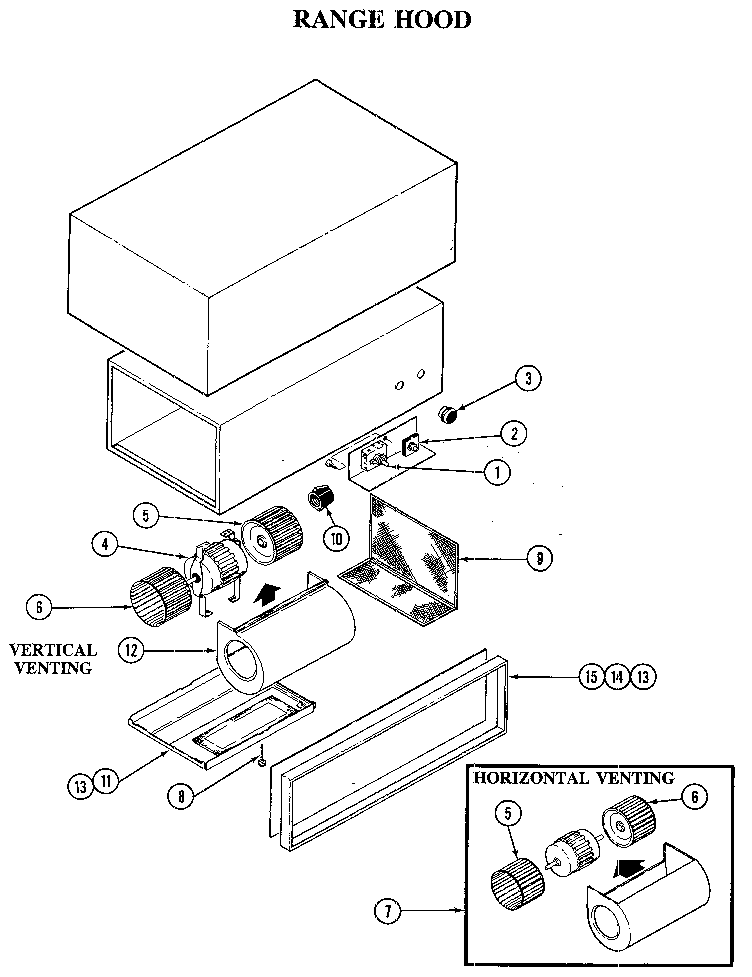

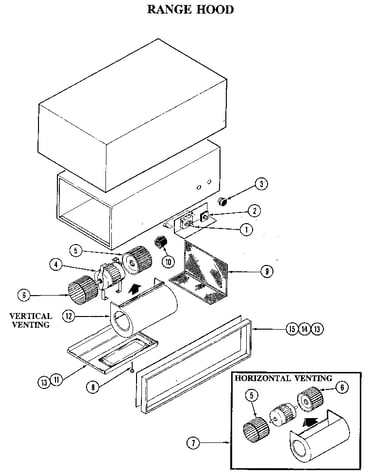

Range hood/vented diagram

Range hood blower

Part #712337

The manufacturer no longer makes this part, and there's no substitute part

Thumb Screw 712345
#8

Range hood/vented diagram

Thumb screw

Part #712345

The manufacturer no longer makes this part, and there's no substitute part

Motor 712336
#4

Range hood/vented diagram

Motor

Part #712336

The manufacturer no longer makes this part, and there's no substitute part

Sw Rot 3 Lt 712325
#2

Range hood/vented diagram

Sw rot 3 lt

Part #712325

The manufacturer no longer makes this part, and there's no substitute part

Blwer Wh Ccw 712341
#6

Range hood/vented diagram

Blwer wh ccw

Part #712341

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Cover 712421
#11

Range hood/vented diagram

Range hood blower cover

Part #712421

The manufacturer no longer makes this part, and there's no substitute part

Speed Control Fan 712326
#1

Range hood/vented diagram

Speed control fan

Part #712326

The manufacturer no longer makes this part, and there's no substitute part

Glass Lens 712389
#13

Range hood/vented diagram

Glass lens

Part #712389

The manufacturer no longer makes this part, and there's no substitute part

Lamp Holder 712344
#10

Range hood/vented diagram

Lamp holder

Part #712344

The manufacturer no longer makes this part, and there's no substitute part

Aluminum Filter 712304
#9

Range hood/vented diagram

Aluminum filter

Part #712304

The manufacturer no longer makes this part, and there's no substitute part
