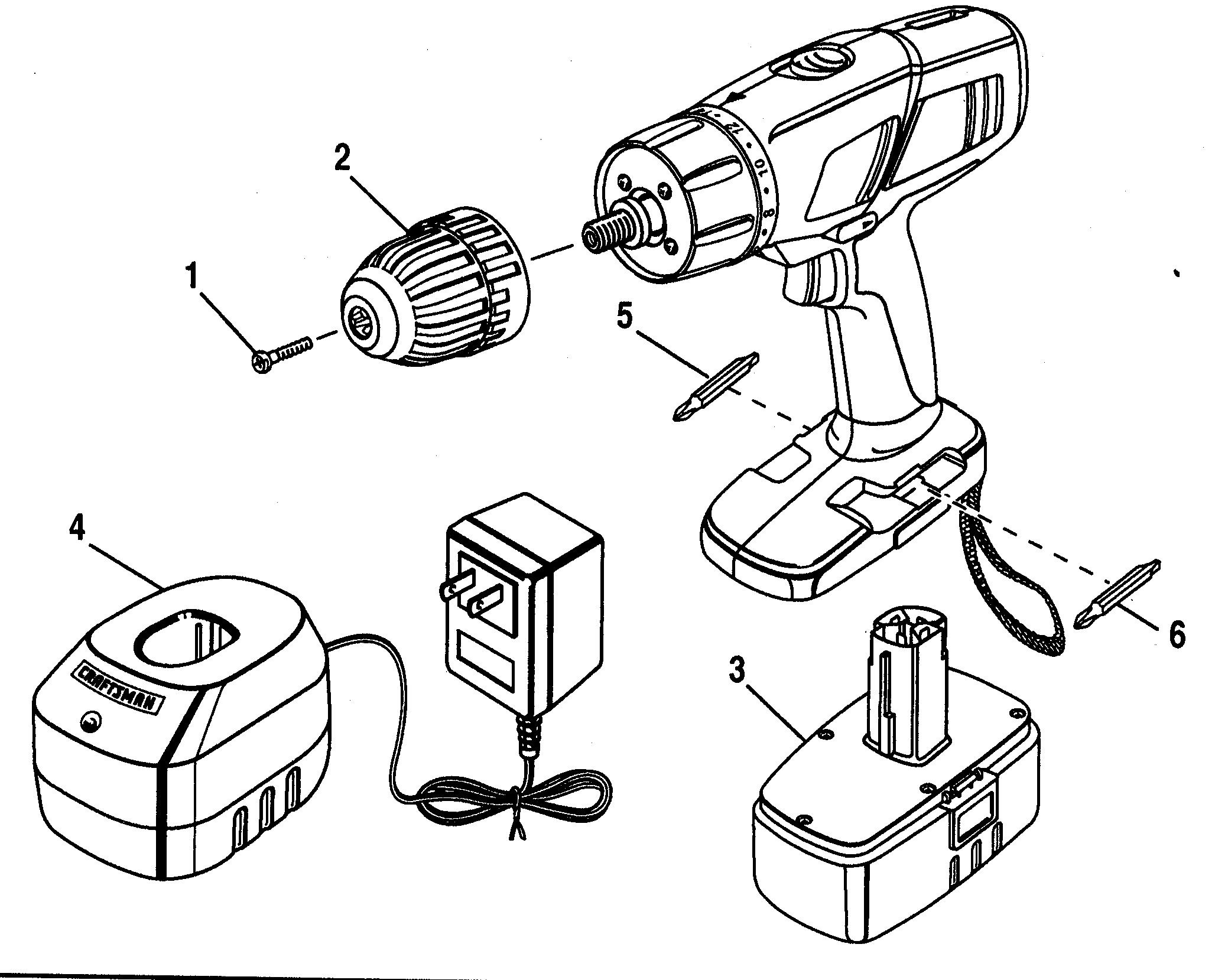

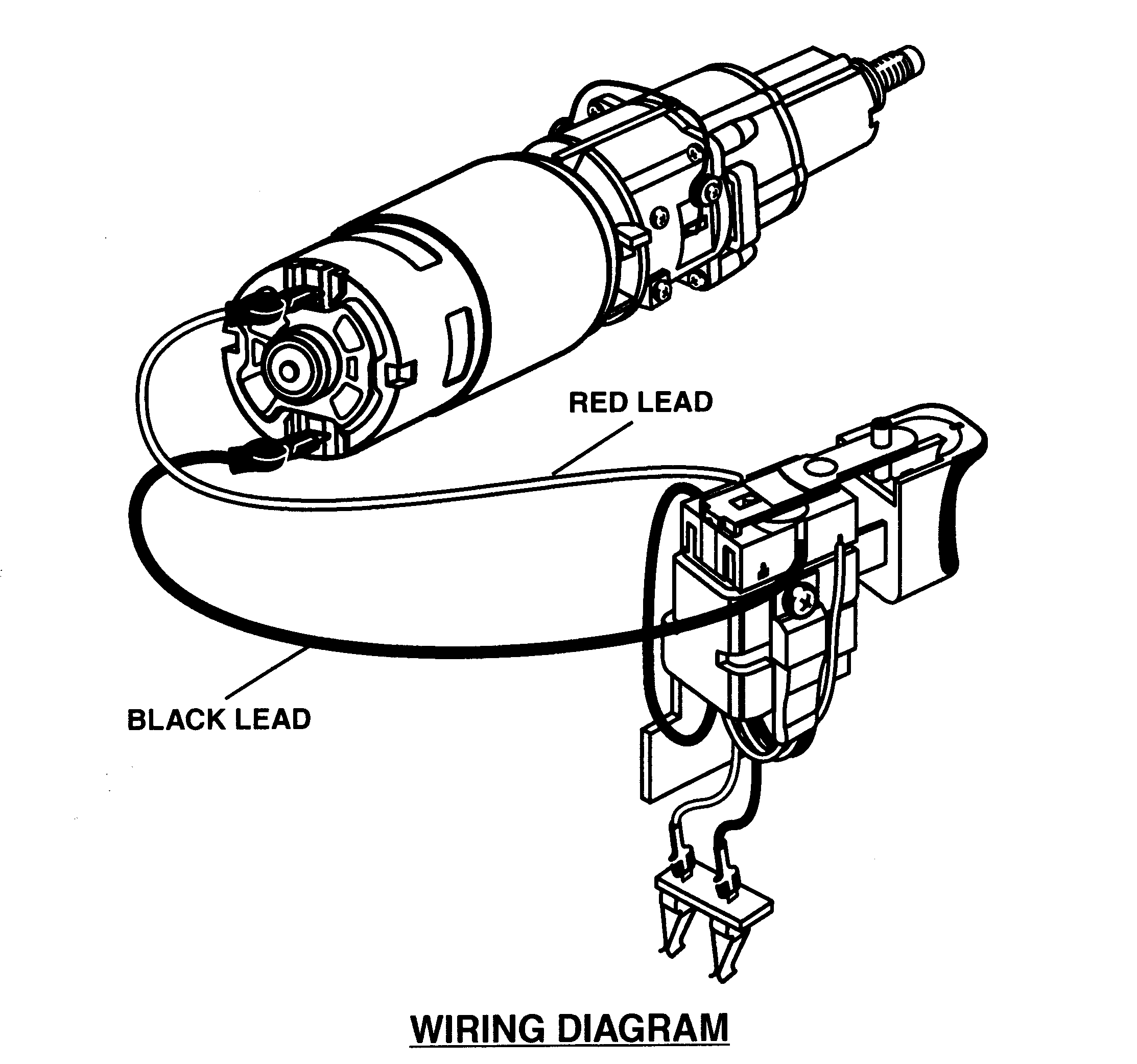

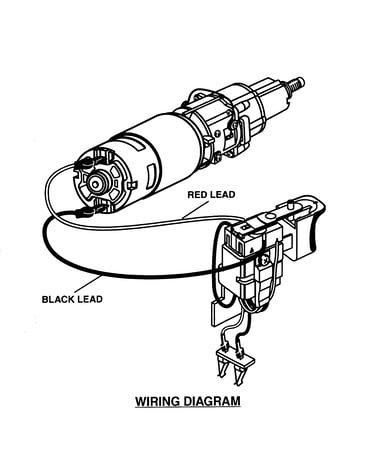

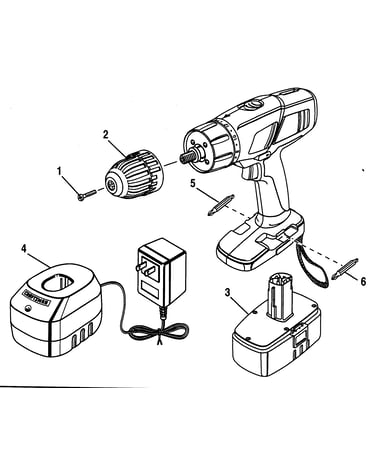

Model #315114610 Craftsman drill/driver

Here are the diagrams and repair parts for Craftsman 315114610 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 33 parts

    Screw

    #22

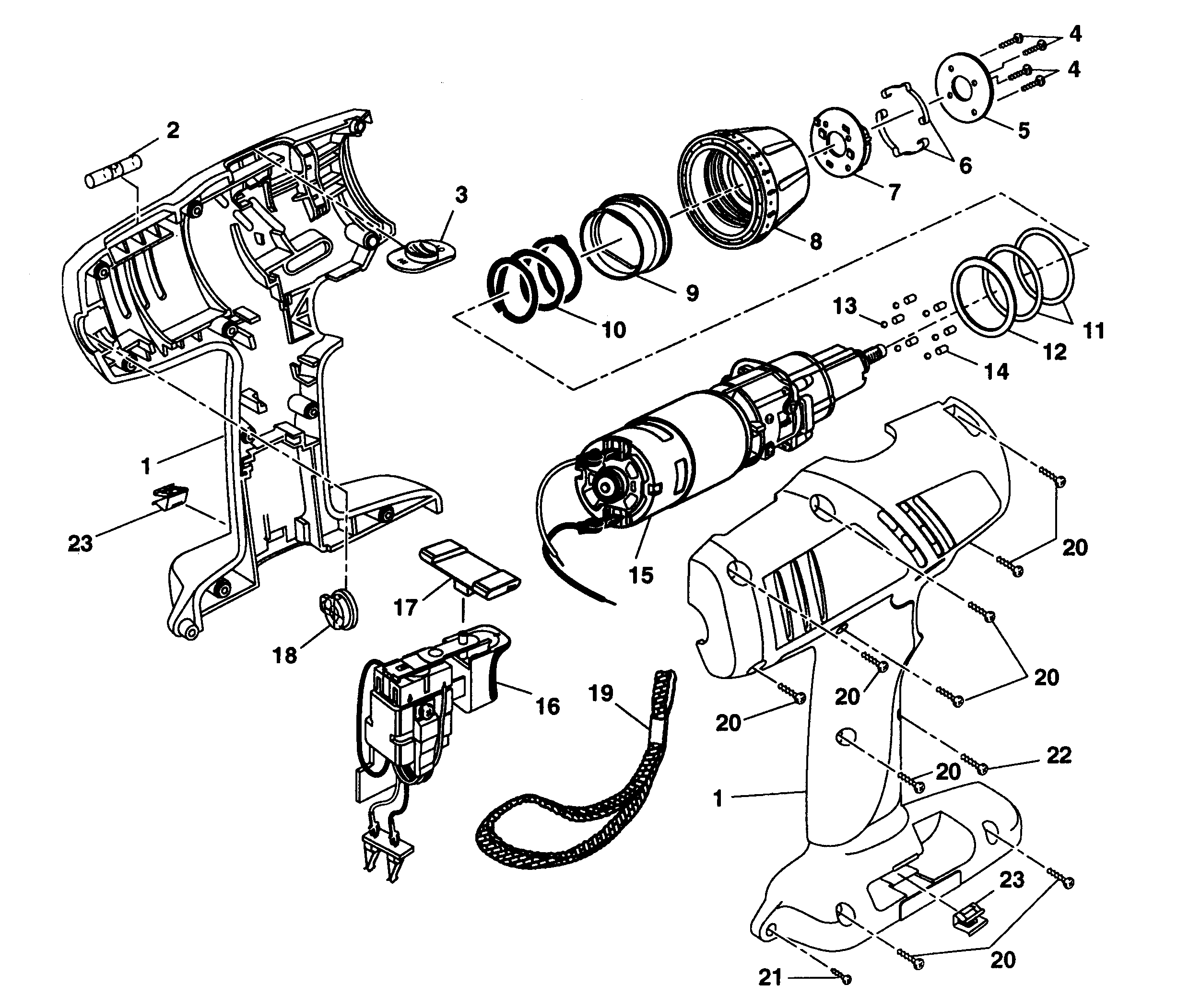

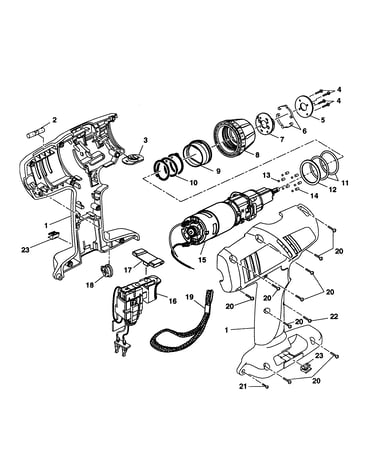

    Housing assy Diagram

    Screw

    Part #6627201
    This item is not returnable
    $2.16

    In Stock

    Plate

    #6

    Housing assy Diagram

    Plate

    Part #6392201
    This item is not returnable
    $2.31

    In Stock

    Drill Screw, M3 x 20

    #4

    Housing assy Diagram

    Drill screw, m3 x 20

    Part #6620311
    This item is not returnable
    $3.16

    In Stock

    Clutch Cap

    #8

    Housing assy Diagram

    Clutch cap

    Part #4011801

    The manufacturer no longer makes this part, and there's no substitute part

    Holder

    #7

    Housing assy Diagram

    Holder

    Part #5434601

    The manufacturer no longer makes this part, and there's no substitute part

    Bit Clip

    #23

    Housing assy Diagram

    Bit clip

    Part #630206001

    The manufacturer no longer makes this part, and there's no substitute part

    Rear Level

    #18

    Housing assy Diagram

    Rear level

    Part #3048003

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #12

    Housing assy Diagram

    Washer

    Part #6838001

    The manufacturer no longer makes this part, and there's no substitute part

    Power Tool Screw

    #20

    Housing assy Diagram

    Power tool screw

    Part #660208052
    ?
    Manufacturer substitution
    This part replaces 6620805. Substitute parts can look different from the original.
    This part replaces 6620805
    This item is not returnable
    $2.55

    In Stock

    Power Tool Steel Ball

    #13

    Housing assy Diagram

    Power tool steel ball

    Part #6721901
    ?
    Manufacturer substitution
    This part replaces 670219001. Substitute parts can look different from the original.
    This part replaces 670219001
    This item is not returnable
    $2.71 |
    12% OFF MSRP:$3.09

    In Stock
