Kenmore
Gas Cooktop

Model # 9113312990 Official Kenmore 36" gas counter unit

Here are the diagrams and repair parts for Official Kenmore 9113312990 36" gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

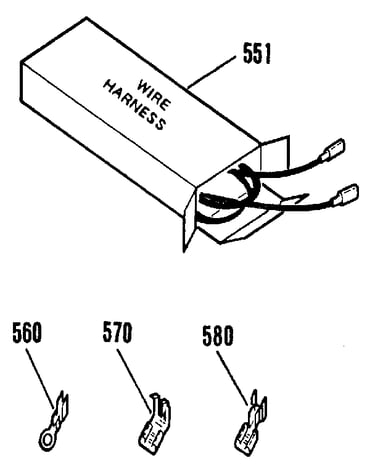

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Owner's Manual SR10074

#NI

All parts diagram

Owner's manual

Part #SR10074

This item is not returnable
$5.49
In Stock
Parts List SR13184

#NI

All parts diagram

Parts list

Part #SR13184

Replaced by #SR13217

?
Manufacturer substitution
This part replaces SR13184. Substitute parts can look different from the original.
$9.99
In Stock
Felt Washer WB01X1421
#932

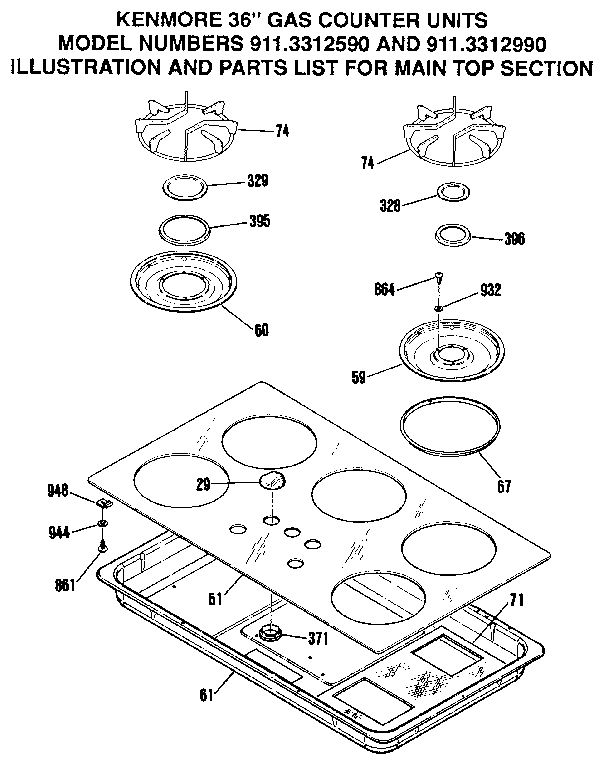

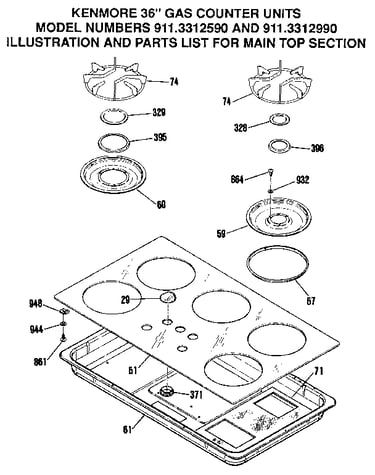

Main top section diagram

Felt washer

Part #WB01X1421

Replaced by #WB1X1421D

?
Manufacturer substitution
This part replaces WB01X1421. Substitute parts can look different from the original.
$9.69 |
9% OFF Phone Price : $10.69
In Stock
Screw WB01X1261
#813

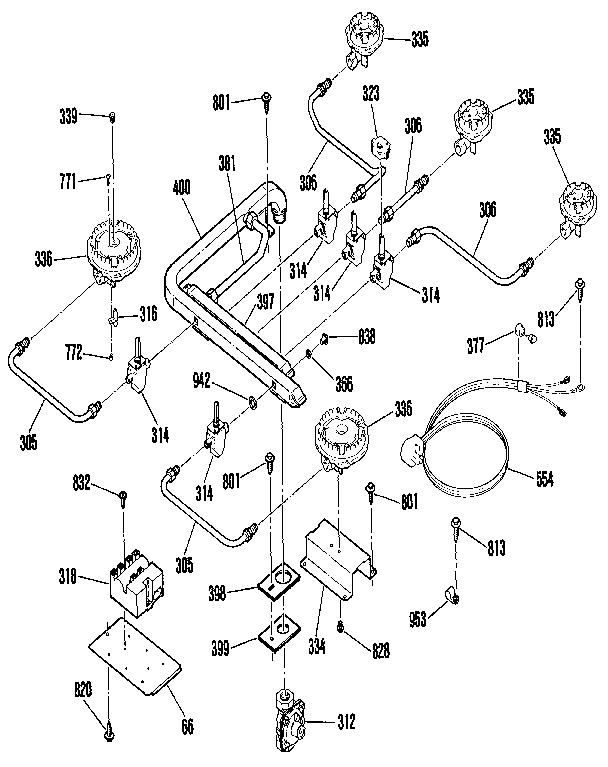

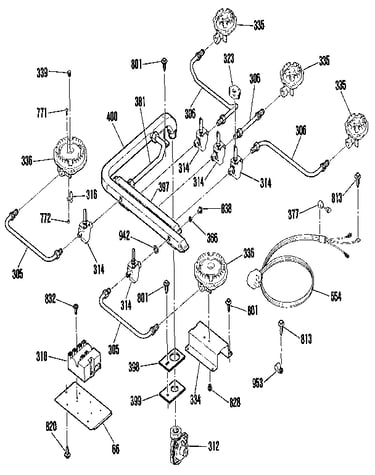

Burner section diagram

Screw

Part #WB01X1261

Replaced by #WB1X1261

?
Manufacturer substitution
This part replaces WB01X1261. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bjurner Bowl WB31K5060
#60B

Main top section diagram

Bjurner bowl

Part #WB31K5060

Replaced by #WB32M8

?
Manufacturer substitution
This part replaces WB31K5060. Substitute parts can look different from the original.
This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Owner's Manual SR10073

#NI

All parts diagram

Owner's manual

Part #SR10073

Replaced by #31-10075

?
Manufacturer substitution
This part replaces SR10073. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Valve Switch WB24K5083
#323B

Burner section diagram

Valve switch

Part #WB24K5083

Replaced by #WB24K5083

?
Manufacturer substitution
This part replaces WB24K5083. Substitute parts can look different from the original.
This item is not returnable
$20.95 |
19% OFF Phone Price : $25.95
In Stock
Burner Bowl WB31K5061
#59B

Main top section diagram

Burner bowl

Part #WB31K5061

Replaced by #WB32M8

?
Manufacturer substitution
This part replaces WB31K5061. Substitute parts can look different from the original.
This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Owner's Manual SR13092

#NI

All parts diagram

Owner's manual

Part #SR13092

Replaced by #MND130-1

?
Manufacturer substitution
This part replaces SR13092. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw 10 WB01M0001
#801

Burner section diagram

Screw 10

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
