Whirlpool WFW5720RW0 washer Parts

Here are the diagrams and repair parts for Whirlpool WFW5720RW0 washer, as well as links to manuals and error code tables, if available.

Whirlpool WFW5720RW0 washer
By Schematic
By Part

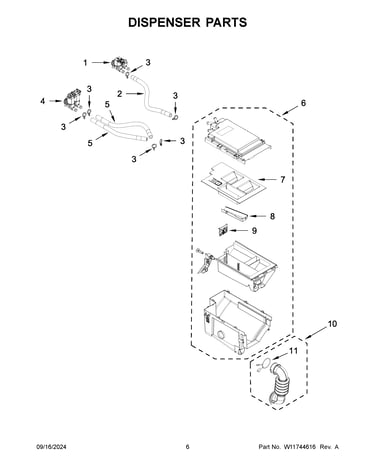

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WFW5720RW0 Washer

  • Counterwgt for Whirlpool WFW5720RW0 - Part W11314650

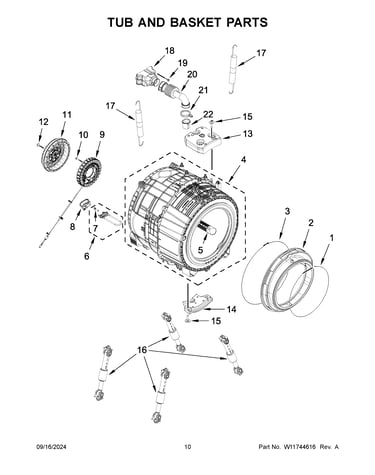

    Tub and basket parts diagram

    Counterweigh

    Part #W11209370

    Replaced by #W11314650

    Info Icon
    Manufacturer substitution
    This part replaces W11209370. Substitute parts can look different from the original.
    In Stock
    $91.59
    6% OFF Phone Price : $97.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Pin for Whirlpool WFW5720RW0 - Part W11316664

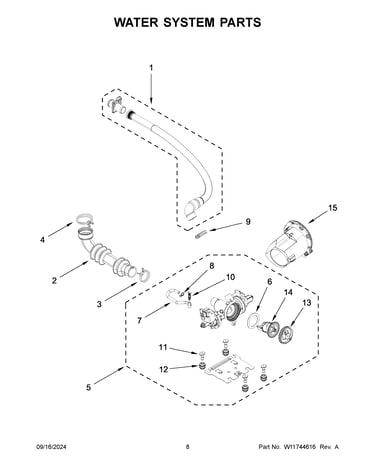

    Water system parts diagram

    Pin-grommet,

    Part #W11133160

    Replaced by #W11316664

    Info Icon
    Manufacturer substitution
    This part replaces W11133160. Substitute parts can look different from the original.
    In Stock
    $39.94
    Minus Item
    Qty
    Plus Item
  • Panel-rear,s for Whirlpool WFW5720RW0 - Part W11491750

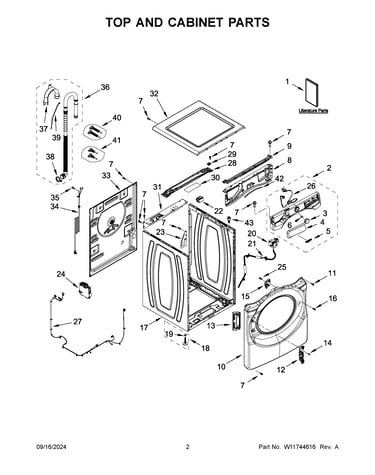

    Top and cabinet parts diagram

    Panel, Rear

    Part #W11420275

    Replaced by #W11491750

    Info Icon
    Manufacturer substitution
    This part replaces W11420275. Substitute parts can look different from the original.
    In Stock
    $245.51
    5% OFF Phone Price : $257.51Info Icon
    Minus Item
    Qty
    Plus Item
  • Hose, Drain for Whirlpool WFW5720RW0 - Part W11747861

    Water system parts diagram

    Hose, Drain (pump)

    Part #W11718104

    Replaced by #W11747861

    Info Icon
    Manufacturer substitution
    This part replaces W11718104. Substitute parts can look different from the original.
    In Stock
    $50.73
    Minus Item
    Qty
    Plus Item
  • Clamp, Drain for Whirlpool WFW5720RW0 - Part WP616099

    Water system parts diagram

    Clamp

    Part #370448

    Replaced by #WP616099

    Info Icon
    Manufacturer substitution
    This part replaces 370448. Substitute parts can look different from the original.
    In Stock
    $29.19
    Minus Item
    Qty
    Plus Item
  • M12-1.75 X 2 for Whirlpool WFW5720RW0 - Part W11557803

    Tub and basket parts diagram

    Screw, Rotor

    Part #W11354072

    Replaced by #W11557803

    Info Icon
    Manufacturer substitution
    This part replaces W11354072. Substitute parts can look different from the original.
    In Stock
    $29.08
    Minus Item
    Qty
    Plus Item
  • Washer Door Glass for Whirlpool WFW5720RW0 - Part W11316777

    Door parts diagram

    Door, Clear Insert

    Part #W11171604

    Replaced by #W11316777

    Info Icon
    Manufacturer substitution
    This part replaces W11171604. Substitute parts can look different from the original.
    In Stock
    $148.25
    7% OFF Phone Price : $160.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Whirlpool WFW5720RW0 - Part W11230114

    Tub and basket parts diagram

    Screw

    Part #8540513

    Replaced by #W11230114

    Info Icon
    Manufacturer substitution
    This part replaces 8540513. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $18.61
    10% OFF Phone Price : $20.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Bracket for Whirlpool WFW5720RW0 - Part W11314674

    Top and cabinet parts diagram

    Foam Pad, Br

    Part #W10331064

    Replaced by #W11314674

    Info Icon
    Manufacturer substitution
    This part replaces W10331064. Substitute parts can look different from the original.
    In Stock
    $37.52
    Minus Item
    Qty
    Plus Item
  • Washer Fill Hose, 2-pack for Whirlpool WFW5720RW0 - Part 8212487RP

    Optional parts (not included) diagram

    Washer Water Inlet Hose, 2-pack

    Part #8212487

    Replaced by #8212487RP

    Info Icon
    Manufacturer substitution
    This part replaces 8212487. Substitute parts can look different from the original.
    In Stock
    $36.40
    14% OFF Phone Price : $42.40Info Icon
    Minus Item
    Qty
    Plus Item
