Whirlpool WFG505M0MS0 gas range Parts

WFG505M0MS is the Whirlpool model series name for the gas range family that includes your exact model WFG505M0MS0. In other words, WFG505M0MS identifies the product line, and the final “0” in WFG505M0MS0 typically indicates a specific revision or production variation used for correct parts matching.

When you’re ordering parts for a Whirlpool gas range, we recommend using the full model number (WFG505M0MS0), not just WFG505M0MS, because small suffix changes can affect fit and wiring.

• Use WFG505M0MS0 when searching for replacement parts and diagrams
• Match the full model number from the rating plate, not the box or receipt
• If a listing shows WFG505M0MS (without the last digit), confirm it also covers WFG505M0MS0
• For repairs, verify the part by description and location (oven vs. cooktop)

For Whirlpool model numbers like WFG505M0MS0, the last character is commonly used to track a version change (for example, a supplier change, finish variation, or internal component update). We can’t identify the exact revision difference for WFG505M0MS0 from the model identification alone, but it’s still important for selecting compatible parts.

Using the complete model number helps prevent ordering a part that looks right but doesn’t mount correctly, connect to the harness, or calibrate properly for your Whirlpool gas range.

If you’re troubleshooting an oven temperature issue on WFG505M0MS0, a common related component is the range oven temperature sensor WPW10181986.

Last updated: January 2026

A Whirlpool gas stove like model WFG505M0MS0 typically lasts 13 to 15 years with normal household use. Consistent cleaning, keeping burner flames even, and fixing small issues early can help you reach the high end of that range.

A gas range’s life is mostly driven by heat exposure, spills, and wear on ignition and gas-control components.

• Daily cooking (multiple meals per day) shortens lifespan compared to light use
• Boil-overs and heavy cleaners can damage burner heads, caps, and finishes
• Poor airflow or blocked ports can cause uneven flames and extra heat stress
• Slamming the oven door can wear hinges, seals, and glass mounts
• Power surges can shorten the life of the electronic control

• Wipe the cooktop after it cools; remove acidic spills quickly
• Keep burner ports clear; clean and dry caps before reinstalling
• Avoid lining the oven bottom with foil unless your model specifically allows it
• Check that the range sits level; adjust feet if needed
• Use gentle cleaners on stainless and painted surfaces

Replacing a few wear items can keep WFG505M0MS0 cooking accurately and efficiently.

A well-maintained gas range holds temperature better, preheats faster, and reduces stress on the oven burner, igniter, and control system. That usually means fewer breakdowns and a longer overall service life.

Last updated: January 2026

On your Whirlpool gas range, use the model number exactly as it appears on the rating label. For model WFG505M0MS0, the label is commonly found on the frame behind the storage or warming drawer; pull the drawer out and look along the front frame or side rail.

Check these locations in order:

• Behind the storage or warming drawer, on the front frame
• On the left or right side rail just inside the drawer opening
• Along the oven frame behind the oven door (front edge of the cavity)
• On the back panel of the range (less common)

• Turn the range off and let it cool completely
• Pull the bottom drawer straight out (some styles lift slightly to clear the stops)
• Use a flashlight and scan the metal frame around the opening
• Write down the full model number and serial number exactly as printed

Whirlpool model numbers can look very similar, and a single character difference can change which parts fit. Using the exact label information helps us match the right components the first time, such as the range oven temperature sensor WPW10181986.

For more help identifying model numbers across appliances, see how to find your appliance model number (and what it means for parts).

Last updated: January 2026

If your Whirlpool WFG505M0MS0 gas range is not emitting gas, the most common causes are a closed house shutoff valve, a problem with the gas regulator, or a blockage at the burner ports or orifices. If you smell gas, stop and have the supply checked.

• If you smell gas: do not light burners or use electrical switches; shut off the gas supply, ventilate, and contact your gas supplier or a qualified technician.
• If you do not smell gas: you can do basic checks like verifying valves are open and cleaning burner parts.
• Let the range cool completely before removing grates, caps, or panels.

• Confirm another gas appliance in the home works; if not, the issue is likely the home gas supply.
• Verify the shutoff valve behind the range is fully open (handle parallel to the gas line).
• Make sure the range is plugged in; ignition and some safety controls need power.
• Remove burner caps and clean and dry the caps and burner heads so gas can flow and ignite.
• Try a different surface burner to see whether the issue is isolated to one burner.

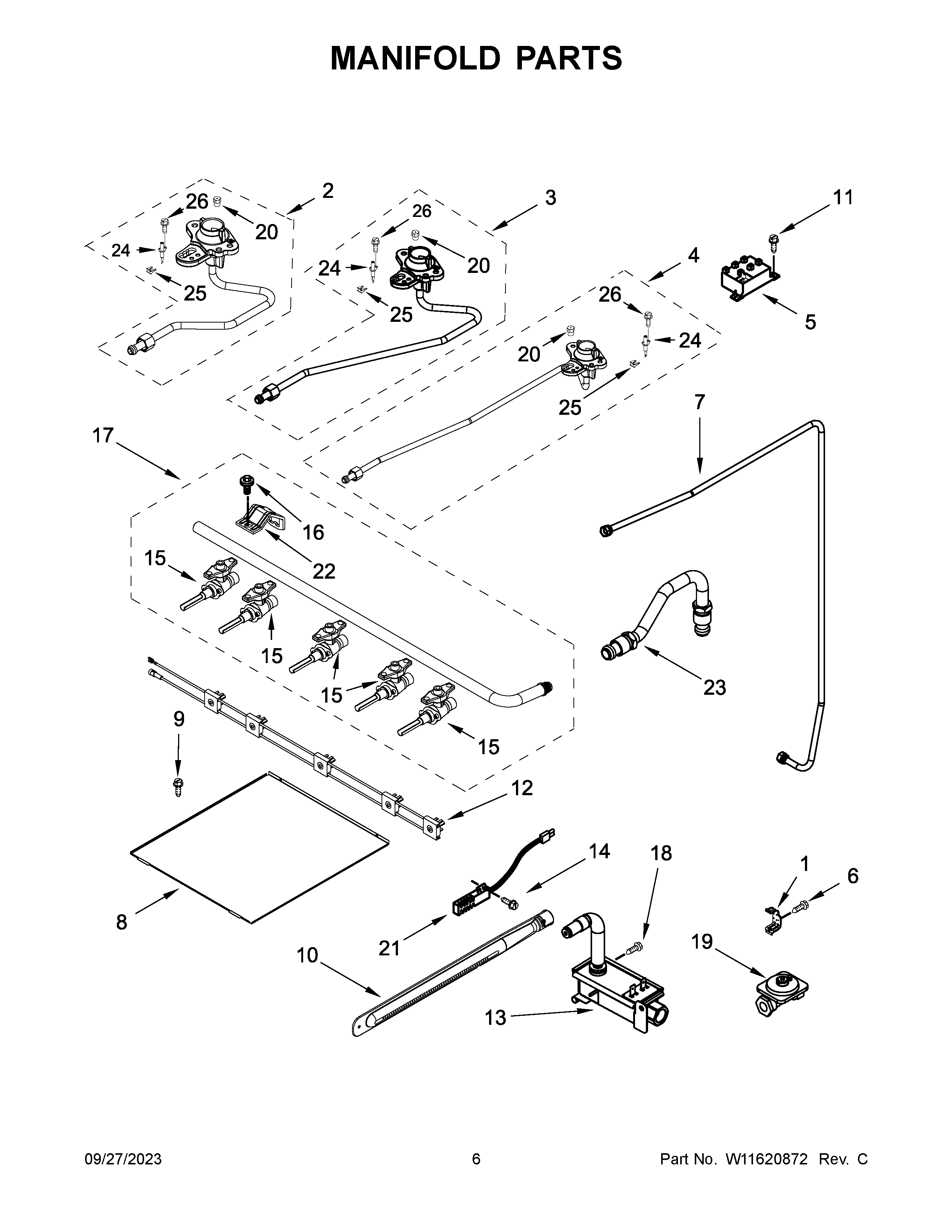

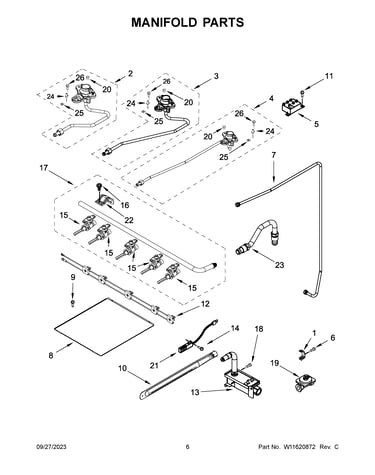

If the supply is on but gas still will not reach the burners or oven, these model-compatible parts are commonly involved:

• Regulator W11590292
• Safety valve W10549293
• Range gas supply tube W11628651

A “no gas” symptom can be a simple shutoff issue or a failure in a gas-control component. Correct diagnosis helps restore safe ignition, proper flame size, and reliable cooking performance.

Last updated: January 2026
