Kenmore
Room Air Conditioner

Model # 25370101011 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 25370101011 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

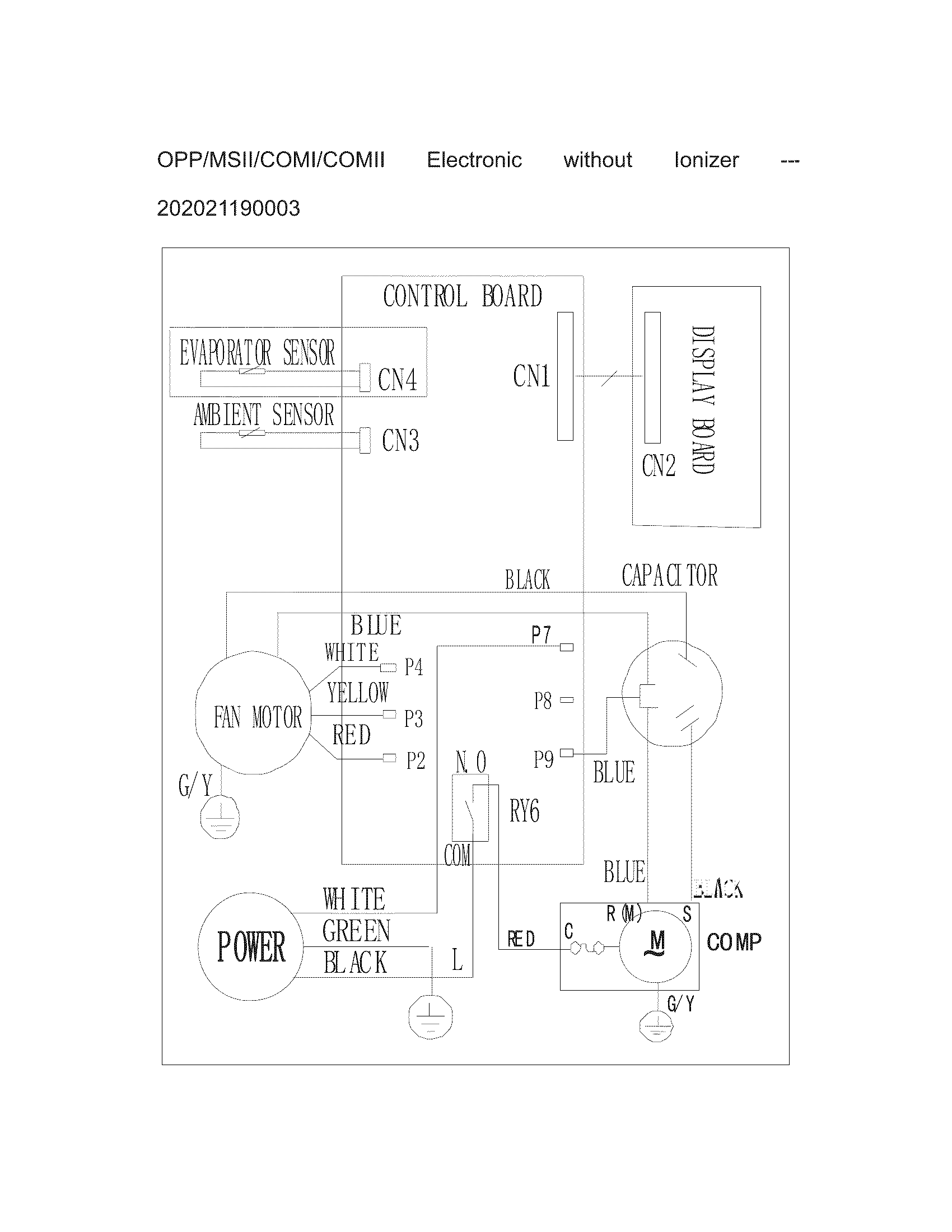

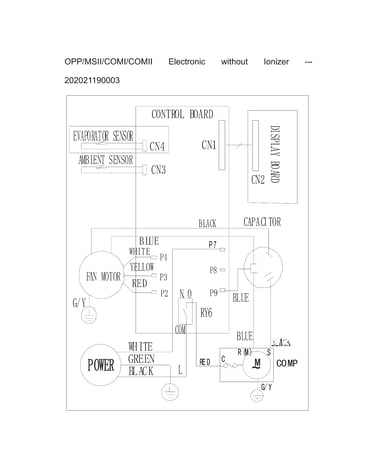

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Room Air Conditioner Remote Control 5304476181
#9

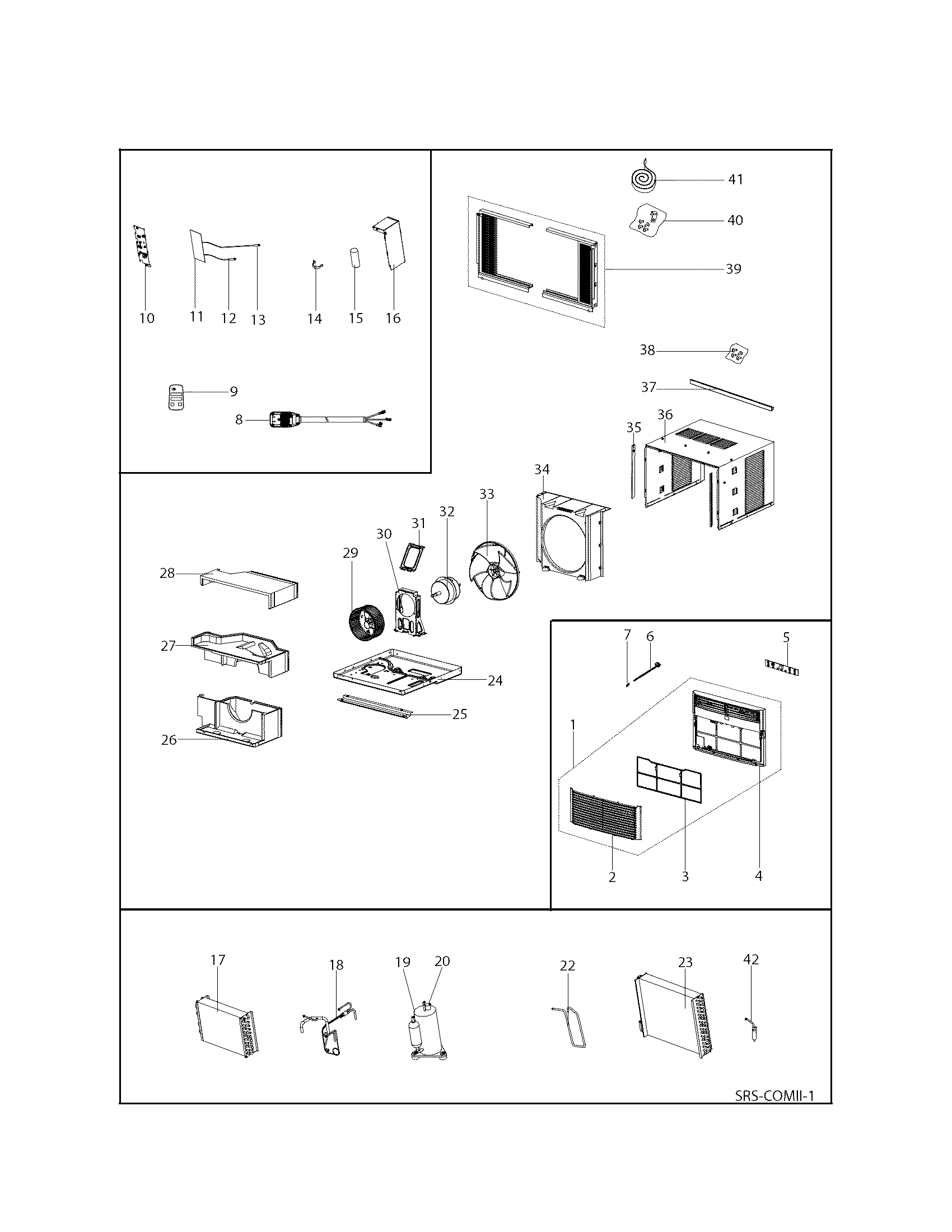

Recommended spare parts diagram

Room air conditioner remote control

Part #5304476181

$100.76
9% OFF Phone Price : $110.76
In Stock
Room Air Conditioner Ambient Thermistor 5304476053
#13

Recommended spare parts diagram

Room air conditioner ambient thermistor

Part #5304476053

This item is not returnable
$23.59
17% OFF Phone Price : $28.59
In Stock
Room Air Conditioner Thermistor 5304471275
#12

Recommended spare parts diagram

Room air conditioner thermistor

Part #5304471275

This item is not returnable
$34.13
13% OFF Phone Price : $39.13
In Stock
Room Air Conditioner Condenser Fan Blade (replaces 201100300031) 5304476059
#33

Recommended spare parts diagram

Room air conditioner condenser fan blade (replaces 201100300031)

Part #5304476059

$79.46
6% OFF Phone Price : $84.46
In Stock
Use And Care Guide 5304476665
#NI

Recommended spare parts diagram

Use and care guide

Part #5304476665

This item is not returnable
In Stock
Tech Data Sh 5304476061
#NI

Recommended spare parts diagram

Tech data sh

Part #5304476061

This item is not returnable
In Stock
Room Air Conditioner Power Cord 5304476180
#8

Recommended spare parts diagram

Room air conditioner power cord

Part #5304476180

$151.59
6% OFF Phone Price : $161.59
In Stock
Use And Care Guide 5304476664
#NI

Recommended spare parts diagram

Use and care guide

Part #5304476664

This item is not returnable
In Stock
Tech Data Sh 5304476068
#NI

Recommended spare parts diagram

Tech data sh

Part #5304476068

This item is not returnable
In Stock
Repair Parts List 5995564126
#NI

Recommended spare parts diagram

Repair parts list

Part #5995564126

This item is not returnable
In Stock
