Model # 315212900 Official Craftsman 14" abrasive cutoff machine

Here are the diagrams and repair parts for Official Craftsman 315212900 14" abrasive cutoff machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |

Guard C357014-BB
#14

Blade guard/wheel/handle diagram

Guard

Part #C357014-BB

The manufacturer no longer makes this part, and there's no substitute part

Foot Cover C2600041-BB
#51

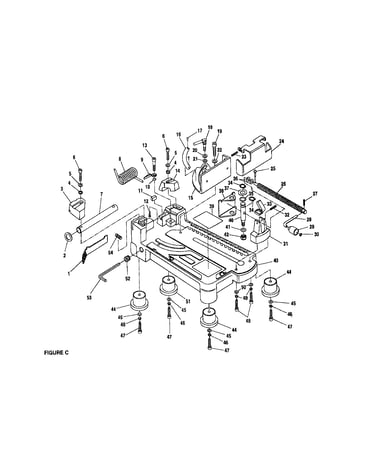

Base and fence diagram

Foot cover

Part #C2600041-BB

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Motor Brush Cap C357023-BB
#8

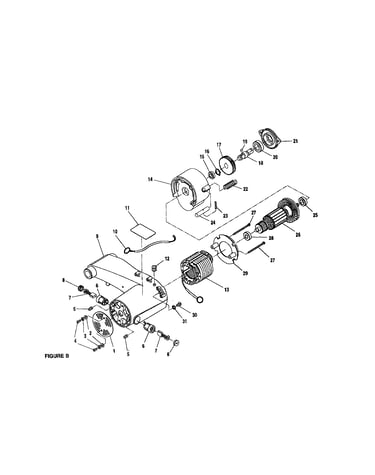

Gearcase/armature/motor housing diagram

Table saw motor brush cap

Part #C357023-BB

The manufacturer no longer makes this part, and there's no substitute part

Handle C2600047-BB
#18

Base and fence diagram

Handle

Part #C2600047-BB

The manufacturer no longer makes this part, and there's no substitute part

Washer (may Be Purchased Locally) C2600049-BB
#21

Base and fence diagram

Washer (may be purchased locally)

Part #C2600049-BB

The manufacturer no longer makes this part, and there's no substitute part

Hex Socket Screw (m10 X 20) (may Be Purchased Locally) C2600036-BB
#19

Base and fence diagram

Hex socket screw (m10 x 20) (may be purchased locally)

Part #C2600036-BB

The manufacturer no longer makes this part, and there's no substitute part

Stop C2600071-BB
#11

Base and fence diagram

Stop

Part #C2600071-BB

The manufacturer no longer makes this part, and there's no substitute part

Wheel Bolt C2600005-BB
#23

Blade guard/wheel/handle diagram

Wheel bolt

Part #C2600005-BB

The manufacturer no longer makes this part, and there's no substitute part

Screw (4) (standard Hardware Item-may Be Purchased Locally) C2600068-BB
#6

Blade guard/wheel/handle diagram

Screw (4) (standard hardware item-may be purchased locally)

Part #C2600068-BB

The manufacturer no longer makes this part, and there's no substitute part

Bumper C357007-BB
#11

Blade guard/wheel/handle diagram

Bumper

Part #C357007-BB

The manufacturer no longer makes this part, and there's no substitute part
