Model # WCE77US0HW00 Official Whirlpool electric counter unit
Here are the diagrams and repair parts for Official Whirlpool WCE77US0HW00 electric counter unit, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forWCE77US0HW00 Cooktops
- #11

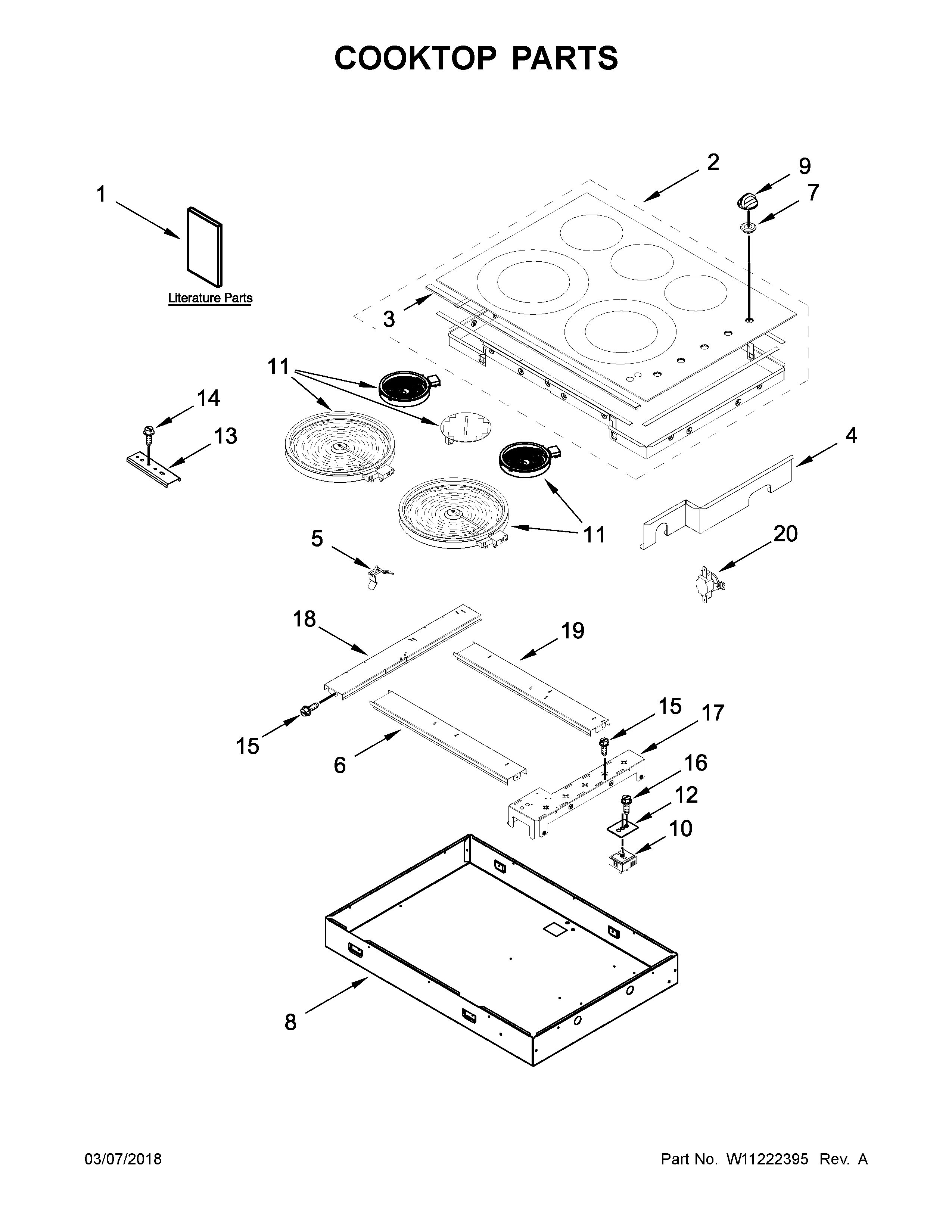

Cooktop parts diagram
Range dual radiant surface elementPart #W10275048
Replaced by #W11517959
?Manufacturer substitutionThis part replaces W10275048. Substitute parts can look different from the original.$70.82 |8% OFF Phone Price : $76.82In Stock - #10
Cooktop parts diagram
Range dual surface element control switchPart #W10437092
Replaced by #W10857622
?Manufacturer substitutionThis part replaces W10437092. Substitute parts can look different from the original.$173.19 |6% OFF Phone Price : $185.19In Stock - #10A
Cooktop parts diagram
Range surface element control switchPart #W10578768
Replaced by #W10911303
?Manufacturer substitutionThis part replaces W10578768. Substitute parts can look different from the original.$72.63 |8% OFF Phone Price : $78.63In Stock - #2
Cooktop parts diagram
Cooktop (black)Part #W11120977
Replaced by #W11223307
?Manufacturer substitutionThis part replaces W11120977. Substitute parts can look different from the original.$278.42 |$12.00 OFF Phone Price : $290.42In Stock - #12
Cooktop parts diagram
Cooktop element control switch sealPart #3183956
This item is not returnable$36.92 |14% OFF Phone Price : $42.92In Stock - #16
Cooktop parts diagram
Screw (black)Part #7101P309-60
Replaced by #WP7101P309-60
?Manufacturer substitutionThis part replaces 7101P309-60. Substitute parts can look different from the original.This item is not returnable$33.48In Stock - #11B
Cooktop parts diagram
Element, warm zone (center rear)Part #W10799048
Replaced by #W11041453
?Manufacturer substitutionThis part replaces W10799048. Substitute parts can look different from the original.$61.79 |9% OFF Phone Price : $67.79In Stock - #7A
Cooktop parts diagram
GrommetPart #W10372006
$11.00In Stock - #19
Cooktop parts diagram
Rail-ckt, hoPart #W11175352
$58.38In Stock - #20
Cooktop parts diagram
ThermostatPart #W10464566
$143.24In Stock
