Model # 38BNQ036300 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 38BNQ036300 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Connection 51308405700
#21

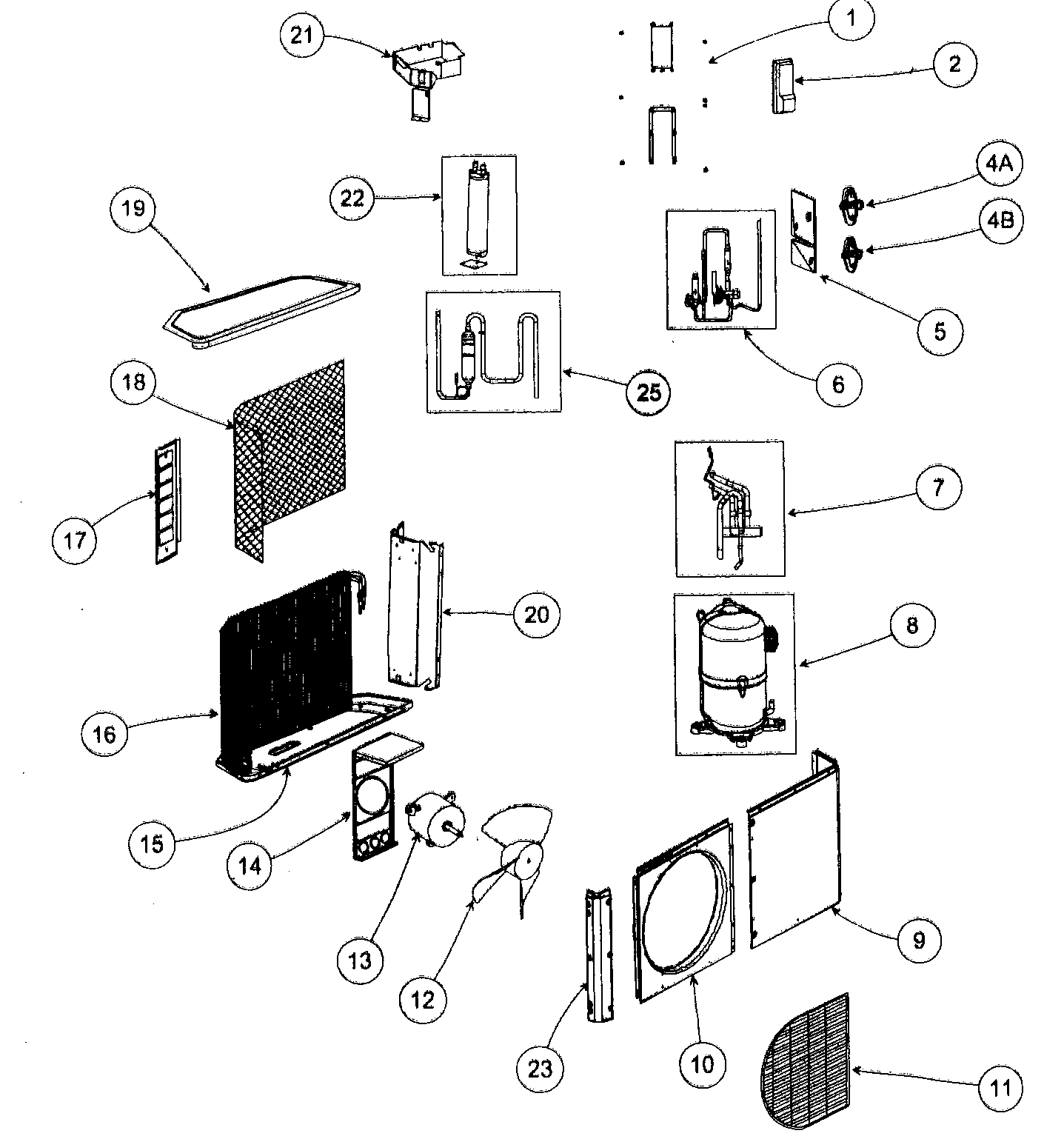

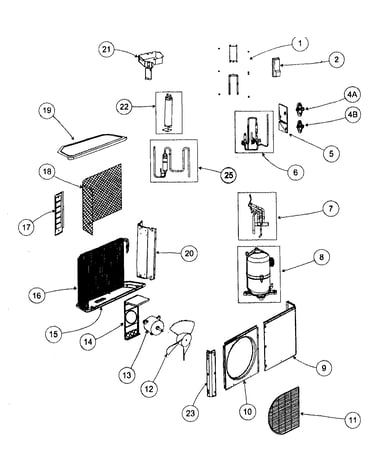

Heat pump diagram

Connection

Part #51308405700

$525.87
In Stock
Capacitor 51301835000
#21B

Heat pump diagram

Capacitor

Part #51301835000

$111.78
In Stock
Piston Assembly 51305892430
#6

Heat pump diagram

Piston assembly

Part #51305892430

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly 51308448250
#1

Heat pump diagram

Cover assembly

Part #51308448250

The manufacturer no longer makes this part, and there's no substitute part

Valve Assembly 51305892740
#4B

Heat pump diagram

Valve assembly

Part #51305892740

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Compressor P032-3322
#8

Heat pump diagram

Central air conditioner compressor

Part #P032-3322

The manufacturer no longer makes this part, and there's no substitute part

Basepan 51304490300
#15

Heat pump diagram

Basepan

Part #51304490300

The manufacturer no longer makes this part, and there's no substitute part

Partition 51308477900
#20

Heat pump diagram

Partition

Part #51308477900

The manufacturer no longer makes this part, and there's no substitute part

Grille,coil 51301270240
#18

Heat pump diagram

Grille,coil

Part #51301270240

The manufacturer no longer makes this part, and there's no substitute part

Spport Mtr 51304402800
#14

Heat pump diagram

Spport mtr

Part #51304402800

The manufacturer no longer makes this part, and there's no substitute part
