DeWalt DW788 TYPE 1 20" scroll saw Parts

Here are the diagrams and repair parts for DeWalt DW788 TYPE 1 20" scroll saw, as well as links to manuals and error code tables, if available.

DeWalt DW788 TYPE 1 20" scroll saw
By Schematic

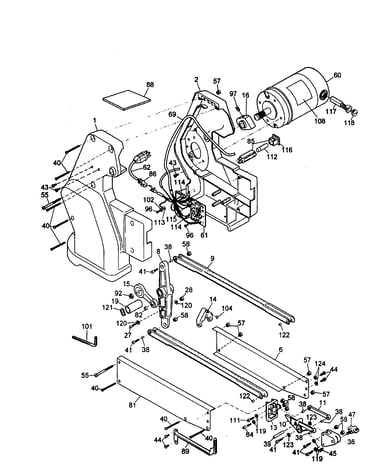

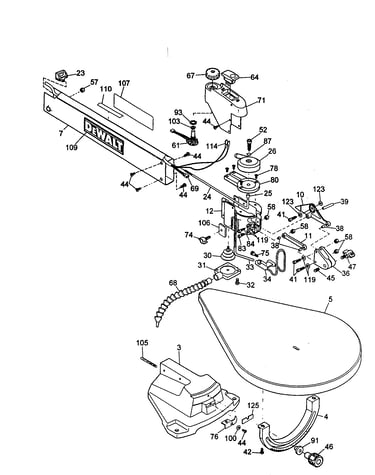

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for DW788 TYPE 1 Power Tools

  • Trunnion for DeWalt DW788 TYPE 1 - Part 286264-00

    #4

    All parts diagram

    Trunnion

    Part #286264-00

    The manufacturer no longer makes this part, and there's no substitute part

  • M6 Bolt for DeWalt DW788 TYPE 1 - Part 286337-00

    #105

    All parts diagram

    M6 Bolt

    Part #286337-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Dewalt Housing for DeWalt DW788 TYPE 1 - Part 286380-00

    #1

    All parts diagram

    Dewalt Housing

    Part #286380-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for DeWalt DW788 TYPE 1 - Part 286300-00

    #44

    All parts diagram

    Screw

    Part #286300-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal-f for DeWalt DW788 TYPE 1 - Part 450213-00

    #114

    All parts diagram

    Terminal-f

    Part #450213-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Warning Label for DeWalt DW788 TYPE 1 - Part 286339-00

    #107

    All parts diagram

    Warning Label

    Part #286339-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Cam for DeWalt DW788 TYPE 1 - Part 286286-00

    #26

    All parts diagram

    Cam

    Part #286286-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Draw Rod for DeWalt DW788 TYPE 1 - Part 286284-00

    #24

    All parts diagram

    Draw Rod

    Part #286284-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for DeWalt DW788 TYPE 1 - Part 286304-00

    #52

    All parts diagram

    Screw

    Part #286304-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for DeWalt DW788 TYPE 1 - Part 286316-00

    #75

    All parts diagram

    Screw

    Part #286316-00

    The manufacturer no longer makes this part, and there's no substitute part
