Tappan
Gas Cooktop

Model # 14-2589-00-01 Official Tappan gas modular cooktop - lt32490210

Here are the diagrams and repair parts for Official Tappan 14-2589-00-01 gas modular cooktop - lt32490210, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

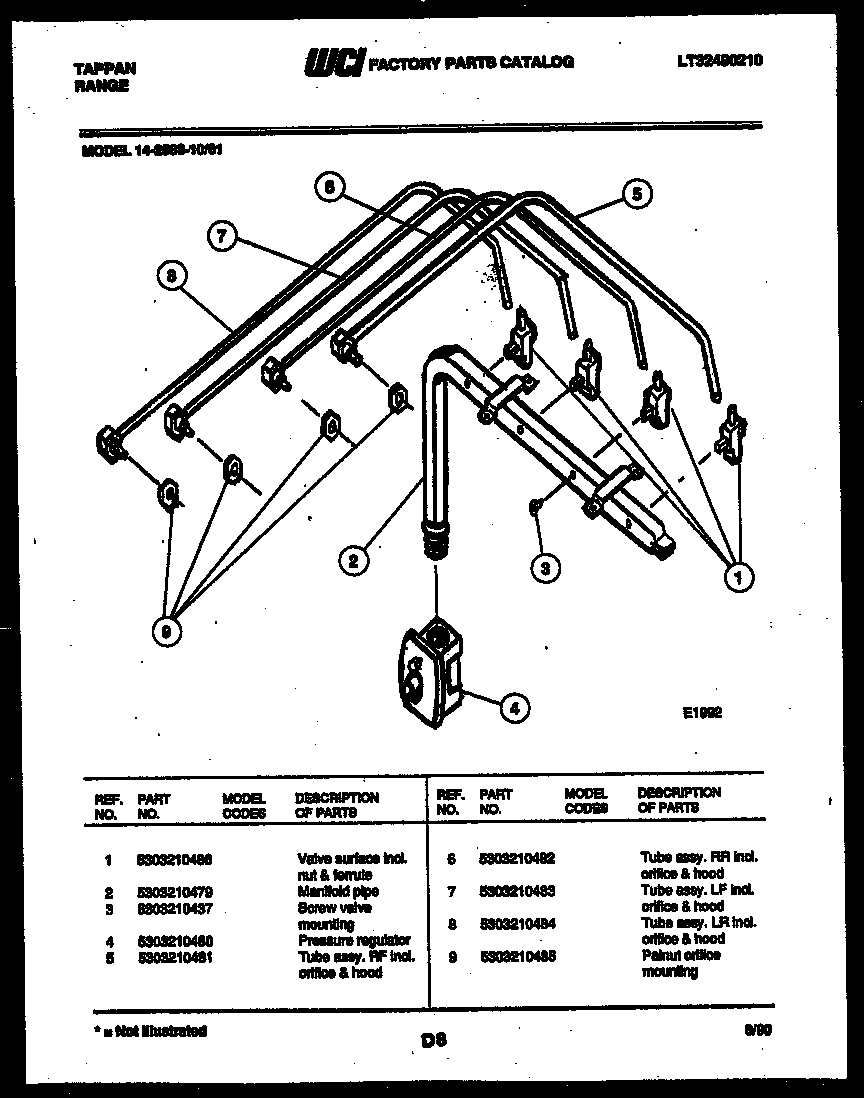

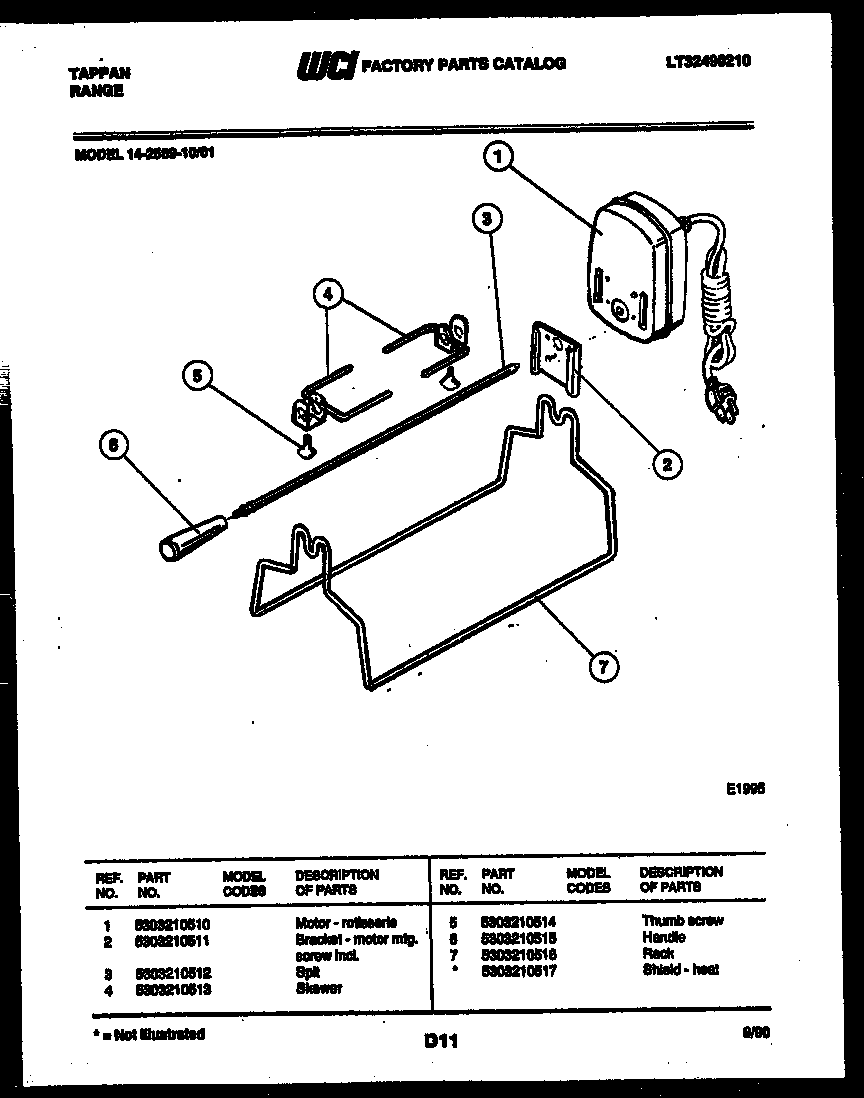

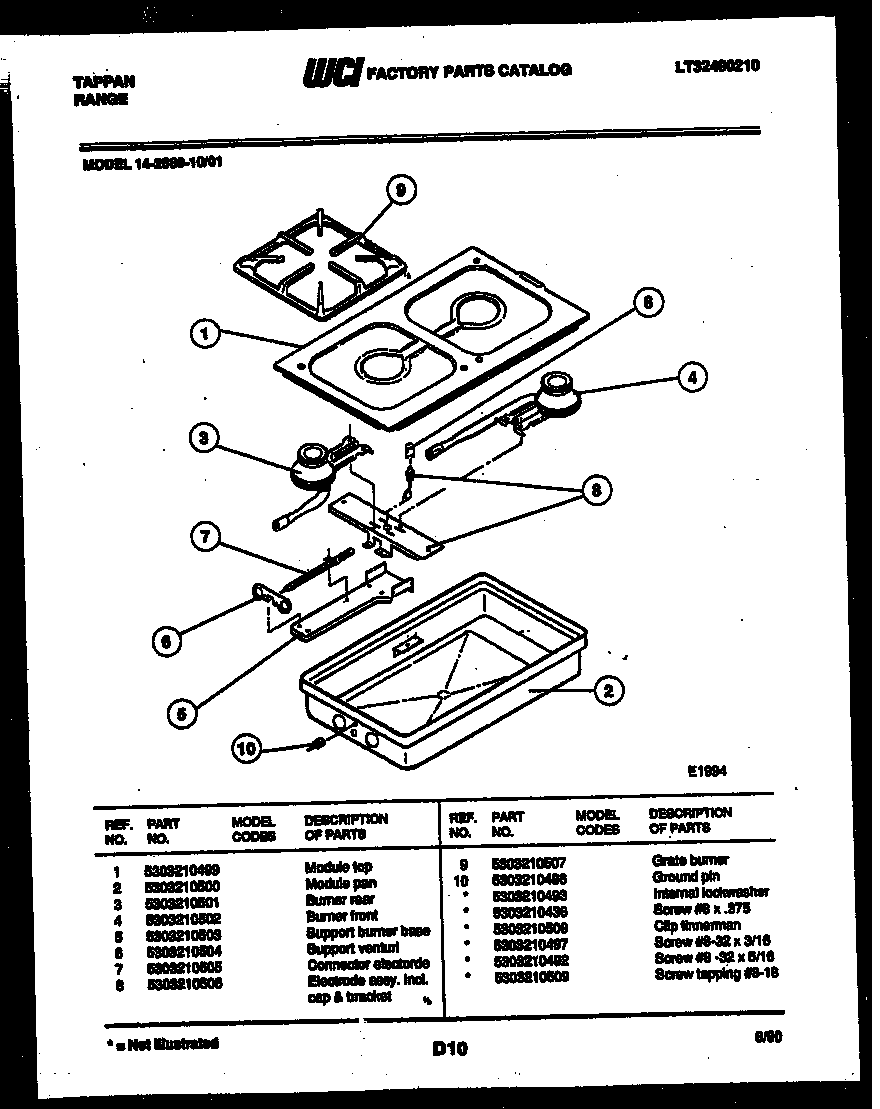

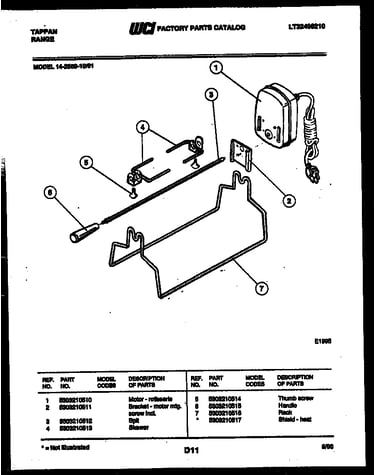

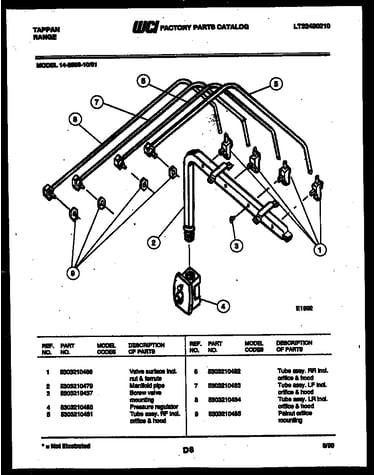

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Shield 5303210423
#6

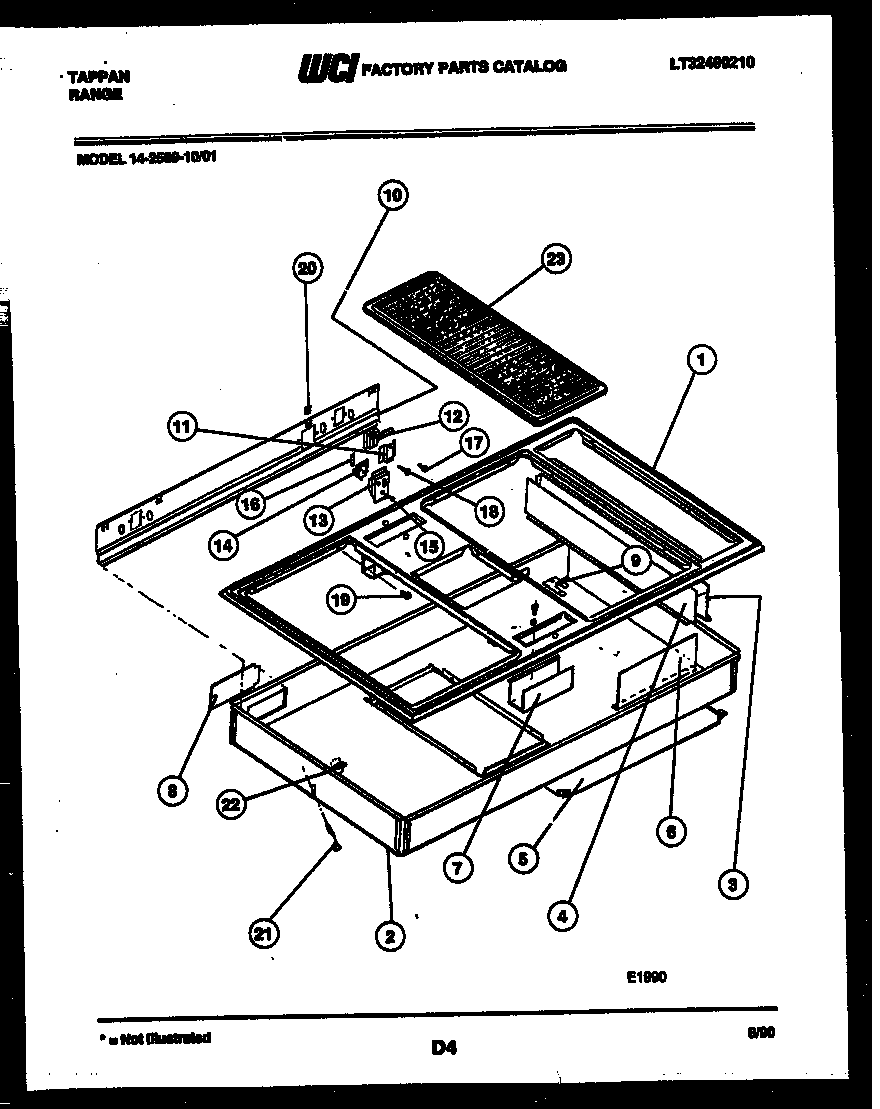

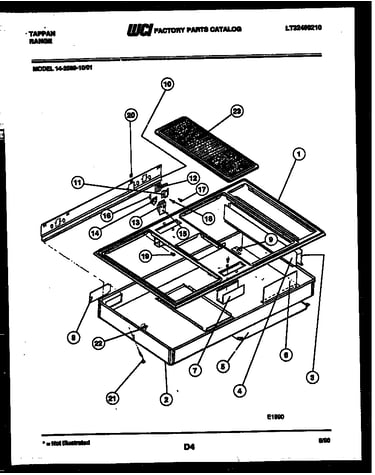

Body parts diagram

Shield

Part #5303210423

This item is not returnable
$7.49
In Stock
Nut 5303210459
#14

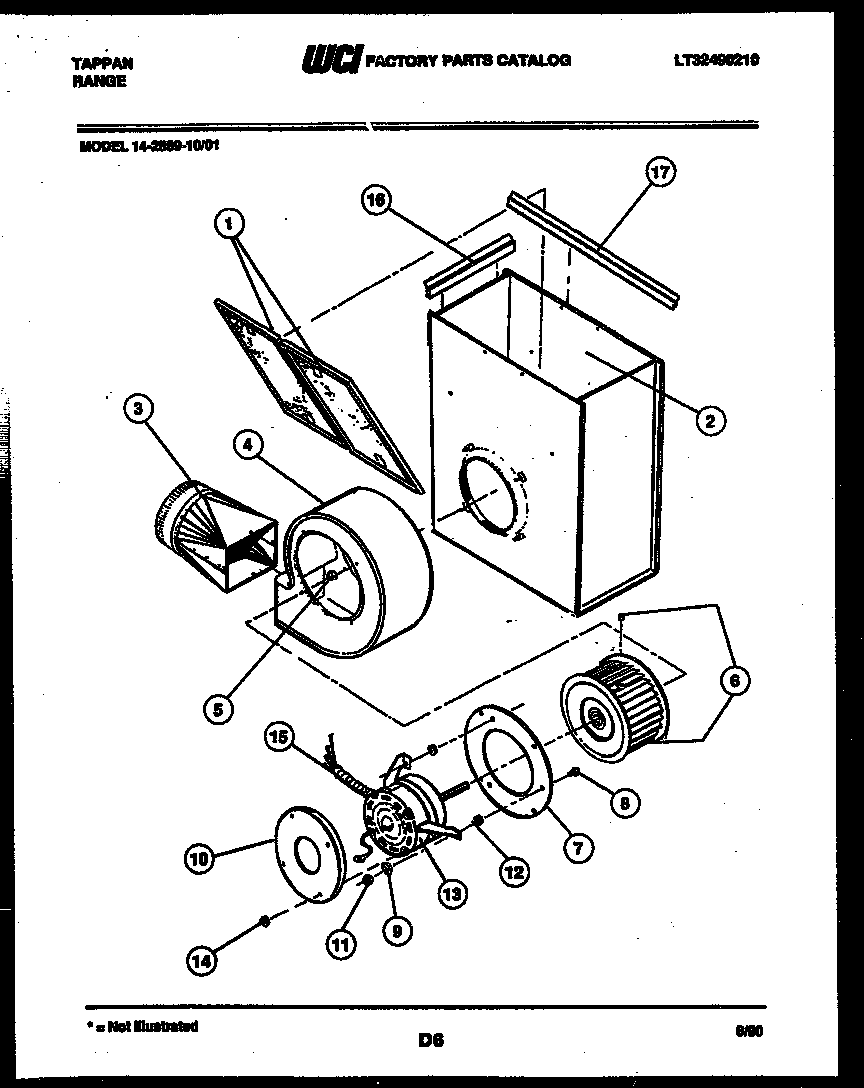

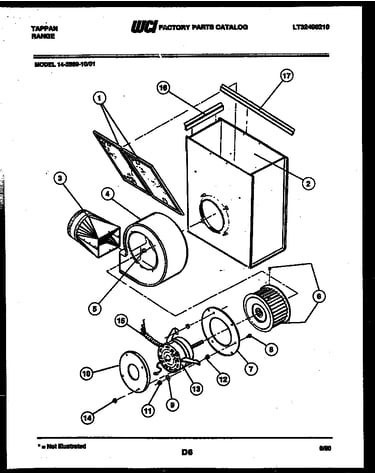

Motor and blower parts diagram

Nut

Part #5303210459

This item is not returnable
$2.16
In Stock
Bracket 5303210428
#10

Body parts diagram

Bracket

Part #5303210428

$20.49
In Stock
Module 5303210405
#14

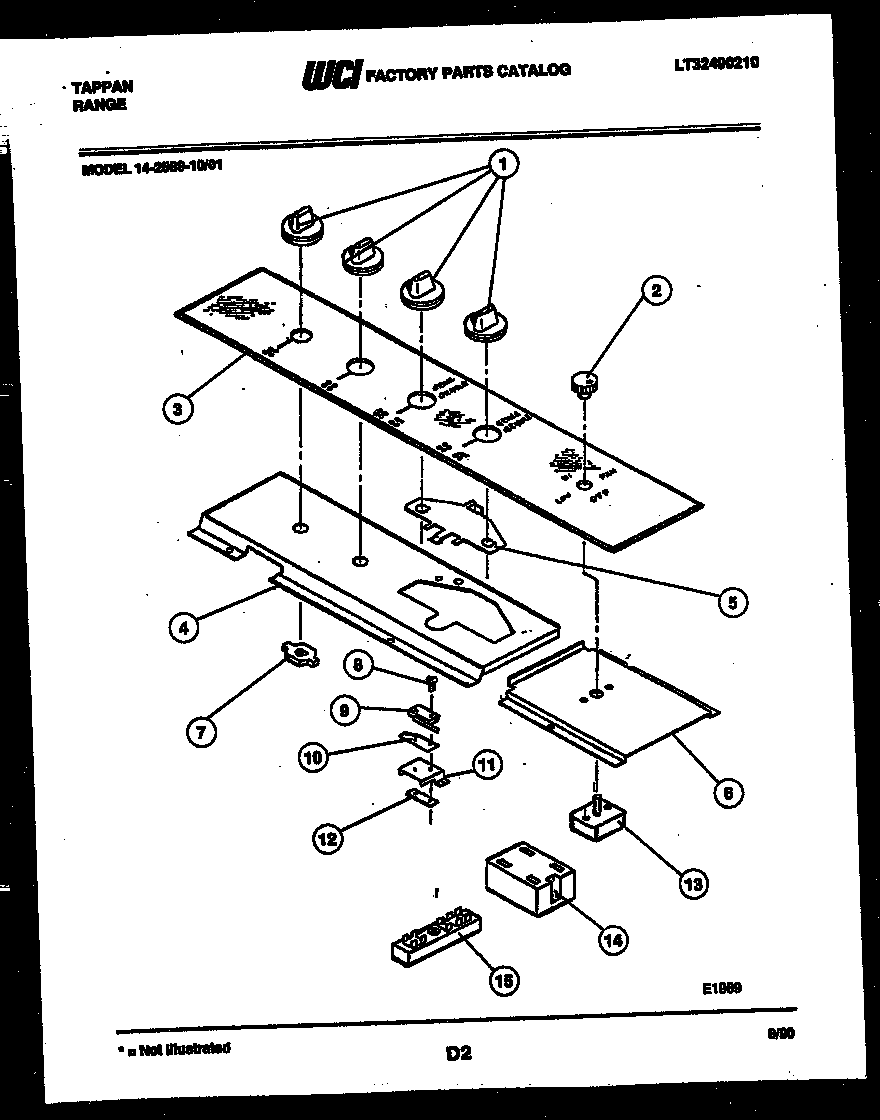

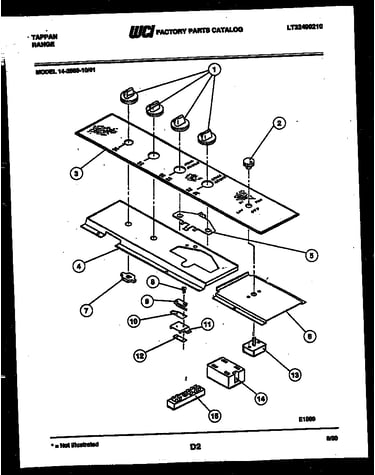

Control parts diagram

Module

Part #5303210405

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 5303210405. Substitute parts can look different from the original.
$109.59 |
8% OFF Phone Price : $119.59
In Stock
Bracket 5303210430
#11

Body parts diagram

Bracket

Part #5303210430

The manufacturer no longer makes this part, and there's no substitute part

Motor 5303210458
#13

Motor and blower parts diagram

Motor

Part #5303210458

The manufacturer no longer makes this part, and there's no substitute part

Electrode 5303210488
#3

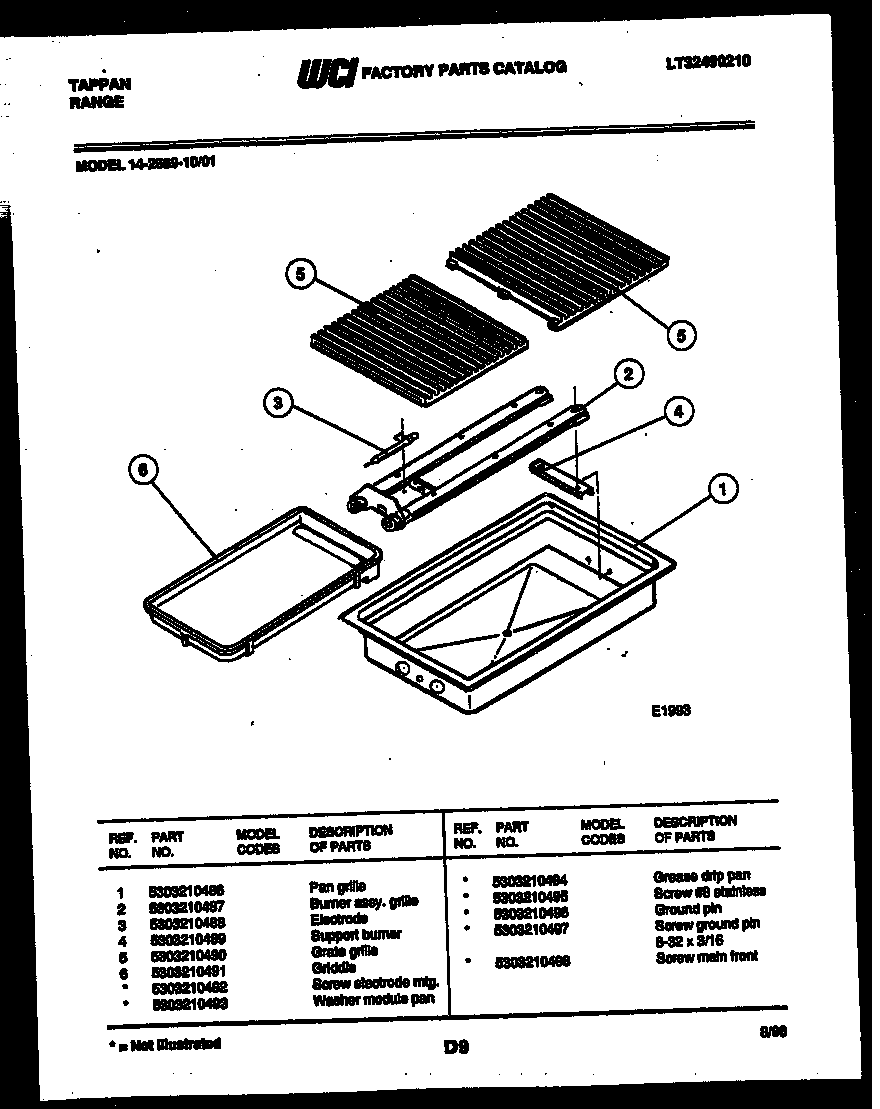

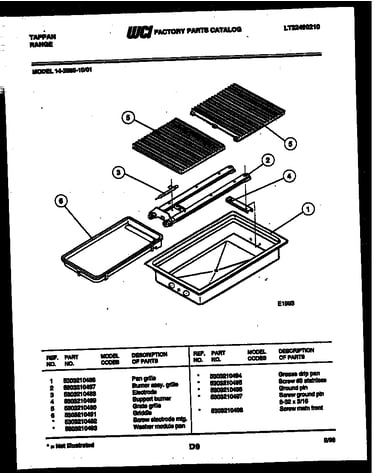

Optional kit diagram

Electrode

Part #5303210488

The manufacturer no longer makes this part, and there's no substitute part

Screw 5303210453
#8

Motor and blower parts diagram

Screw

Part #5303210453

The manufacturer no longer makes this part, and there's no substitute part

Actuator 5303210395
#5

Control parts diagram

Actuator

Part #5303210395

The manufacturer no longer makes this part, and there's no substitute part

Shield 5303210421
#4

Body parts diagram

Shield

Part #5303210421

The manufacturer no longer makes this part, and there's no substitute part
