Model #65UF7700 LG lcd television

Here are the diagrams and repair parts for LG 65UF7700 lcd television, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 15 parts

TFT LCD Module

#200

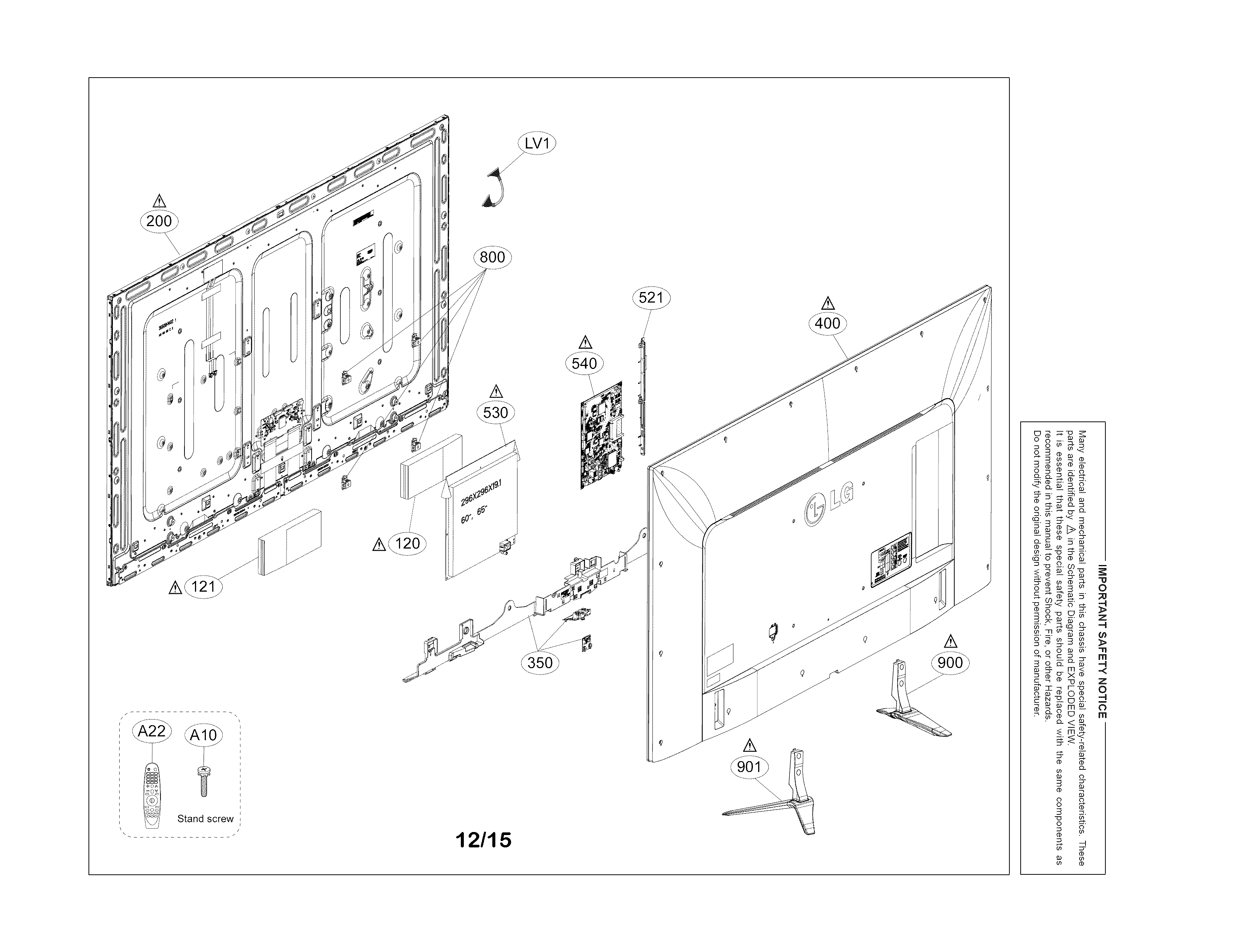

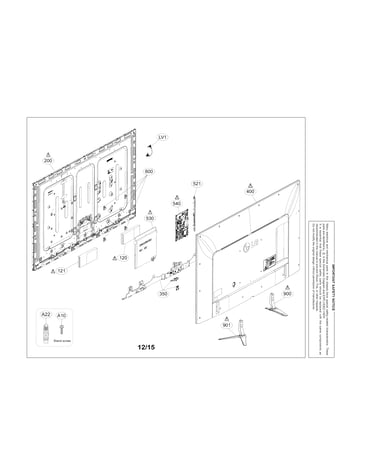

Exploded view part Diagram

Tft lcd module

Part #EAJ63110201
$1734.99

In Stock

Television Speaker Assembly

#120

Exploded view part Diagram

Television speaker assembly

Part #EAB63688303
$22.99

In Stock

Power Supply

#530

Exploded view part Diagram

Power supply

Part #EAY63729201
$140.14

In Stock

Television Speaker Assembly

#121

Exploded view part Diagram

Television speaker assembly

Part #EAB63688304
$22.99

In Stock

Cable

#LV1

Exploded view part Diagram

Cable

Part #EAD63285601
$13.49

In Stock

Television Screw

#A10

Exploded view part Diagram

Television screw

Part #FAB30016124
This item is not returnable
$2.43

In Stock

Television Remote Control

#A22

Exploded view part Diagram

Television remote control

Part #AKB75455602
?
Manufacturer substitution
This part replaces AGF77840201. Substitute parts can look different from the original.
This part replaces AGF77840201
$56.46

In Stock

Base Assembly

#901

Exploded view part Diagram

Base assembly

Part #AAN75329104

The manufacturer no longer makes this part, and there's no substitute part

Supporter

#800

Exploded view part Diagram

Supporter

Part #MJH63133501

The manufacturer no longer makes this part, and there's no substitute part

Chassis Assembly

#540

Exploded view part Diagram

Chassis assembly

Part #EBT63764102

The manufacturer no longer makes this part, and there's no substitute part
