Lawn & Garden Engine

Model # 407777-0120-E1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 407777-0120-E1 engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part

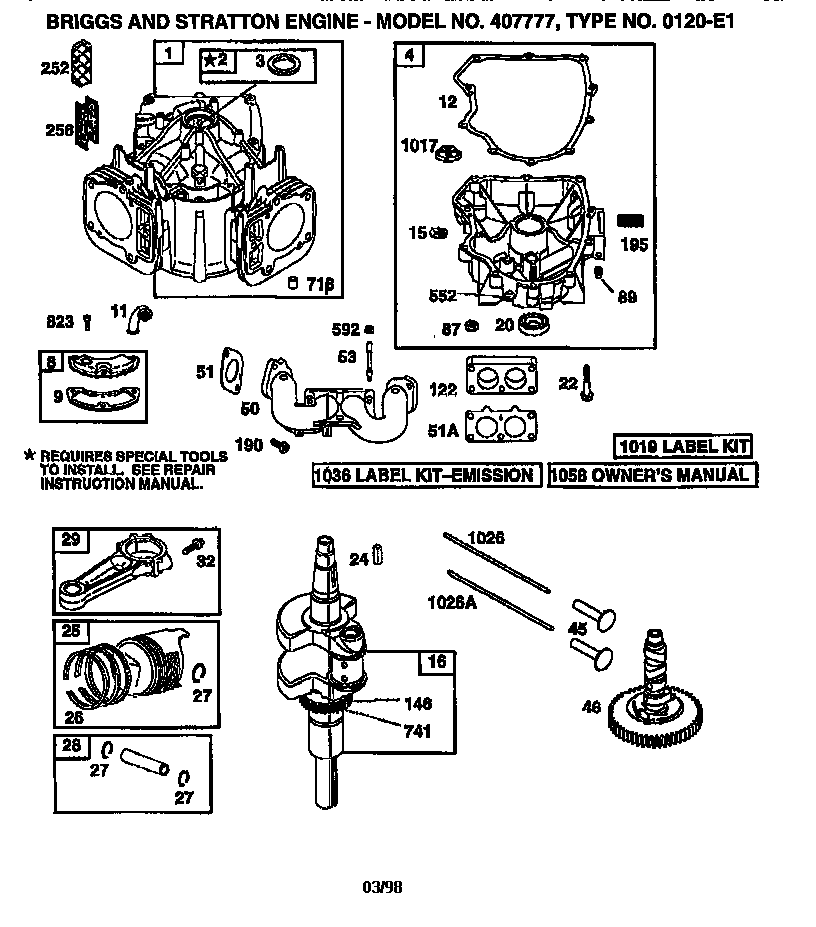

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
407777-0120-E1 Engine

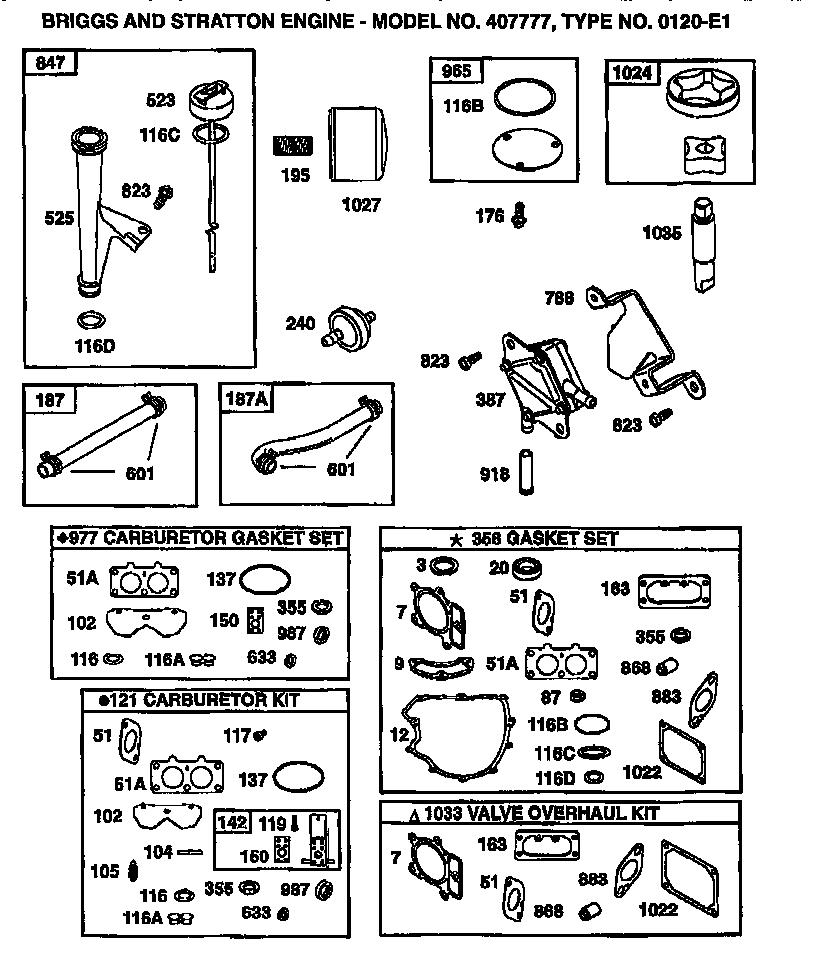

Lawn & Garden Equipment Engine Inline Fuel Filter 691035

#240

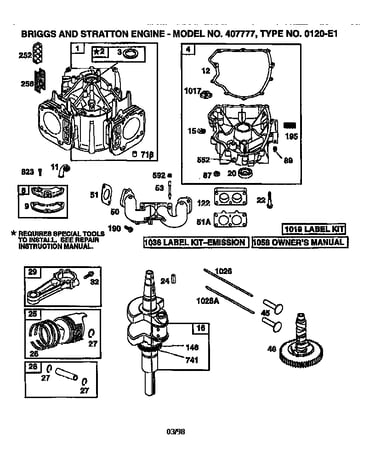

All parts diagram

Lawn & garden equipment engine inline fuel filter

Part #691035

Replaced by #84001895

?
Manufacturer substitution
This part replaces 691035. Substitute parts can look different from the original.
BEST SELLER
$9.57
9% OFF Phone Price : $10.57
In Stock

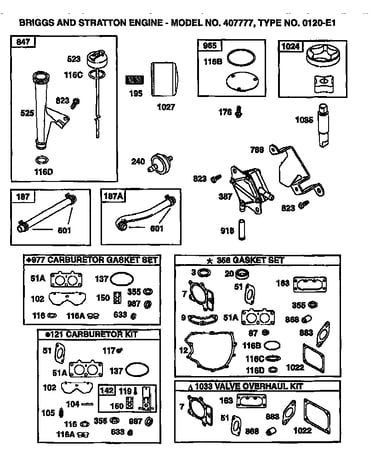

Oil Filter 691041

#1027

All parts diagram

Oil filter

Part #691041

Replaced by #492932S

?
Manufacturer substitution
This part replaces 691041. Substitute parts can look different from the original.
BEST SELLER
$14.82
12% OFF Phone Price : $16.82
In Stock
Air Filter 691007

#445

All parts diagram

Air filter

Part #691007

Replaced by #499486S

?
Manufacturer substitution
This part replaces 691007. Substitute parts can look different from the original.
BEST SELLER
$19.55
9% OFF Phone Price : $21.55
In Stock
Fuel Pump 691034

#387

All parts diagram

Fuel pump

Part #691034

Replaced by #597338

?
Manufacturer substitution
This part replaces 691034. Substitute parts can look different from the original.
BEST SELLER
$30.23
17% OFF Phone Price : $36.23
In Stock

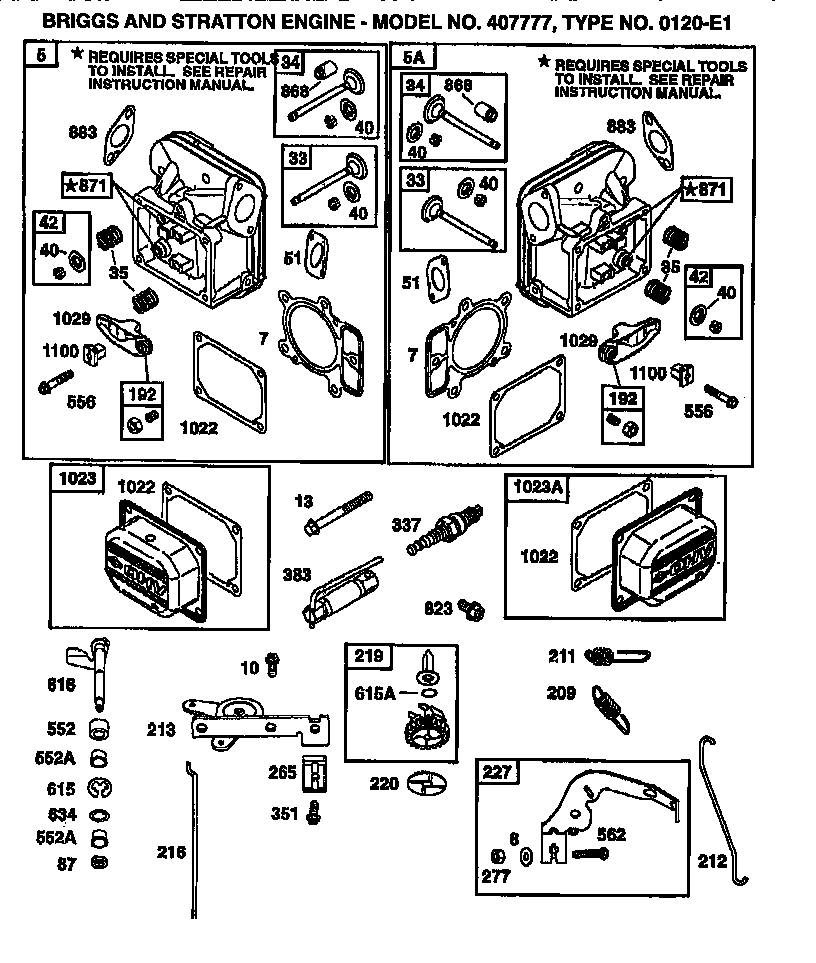

Lawn & Garden Equipment Engine Spark Plug (replaces Bs-691043) 691043

#337

All parts diagram

Lawn & garden equipment engine spark plug (replaces bs-691043)

Part #691043

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$7.27
12% OFF Phone Price : $8.27
In Stock

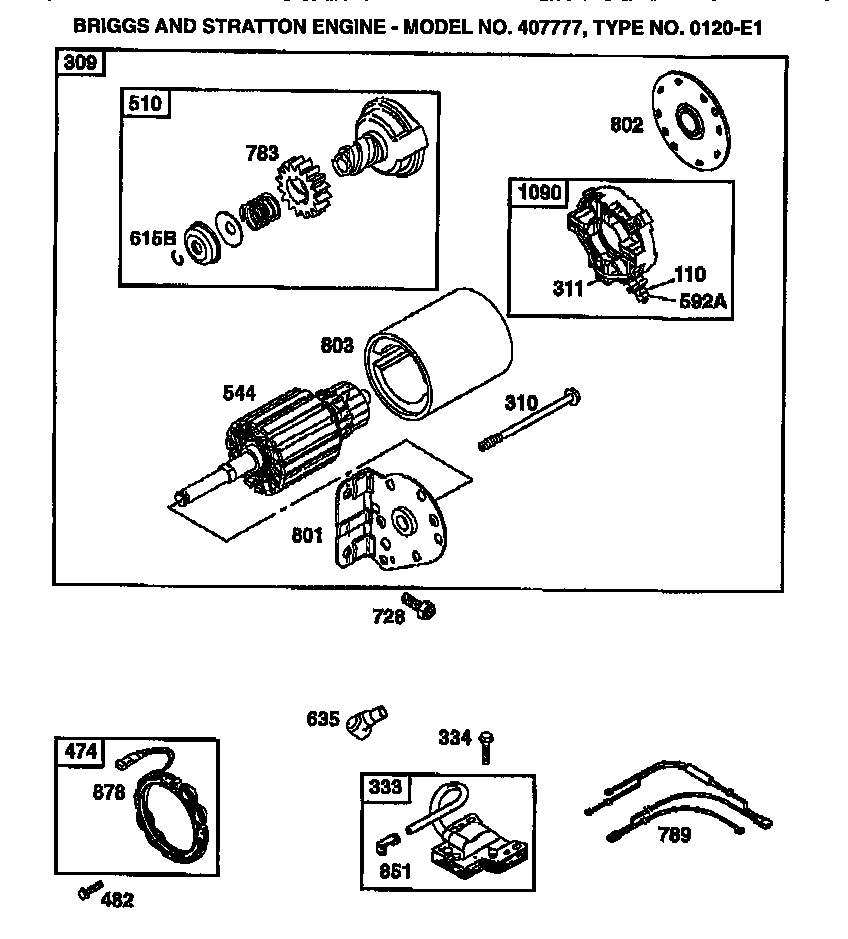

Starter Gear 691280

#783

All parts diagram

Starter gear

Part #691280

Replaced by #695708

?
Manufacturer substitution
This part replaces 691280. Substitute parts can look different from the original.
BEST SELLER
$7.69
12% OFF Phone Price : $8.69
In Stock

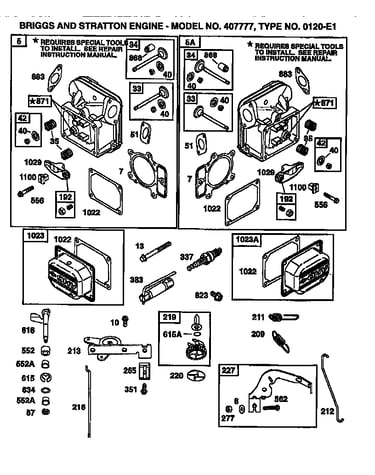

Lawn & Garden Equipment Engine Rocker Arm Cover Gasket (replaces 273486) 690971

#1022

All parts diagram

Lawn & garden equipment engine rocker arm cover gasket (replaces 273486)

Part #690971

$9.02
10% OFF Phone Price : $10.02
In Stock

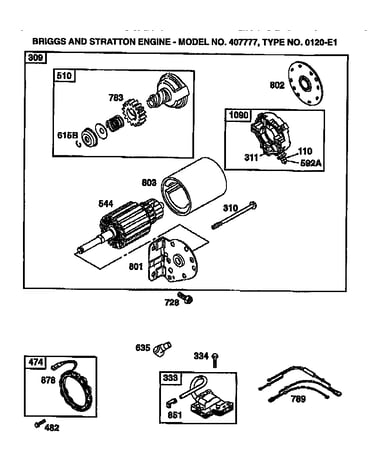

Alternator 691063

#474

All parts diagram

Alternator

Part #691063

Replaced by #592831

?
Manufacturer substitution
This part replaces 691063. Substitute parts can look different from the original.
$98.74
11% OFF Phone Price : $110.74
In Stock

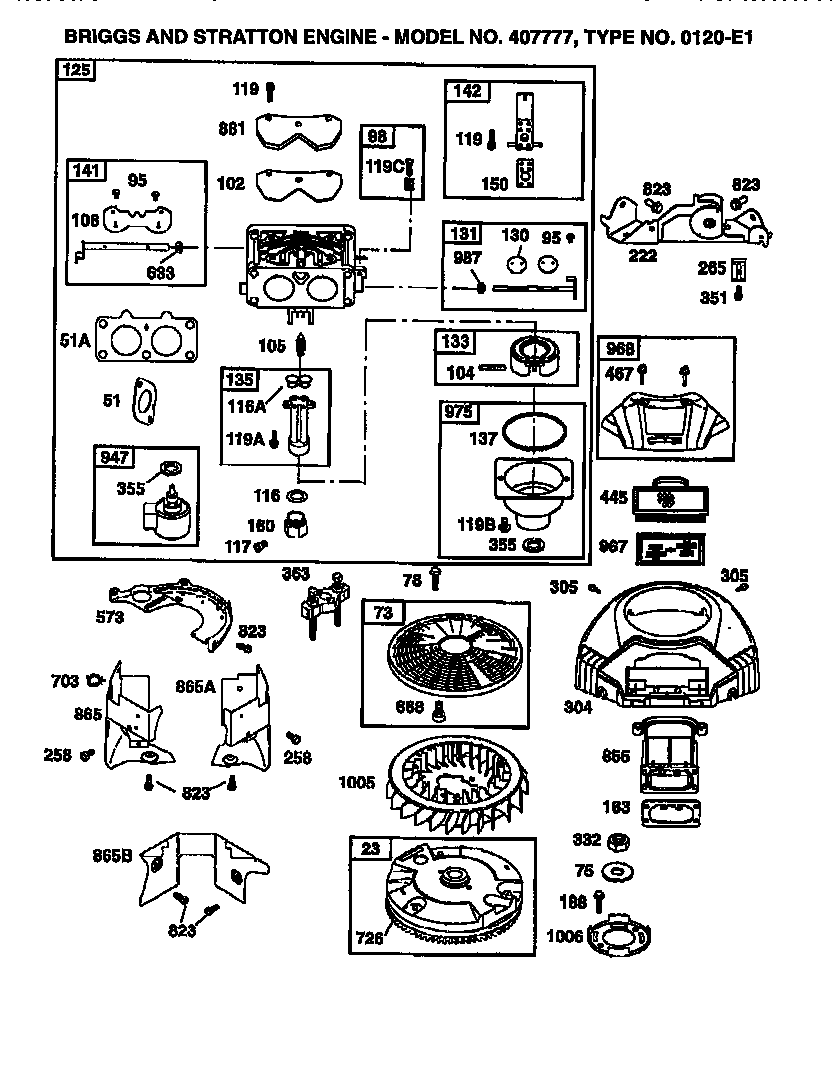

Carburetor 499804

#125

All parts diagram

Carburetor

Part #499804

Replaced by #791230

?
Manufacturer substitution
This part replaces 499804. Substitute parts can look different from the original.
$176.96
6% OFF Phone Price : $188.96
In Stock
Solenoid 499809

#947

All parts diagram

Solenoid

Part #499809

Replaced by #791230

?
Manufacturer substitution
This part replaces 499809. Substitute parts can look different from the original.
$176.96
6% OFF Phone Price : $188.96
In Stock
