American Water Heaters FG1F4040S3PV water heater Parts

For an American FG1F4040S3PV gas water heater, repairing is cheaper when the problem is a serviceable part (pilot/igniter, drain valve, T&P valve, gasket). Replacing the whole heater makes more sense when the tank is leaking or the unit has been submerged in water.

We use these rules of thumb for most gas water heaters:

• Repair when the tank is sound and the issue is ignition, a valve, or a seal.
• Replace when the tank leaks, the heater is very old, or the heater has had flood/submersion exposure.
• Replace when repeated breakdowns are stacking up and you are replacing multiple major components.

If your FG1F4040S3PV is not heating reliably, these parts are commonly involved:

• Water heater pilot and igniter assembly 100093809 (ignition and pilot flame issues)
• Drain valve 100109106 (leaks at the drain outlet, hard-to-drain tank)
• T&p valve 100108279 (relief valve dripping or not operating correctly)
• Water heater manifold door gasket 100112699 (air leaks around the burner/manifold door)

Typical outcomes look like this:

A water heater is a pressurized, fuel-burning appliance. Choosing repair when the tank is compromised can lead to ongoing leaks and unsafe operation; choosing replacement when only a small part failed can waste money. Use the safety and service guidance in the owner's manual to match the symptom to the right fix.

• Confirm the source of the problem: tank leak vs. fitting/valve leak vs. ignition failure.
• If the heater was submerged, replace the unit (do not attempt to restart it).
• If the tank is sound, start with the most likely service parts listed above.
• If you are ordering parts, use the parts list for FG1F4040S3PV or search by model at Sears PartsDirect.

Last updated: February 2026

Installing a 40-gallon gas water heater like the American FG1F4040S3PV typically runs about $900 to $3,000+ total (heater, labor, and common materials). The biggest cost swings come from venting changes, gas line work, permits, and any code-required safety upgrades; check the FG1F4040S3PV owner's manual for installation requirements that can affect labor.

These items most often change the final installed price:

• Venting and combustion air work (rerouting the vent, adding elbows, correcting draft)
• Gas supply piping changes (pipe sizing, shutoff valve placement, sediment trap)
• Water piping changes (new shutoff, dielectric fittings, flex connectors)
• Permit and inspection fees (varies by city and state)
• Location and access (tight closet, attic, crawlspace, stairs)
• Add-ons that prevent damage or nuisance discharge (drain pan, expansion tank)

Gas water heaters require safe combustion air and venting, plus correctly sized gas supply piping. Your FG1F4040S3PV is a Category I, non-direct vent model, so the vent run and air supply details matter and can add time and materials.

Some upgrades are commonly required during replacement:

• Thermal expansion control in closed plumbing systems (often an expansion tank)
• A properly piped temperature and pressure relief valve discharge line
• A drain pan when leakage could damage surrounding areas
• Updated gas shutoff and sediment trap configuration

If you’re also replacing safety parts during the install, common items include the t&p valve 100108279 and the drain valve 100109106.

A low bid can turn expensive if venting, combustion air, or gas piping is not set up correctly. Paying for a compliant installation helps prevent nuisance shutdowns, poor draft, and premature component wear.

Last updated: February 2026

Most tank-style gas water heaters last 8 to 12 years. With consistent maintenance, many reach 12 to 15 years. For your American FG1F4040S3PV, water quality and anode-rod condition are two of the biggest factors that determine whether the tank makes it to the high end of that range.

A gas water heater’s tank life is mainly limited by internal corrosion and sediment buildup.

• Water quality: hard water and aggressive (corrosive) water shorten tank life
• Water softeners: softened water can be more corrosive to the tank over time
• Maintenance: periodic flushing and anode-rod inspection slow corrosion
• Temperature setting: higher temps increase stress and scale formation
• Installation and venting: poor combustion air or venting can cause performance issues

Your FG1F4040S3PV owner’s manual calls out anode-rod inspection as a key maintenance item. A practical schedule:

• Inspect the anode rod every 3 years
• Replace the anode rod if it is more than 50% depleted
• Drain a few gallons before anode service to reduce mess and pressure
• Keep the burner area clean and ensure proper combustion air

If you need the correct replacement, match by model and use the exact part listing, such as the water heater anode rod 100109594.

Some symptoms point to normal wear; others point to a tank that is close to failing.

Once a tank starts leaking, it typically progresses quickly. Staying ahead of corrosion (especially with anode-rod checks) helps you avoid sudden water damage and unplanned replacement.

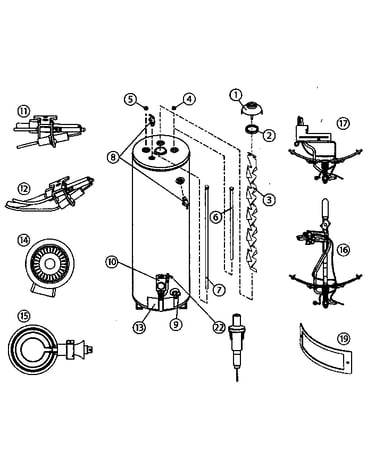

For parts and diagrams specific to FG1F4040S3PV, order from the parts list for this model or search by model on Sears PartsDirect.

Last updated: February 2026

The most common gas water heater problem is ignition failure, meaning the pilot will not light or will not stay lit. On American model FG1F4040S3PV, this often points to the pilot/igniter components, gas control settings, or airflow and safety shutdown conditions described in the owner's manual.

• No hot water and the burner never lights
• Pilot flame will not light, or lights but goes out
• Repeated clicking from the igniter with no ignition
• Sooty burner area or unusual combustion odors
• Hot water temperature swings after short, frequent draws (stacking)

• If you smell gas: do not try to light the pilot; ventilate the area and follow the safety instructions in the owner's manual.
• If the heater has been under water or flooded, the manual calls for replacement of the entire water heater.
• For LP (propane) setups, smell near the floor before lighting because LP gas can settle low.
• Confirm the temperature dial is not set to the lowest setting if you are troubleshooting “no hot water.”
• If overheating occurs or gas will not shut off, turn off the manual gas control valve and use a qualified technician.

If your symptoms match “pilot will not light” or “pilot will not stay lit,” these are the most relevant parts listed for FG1F4040S3PV:

Ignition issues stop hot water completely, and repeated relighting attempts can create unsafe conditions if there is a gas leak or poor combustion airflow. Following the lighting and shutdown steps in the manual protects your home and helps you pinpoint whether you need a pilot/igniter part or a deeper gas control issue.

To order replacement parts for FG1F4040S3PV, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026
