Model # 1068771080 Official Kenmore window air conditioner

Here are the diagrams and repair parts for Official Kenmore 1068771080 window air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

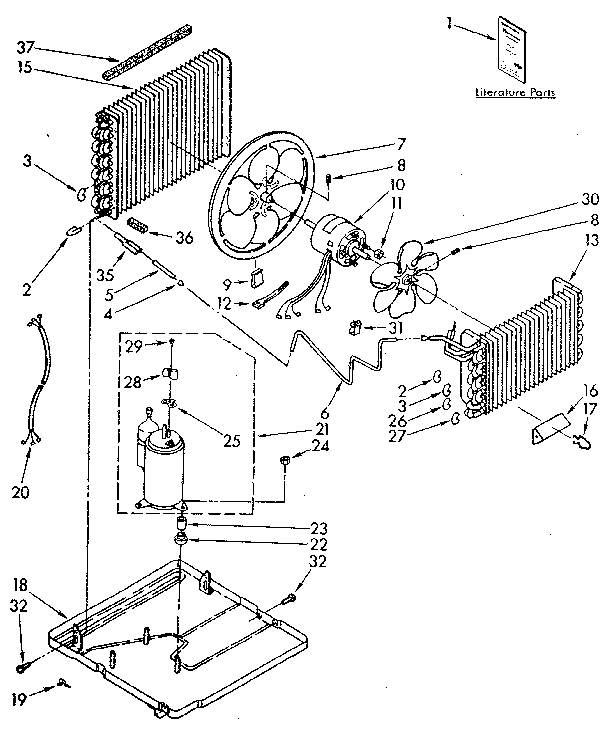

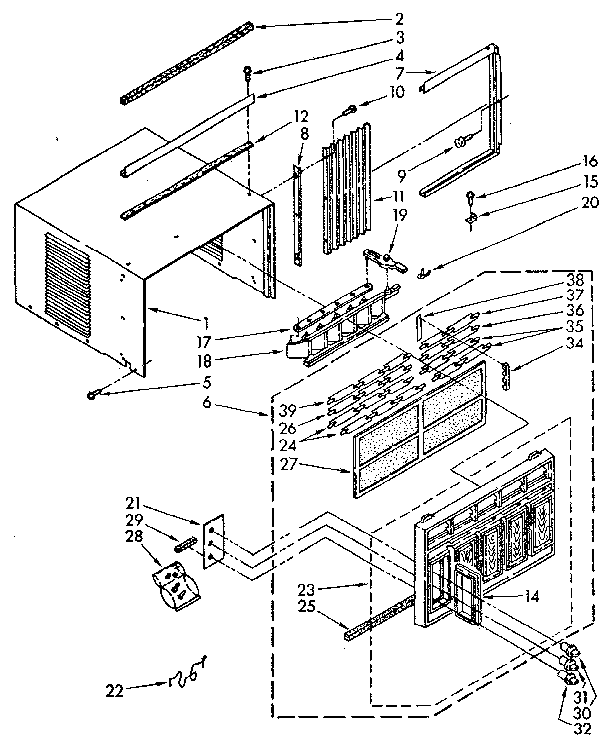

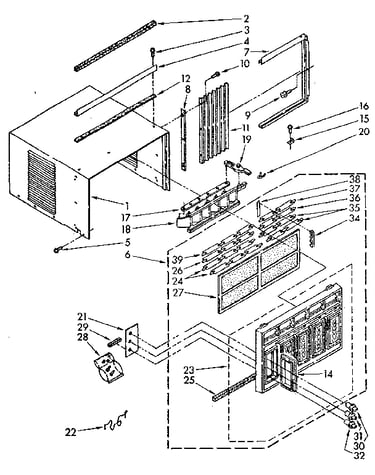

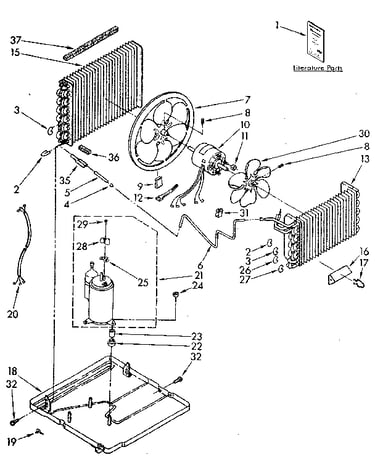

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |

Screw 487910
#27

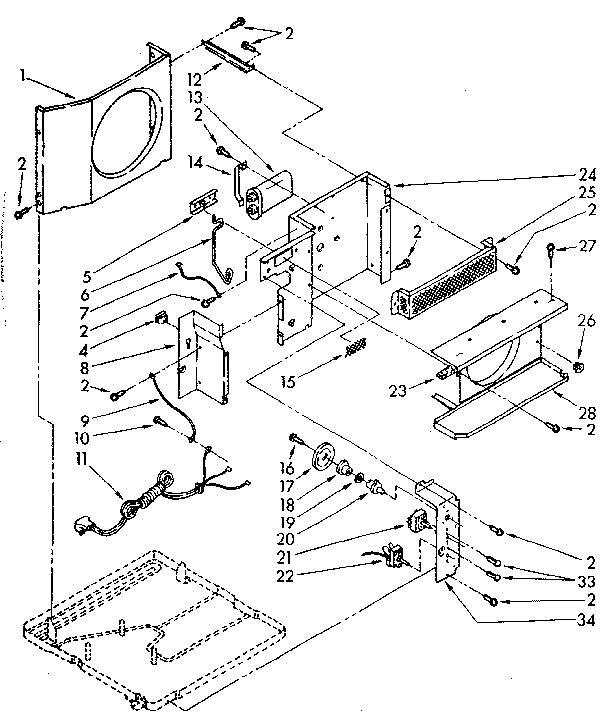

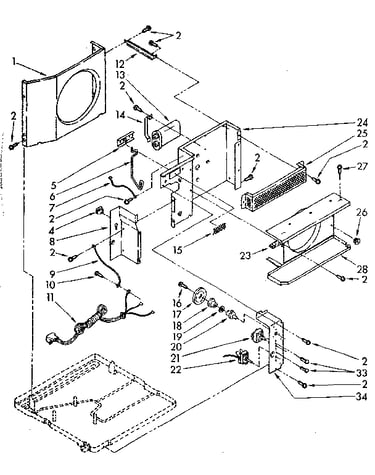

Air flow and control parts diagram

Screw

Part #487910

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487910. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Cement 279368
#10

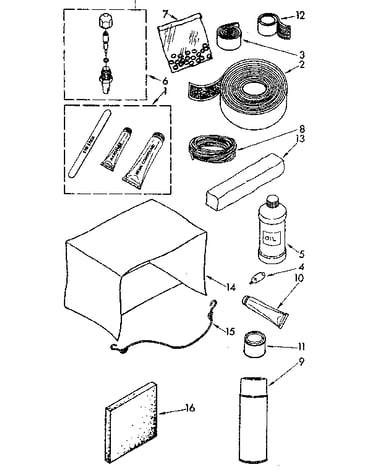

Optional parts diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
$42.72
36% OFF MSRP : $67.00
In Stock
Valve 876764
#6A

Optional parts diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
$22.39
52% OFF MSRP : $47.00
In Stock
Valve Kit 978027
#6D

Optional parts diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69
11% OFF Phone Price : $43.69
In Stock
Room Air Conditioner Outdoor Cover 484184
#14

Optional parts diagram

Room air conditioner outdoor cover

Part #484184

$54.49
8% OFF Phone Price : $59.49
In Stock
Sealer 212643
#12

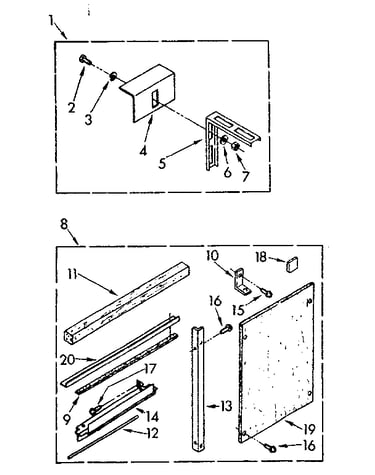

Accessory kit parts diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09
9% OFF Phone Price : $55.09
In Stock
Valve Kit 978025
#6B

Optional parts diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$18.97
64% OFF MSRP : $53.00
In Stock
Screw 489130
#16

Air flow and control parts diagram

Screw

Part #489130

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Ground Wire 856094
#9

Air flow and control parts diagram

Ground wire

Part #856094

Replaced by #857078

?
Manufacturer substitution
This part replaces 856094. Substitute parts can look different from the original.
$10.49
16% OFF Phone Price : $12.49
In Stock
