Amana
Chest Freezer

Model # AFC1005BW Official Amana chest freezer

Here are the diagrams and repair parts for Official Amana AFC1005BW chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

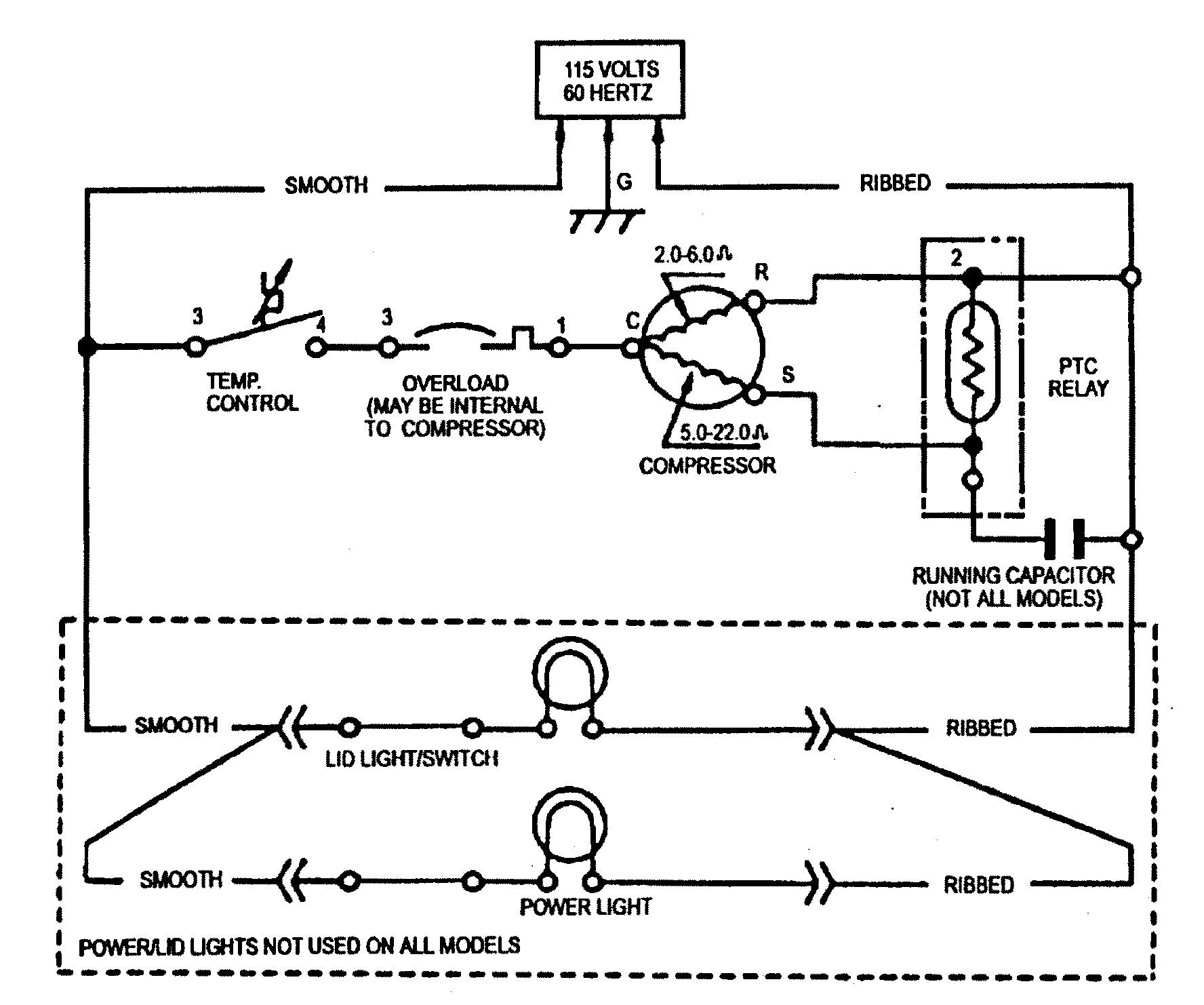

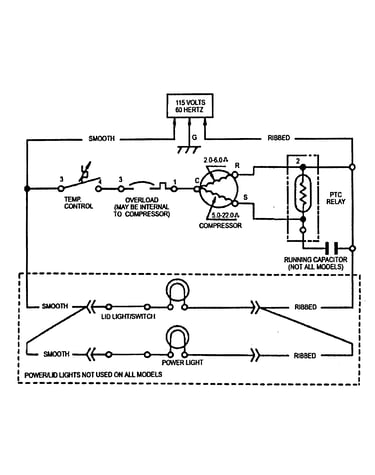

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Wire Basket 09100065
#18

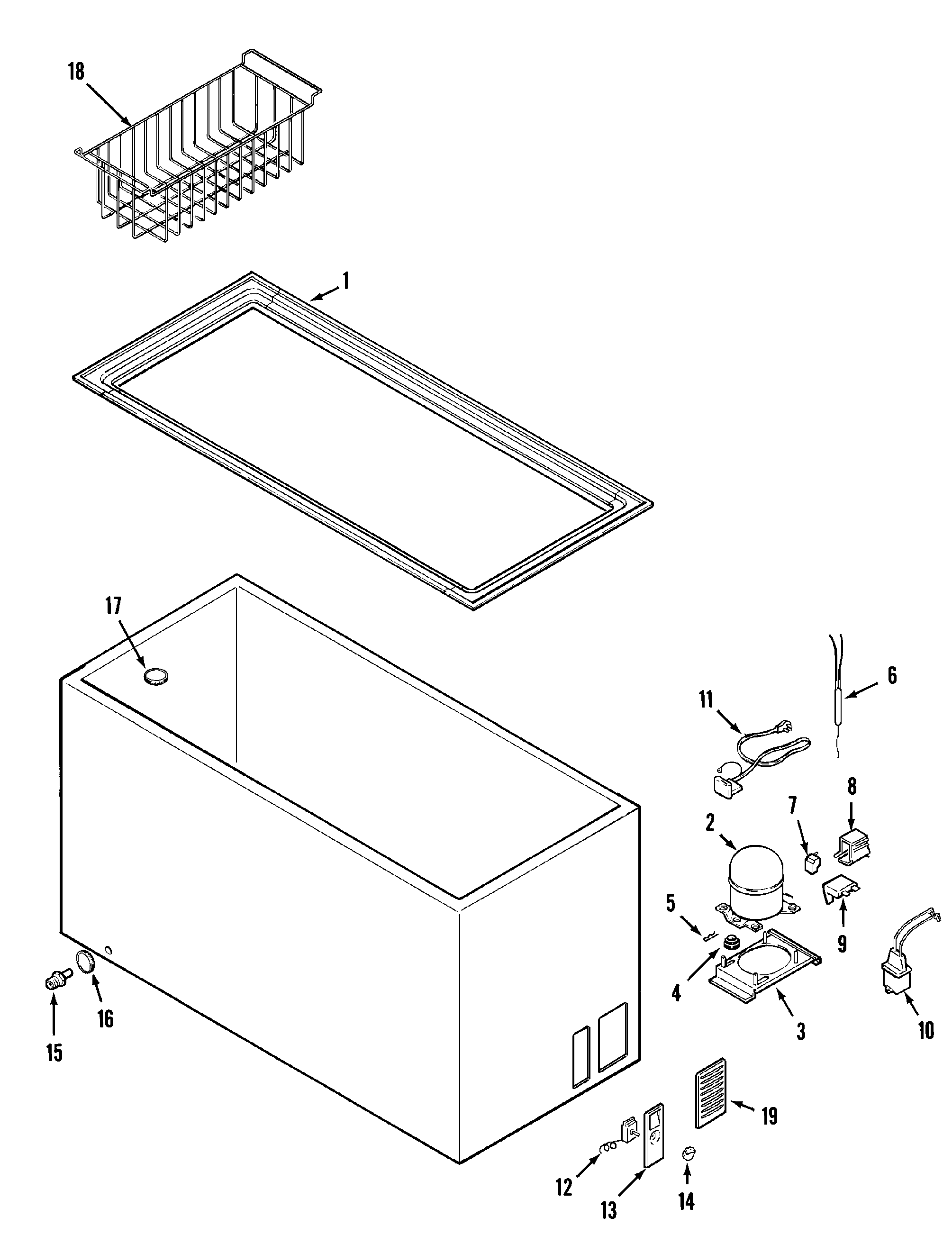

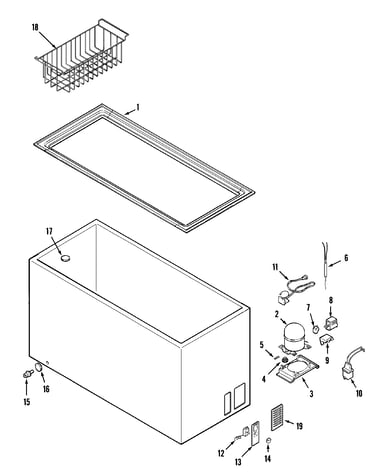

Cabinet diagram

Wire basket

Part #09100065

Replaced by #8210434A

?
Manufacturer substitution
This part replaces 09100065. Substitute parts can look different from the original.
$35.36 |
12% OFF Phone Price : $40.36
In Stock
Lock Kit 68001445
#7

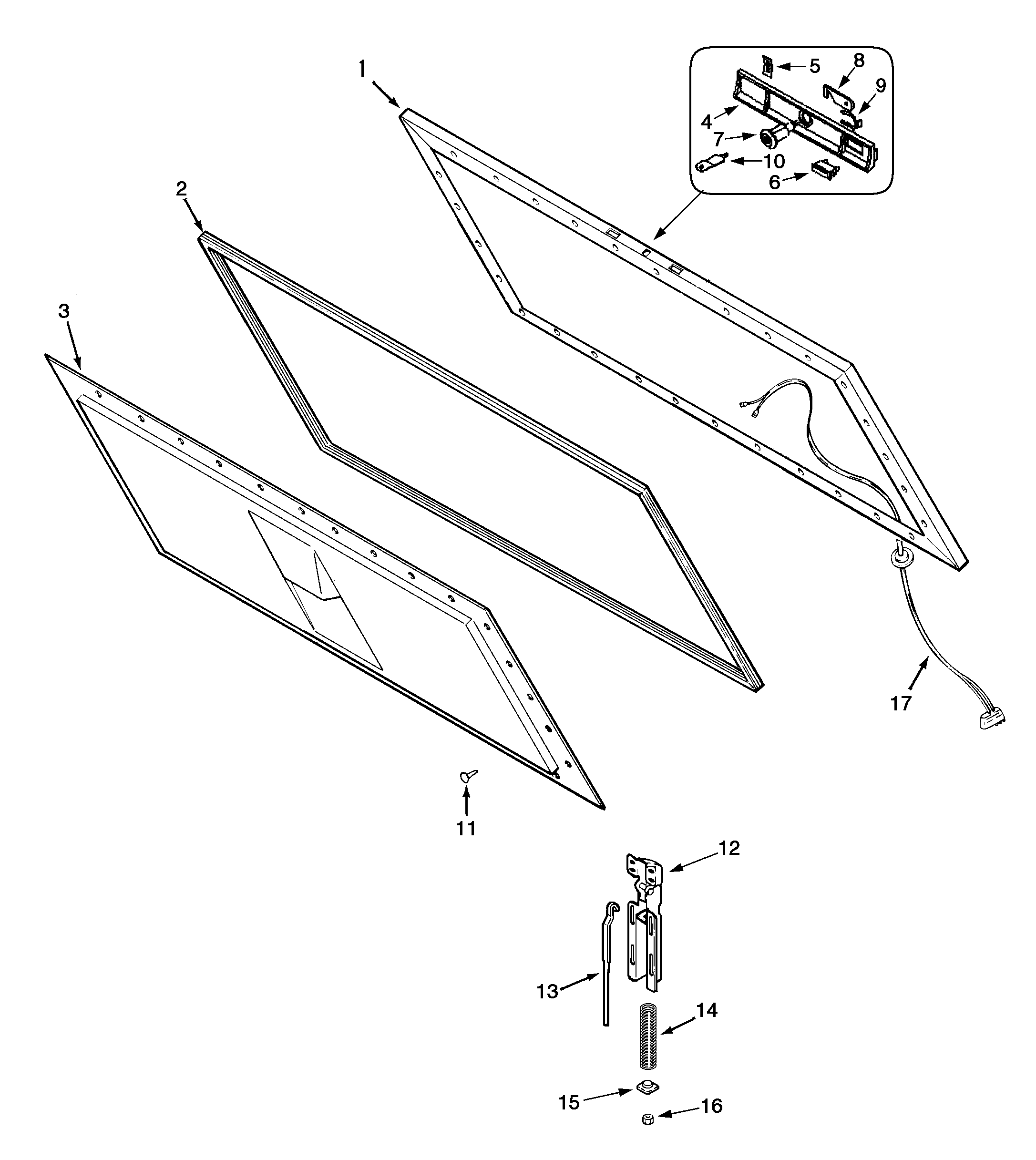

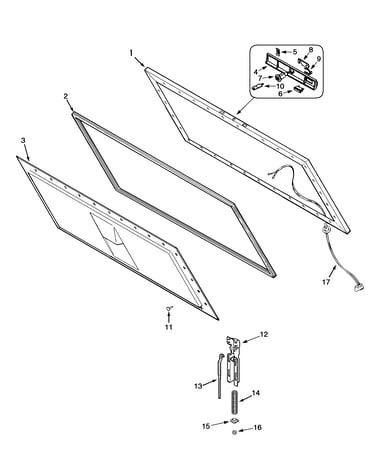

Lid diagram

Lock kit

Part #68001445

Replaced by #3-35284-001

?
Manufacturer substitution
This part replaces 68001445. Substitute parts can look different from the original.
$20.56 |
21% OFF MSRP : $26.00
In Stock
Clip, Handle (series K0) 09100080
#5A

Lid diagram

Clip, handle (series k0)

Part #09100080

The manufacturer no longer makes this part, and there's no substitute part

Adapter, Drain (series K0) 09100110
#15

Cabinet diagram

Adapter, drain (series k0)

Part #09100110

The manufacturer no longer makes this part, and there's no substitute part

Clip, Wire Harness (qty 3) (series K0) (non-illus) 68001450
#11A

Cabinet diagram

Clip, wire harness (qty 3) (series k0) (non-illus)

Part #68001450

The manufacturer no longer makes this part, and there's no substitute part

Relay, Start (series K0) 68001512
#7

Cabinet diagram

Relay, start (series k0)

Part #68001512

The manufacturer no longer makes this part, and there's no substitute part

Clip Kit, Liner (qty. 60) (series K0) 68001346
#11

Lid diagram

Clip kit, liner (qty. 60) (series k0)

Part #68001346

The manufacturer no longer makes this part, and there's no substitute part

Grommet, Compressor (qty 4) (series K0) 09100025
#4

Cabinet diagram

Grommet, compressor (qty 4) (series k0)

Part #09100025

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness, Lid (series K0) 68001579
#17

Lid diagram

Wire harness, lid (series k0)

Part #68001579

The manufacturer no longer makes this part, and there's no substitute part

Use A3072803 R9800548
#6

Lid diagram

Use a3072803

Part #R9800548

The manufacturer no longer makes this part, and there's no substitute part
