Model # NA30K6550TS/AA-00 Official Samsung gas cooktop

Here are the diagrams and repair parts for Official Samsung NA30K6550TS-AA-00 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Range Surface Burner Cap DG62-00137A
#8

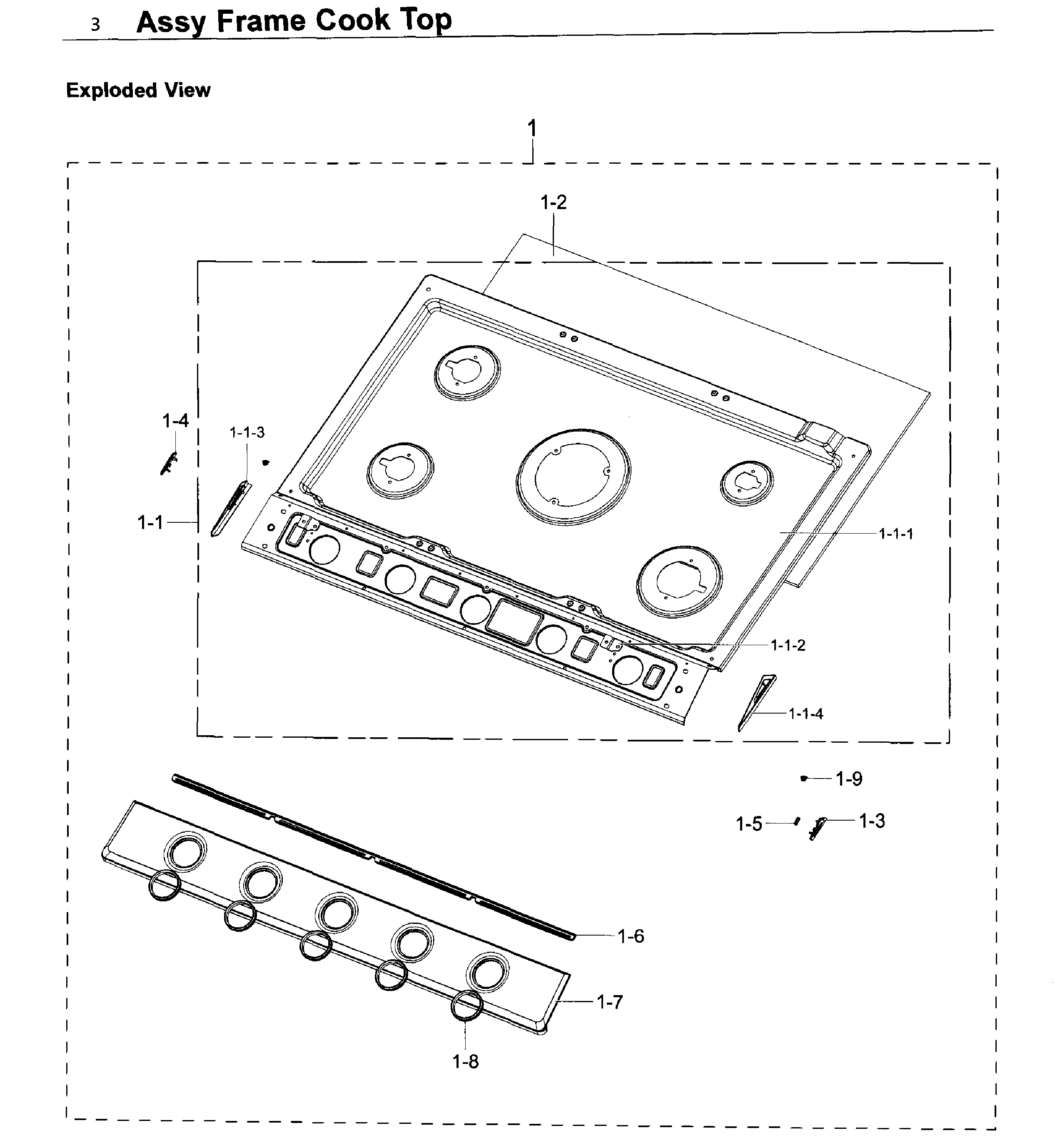

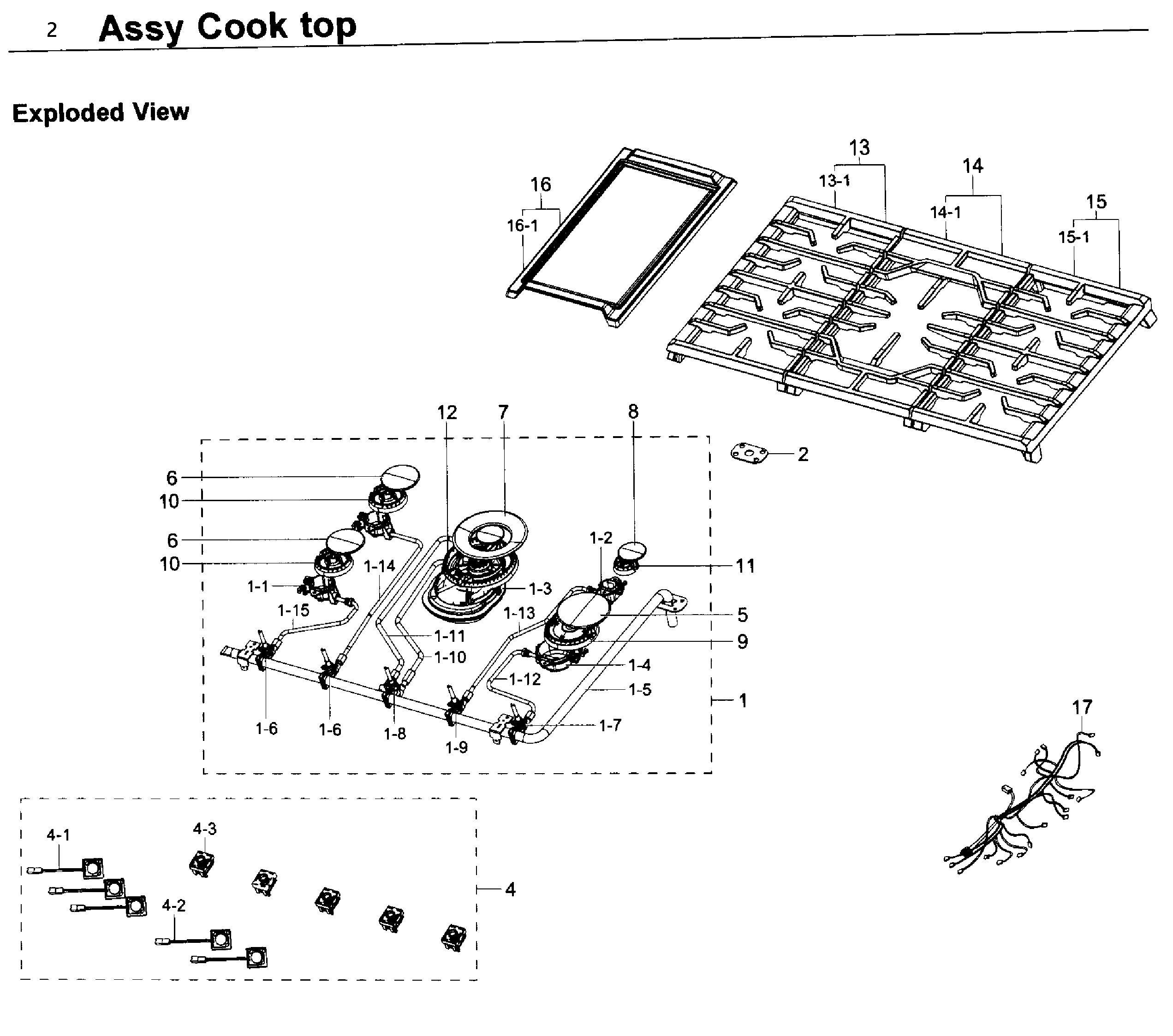

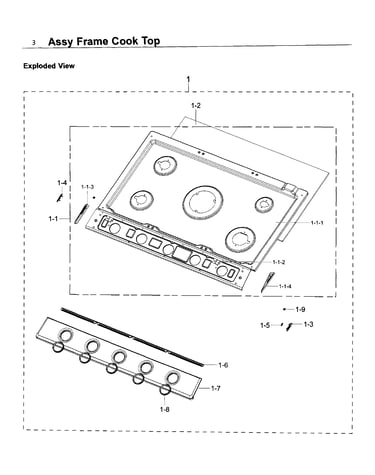

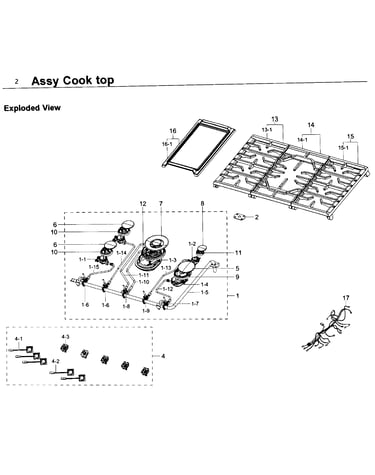

Cooktop diagram

Range surface burner cap

Part #DG62-00137A

BEST SELLER
$58.81
8% OFF Phone Price : $63.81
In Stock
Range Surface Burner Igniter DG94-00540A
#7

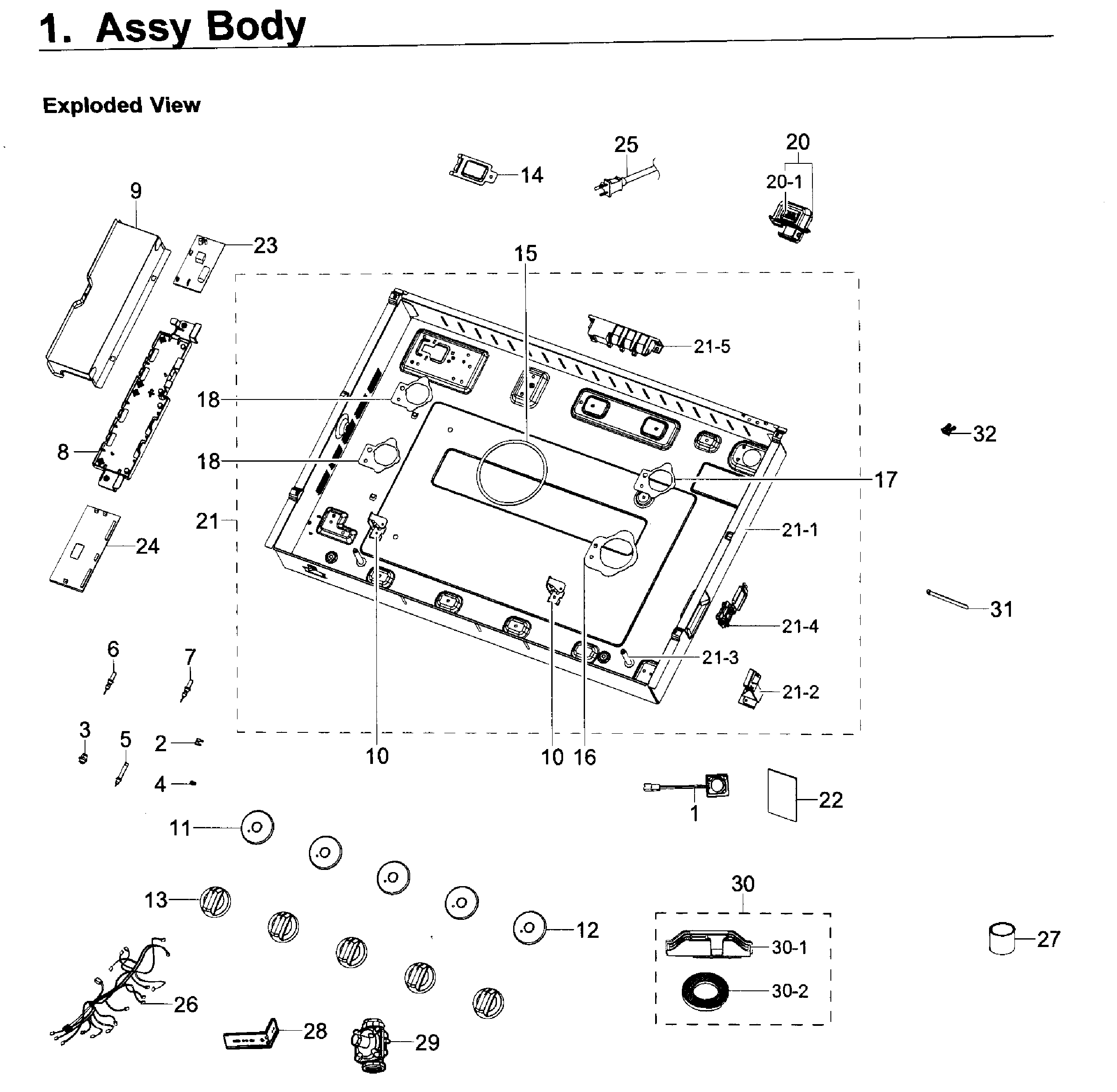

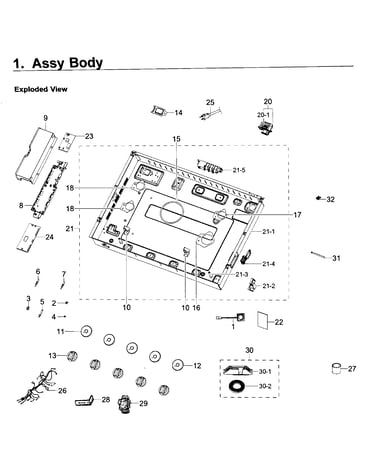

Body diagram
