Central Air Conditioner

Model # H1RA048S06B Official York central air conditioner

Here are the diagrams and repair parts for Official York H1RA048S06B central air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Central Air Conditioner Contactor 024-26018-000
#4

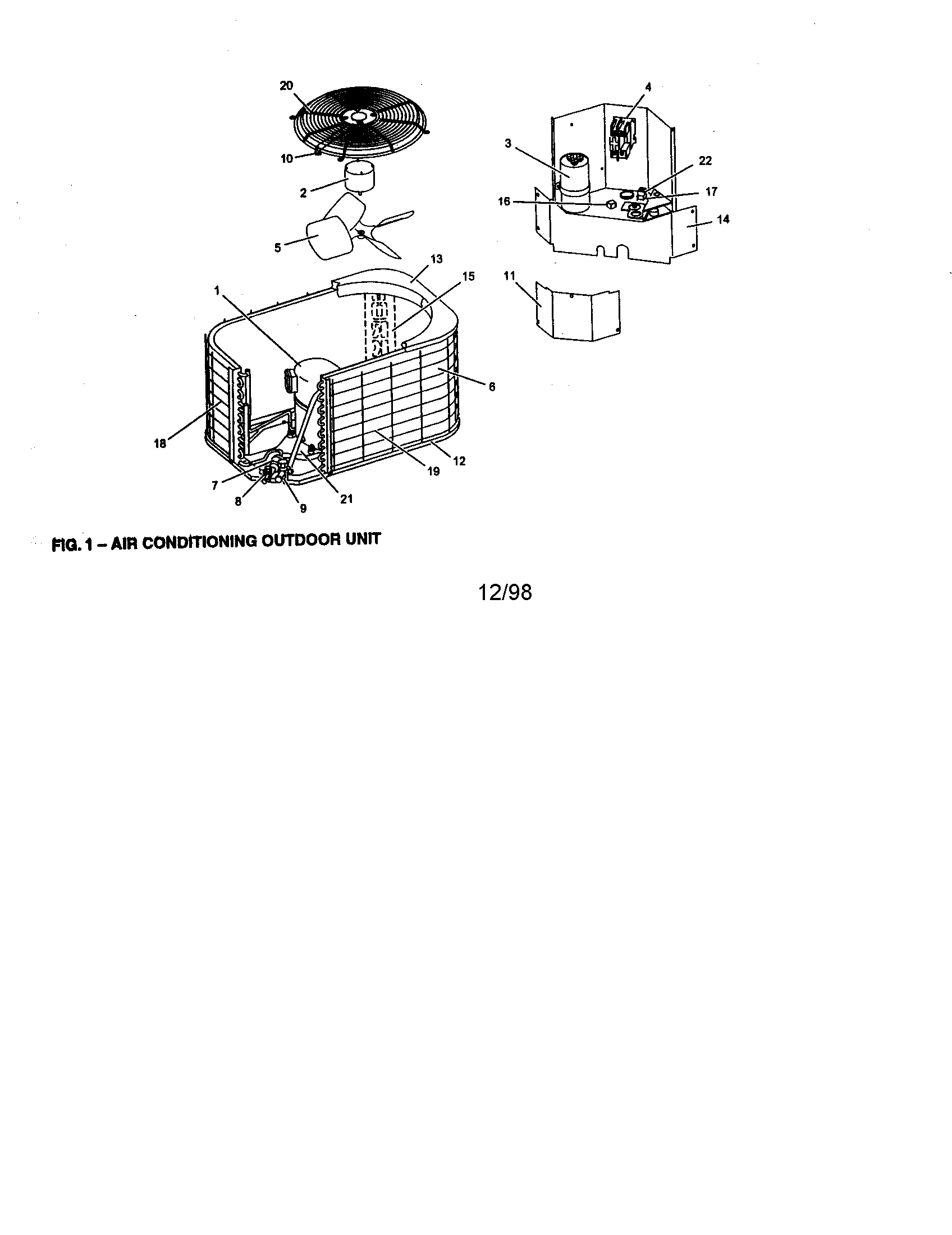

Fig.1 air conditioning outdoor unit diagram

Central air conditioner contactor

Part #024-26018-000

The manufacturer no longer makes this part, and there's no substitute part

Valve Liqu 025-31899-000
#8

Fig.1 air conditioning outdoor unit diagram

Valve liqu

Part #025-31899-000

Replaced by #02211571000

?
Manufacturer substitution
This part replaces 025-31899-000. Substitute parts can look different from the original.
$40.71
In Stock
Top Panel 073-15739-001
#13

Fig.1 air conditioning outdoor unit diagram

Top panel

Part #073-15739-001

The manufacturer no longer makes this part, and there's no substitute part

Pan Base 073-15738-000
#12

Fig.1 air conditioning outdoor unit diagram

Pan base

Part #073-15738-000

The manufacturer no longer makes this part, and there's no substitute part

Guard Coil 073-16634-004
#18

Fig.1 air conditioning outdoor unit diagram

Guard coil

Part #073-16634-004

The manufacturer no longer makes this part, and there's no substitute part

Electrical Plug 373-16750-001
#22

Fig.1 air conditioning outdoor unit diagram

Electrical plug

Part #373-16750-001

The manufacturer no longer makes this part, and there's no substitute part

Panel Corn 073-15606-004
#15

Fig.1 air conditioning outdoor unit diagram

Panel corn

Part #073-15606-004

The manufacturer no longer makes this part, and there's no substitute part

Reg Valve 025-31901-000
#9

Fig.1 air conditioning outdoor unit diagram

Reg valve

Part #025-31901-000

The manufacturer no longer makes this part, and there's no substitute part

Isol Rub 028-09519-000
#21

Fig.1 air conditioning outdoor unit diagram

Isol rub

Part #028-09519-000

The manufacturer no longer makes this part, and there's no substitute part

Compressor 015-02784-004
#1

Fig.1 air conditioning outdoor unit diagram

Compressor

Part #015-02784-004

The manufacturer no longer makes this part, and there's no substitute part
