Kenmore 2538754113 air conditioner

Kenmore 2538754113 air conditioner Parts

Here are the diagrams and repair parts for Kenmore 2538754113 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 2538754113 Air Conditioner

  • Compressor for Kenmore 2538754113 - Part 5303322099

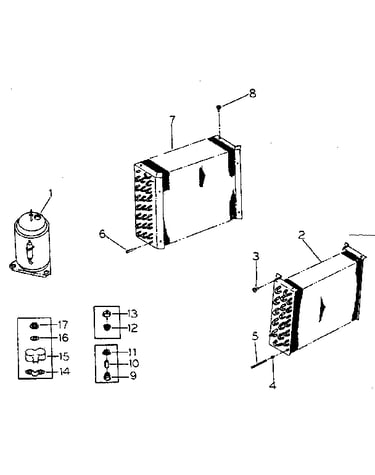

    Unit parts diagram

    Compressor

    Part #518733-02

    Replaced by #5303322099

    Info Icon
    Manufacturer substitution
    This part replaces 518733-02. Substitute parts can look different from the original.
    In Stock
    $402.10
    Minus Item
    Qty
    Plus Item
  • Washer Nut, 1/4 X 20-in for Kenmore 2538754113 - Part 137086500

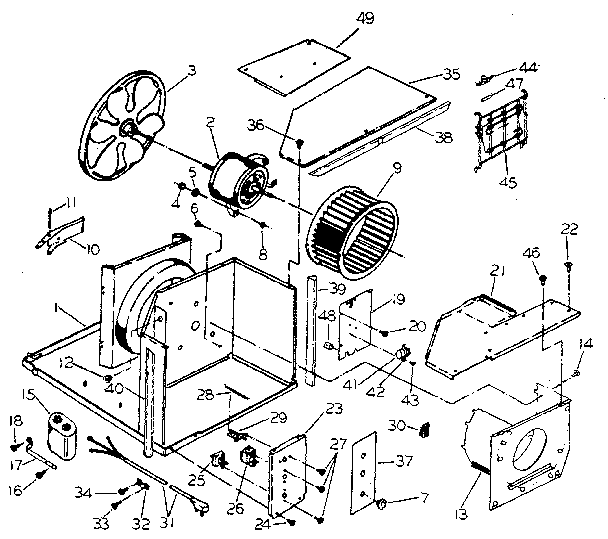

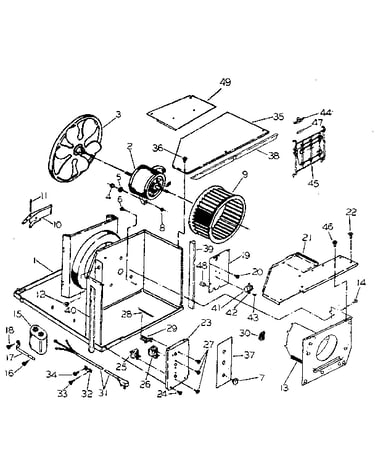

    Electrical system and air handling parts diagram

    Nut

    Part #521082

    Replaced by #137086500

    Info Icon
    Manufacturer substitution
    This part replaces 521082. Substitute parts can look different from the original.
    In Stock
    $40.49
    Minus Item
    Qty
    Plus Item
  • Condenser for Kenmore 2538754113 - Part 5303209576

    Unit parts diagram

    Condenser

    Part #472701

    Replaced by #5303209576

    Info Icon
    Manufacturer substitution
    This part replaces 472701. Substitute parts can look different from the original.
    In Stock
    $317.81
    Minus Item
    Qty
    Plus Item
  • Louver for Kenmore 2538754113 - Part 5300136381

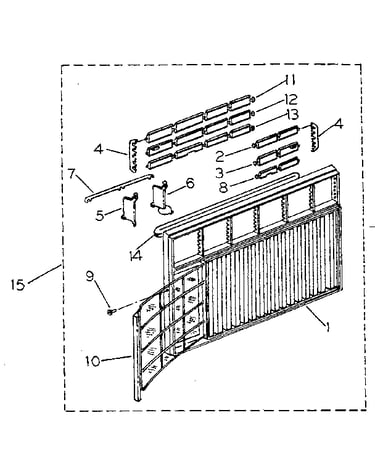

    Cabinet and front panel parts diagram

    Louver

    Part #136381

    Replaced by #5300136381

    Info Icon
    Manufacturer substitution
    This part replaces 136381. Substitute parts can look different from the original.
    In Stock
    $27.35
    Minus Item
    Qty
    Plus Item
  • Terminal Cover for Kenmore 2538754113 - Part 5304440969

    Unit parts diagram

    Terminal Cover

    Part #3211011

    Replaced by #5304440969

    Info Icon
    Manufacturer substitution
    This part replaces 3211011. Substitute parts can look different from the original.
    In Stock
    $39.54
    Minus Item
    Qty
    Plus Item
  • Tube for Kenmore 2538754113 - Part 5308017120

    Unit parts diagram

    Capillary Tube

    Part #3211010

    Replaced by #5308017120

    Info Icon
    Manufacturer substitution
    This part replaces 3211010. Substitute parts can look different from the original.
    In Stock
    $109.37
    Minus Item
    Qty
    Plus Item
  • Spacer for Kenmore 2538754113 - Part 5303211009

    Electrical system and air handling parts diagram

    Spacer

    Part #520762

    Replaced by #5303211009

    Info Icon
    Manufacturer substitution
    This part replaces 520762. Substitute parts can look different from the original.
    In Stock
    $28.97
    Minus Item
    Qty
    Plus Item
  • Louver for Kenmore 2538754113 - Part 5303208267

    Cabinet and front panel parts diagram

    Louver

    Part #382101

    Replaced by #5303208267

    Info Icon
    Manufacturer substitution
    This part replaces 382101. Substitute parts can look different from the original.
    In Stock
    $38.10
    Minus Item
    Qty
    Plus Item
  • Strap for Kenmore 2538754113 - Part 5308047452

    Electrical system and air handling parts diagram

    Strap

    Part #511947

    Replaced by #5308047452

    Info Icon
    Manufacturer substitution
    This part replaces 511947. Substitute parts can look different from the original.
    In Stock
    $27.17
    Minus Item
    Qty
    Plus Item
  • Terminal Cover for Kenmore 2538754113 - Part 5303002038

    Unit parts diagram

    Nut

    Part #315305

    Replaced by #5303002038

    Info Icon
    Manufacturer substitution
    This part replaces 315305. Substitute parts can look different from the original.
    In Stock
    $25.37
    Minus Item
    Qty
    Plus Item
