Craftsman
Bench Grinder

Model # 319190540 Official Craftsman bench grinder

Here are the diagrams and repair parts for Official Craftsman 319190540 bench grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Switch Ovrld 8080
#66

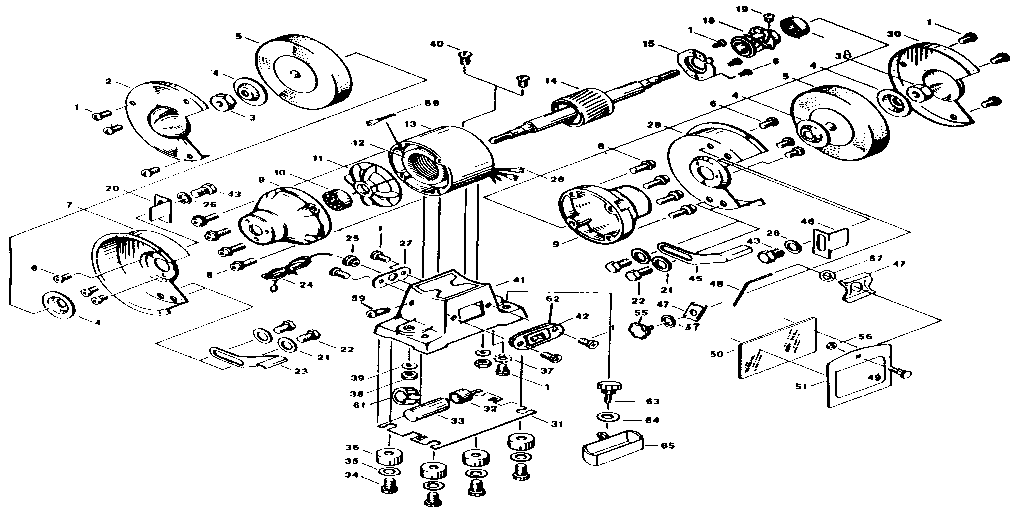

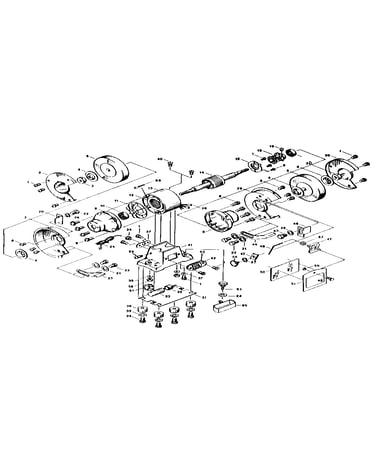

Unit parts diagram

Switch ovrld

Part #8080

The manufacturer no longer makes this part, and there's no substitute part

Guard Whl 8007
#7

Unit parts diagram

Guard whl

Part #8007

The manufacturer no longer makes this part, and there's no substitute part

Stator 8012
#12

Unit parts diagram

Stator

Part #8012

The manufacturer no longer makes this part, and there's no substitute part

Grindrlabl 190540L

#NI

All parts diagram

Grindrlabl

Part #190540L

The manufacturer no longer makes this part, and there's no substitute part

Cord 8066
#7

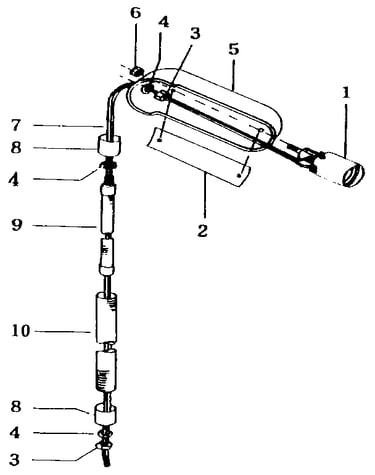

Light diagram

Cord

Part #8066

The manufacturer no longer makes this part, and there's no substitute part

Fan 8011
#11

Unit parts diagram

Fan

Part #8011

The manufacturer no longer makes this part, and there's no substitute part

Switch 8042
#42

Unit parts diagram

Switch

Part #8042

The manufacturer no longer makes this part, and there's no substitute part

Spark Breakr 8046
#46

Unit parts diagram

Spark breakr

Part #8046

The manufacturer no longer makes this part, and there's no substitute part

Bolt 8055
#55

Unit parts diagram

Bolt

Part #8055

The manufacturer no longer makes this part, and there's no substitute part

Screw 8006
#6

Unit parts diagram

Screw

Part #8006

The manufacturer no longer makes this part, and there's no substitute part
