Frigidaire GRFC2353AF1 bottom-mount refrigerator Parts

Yes. Frigidaire refrigerators, including model GRFC2353AF1, are designed to be repairable because key systems (cooling airflow, temperature sensing, door sealing, and ice and water components) use replaceable parts that can be diagnosed and swapped when they fail.

What “repairable” usually means on GRFC2353AF1

Most repairs fall into a few common categories that we can troubleshoot with symptoms and then match to the right replacement part.

• Cooling issues caused by failed airflow components (fans, motors)
• Temperature problems caused by a bad sensor (thermistor)
• Frost, leaks, or warm spots caused by a worn door gasket
• Ice maker problems caused by a failed ice maker assembly
• Water taste or slow dispensing caused by a clogged water filter

Common repair parts for this model

These are examples of parts we commonly see replaced on bottom-mount refrigerators like GRFC2353AF1.

Symptom	Likely system	Example part on this model
Warm fridge, freezer OK (or vice versa)	Air circulation	Frigidaire refrigerator evaporator fan motor 809069206
Temps swing, food freezing or too warm	Temperature sensing	Refrigerator temperature sensor 5303918775
Frost buildup, moisture, door not sealing	Door seal	Frigidaire refrigerator freezer door gasket (gray) 5304537408
No ice or poor ice harvest	Ice maker	Ice maker,assembly ,freezer ,twist tray A21755301
Bad-tasting water, slow flow	Filtration	Frigidaire refrigerator water filter FPPWFU01

Quick checks before you buy parts

These steps help confirm the problem so you replace the right component the first time.

• Verify temperature settings; typical targets are 37°F for fresh food and 0°F for freezer
• Make sure vents are not blocked by food packages
• Listen for fan operation (evaporator fan noise often changes when you open the door)
• Inspect door gaskets for gaps, tears, or areas that feel loose
• If you have a display error, look it up using Frigidaire refrigerator error codes

Why it matters

Repairing your GRFC2353AF1 is often faster and more cost-effective than replacing the refrigerator, especially when the issue is a serviceable part like a fan motor, thermistor, gasket, or water filter.

Last updated: February 2026

Yes. For your Frigidaire bottom-mount refrigerator model GRFC2353AF1, looking up parts by the full model number is the most accurate way to match the correct replacement part and avoid fit or compatibility issues.

How to look up parts by model number

• Use the complete model number GRFC2353AF1 (letters and numbers matter).

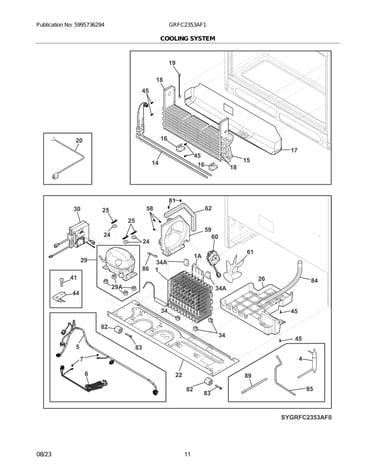

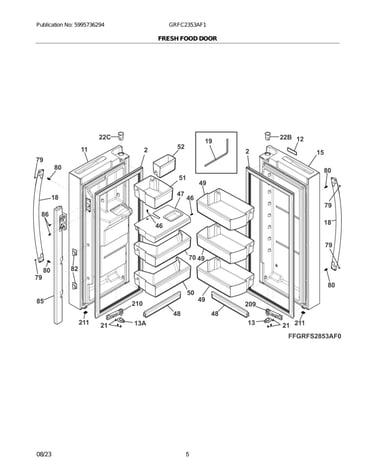

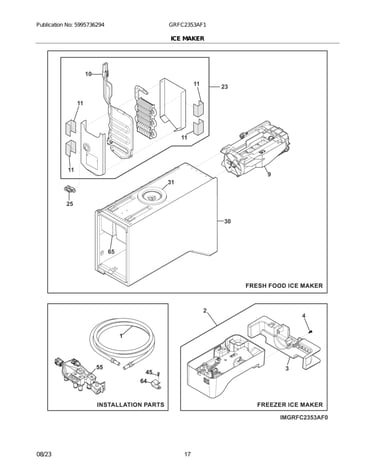

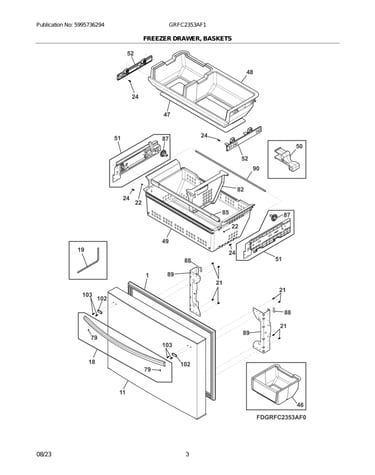

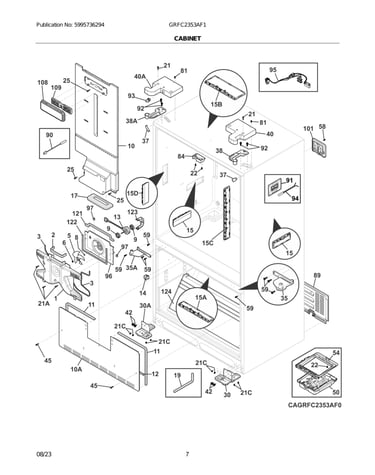

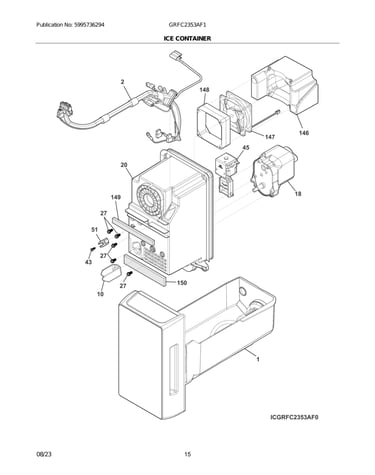

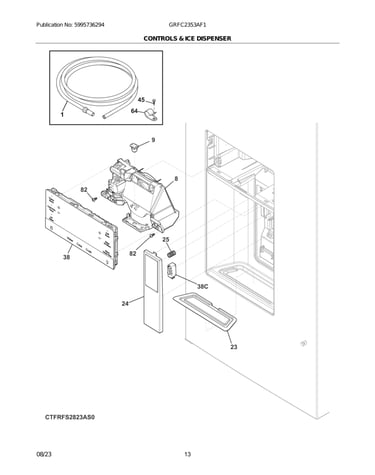

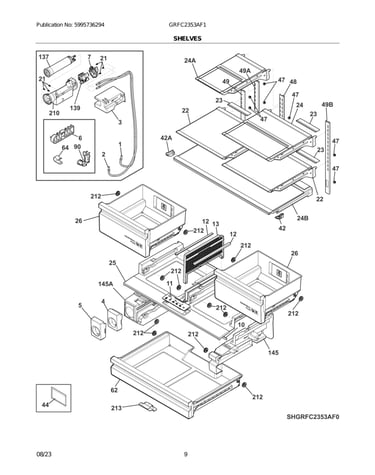

• Open the parts list and diagrams for your model and choose the section you need (water system, doors, cooling, ice maker).
• Match the part by name and part ID, not just by appearance.
• If multiple similar parts show up (like sensors), compare where the part installs and what symptom you are fixing.
• Order the exact match to avoid returns and repeat repairs.

Common parts customers replace on GRFC2353AF1

These are examples of model-matched parts shown for this refrigerator:

• Frigidaire refrigerator water filter FPPWFU01
• Dryer filter 5303305677 (refrigerator filter dryer)
• Frigidaire refrigerator freezer door gasket (gray) 5304537408
• Ice maker,assembly ,freezer ,twist tray A21755301

Quick compatibility checklist

What you have	What to match in the parts list	Why it helps
Model number	GRFC2353AF1	Ensures the diagram set is correct
Symptom (leak, warm temps, no ice)	System section (water, cooling, ice maker)	Narrows the right part group
Old part label	Part ID and part name	Prevents ordering a look-alike

Why it matters

Frigidaire refrigerators often use similar-looking components across multiple models. Using the exact model number GRFC2353AF1 helps us show the correct diagrams and the correct parts (for example, the right water filter, door gasket, or ice maker assembly) for your specific configuration.

For troubleshooting help tied to parts selection, we also recommend checking Frigidaire refrigerator error codes.

Last updated: February 2026

The most common problem we see with Frigidaire refrigerators like model GRFC2353AF1 is a cooling complaint: the fresh-food section runs warm, temperatures swing, or airflow feels weak. The most frequent root causes are restricted airflow (dirty coils, blocked vents), a failing fan motor, or a leaking door gasket.

Most common symptoms customers notice

• Refrigerator section warm but freezer still cold
• Food freezing in the refrigerator section (temperature control issue)
• Loud humming, rattling, or intermittent fan noise
• Frost buildup on the back wall or uneven cooling
• Ice maker slow, no ice, or small/hollow cubes

Top causes to check first (in order)

1. Airflow and loading: Make sure vents are not blocked by food packages.
2. Condenser area: Clean dust from the condenser coils and make sure the unit has proper clearance.
3. Evaporator fan operation: If airflow is weak or you hear squealing, the evaporator fan motor is a prime suspect; see how to fix your evaporator cooling fan.
4. Door sealing: A poor seal lets warm, humid air in and drives frosting and temperature swings; see how to fix a fridge door seal.
5. Temperature sensing: A bad sensor (thermistor) can cause erratic temps; the parts list for GRFC2353AF1 includes options like refrigerator temperature sensor 5303918775 and refrigerator temperature sensor 240597220.

Quick part-to-problem guide

Problem you see	Common culprit	Example part for GRFC2353AF1
Warm fridge, weak airflow	Evaporator fan motor	Frigidaire refrigerator evaporator fan motor 809069206
Frosting, sweating, warm spots	Door gasket leak	Frigidaire refrigerator freezer door gasket (gray) 5304537408
Temps swing, food freezing	Temperature sensor	Refrigerator temperature sensor 5303918775
Ice maker issues (slow/no ice)	Water supply, valve, air in line, ice maker	Common refrigerator ice maker problems and solutions

Why it matters

Cooling and ice maker problems often start as airflow or sealing issues. Fixing those early helps protect food quality, reduces frost buildup, and prevents the compressor from running longer than necessary.

Last updated: February 2026
