Kenmore 867734722 gas-fired direct vent wall furnace Parts
Here are the diagrams and repair parts for Kenmore 867734722 gas-fired direct vent wall furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 867734722 Gas-Fired Direct Vent Wall Furnace

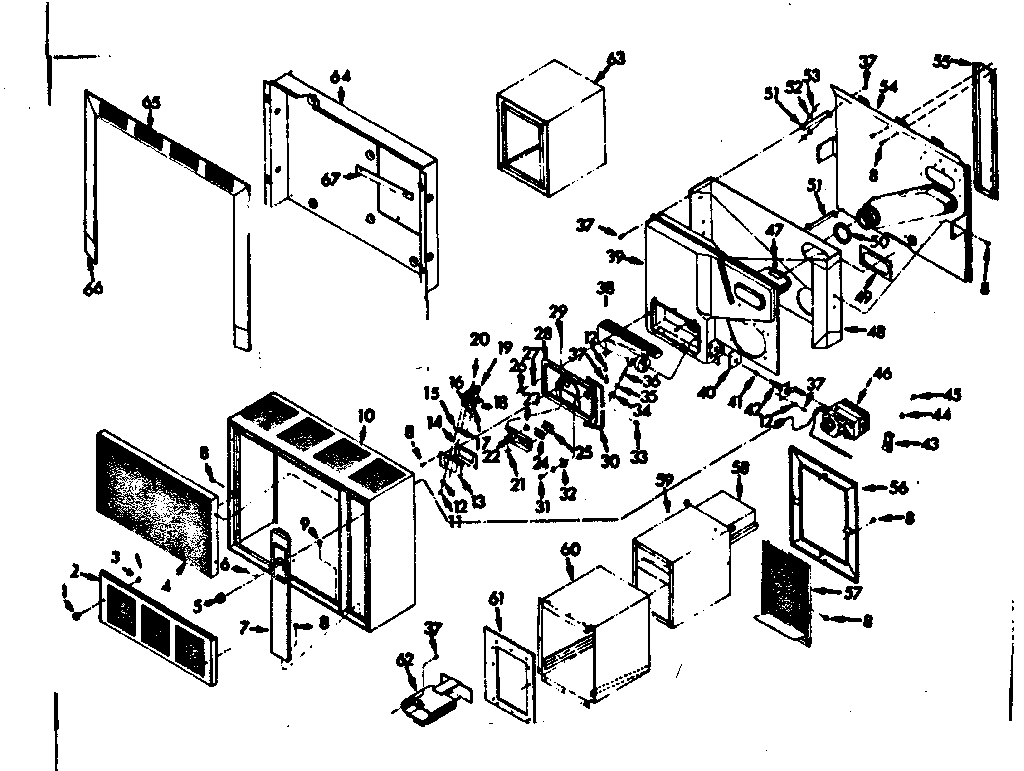

Furnace assemblies diagram
Thermocouple
Part #503076Replaced by #H06E-36
Manufacturer substitutionThis part replaces 503076. Substitute parts can look different from the original.In Stock$17.4110% OFF Phone Price : $19.41
Qty
Furnace assemblies diagram
Thermocouple
Part #503344Replaced by #H06E-36
Manufacturer substitutionThis part replaces 503344. Substitute parts can look different from the original.In Stock$17.4110% OFF Phone Price : $19.41QtyFurnace assemblies diagram
Ferrule Nut
Part #29441Replaced by #100108370
Manufacturer substitutionThis part replaces 29441. Substitute parts can look different from the original.In Stock$64.56QtyFurnace assemblies diagram
Pilot Tube
Part #85652Replaced by #100108370
Manufacturer substitutionThis part replaces 85652. Substitute parts can look different from the original.In Stock$64.56QtyFurnace assemblies diagram
Auto Valve
Part #502044Replaced by #710-205
Manufacturer substitutionThis part replaces 502044. Substitute parts can look different from the original.In Stock$369.80$12.00 OFF Phone Price : $381.80QtyFurnace assemblies diagram
Gas Valve
Part #502835Replaced by #700-205
Manufacturer substitutionThis part replaces 502835. Substitute parts can look different from the original.In Stock$969.91$12.00 OFF Phone Price : $981.91QtyFurnace assemblies diagram
Orifice
Part #37885Replaced by #37885
Manufacturer substitutionThis part replaces 37885. Substitute parts can look different from the original.In Stock$615.09QtyFurnace assemblies diagram
Gas Valve
Part #503122Replaced by #700-205
Manufacturer substitutionThis part replaces 503122. Substitute parts can look different from the original.In Stock$969.91$12.00 OFF Phone Price : $981.91QtyFurnace assemblies diagram
Pilot Burner
Part #503051
The manufacturer no longer makes this part, and there's no substitute part
Furnace assemblies diagram
Control
Part #503340
The manufacturer no longer makes this part, and there's no substitute part
