Model #917351060 Craftsman chainsaw

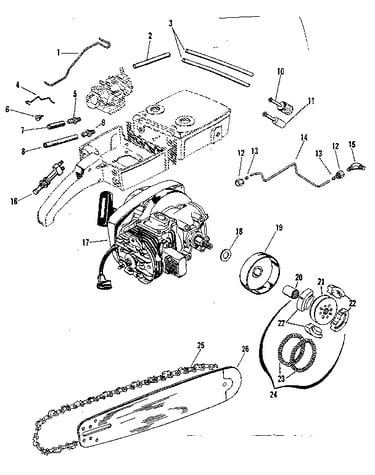

Here are the diagrams and repair parts for Craftsman 917351060 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 205 parts

    Spacer

    #78

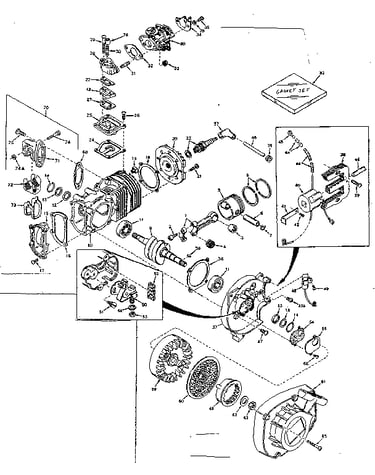

    Engine Diagram

    Spacer

    Part #28212
    ?
    Manufacturer substitution
    This part replaces 650655. Substitute parts can look different from the original.
    This part replaces 650655
    This item is not returnable
    $2.16

    In Stock

    Oil O Ring

    #6

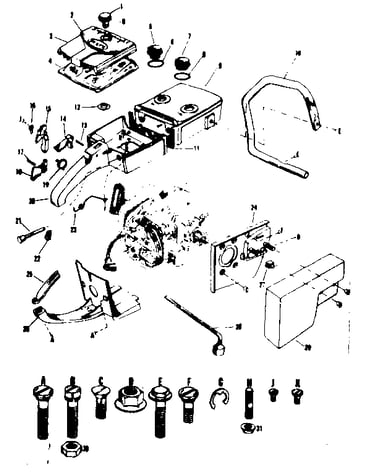

    Main frame Diagram

    Oil o ring

    Part #6168H

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #30

    Main frame Diagram

    Nut

    Part #347H

    The manufacturer no longer makes this part, and there's no substitute part

    Lawn & Garden Equipment Engine Carburetor Needle Valve

    #20

    Replacement parts Diagram

    Lawn & garden equipment engine carburetor needle valve

    Part #49-039
    ?
    Manufacturer substitution
    This part replaces 631397. Substitute parts can look different from the original.
    This part replaces 631397
    $8.81

    Back Order

    Flat Washer

    #79

    Engine Diagram

    Flat washer

    Part #650147

    The manufacturer no longer makes this part, and there's no substitute part

    Spring Retainer

    #14

    Engine Diagram

    Spring retainer

    Part #510109A
    ?
    Manufacturer substitution
    This part replaces 510109. Substitute parts can look different from the original.
    This part replaces 510109
    This item is not returnable
    $2.67

    In Stock

    Lawn & Garden Equipment Engine Spark Plug Boot

    #57

    Engine Diagram

    Lawn & garden equipment engine spark plug boot

    Part #610118
    ?
    Manufacturer substitution
    This part replaces 610118. Substitute parts can look different from the original.
    This part replaces 610118
    This item is not returnable
    $4.59 |
    24% OFF
    MSRP: $6.00

    In Stock

    Lawn & Garden Equipment Engine Nut

    #63

    Engine Diagram

    Lawn & garden equipment engine nut

    Part #650390
    ?
    Manufacturer substitution
    This part replaces 650577. Substitute parts can look different from the original.
    This part replaces 650577
    This item is not returnable
    $2.16

    In Stock

    Key

    #58

    Engine Diagram

    Key

    Part #650455

    The manufacturer no longer makes this part, and there's no substitute part

    Gasket

    #69

    Engine Diagram

    Gasket

    Part #510207A
    ?
    Manufacturer substitution
    This part replaces 510230. Substitute parts can look different from the original.
    This part replaces 510230
    This item is not returnable
    $3.96

    In Stock
