Kenmore
Washer

Model # 1106102700 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 1106102700 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 278 parts  |
Hose Clamp 272856
#32

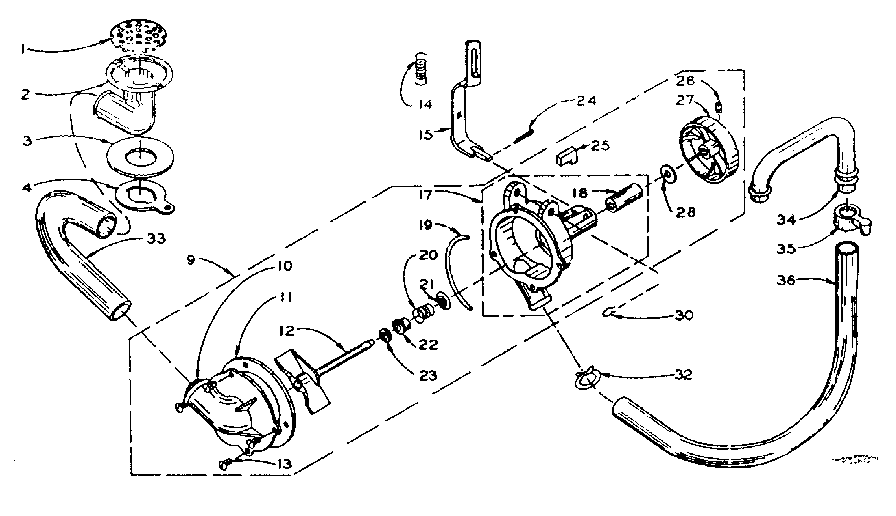

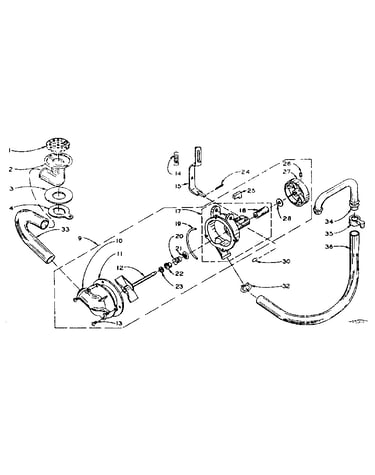

Pump assembly diagram

Hose clamp

Part #272856

The manufacturer no longer makes this part, and there's no substitute part

Nut 90984
#70

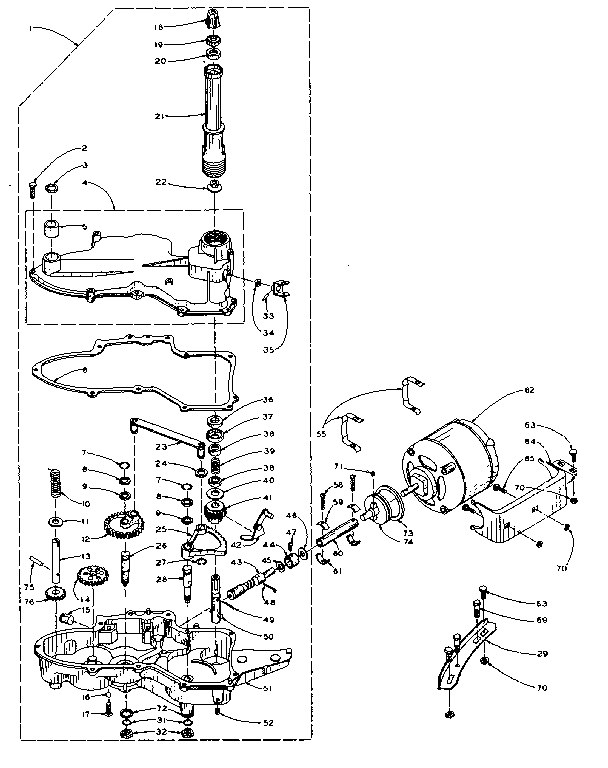

Worm gear case and motor assembly diagram

Nut

Part #90984

$16.79 |
11% OFF Phone Price : $18.79
In Stock
Pin 90782
#49

Worm gear case and motor assembly diagram

Pin

Part #90782

The manufacturer no longer makes this part, and there's no substitute part

Screw 52935
#60

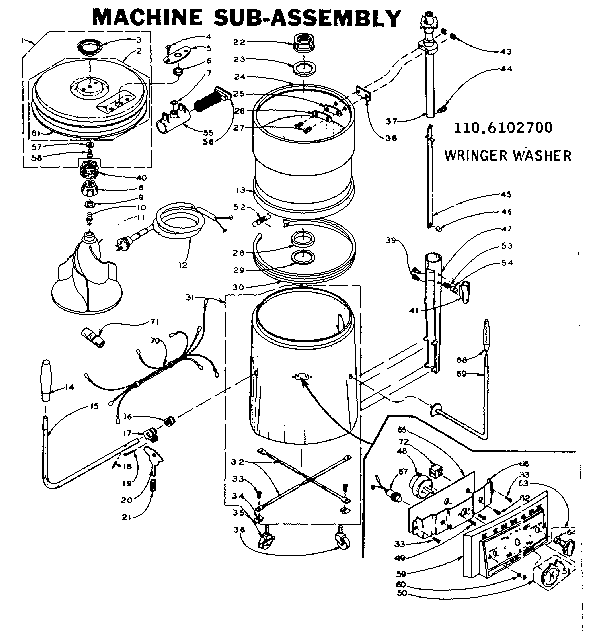

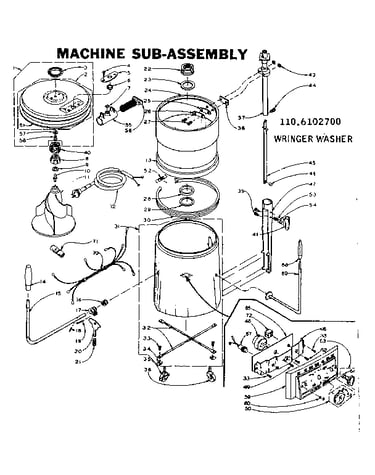

Machine sub-assembly diagram

Screw

Part #52935

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw 90767
#24

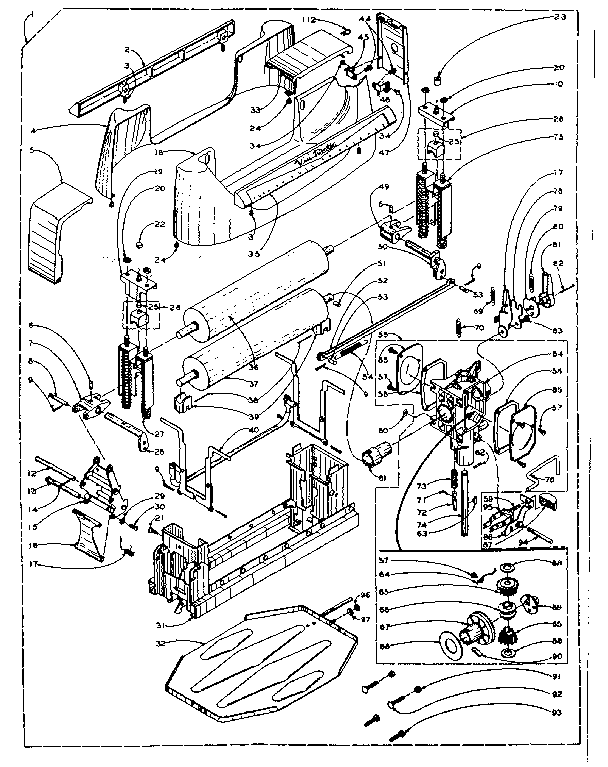

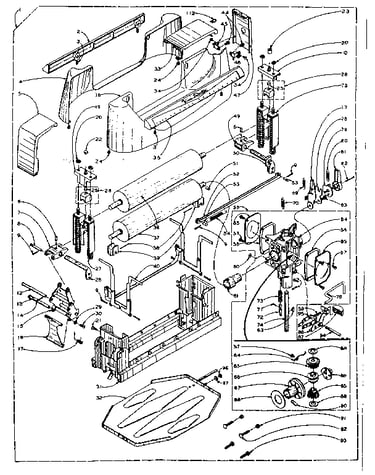

Wringer and wringer gear case assembly diagram

Tap screw

Part #90767

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Nut 271172
#91

Wringer and wringer gear case assembly diagram

Nut

Part #271172

The manufacturer no longer makes this part, and there's no substitute part

Clamp 232402
#55

Worm gear case and motor assembly diagram

Clamp

Part #232402

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 232402. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
59% OFF MSRP : $16.00
In Stock
Screw 90464
#33

Machine sub-assembly diagram

Screw

Part #90464

The manufacturer no longer makes this part, and there's no substitute part

Pin 90379
#48

Worm gear case and motor assembly diagram

Pin

Part #90379

The manufacturer no longer makes this part, and there's no substitute part

Connector 75614
#71

Machine sub-assembly diagram

Connector

Part #75614

Replaced by #WP75614

?
Manufacturer substitution
This part replaces 75614. Substitute parts can look different from the original.
$25.64
In Stock
