Kenmore
Charcoal Grill

Model # 920106632 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 920106632 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Screw STD610807
#15

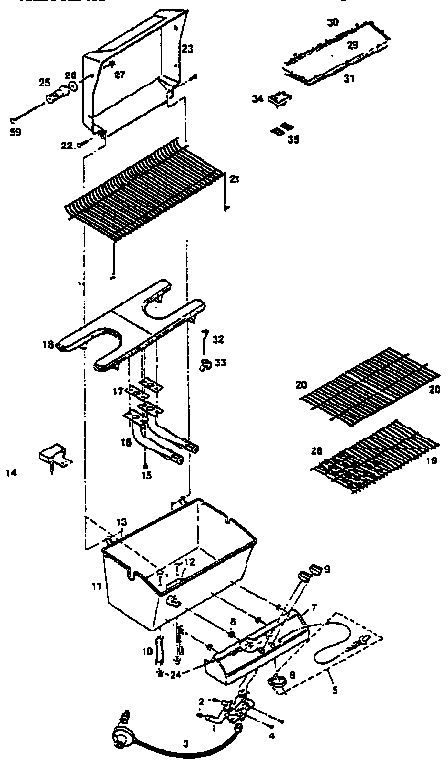

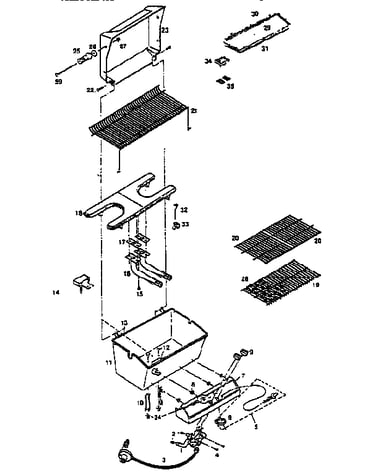

Grill and burner section diagram

Screw

Part #STD610807

The manufacturer no longer makes this part, and there's no substitute part

Leg 15-9651
#39

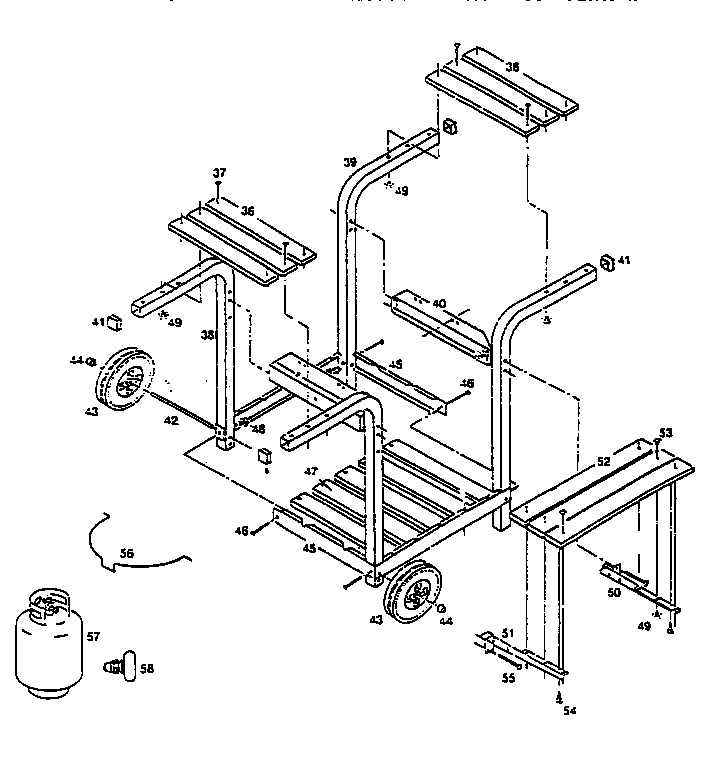

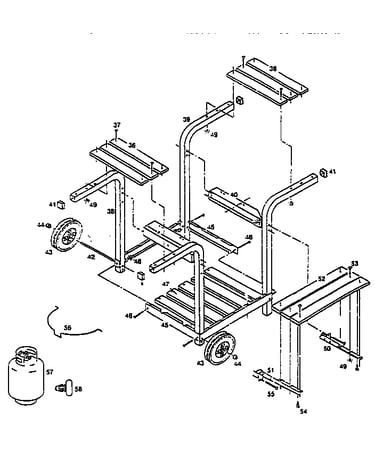

Deluxe cart diagram

Leg

Part #15-9651

The manufacturer no longer makes this part, and there's no substitute part

Handle Brace 15-9707
#40

Deluxe cart diagram

Handle brace

Part #15-9707

The manufacturer no longer makes this part, and there's no substitute part

10-24 X 2" Machine Screw STD511020
#37

Deluxe cart diagram

10-24 x 2" machine screw

Part #STD511020

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 40-3114

#NI

All parts diagram

Owner's manual

Part #40-3114

The manufacturer no longer makes this part, and there's no substitute part

Plank 40-2838
#36

Deluxe cart diagram

Plank

Part #40-2838

The manufacturer no longer makes this part, and there's no substitute part

Hose 40-2604
#3

Grill and burner section diagram

Hose

Part #40-2604

The manufacturer no longer makes this part, and there's no substitute part

Cylinder 2002
#57

Deluxe cart diagram

Cylinder

Part #2002

The manufacturer no longer makes this part, and there's no substitute part

Leg 15-9650
#38

Deluxe cart diagram

Leg

Part #15-9650

The manufacturer no longer makes this part, and there's no substitute part

Nut 40-2545
#6

Grill and burner section diagram

Nut

Part #40-2545

The manufacturer no longer makes this part, and there's no substitute part
